 power switching power supply Adjustable power supply laboratory power supply

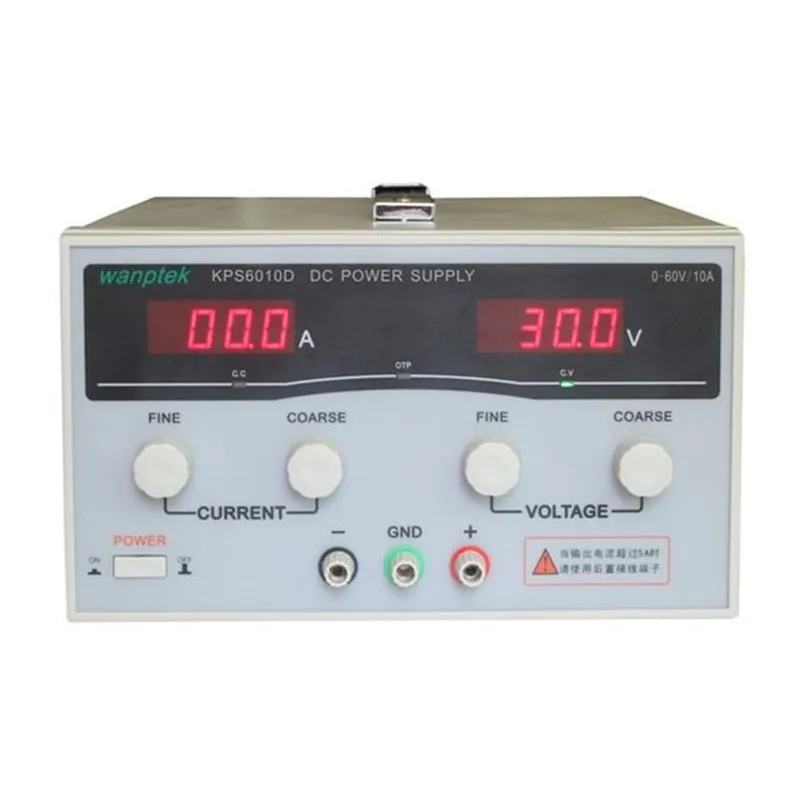

 KPS6010D  60V / 10A

 KPS6020D  60V / 20A

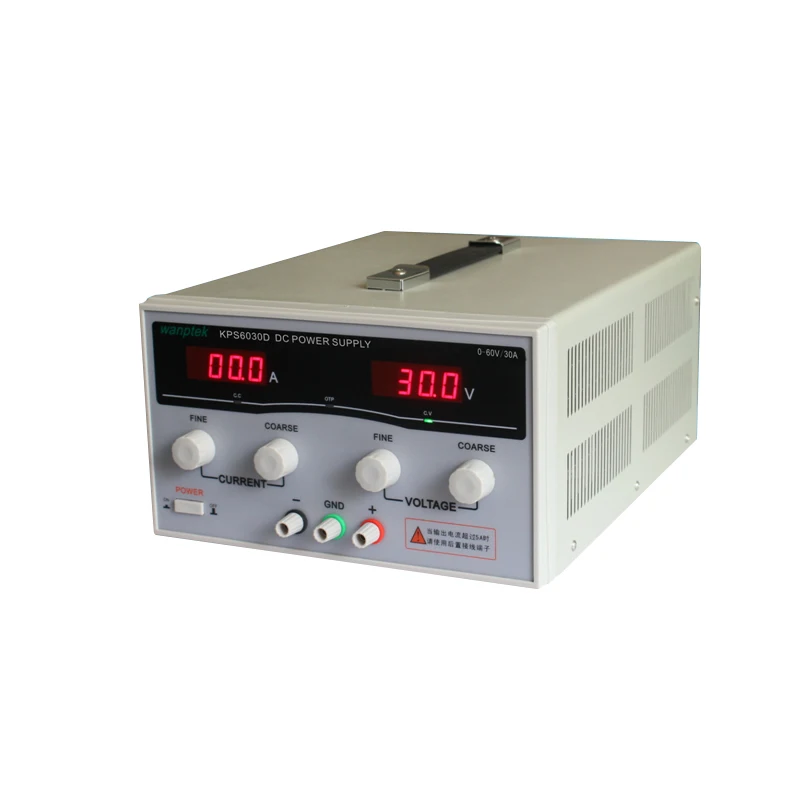

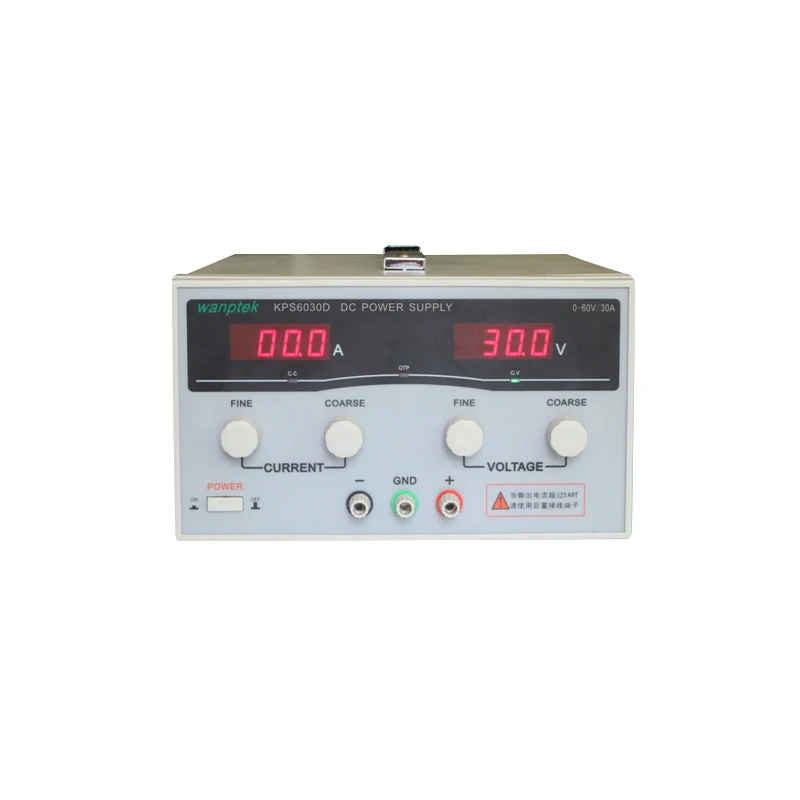

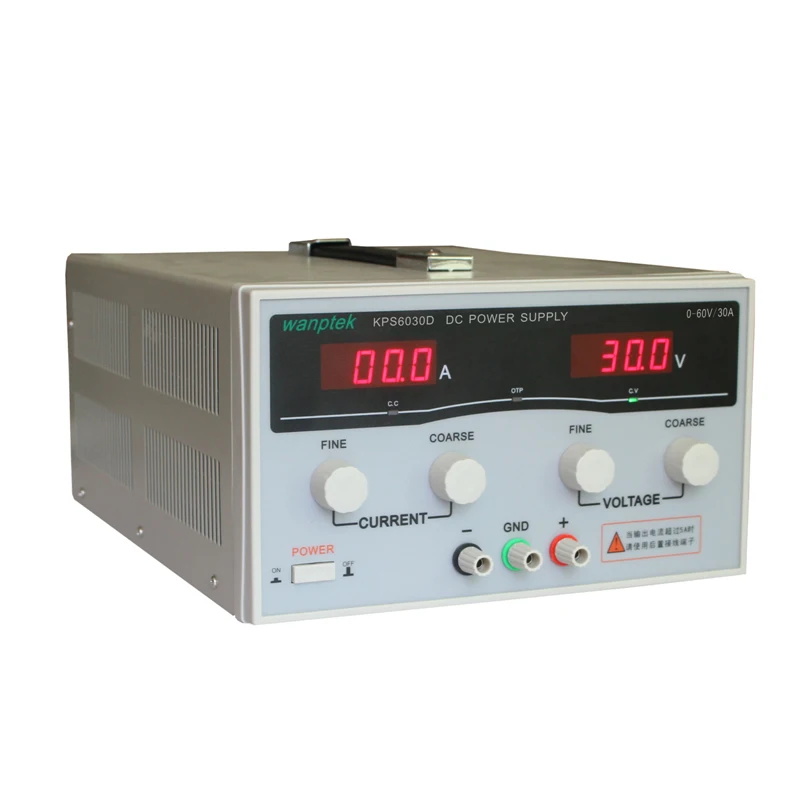

 KPS6030D  60V / 30A

Summary

KPS series is a single set of output, high precision double display switch dc power

supply.Machines have complete operating protection function, with high performance,

low ripple, high stability , light weight and small volume etc. Current limiting protection

can make KPS power supply and load against accidental damage.

KPS series power supply with low temperature control circuit, a cooling fan noise is low.

Special point

1, have complete operating protection function

2, highly efficient, low ripple, small volume, light weight

3, double display voltage, current, and high precision

4, voltage stabilization, current limiting, simple operation

5, dual voltage input and convenient choice

6, temperature control fan heat dissipation, low noise

7, Double potentiometer more precise adjustment

Technical indicators

Input voltage:AC 220V10%,50Hz

Output voltage:0 ~60V

Output current:0 ~30A

Voltage resolution:0.1V

Current resolution:0.1A

Power effect:CV0.3%+10mV

Effect of load:CV0.5%+30mV

Ripple and noise:Vp-p0.5%+10mV

Voltage display precision:1%+1digits

Current display precision:1%+1digits

Net/gross Weight (KG):5.0-5.3/6.2-6.5

Product size(mm):260W×160H×375L

Package size(mm):340W×240H×415L

Operating environment:(-10~45)C Rh<90%

Working time:a long time

Standard Accessories:

Power cord×1 Instruction book×1 Warranty card certification×1

Product Model
