Student School Microscope-AmScope Supplies 20X-40X-80X Stereo Dissecting Microscope with 1.3MP USB Camera SE306-AZ-E1 | Инструменты

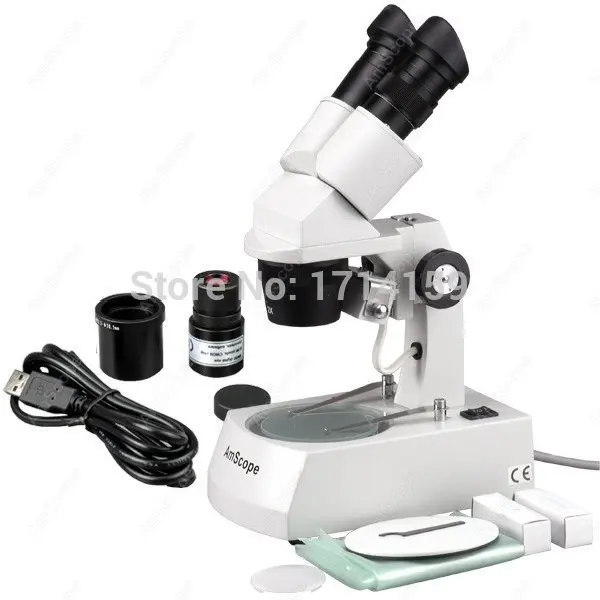

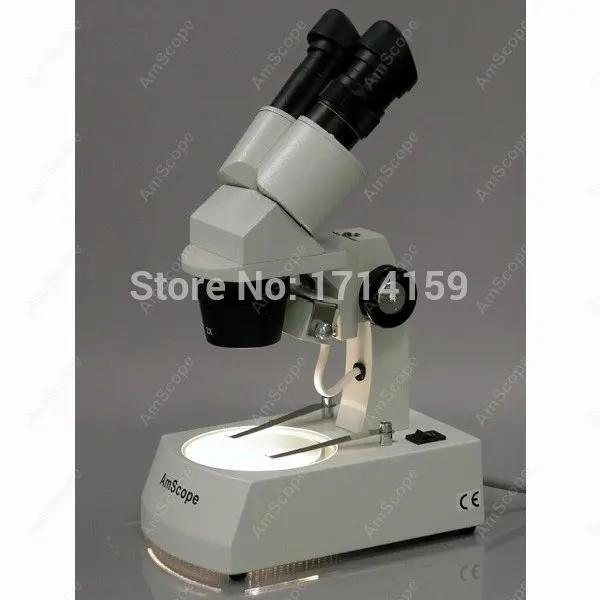

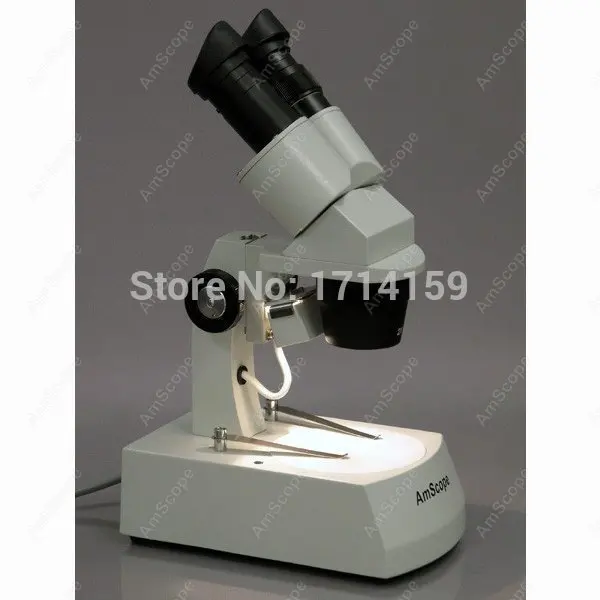

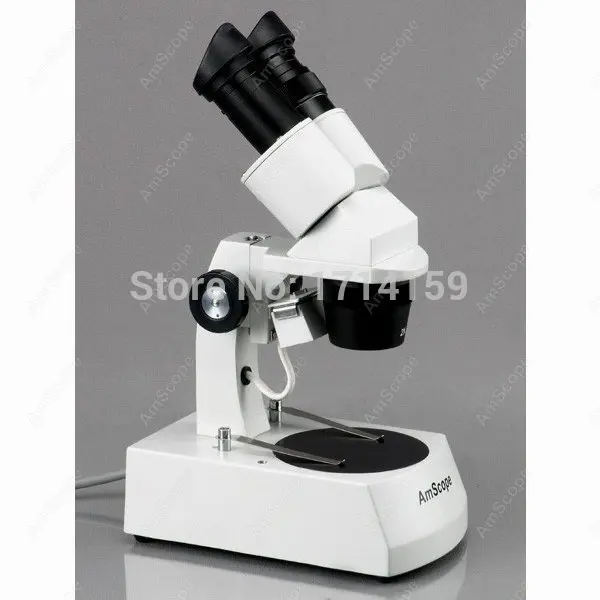

This backward binocular arm-stand stereo microscope comes with a 1.3MP USB digital camera. It has three magnification power settings, 20X-40X-80X, and a versatile illumination system that provides both incident (top) lighting and transmitted (bottom) illumination. You can choose between incident illumination shining down onto the object or transmitted illumination through the frosted stage plate. The first is used for the observation of three-dimensional objects and the second for the observation of slides. This microscope offers high resolution and good depth within a broad field of view. It gives sharp clear stereo images. Its 45 degree inclined binocular head ensures an easy observation and rubber eyeguards provide further comfort.

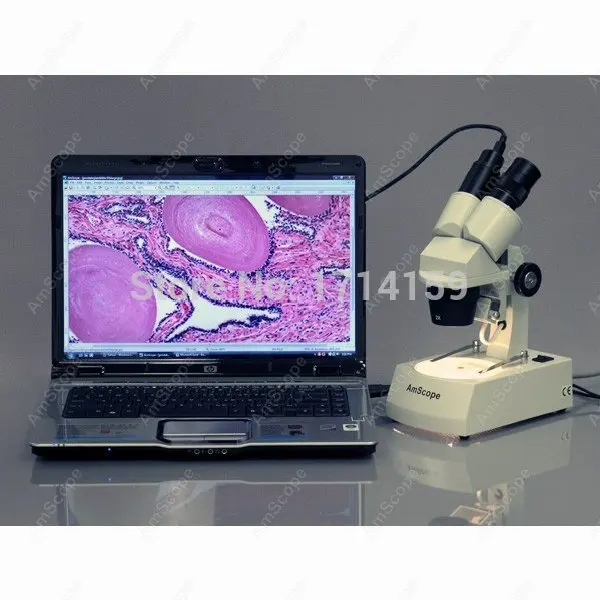

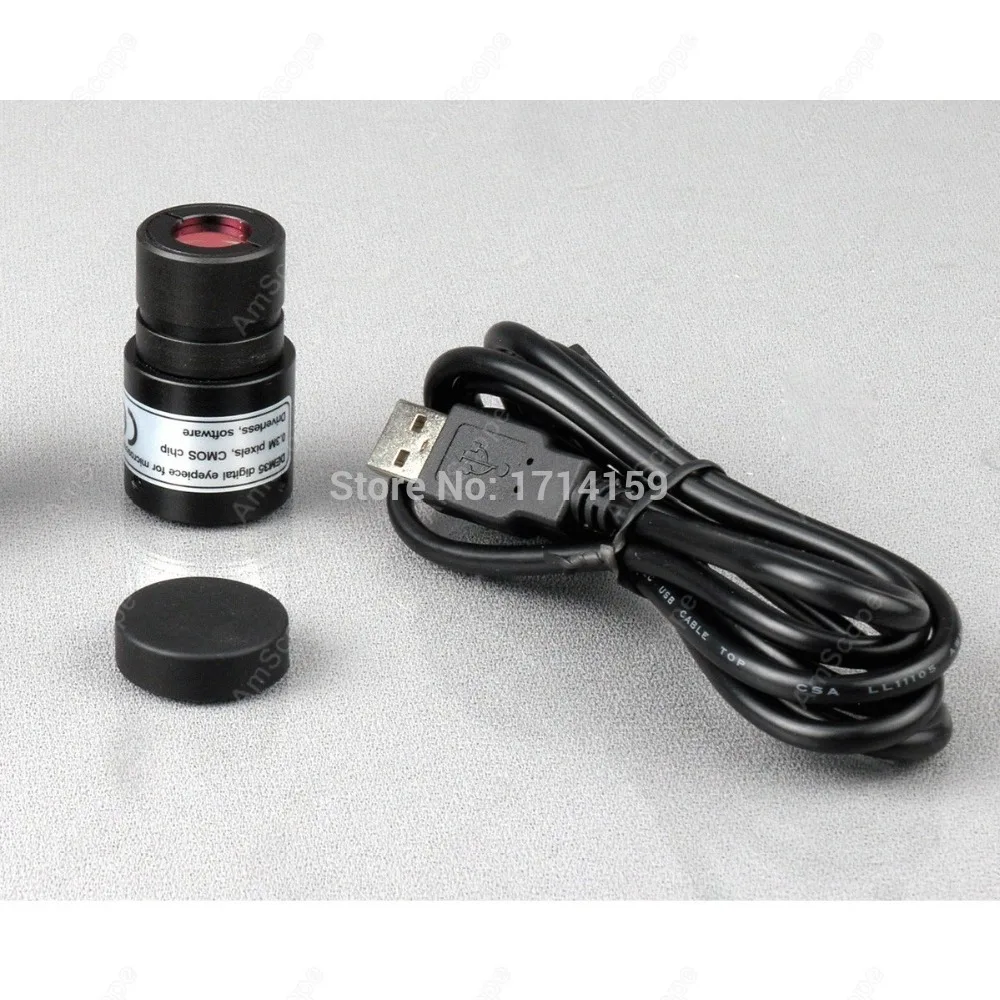

The digital camera captures still images, streams live videos on your computer screen and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The user-friendly editing and processing software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), Video Recording and Measurement functions. Live video and image capture can be set in different resolutions simultaneously. You can edit and process image captures in a manner similar to PhotoShop.

This stereo microscope is a great instrument for many applications. It can be used in geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and stone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components or virtually any three dimensional objects. This scope is an ideal tool for watchmaker, jeweler, engraver, dies-maker, philatelist, coin collector, students, and etc. It comes with first-class quality and affordable price. It is brand new in factory-sealed box. Its retail value is above $1000.

Features :

An affordable great stereo microscope with digital image system! 45 degree inclined binocular head with locked-in eyepieces Three magnification levels: 20X-40X-80X Sharp stereo erect images over a wide field view High quality original true color Unbeatable lowest price Ocular-tube with adjustable diopter Accurate alignment ensuring a fatigue-free long hour viewing Rugged metal frame and arm-stand Full optical glass elements Precise ground glass lens All metal mechanical parts Adjustable interpupillary distance Built-in both incident and transmitted illumination Systems Upper/lower halogen lights GS CE approval electric apparatus Extra bulb, white/black base plate and rubber eye-guards included Unbeatable Lowest Price Guaranteed or the Difference Back! Satisfaction Guaranteed or Your Money Back! Manufactured under ISO 9001 Quality Control Standard Excellent Five (5) Year Manufacturer Warranty



Specifications :

Head: 45 degree inclined binocular Widefield Eyepiece: WF10X & WF20X Objective: 2X, 4X Diopter Adjustment: +/-5dp Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm) Working Distance: 2-1/8" (53mm) Frosted Glass Objective Plate: 3-3/4" (96mm) in diameter White/Black Plastic Objective Plate: 3-3/4" (96mm) in diameter Incident Illumination: 12V/10W Transmitted Illumination: 12V/10W Power Supply: 110V (220V version available) Accessories: a pair of eye-caps, a pair of clips and a dust cover



Camera Specs:

Resolution: 1280x1024 (approx. 1,310,000 pixels) Sensor Size: 1/3" (4.60mm(H) x 3.70mm(V)) Pixel Size: 3.6μm x 3.6μm G Sensitivity: 1.0v / lux-sec(550nm) Frame Rate: 7.5fps @1280x1024, 12.5fps @1024x768 or 800x600, 30fps @other resolutions Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port Advanced software for Windows:
- offers stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- edit and process microscopy images in a manner similar to PhotoShop
- live video and still image capture can be set in different resolutions simultaneously Life-time free software upgrades



Packing List :

One Binocular Microscope with Backward Arm Stand, Top & Bottom Lights and 2X & 4X Objectives One 1.3MP USB Microscope Digital Camera with Software One Pair of Widefield 10X Eyepieces One Pair of Widefield 20X Eyepieces One 12V/10W Spare Bulb One 3-3/4" (96mm) Frosted Glass Plate One 3-3/4" (96mm) Plastic Plate One Wrench for Tension Adjustment Dust Cover, Eye-guards and User's Manual Included Shipping Weight: 8 lbs
