Description:

ZY-STF505 , Navceker HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD-SDI video by single mode and multimode optical fiber cable transfer. SD/HD-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way tally switch quantity signal control signal on one single mode optical fiber.

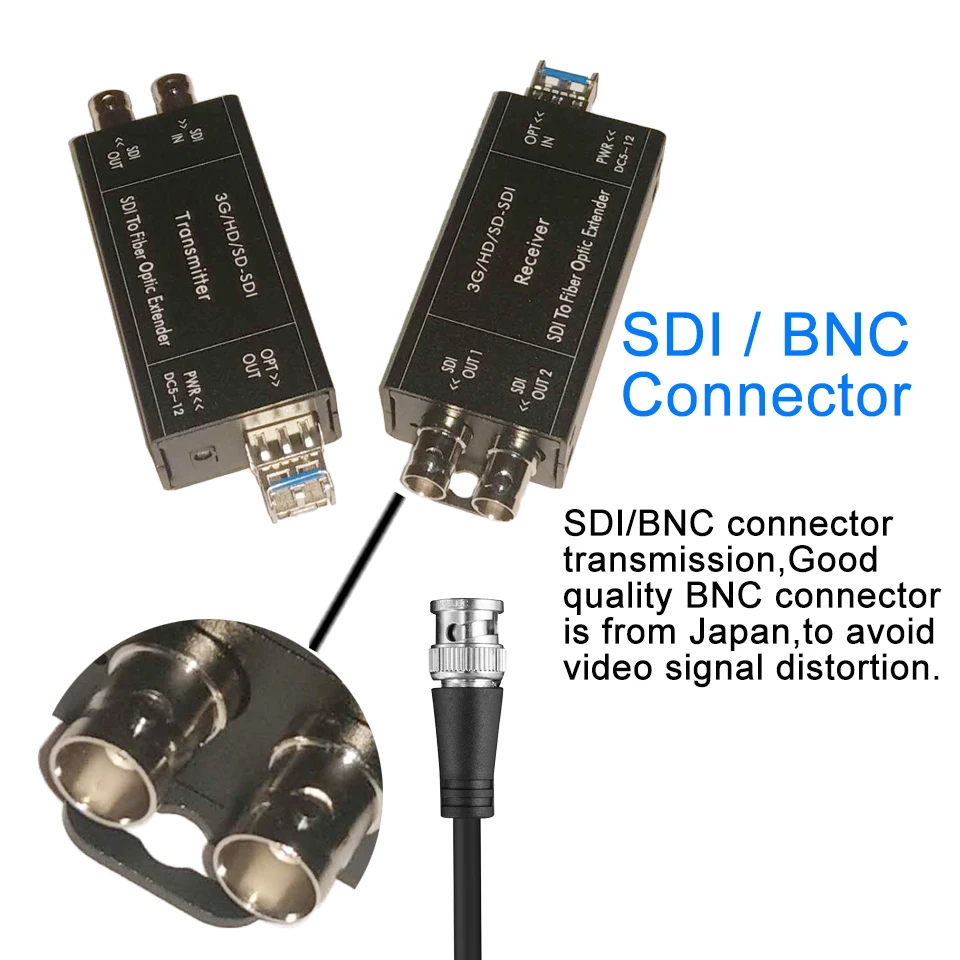

Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of transmitter and receiver: transmitter convert SDI signal to optical signal; receiver convert optical signal to SDI signal and output.

​Features:

Specifications:

Overview:

High-definition multimedia surveillance applications, often need to be HD uncompressed digital audio and video signal source long-distance transmission. But long-distance transmission using conventional cable, there is always the output signal is poor, vulnerable to interference phenomena. Simultaneous transmission distance is short, can not meet the multimedia information requirements for long distance transmission and other occasions, the use of HD SDI-T / R Optical transmission HD SDI signal, completely solve such problems, the transmission distance of 1 m -20 km. Meanwhile, Optical transmission with low attenuation, bandwidth, interference situation, high safety performance, small size, light weight, etc., it has incomparable advantages in terms of long-distance transmission and special environment. In addition, HD SDI equipment in the multimedia system applications, which saves construction costs and the complexity of the line to go, but also to ensure high-quality target possible.

Applicable for :

Parameters:

Optical fiber

a)        1000BASE_LX IEEE802.3z in line with the optical connector specification

b)        Input optical center wavelength: 1310nm

c)        Transmit power: -9.5 ~ -3dBm average optical power @ 1310nm

d)        The light-receiving sensitivity: -21dBm @ 1310nm average optical power

e)        News from the relative intensity: -116 DB / Hz

h)        Return loss: less than 10 dB

i)          Transmission code rate: 240M Hz ~ 1.49G Hz

j)          1 m - 20 km single mode fiber

The environmental conditions:

Dimensions (mm): 90Lx88Wx25H
