        Automobile Sensor Signal Simulation Tool MST-9000+



On the basis of MST-9000, MST-9000+ add fuction: 1. Increase Simulate Knock Sensor Function, Output Port are KS1, KS2 2. Increase Reserved Port X1-X6 Stand-By, The Customer Can Set Simulation Singnals As Need



Description:
The Automobile Sensor Signal Simulation Tool is an very useful tool for professional technician during car ECU reparing & key programming.



This Automobile Sensor Signal Simulation Tool is an indispensive car ECU repair tool, with newly update and more stable function. After many years R&D and times of upgrades, now our sensor siginal simulation expert has been the most fix purchasing equipment with advance technology for many workshop and automobile training schoo


1. Language: English 2. Software version: 2012 MST-9000+ 3. Update: Via Email

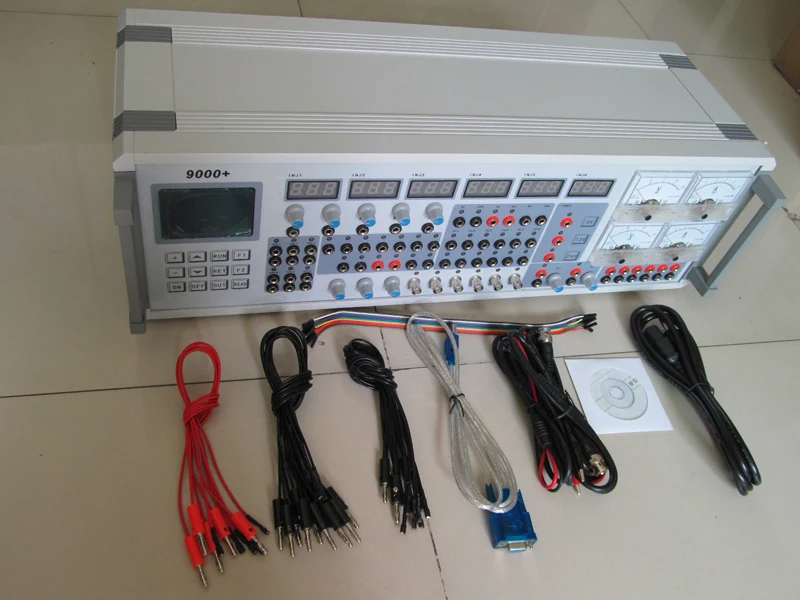

Automobile Sensor Signal Simulation Tool Packing List:

1, sensor signal simulation expert Gold Edition 1 set

2, the data line 2
3, the power line 1
4, waveform memory card 1
5, computer data CD 1
6, equipment manual 1
7, sensor signal simulator driver board 1
8, actuator driver board 1

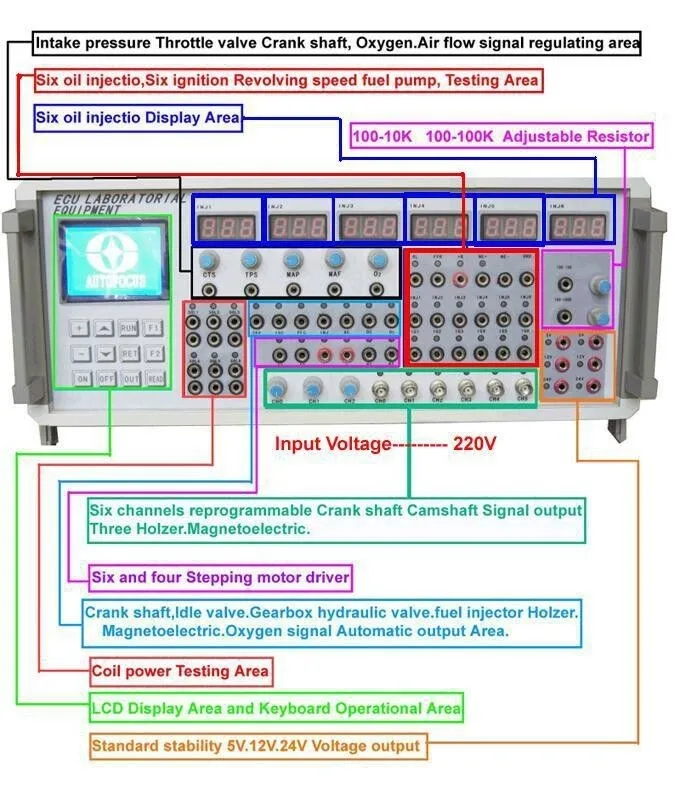

      MST-9000 Description:   The Automobile Sensor Signal Simulation Tool is an very useful tool for professional technician during car ECU reparing This Automobile Sensor Signal Simulation Tool is an indispensive car ECU repair tool, with newly update and more stable function. After many years R&D and times of upgrades, now our sensor siginal simulation expert has been the most fix purchasing equipment with advance technology for many workshop and automobile training school.     Sensor Signal Simulation Tool Detailed Application Range: 1. Automobile sensor dynamic diagnosis, engine, transmission, ABS, air-conditin, Immo etc. for ECU repairing, auto teaching aid model driver, auotmobiles R&D. 2. This Sensor Signal Simulation Tool fit multi-brands cars made in Asia, Europe, USA.     MST-9000+ Major Function: 1. Users can set the engine control system, independent of different types of crank signal output (for all models of computer-driven) 2. Automatic transmission input and output shaft signal simulation 3. Set the waveform data is written directly 4. Engine speed signal output 5. Speed signal output (Hall signal, magnetic signal) 6. Three, four-channel ABS wheel speed signal output 7. PC board working current test 8. EGR solenoid valve drive 9. Carbon can clear the solenoid valve drive 10. Tachometer drive 11. Blower Control Module Driver 12. Idle valve driver 13. Stepper motor drive (4, 6 lines) 14. Injector Driver 15. Ignition coil driver 16. Ignition module drive 17. Parking sensor (ultrasound) probe drive 18. Automatic Shift Valve Drive 19. Shift quality valve drive 20. hydraulic valve drive 21. Water temperature, intake air temperature, outdoor temperature, evaporation temperature sensor signal simulation box 22. Oxygen sensor signal simulation (manual) 23. Oxygen sensor signal simulation (auto signal) 24. Throttle signal simulation 25. Carbon can clear the solenoid valve simulation 26. EGR solenoid valve simulation 27. Air flow sensor, intake air pressure sensor (analog, digital) signal simulation 28. Ignition coil simulation 29. Injector simulation 30. Idle stepper motor simulation (four-lane, six-lane) 31. A \ C relay simulation 32. Pump relay simulation 33. Radiator fan relay simulation 34. Audio signal outputs, power amplifier driver 35. Automatic Shift Valve, shift quality valves, hydraulic control valve simulation 36. Fuel injection pulse width measurement 37. Central lock server simulation 38. Burglar resistance simulation 39. User Extension     MST-9000 Special Feature: 1. All cars crank signal simulation experts It can be set arbitrary waveform output, can produce all the models of today's engine crankshaft, camshaft signals (Hall, magnetic, optical signals), waveform data, waveform memory card from the long-term preservation, waveform data for free online updates. 2. All cars sensor signal simulation experts Speed signal, speed signal (Hall, magnetic, optical signals), ABS wheel speed signal, the oxygen sensor signal, throttle signal, air flow, inlet pressure sensor (analog, digital) and other signal simulation 3. All cars Actuator experts Tachometer, odometer, blower control module, injector, ignition coil, ignition module, frequency and pulse width control solenoid valve, stepper motor drive (four-lane, six-lane), car audio amplifiers, etc. etc all cars actuator simulation experts: Actuators simulation for Ignition coil, injectors, idle speed stepper motor, ultrasonic generators etc. Strong domestic first-line five-channel editing functions crank signal Five arbitrary wave signal analog output     Output Signal: magnetic signals, Hall signals, optical signals 1. Actuator: Drive current 3A, 1% ~ 99% duty cycle continuously adjustable frequency continuous adjustment; 2. Sensor Signal Simulation: resistance 100Ω ~ 10000Ω voltage of 0V ~ 5V × 2 0V ~ 1.5V 0V ~ 12V 3. The implementation of simulated driving: 69-channel simultaneous output 4. Stepper motor drive: current 1A, applicable to all vehicles with four, six, stepping motor driver; 5. Ammeter maximum test current: 5A
