LED Backlight Strip Lamp For Samsung UN40EH5000F UN40EH5000M UN40EH5300F UN40EH5300G UN40EH5300M Bars Kit Television LED Bands

This backlight strip is factory-customized and its interface shape and voltage are identical to the original. We offer a 90-day warranty.
Make it easier to install

Number on the light bar

If you have already taken apart your TV, we recommend that you compare the numbers on the light bar with what we have provided, and if they are consistent, you could purchase it. If inconsistent, you could get help by contacting us. Because the same light bar may have different Strip number:
D3GE-400SMA-R1 BN96-28766A
D3GE-400SMB-R1 BN96-28767A
S013SVS40_T1_3228N1_B2_13_REV1.7_131015
2013SVS40_T2_3228N1_B2_12_REV1.7_131015
2013SVS40_T1_3220N1_B2_13_REV1.5_130724
2013SVS40_T2_3228N1_B2_12_REV1.5_130724
LM41-00001V
LM41-00001W

Applicable TV model

If you haven't opened your TV yet, you could compare your TV model to the TV model we offer. If they are the same, you could buy it, if you can't find your TV model, you could get help by contacting us. But we recommend that you compare the code of backlight strip, it will be more accurate.
The following are the TV models for which the backlight bar is applicable
UN40EH5000F UN40EH5000FXZA UN40EH5000FXZC UN40EH5000FXZP UN40EH5000FXZX
UN40EH5000M UN40EH5000MXZL
UN40EH5300F UN40EH5300FXZA UN40EH5300FXZC UN40EH5300FXZP UN40EH5300FXZX
UN40EH5300G UN40EH5300GXPE UN40EH5300GXZE UN40EH5300GXZS
UN40EH5300M UN40EH5300MXZL

Backlight strip production information

1.Consistent with the original, Brand New, no need to modify it, easy to install
2.Long operating life, typically lasting over 100,000 hours
3.Brightness is consistent with the original, brightness up to 700 nits

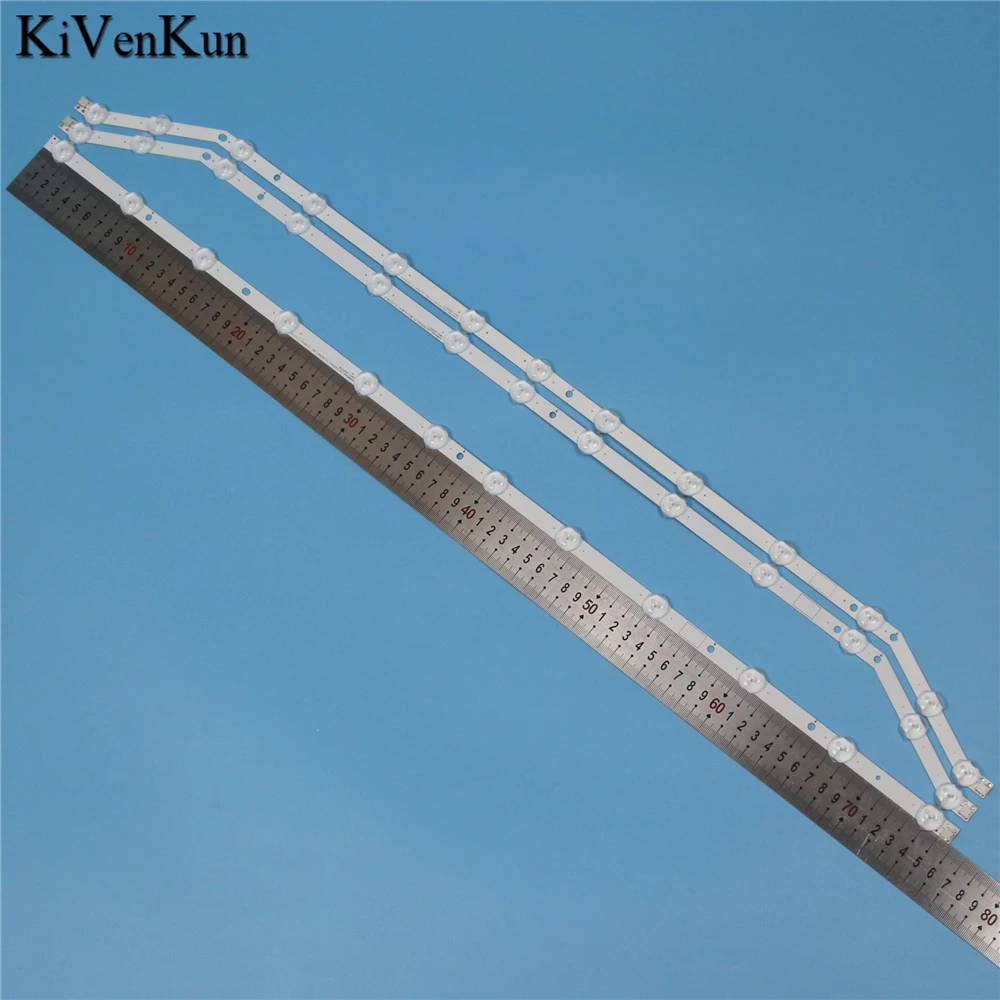

4.Product length:
A(T1) Strip 759 mm( length) * 12mm (width) * 1.0 mm (height) , 13 LED Lamps
B(T2) Strip 757 mm( length) * 12mm (width) * 1.0 mm (height) , 12 LED Lamps
5.Voltage: 0-94V

Packaging and logistics

1. Package: PVC Plastic pipe (it will be safer during transportation)
2. Product contains: 3 pice / Set, 2 A + 1 B
3. Logistics information could be tracked, Shipping takes approximately 10-14 days.

Precautions

1.Because the product will be upgraded, there would may be a little difference between the picture and the goods that you received. But we promise the connector and function will the same as our description.

2.the price is for the set, in order to avoid the color difference of the display after replacement (because the brightness of the old Backlight Lamp strip will be reduced), we recommend that you purchase a complete set.

3.We recommend that lowering your TV's "brightness" or "backlight" setting by 20-25% before installation to reduce risk of repeat failure.

4.Please do not sign the goods if the package is damaged.

5.In order to avoid your loss, please contact us if you have problems during the installation process or other problems with the goods.

Service and FAQs

Q1: What are the common symptoms of LED Backlight failure?

A1: Symptoms can include but are not limited to: Sound but no picture, Faint image on the screen (can be seen with a torch) , Flashing / pulsating screen, Flashing standby light, Tripping, Dark / light patches on screen and/or Rings on screen. Other parts within the tv can cause similar faults but these are the common ones we see.
It is advised to get your TV diagnosed properly by a trained professional before ordering any parts. Power supplies can also cause a no backlight fault!

Q2: How do I test my LED Bars?

A2: D.C. voltage can be used to test most LED strips on the test points. Alternatively, we stock a specially designed LED tester which requires no electronics experience to use


Q3: What should I do if my product is not suitable for my monitor / TV?

A3: We could resend the correct product to you if it is caused by our mistakes. However, you need to pay attention to whether your model is the same as the model for this product. We recommend that you contact us if you are not sure if the product is suitable for your monitor. As long as the part has not been fitted, we accept returns. Return postage will be at the buyers cost

Q4: Do you offer trade discount?

A4：Yes, please contact us about trade benifits

Q5: What should I do if the goods are damaged during the warranty period?

A5: In the case of non-human damage, we would send you new parts for free. If it is caused by human reasons, we are not responsible for the warranty, but we could offer you a discount if you are willing to buy again.
