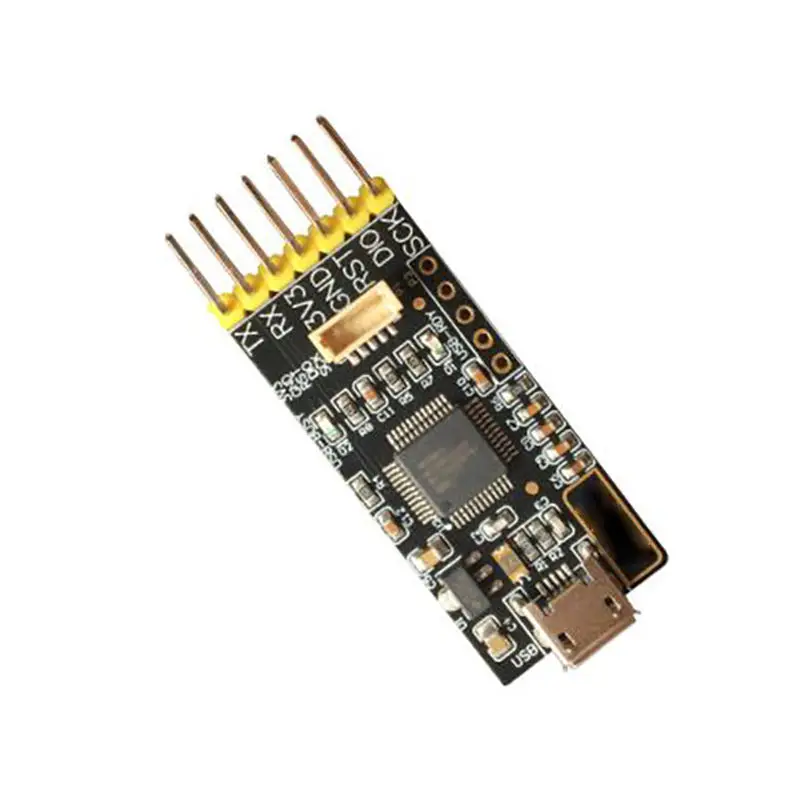

Elink32/Cotex-M Free Drive Simulator Download Swd With Serial Port / Support Stm32F Debugger | Электроника

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Support Cortex-M0, Cortex-M0+, Cortex-M3, Cortex-M4, Cortex-M7 core microcontroller
SWD debug interface (Serial Wire Debug), speed up to 10MHz
Support for Keil and IAR development environments
MicroUSB interface (users need to bring their own Micro-USB cable)
SWD uses DAP protocol, free to install drivers
Colour: Black
Material: metal + pc
Two LEDs are used to indicate whether it is in an operational state or an error state
Integrated USB to TTL serial debugging interface
Onboard 500mA external power supply, overcurrent protection
Support target chip deep sleep state download debugging
Support target chip SWD pin multiplexing state download debugging
Small and portable, the size is 4.8*1.8*06.cm

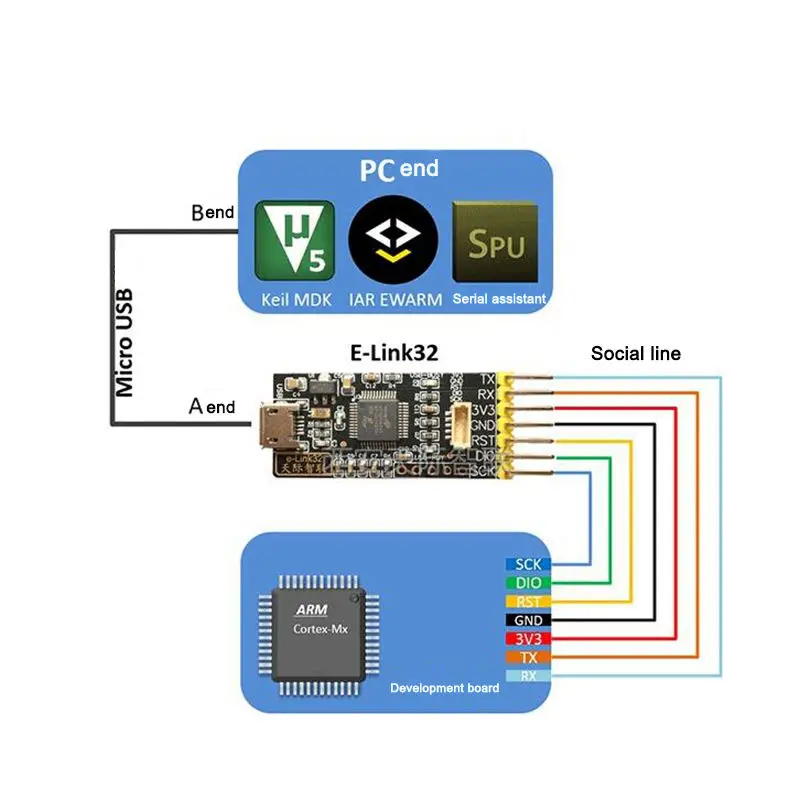

SWD and virtual interface description

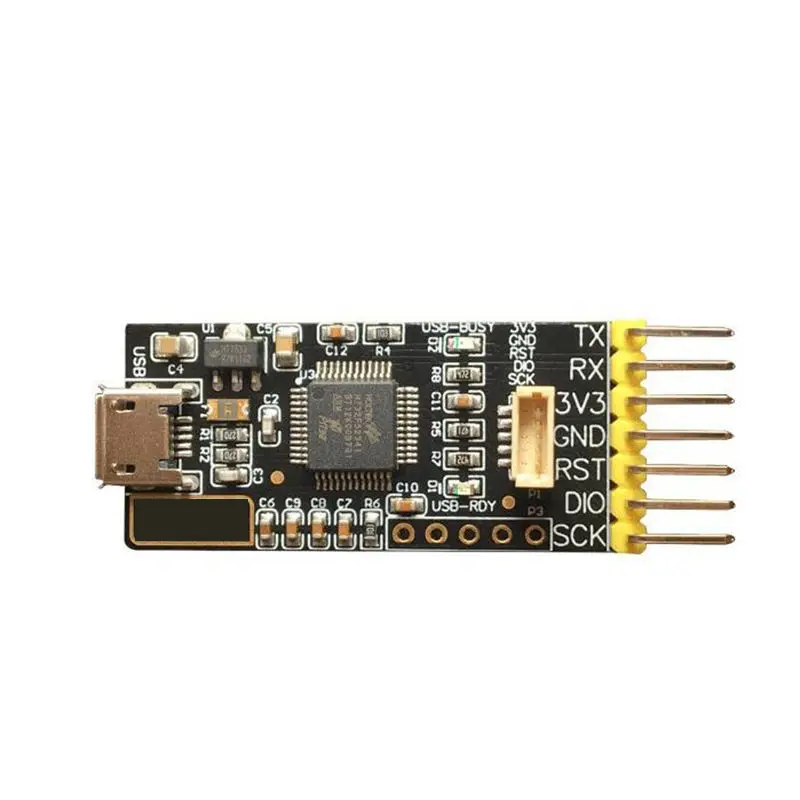

The e-Link32 supports the SWD interface and is the P2 port on the board. The SWD interface has a total of 5 pins, a 3.3v power line, a ground line, and a reset line. Data transmission uses only two lines, SCK (SWCLK, SerialWire Clock) and DIO (SWDIO, SerialWire Debug Data Input / Output).
Reminder
DownloaderIt is mainly used in simulation, and the serial ports on modules can not be used to download programs, because there may be garbled.

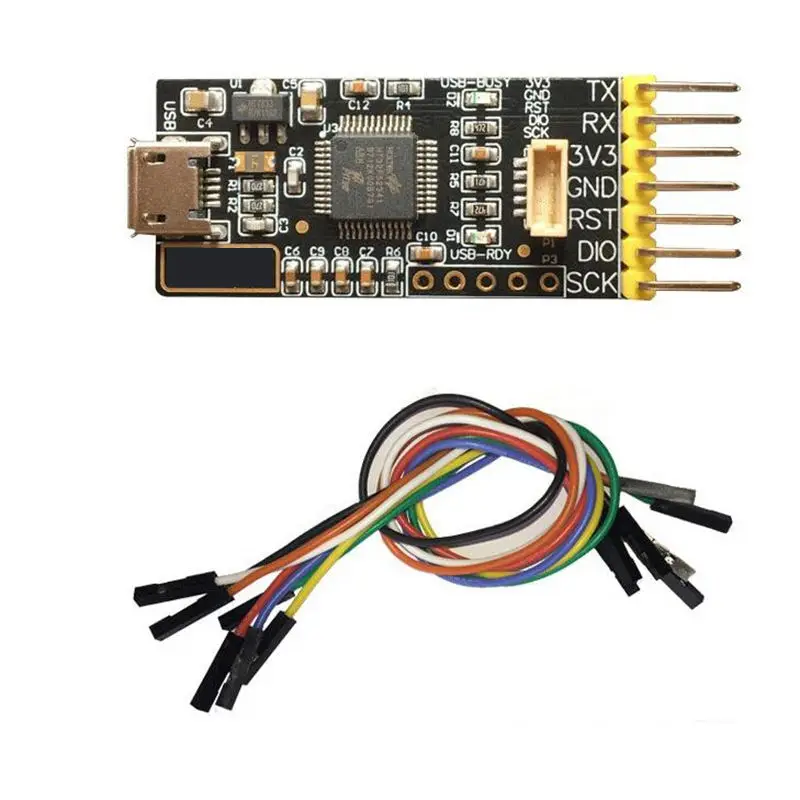

Package Contents:
1* board
1* DuPont line
1* 5pin cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
