body,td,th { font-family: Verdana, Geneva, sans-serif; font-size: 12px; color: #636363; } body { margin-left: 0px; margin-top: 0px; margin-right: 0px; margin-bottom: 0px; } a{ color: #636363; text-decoration: none; } a:hover { text-decoration: none; color: #636363; } a:active { text-decoration: none; color: #636363; } em { color: #BD1A1D; font-style: normal; font-weight: 700; } 60W 110V 220V Electric Soldering Iron Welding Tool Kit Solder Wire Tweezers TSH Shop Features:
Professional Soldering Tool is great for lead-free soldering semiconductors.
High quality long lasting ceramic type heater.
Adjustable temperature controlled soldering irons: 200-450 degC (there is a knob wheel on the Electronic Soldering tool for temperature adjust)
Great for hobbies cultivation, soldering kits for radios, and electronics work.
Iron plated tip and stainless steel construction offer longer steel construction offer longer life.

Specification:
Input voltage: 110V 220 (V)
Temperature stability: 200-450 (°C)
Output power: 60w
Material: plastic handle electric soldering iron

Electric iron use and precautions:
1. Before using the new soldering iron, apply the fine sandpaper to brighten the soldering iron, heat it on the heat, and then contact the solder wire with the tip of the soldering iron after the rosin is applied, so that the soldering iron tip is evenly coated with a layer of tin. This can be convenient. Solder and prevent oxidation of the surface of the tip.
2. The alloy head is strictly prohibited from being repaired. If it is found that it is not tinned, it can be used after the flux is activated.
3. The soldering iron should be kept dry and it is strictly forbidden to work in a humid environment.
4. Before use, you should carefully check whether the power plug and the power cord are damaged or not, and check if the soldering iron is loose.
5. The electric iron is in use, can not be struck hard. To prevent falling. When there is too much solder on the soldering iron, it can be wiped off with a cloth. Do not smash, to prevent burns.
6. During the welding process, the soldering iron can't be placed everywhere. If it is not soldered, it should be placed on the soldering iron frame. Note that the power cord should not be placed on the soldering iron tip to prevent the thermal insulation from being damaged.
7. After use, cut off the power supply and unplug the power supply. After cooling, return the soldering iron to the tool box.
8. After using a few times to remove the tip, go out of the oxide layer, so as not to block the oxide layer after the removal of the tip.

The basic skills of soldering iron:
1. For the selection of suitable solder, the low melting point solder wire used for soldering electronic components should be selected.
2. Flux is dissolved in 75% alcohol (by weight) as a flux with 25% rosin.
3. The soldering iron should be tinned before use. The specific method is: heat the soldering iron. When the solder can be melted, apply flux, and then evenly spread the soldering iron on the soldering iron to make the soldering iron evenly eat. A layer of tin.
4. The welding method, the pads and components of the pins are polished with fine sandpaper, coated with flux. Dip a proper amount of solder with a soldering iron tip, contact the solder joints, after the solder on the solder joints are all melted and immersed in the component leads The soldering iron tip gently lifts up the solder joint along the pins of the component.
5. The welding time should not be too long, otherwise it is easy to burn the components, if necessary, you can use the tweezers to clamp the pins to help heat.
6.The solder joint should be sinusoidal mountain shape, the surface should be bright and smooth, no tin thorn, moderate amount of tin.
7. After the welding is completed, the residual flux on the circuit board should be cleaned with alcohol to prevent the flux from affecting the normal operation of the circuit.
8. The integrated circuit should be soldered at the end. The soldering iron should be grounded reliably, or after the power is turned off, or use the residual heat to solder. Or use the special socket of the integrated circuit, solder the socket and plug the integrated circuit.
9. The soldering iron should be placed on the soldering iron frame.

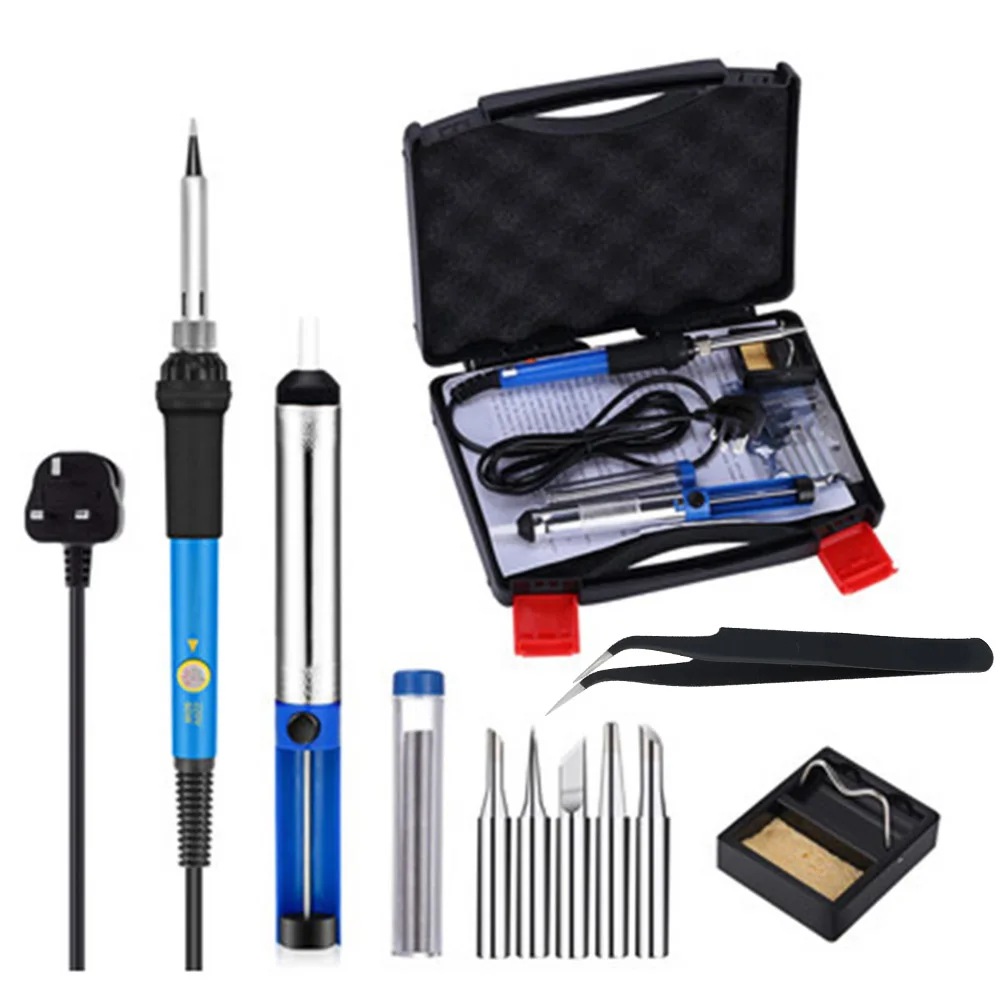

  1 x Electric Soldering Iron Welding Tool (Adjustable 60w 110v or 220v)
1 x Solder sucker
1 x 20G tin wire
5 x Replacement tip (I B K 3C 2.4D)

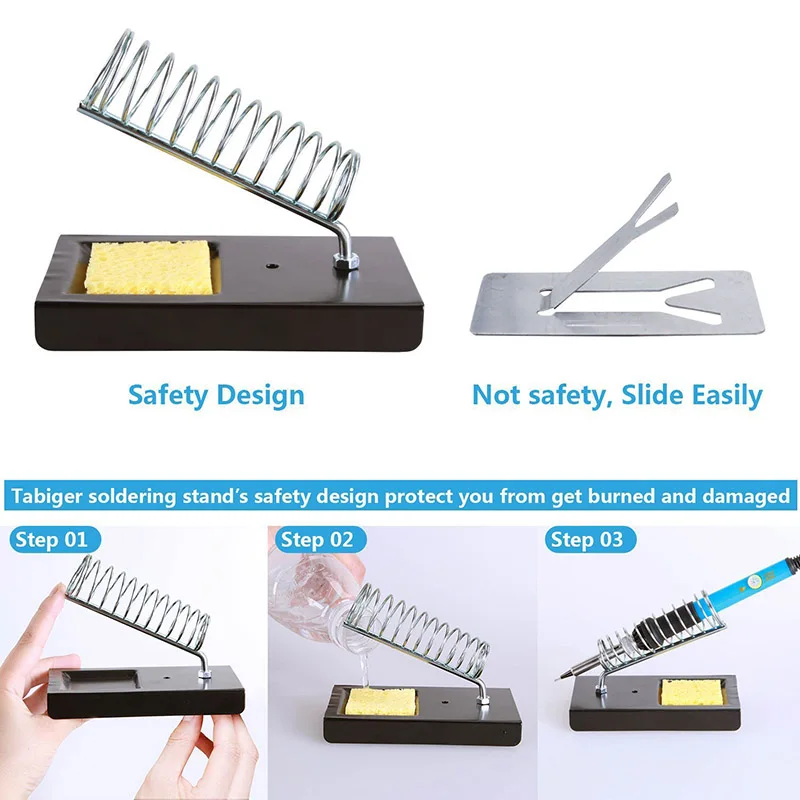

1 x Soldering frame
1 x tweezers
1 x Advanced Tool box
