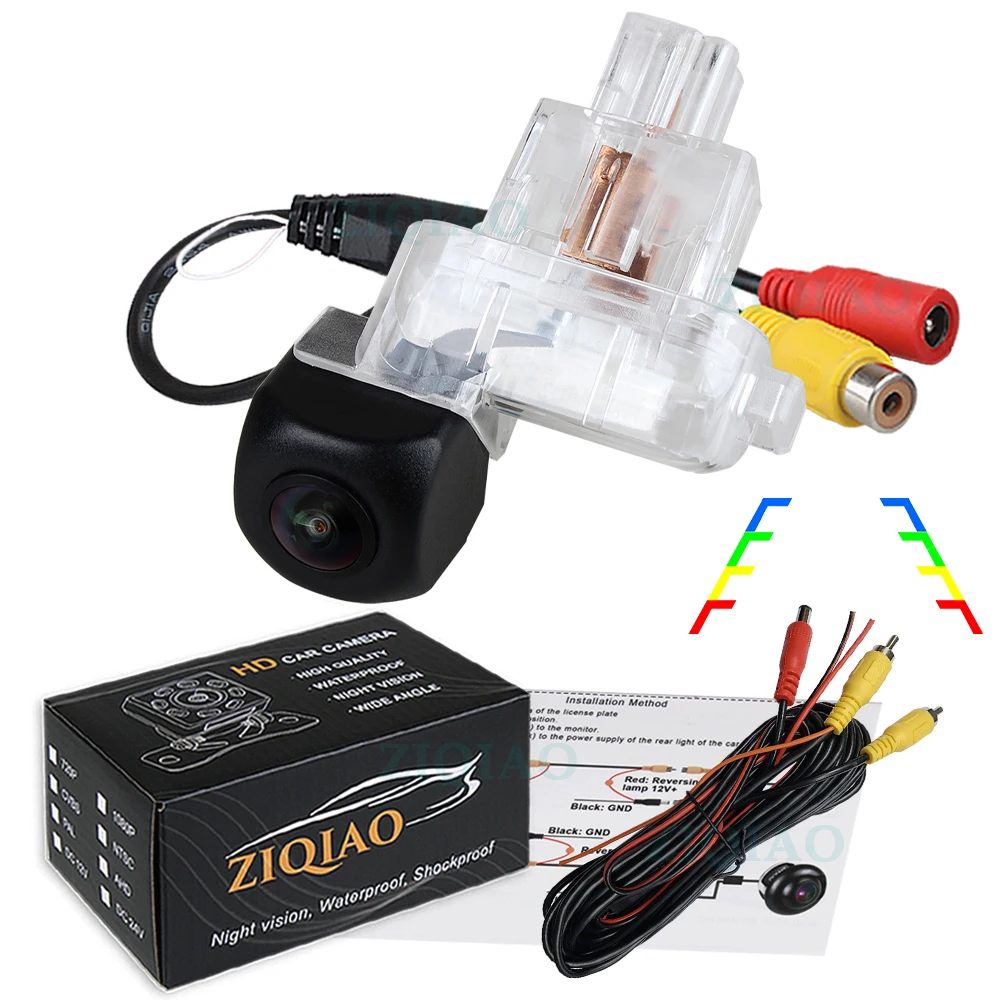

Dedicated License Plate Light Accessories Rear View Camera for Mazda 6 M6 Atenza GJ GL 2013-2018 Mazda 3 M3 Axela Hatchback 2014-2017 CX-4 CX4 2016-2020

******************

Dear customers, due to different countries or regions of the same model of the car parts may be different, the purchase must be based on your car license plate lights or the original camera shape and size to decide. If you have any questions, please contact us. Otherwise, we will not bear the responsibility of the product and the original car parts do not match!!!

NOTE:

The working voltage of our camera is DC 12V, which is not suitable for cars with a working voltage of DC 6V. Please confirm whether your car's working voltage is DC 12V before buying.

Reference for suitable car models:

For Mazda 6 M6 Atenza GJ GL 2013 2014 2015 2016 2017 2018

For Mazda 3 M3 Axela hatchback 2014 2015 2016 2017

For Mazda CX-4 CX4 2016 2017 2018 2019 2020

① HS056 HS056D

Image sensor: CMOS
Signal mode: CVBS
Video format: NTSC
White balance: Automatic
AGC and BLC: Automatic
Viewing angle: 140-170 degrees
Pixel: 728 × 512
Clarity: 500 TVLine
Signal to noise ratio: Better than 48db
Working voltage: DC 12V
Waterproof level: IP68
Working temperature(Deg.C): -30 - +80

Packing list:

1 x Car rear view camera, 1 x 6m Video cable, 1 x 1m Power cable, 1 x User manual.

② 600P HS056A

Signal mode: CVBS
Image sensor: CMOS
Video format: NTSC
White balance: Automatic
Viewing angle: 150-170 degrees
Working voltage: DC 12V
Waterproof level: IP68
Video power cable: 6m
Pixel: 1024 × 600
Working temperature(Deg.C): -30 - +80

Packing list:

1 x Car rear view camera, 1 x 6m Video power cable, 1 x User manual.

③ 720P HS056B

Signal mode: CVBS
Image sensor: MCCD
Video format: NTSC
White balance: Automatic
Viewing angle: 160-170 degrees
Working voltage: DC 12V
Waterproof level: IP68
Video power cable: 6m
Pixel: 1280 × 720
Working temperature(Deg.C): -30 - +80

Packing list:

1 x Car rear view camera, 1 x 6m Video power cable, 1 x User manual.

If you also need a monitor, you can click the following picture to order.

If you don't want to use long video cable. We have wireless transmitter and receiver for rear view camera to replace video cable. Click the following picture to order.

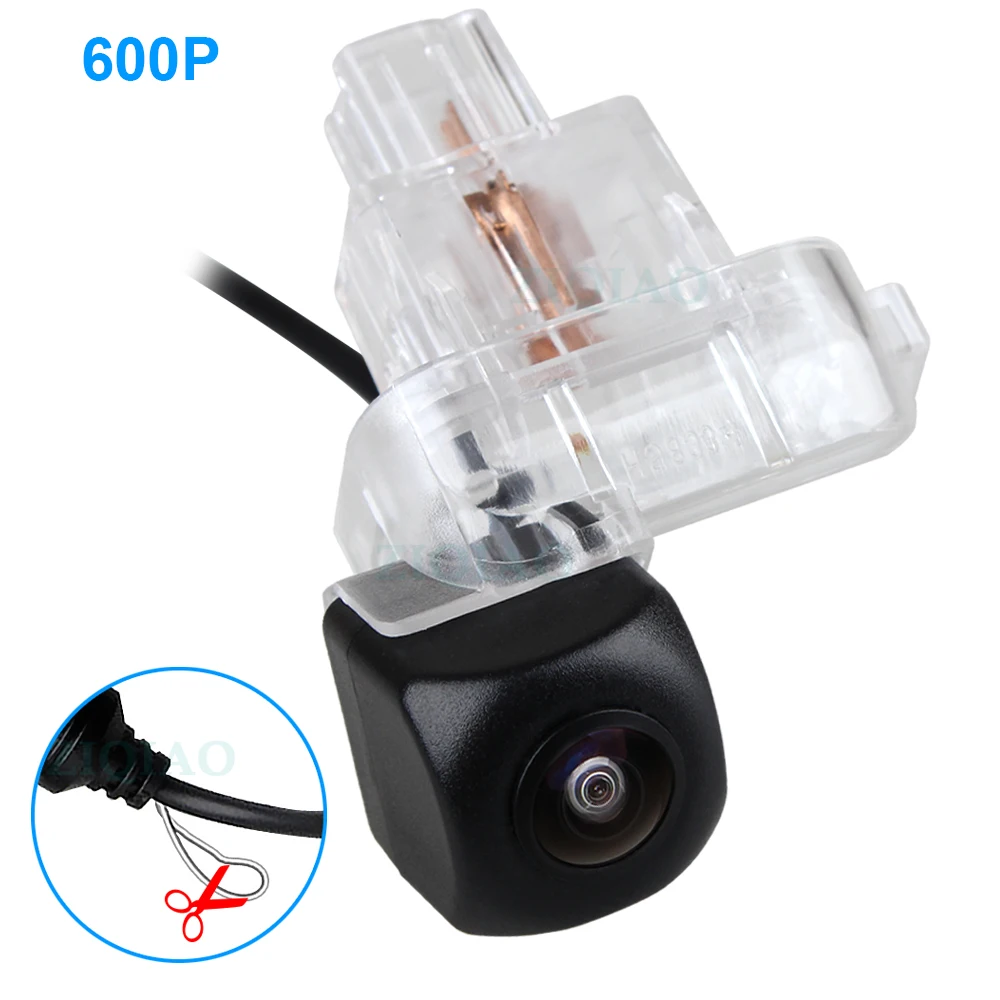

HS056A, HS056B

The HS057A HS057B camera defaults to a rear view camera without parking guide lines.
. If you need a rear view camera without a parking guide line, do not cut the white wire.
. If you need a rear view camera with a parking guide line, cut the white wire.

HS056, HS056D

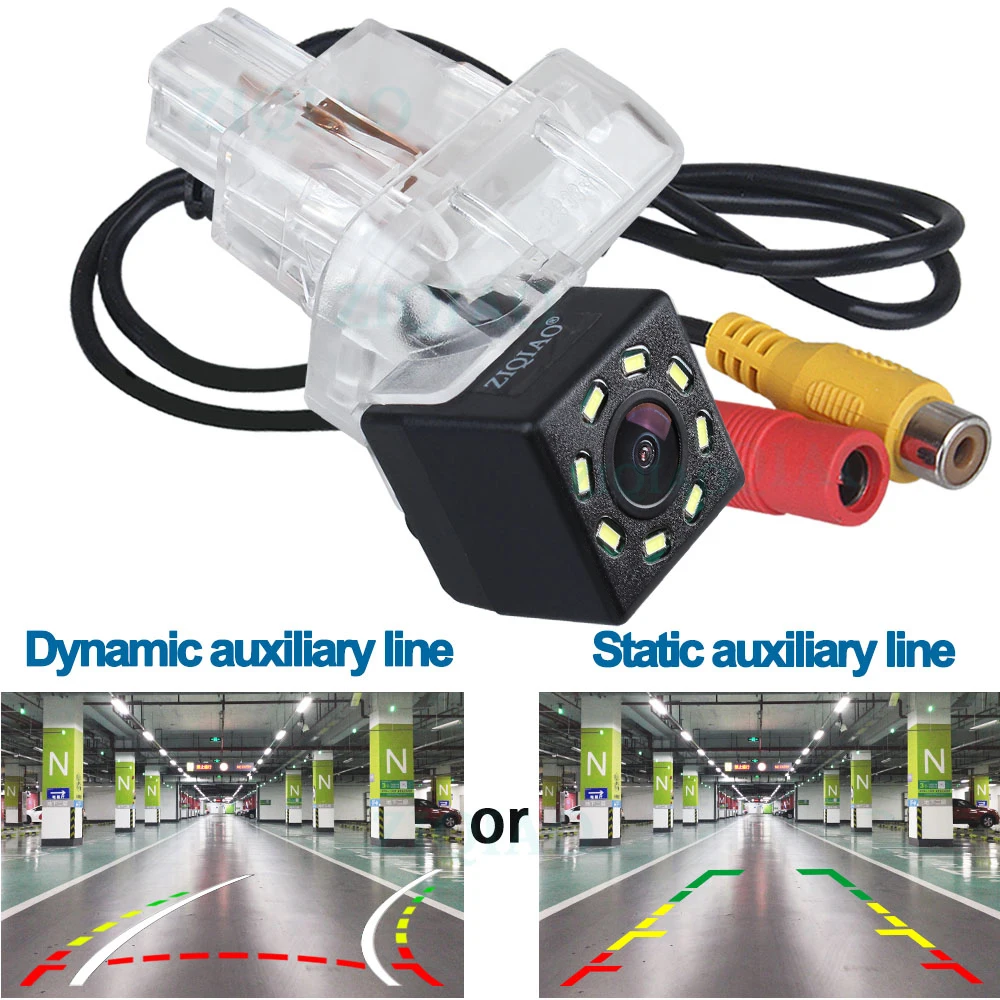

The differences between linear and dynamic parking guide line

Dynamic & Static aid line comparison

Dynamic Track Rear View Camera HS056D

Dedicated camera is clearly visible day and night, allowing you to park safely.

Wide Angle: 140-170 Degrees

High resolution and wide viewing angle can check the blind spots during the reversing process to ensure your safe driving and avoid accidents.

Product Size:

Due to manual measurement, there may be an error of 1-2mm.

Product Parameters:

HS056, HS056D

HS056A, HS056B

Installation Method:

The installation instructions are for reference only. It is recommended that a professional installer install the camera.
1. Install the camera in the area of your car license plate light.
2. Adjust the lens of the camera to your best position.
3. Connect the video output(yellow wire) to the monitor.
4. Connect the power cable(red and black) to the power supply of the car's reversing light, while reversing, the reversing monitoring system automatically start working, you can see the condition of the car tail clearly.
