RB40035UUCC0 P5 Crossed Roller Bearings (400x480x35mm) For CNC machine JCToma High Precision Roller Bearings

Ⅰ . Crossed Roller Bearings Parameters

Brand- JCToma
Model number- RB40035UUCC0
Inner ring(mm)- 400
Outer ring(mm)- 480
Width(mm)- 35
Weight(Kg)- 14.5
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- Separable Outer Ring

Ⅱ .RB40035UUCC0 Crossed Roller Bearings Specification Sheet

Ⅲ . CRB type Crossed Roller Bearings Details

Product Features：
JCToma Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction：
RB standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required.

Series Model No.：
RB4010UUCC0 RB4510UUCC0 RB5013UUCC0 RB6013UUCC0 RB7013UUCC0 RB8016UUCC0 RB9016UUCC0 RB10016UUCC0 RB10020UUCC0 RB11012UUCC0 RB11015UUCC0 RB11020UUCC0 RB12016UUCC0 RB12025UUCC0 RB13015UUCC0 RB13025UUCC0 RB14016UUCC0 RB14025UUCC0 RB15013UUCC0 RB15025UUCC0 RB15030UUCC0 RB16025UUCC0 RB17020UUCC0 RB18025UUCC0 RB19025UUCC0 RB20025UUCC0 RB20030UUCC0 RB20035UUCC0 RB22025UUCC0 RB24025UUCC0 RB25025UUCC0 RB25030UUCC0 RB25040UUCC0 RB30025UUCC0 RB30035UUCC0 RB30040UUCC0 RB35020UUCC0 RB40035UUCC0 RB40040UUCC0 RB45025UUCC0 RB50025UUCC0 RB50040UUCC0 RB50050UUCC0 RB60040UUCC0 RB70045UUCC0 RB80070UUCC0 RB90070UUCC0 RB1000110UUCC0 RB1250110

Product Application：
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc

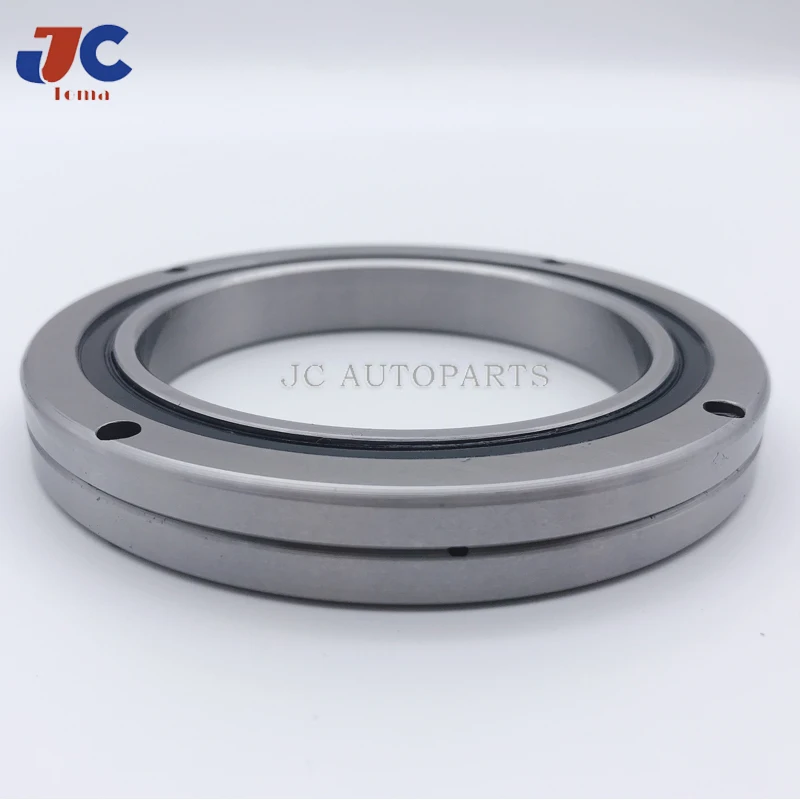

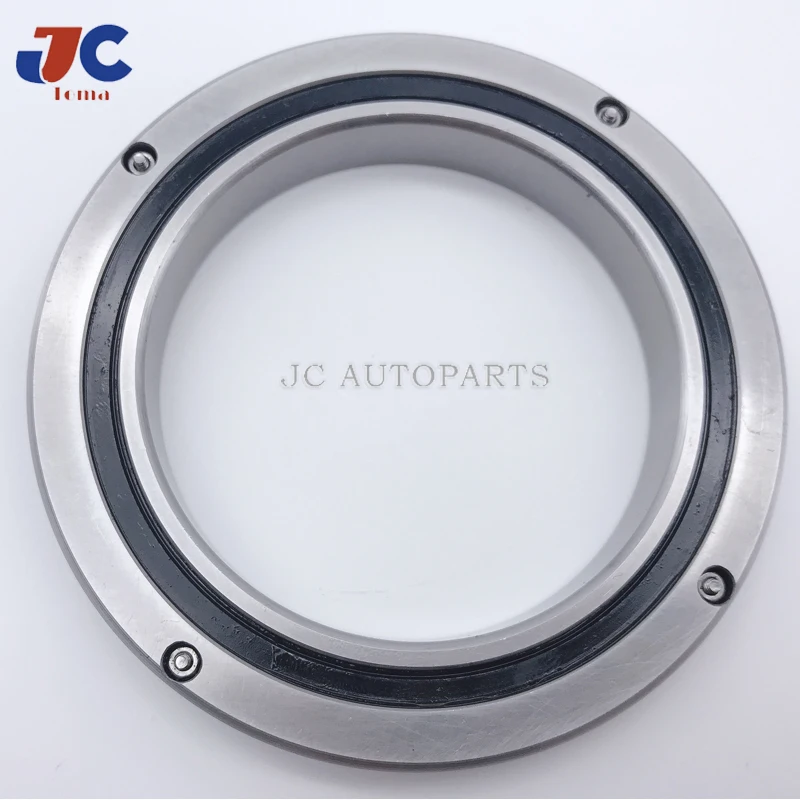

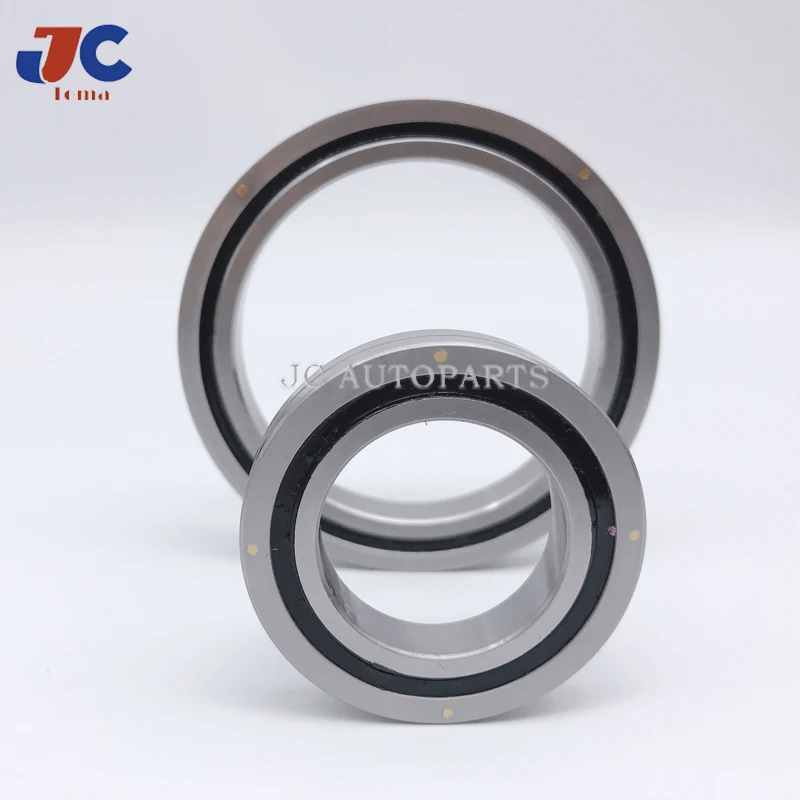

Ⅳ. Products Images

Ⅴ. Crossed Roller Bearings Installation & Cautions

1.Inspect the parts before installing:
Clean bearing bracket,main axle or other parts to remove dirt or grease.

2.Place the bearing into the bearing bracket and main axle:
To match the design clearance ,keep the bearing horizontal and insert the bearing into the bearing bracket or axle.If it is hard to install,use a rubber hammer to slightly hit every part of the bearing,so that the bearing can be attention to the hitting force is too large.Afterwards,the matching status of bearing and basic face can be examined by checking the noise.For a interference fit,use heating or cooling to expand or shrink the parts for ease of installation. Be sure the bearing temperature does not exceed 80 degrees Celsius . If the split inner or outer ring is acentric, please loosen the blots slightly and rotate the monolithic ring to adjust the concentricity of split ring, so that the bearing can be fit in the bracket.

3.Install the mounting disc:
Place the mounting disc onto the bearing and align the screw holes, Screw all the bolts in the holes first and follow the orders show in below diagram when tightening bolts in diagonally opposite sequence,Do not tighten bolts randomly.
