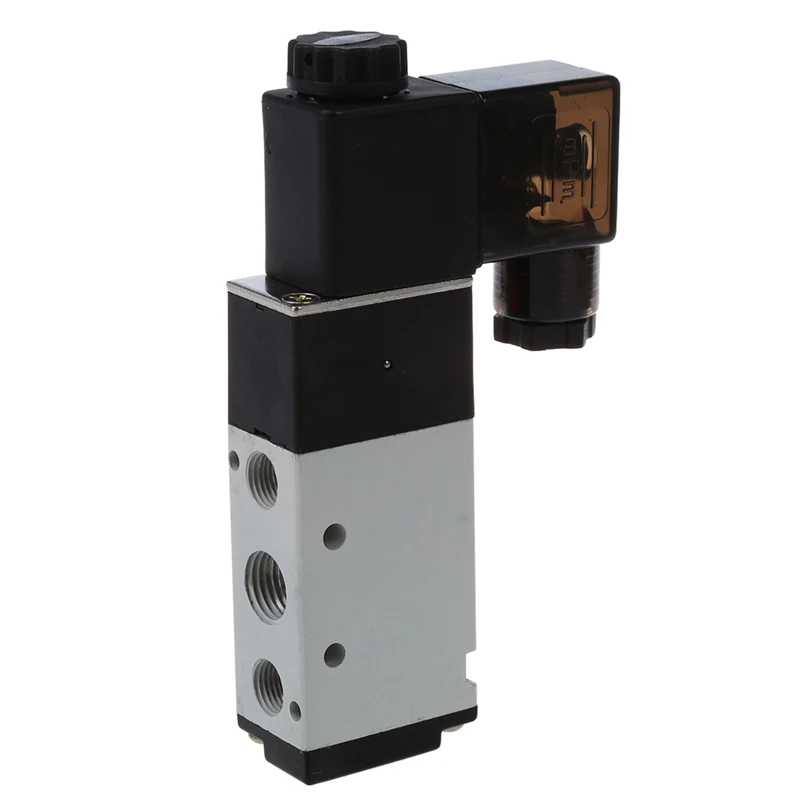

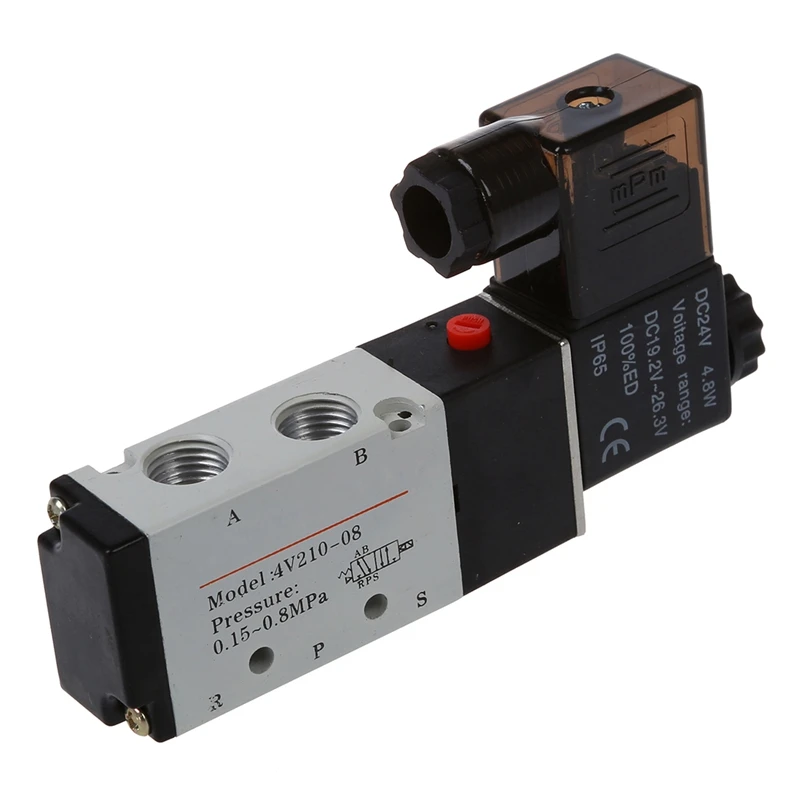

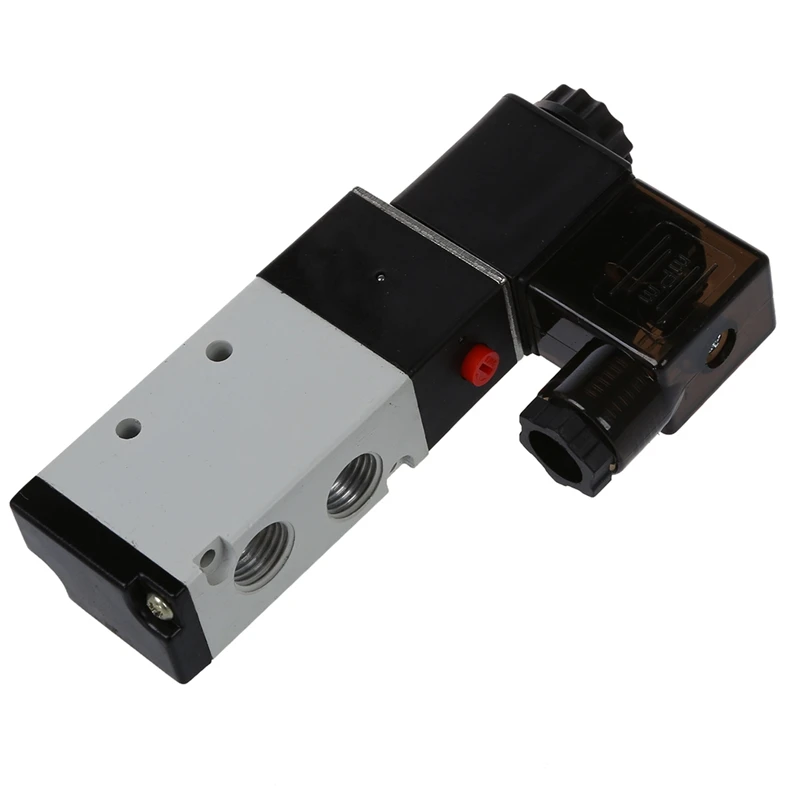

Product Name : Solenoid Valve;Model No. : 4V210-08;Fluid : Air, Water, Gas;Operation Type : Direct Drive
Type : 5 Way 2 Position Single Head Type;Power Consumption : DC 24V, 4.8W;Voltage Range : DC 19.2-26.3V
Working Pressure : 1.5-8kgf/cm²Joint Bore Size(Approx) : Inlet=Outlet=G1/8";Threaded Port Size(Approx) : Port A=Port B=Port P=1.15cm / 0.452",Port R=Port S=0.85cm/ 0.334"
Hex Connector Inner Dia(Approx) : 1.1cm / 0.433";Overall Size(Approx) : 10.2 x 2.2 x 6.4cm/ 4" x 0.9" x 2.5" (L*W*H);Color : As Picture Shown
External Materila : Plastic, Metal;Weight : 210g
With solenoid operated for control appropriate flow and direction, provide great performance.
Great body for a long lifespan, perfect for electrically driven pneumatic power control.
2 Position 5 Way Single Head type solenoid valve.
Package Content : 1 x Solenoid Valve
