It can measure the resistance value on object surface by putting two parallel electrodes close to object surface to be measured, so as to judge whether the measured object is a conductor, static material or insulator. Meanwhile the meter can be used to measure the resistance to the ground of object, which is specially applied to different anti-static fields. Besides, it can measure the environment temperature for your reference.

Features:

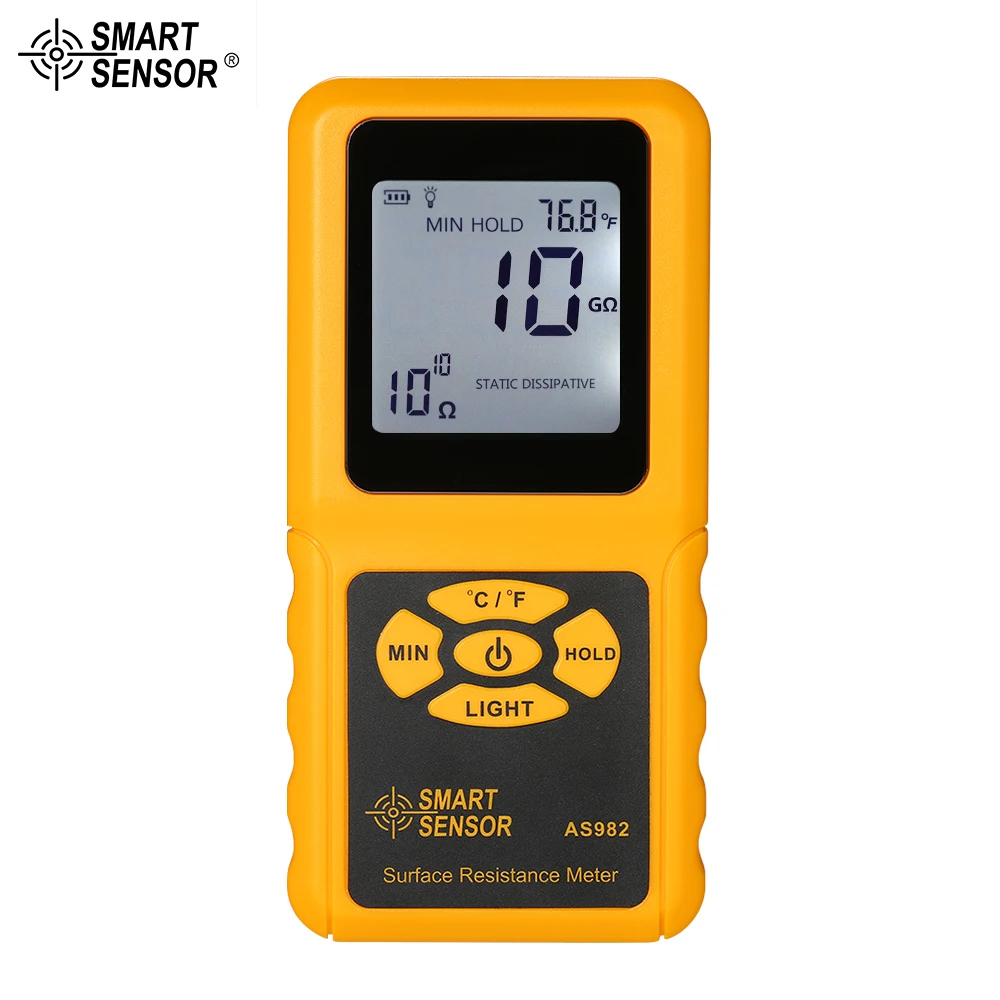

LargeLCD display with backlight for clear reading.
Can measure temperature from 0°C to 50°C automatically.
Switchable temperature units: Celsius(°C) and Fahrenheit(°F).
Can switch Chinese and English sequentially.
Includes data hold, temperature compensation and minimum locking function.
Auto power off with no operation in 30 minutes.
Low battery indication to replace battery immediately.
Widely used in the fields of microelectronics, medicine, aerospace, professional machinery, etc.

Specifications:
Brand: SMART SENSOR
Material: ABS
LCD Display: Chinese / English

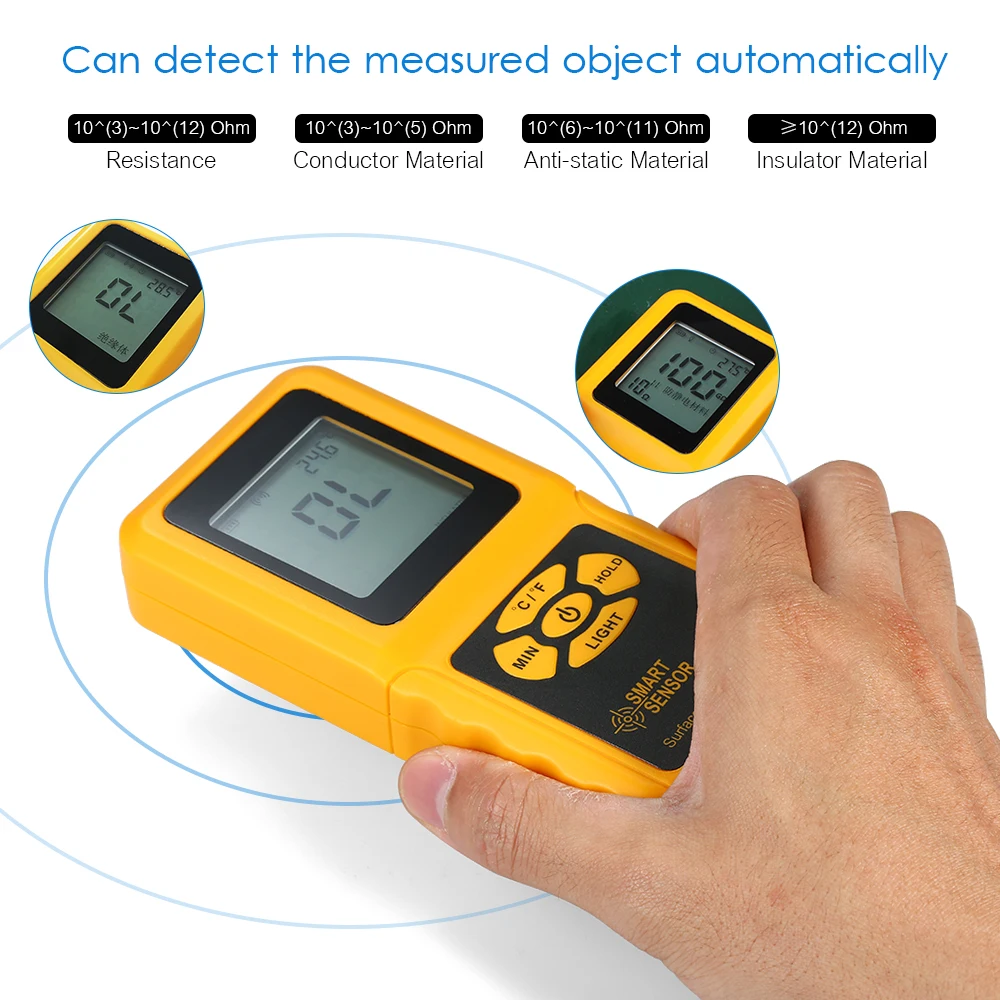

*Measuring Range:
Resistance: 10^(3)~10^(12) Ohm
Conductor Material: 10^(3)~10^(5) Ohm
Anti-static Material: 10^(6)~10^(11) Ohm
Insulator Material: ≥10^(12) Ohm
Accuracy: +/-10%(100K~10G)
Temperature Measuring Range: 0°C~50°C / 32°F~122°F
Accuracy: (+/-)2°C

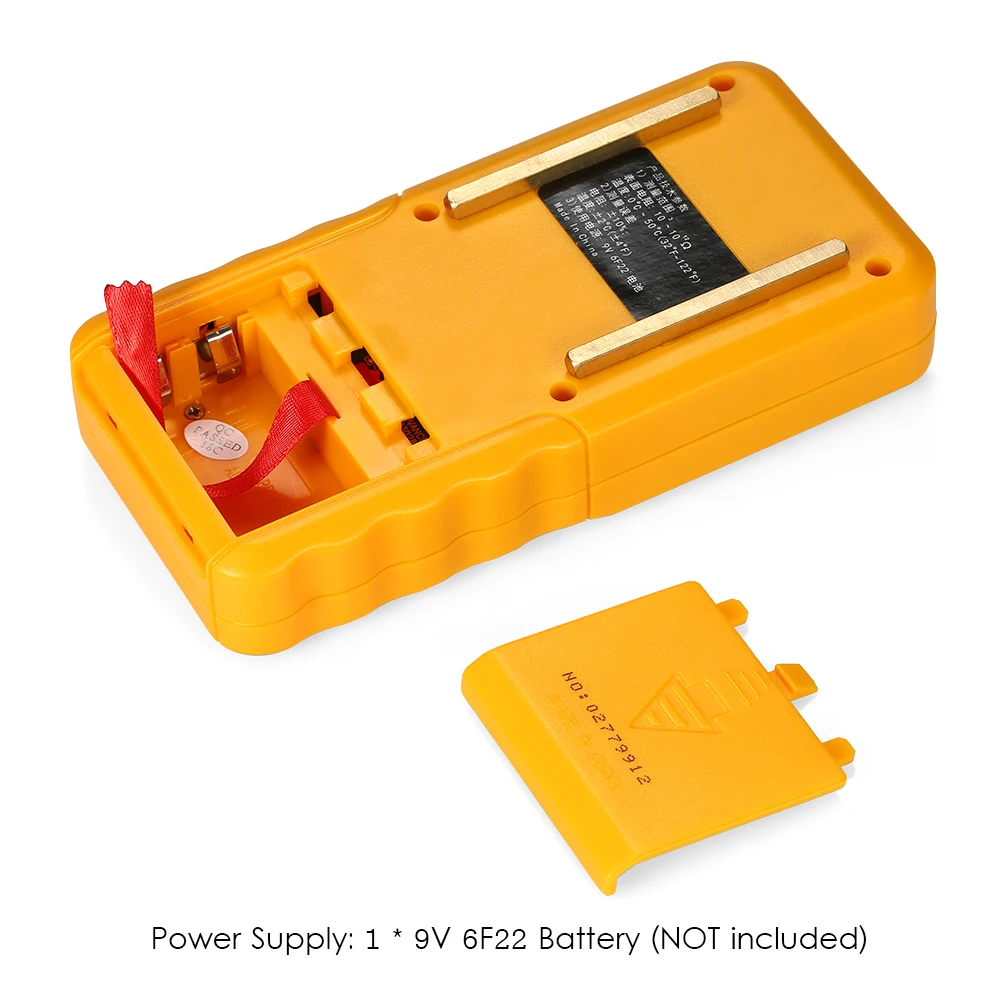

Power Supply: 1 * 9V 6F22 Battery (NOT included)
Operating Environment: 0°C~50°C, 10~70RH%

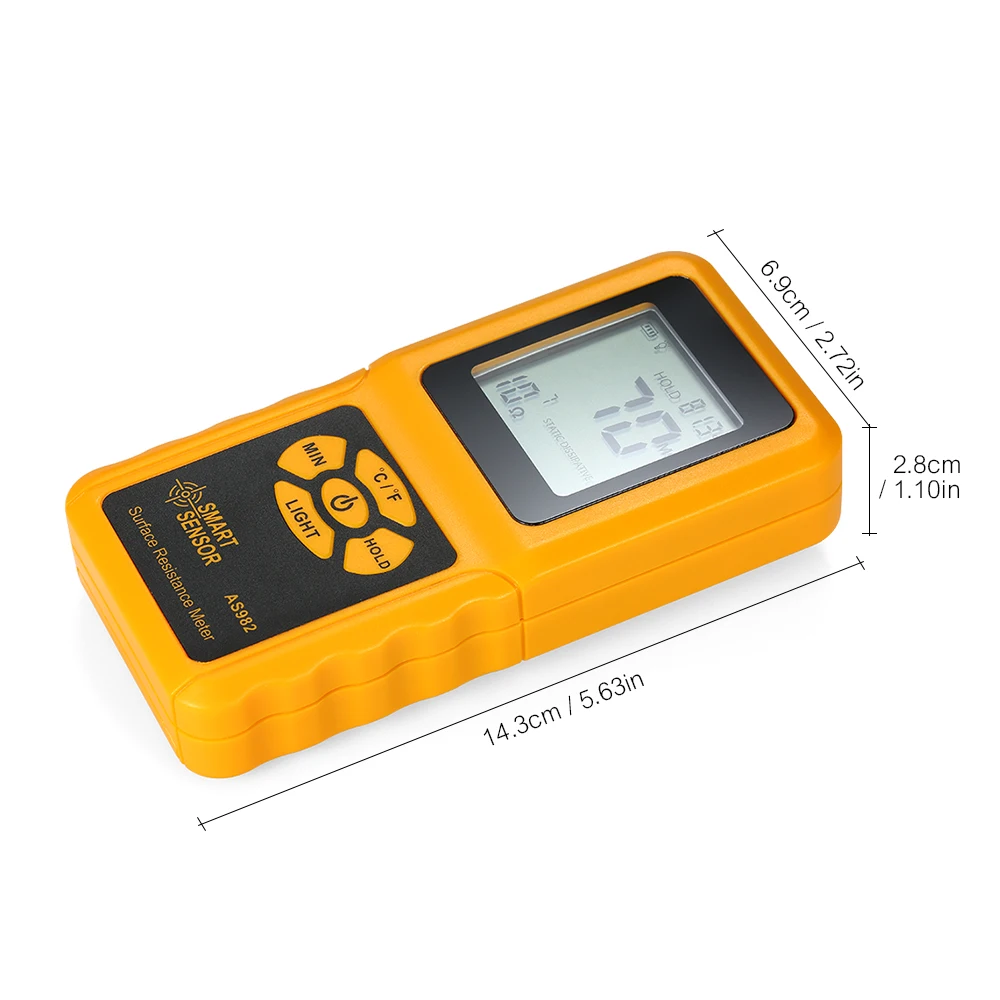

Item Size: Approx. 14.3 * 6.9 * 2.8cm / 5.63 * 2.72 * 1.10in
Item Weight: Approx. 138g / 4.87oz
Package Size: Approx. 22.5 * 18.3 * 4.8cm / 8.86 * 7.20 * 1.89in
Package Weight: Approx. 292g / 10.30oz

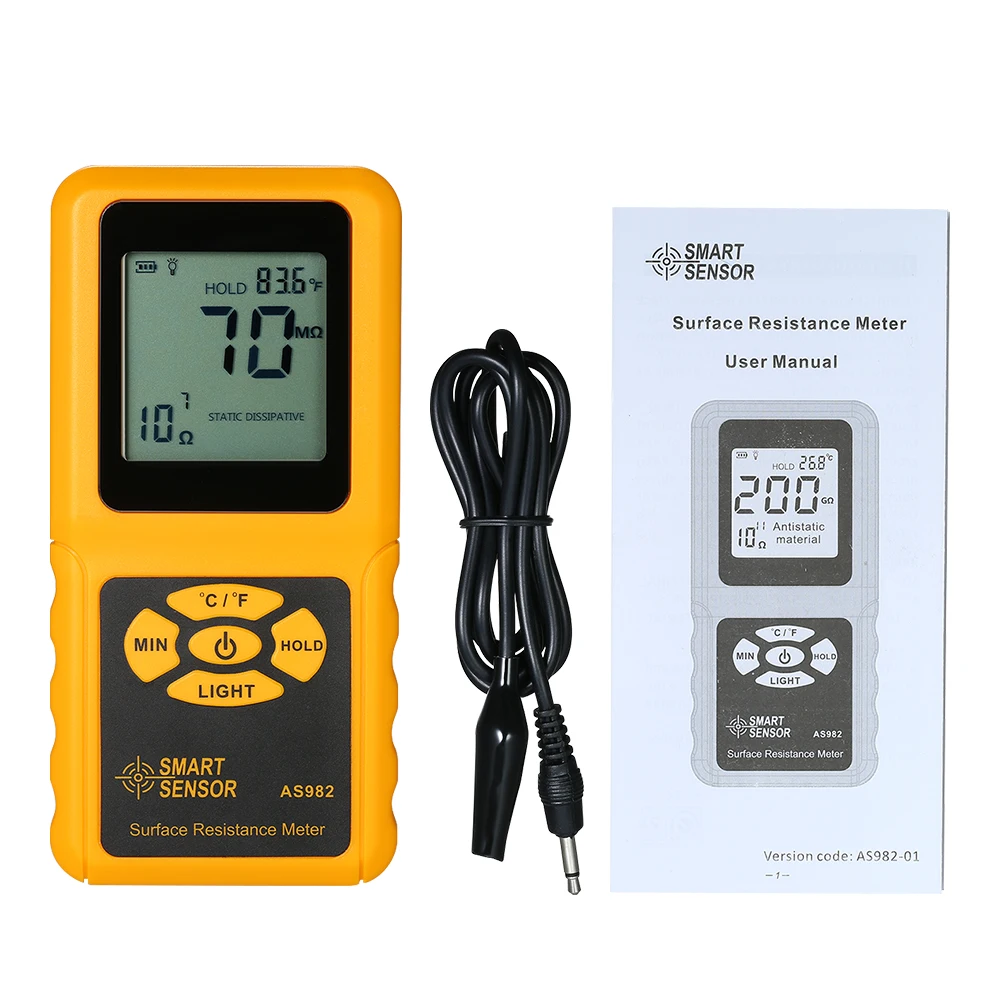

Package List:
1 * Surface Resistance Meter
1 * Ground Lead
1 * User Manual(English)
