PAY ATTENTION

Dear All,

Please pay attention before you place the order:

If you need, Please choose the signal (2G/3G/4G) you want first and check it as below ,

Apple system: call : *3001#12345#* ,signal strength will show on the top left corner.

Samsung system : call : *#0011#

Or you can download "LTE Discovery " app to check .

Put your phone there to check its signal strengthness outside:

Android : settingrarrabout phonerarrstatusrarrnetwork ,dbm display shall be at -75dbm to -85dbm around ;

IOS : dial *3001#12345#*, dbm display shall be at -75dbm to -85dbm around ;

1. Please check frequency range first when you plan to buy signal booster . Frequency doesnrsquot match, the signal booster canrsquot works.

2. Please make sure outdoor or roof the signal of the corresponding frequency is good, otherwise this product canrsquot help you. It needs outdoor good signal to improve your indoor signal.

3. The last but not the least, please install follow our installation steps. If really canrsquot works, please contact us attached pictures or video, so that we can help you check. Donrsquot just open disputes without any communication.

Beautiful Appearance: New style, big screen, unique design, is not only a cell phone signal booster but also an artwork. It can be used for apartment, hotel, office, basement of buildings, coffee shop and shopping mall etc.

Provide quick coverage solution for signal weak and block zones.

Up to 200-600sqm without barrier.

Saygoodbye to dropped calls and slow data connection. Suitable for all types of houses,such as living,loft,willa and so on.

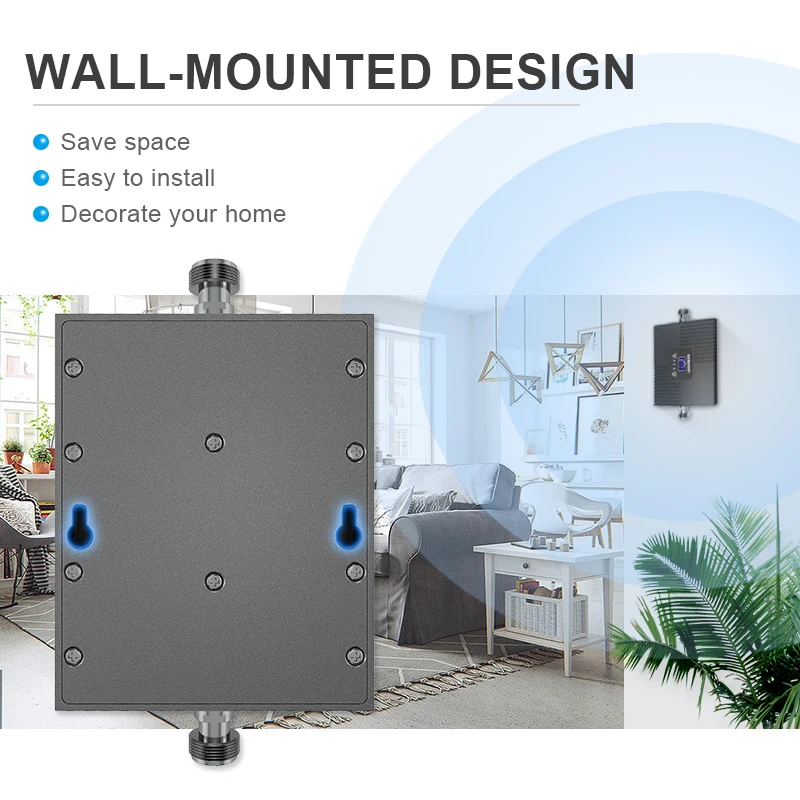

Save space.Easy to install and decorate your home.

Upgrade the board, high-quality amplifier tube, precise frequency, clear call quality, faster internet access.

The metal case design make it sturdy and durable. Bump heat dissipation design for better heat dissipation.

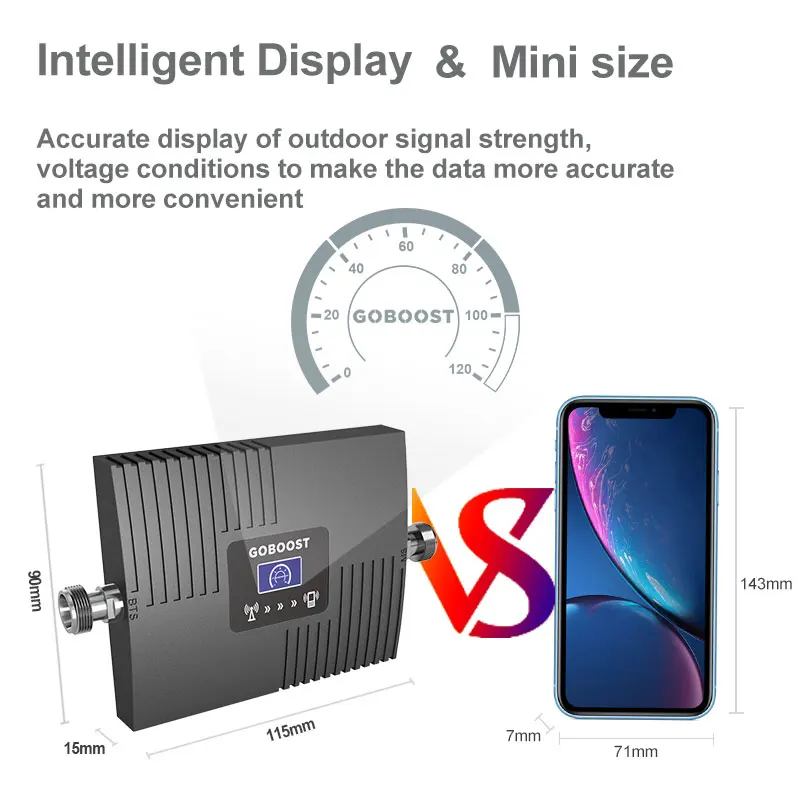

Accurate display of outdoor signal strength, voltage conditions to make the data more accurate and more convenitent.

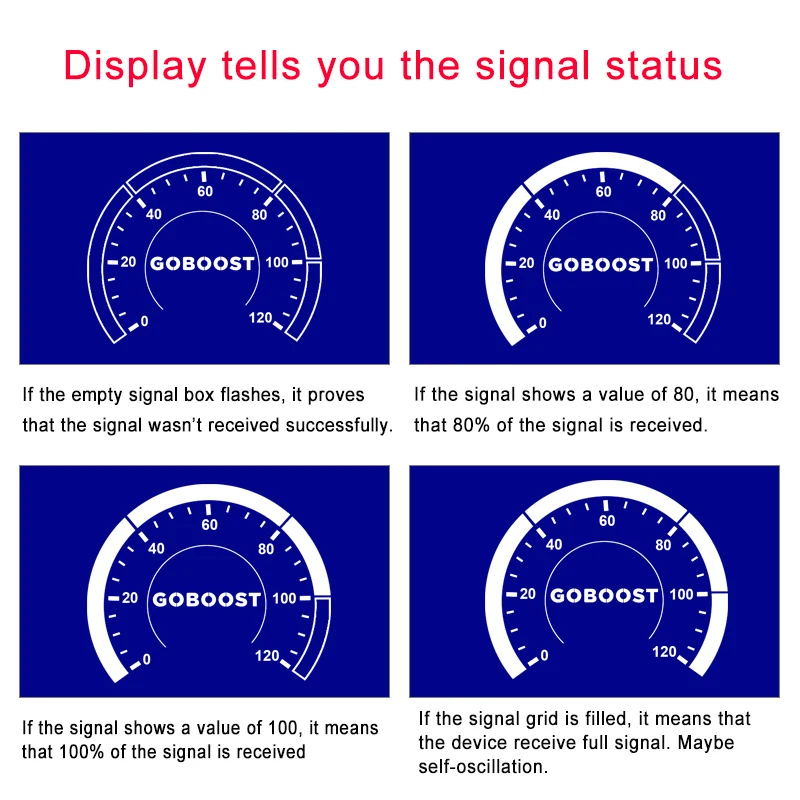

Situation A: If the empty signal box flashes, it proves that the signal wasn’t received successfully.

Situation B: If the signal shows a value of 80, it means that 80% of the signal is received.

Situation C: If the signal shows a value of 100, it means that 100% of the signal is received.

Situation D: If the signal grid is filled, it means that the device receive full signal.If the signal of your mobile phone is strengthened, that's perfect. If it isn't, that means it maybe self-ocillation.

PS: If you have any other confused when you using it, please contact customer servive at once.

Step1:Search a position where can receive good signal(stronger than -70dB)Parallelly installing the outdoor antenna on that location,towards to the base station or cell tower.

Step2: Use 10m cable to connect the outdoor antenna and singal booster.Please ensure they were tightenned joints,connected well. Step3:Connect the indoor antenna and the singal booster.

Step4:After finished all parts then check weather all connectors well,then can turn on the power.

Two antennas need to separate by brick wall. The distance between them at least 10 meters.

1. RECEIVES SIGNAL

The powerful antenna reaches out to access a good signal, and delivers it to the booster.

2. BOOSTS SIGNAL

The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

3. BROADCASTS SIGNAL

Your devices get increased cell reception, and calls and data are fed through the booster back to the network.

Common Problems

Question: no signal on the display and phone

Solution: adjust outdoor antenna, put it at a higher postion and make sure it could receive good signal from base station.Or please check the freqeuncy of your antenna, if you buy only booster from us. If the frequency doesn't match to the booster's, it could not work either.

Question: the display is blinking and signal light isn't on.

Solution: Also adjust outdoor antennna as above, because blinking means receiving signal is not stable. Adjust the position and direction of outdoor antenna until it stop working.

Queation: the signal is at maximum on booster but the signal on the phone does not improve at all

Solution: It is what we called "self-oscillation phenomenon". You need to increase the distance of indoor antenna and outdoor antenna and separae them with a brick wall. Make sure there is no opening area between them.

Question: The booster works properly but the signal light is not on

Solution: Maybe the cable is too long for the booster or the connection is not well. Please make sure all the antenna are connected well and tightly. It actually does n't matter too much as long as the device works well.

Any other problems about the product or installation, please contact us.
