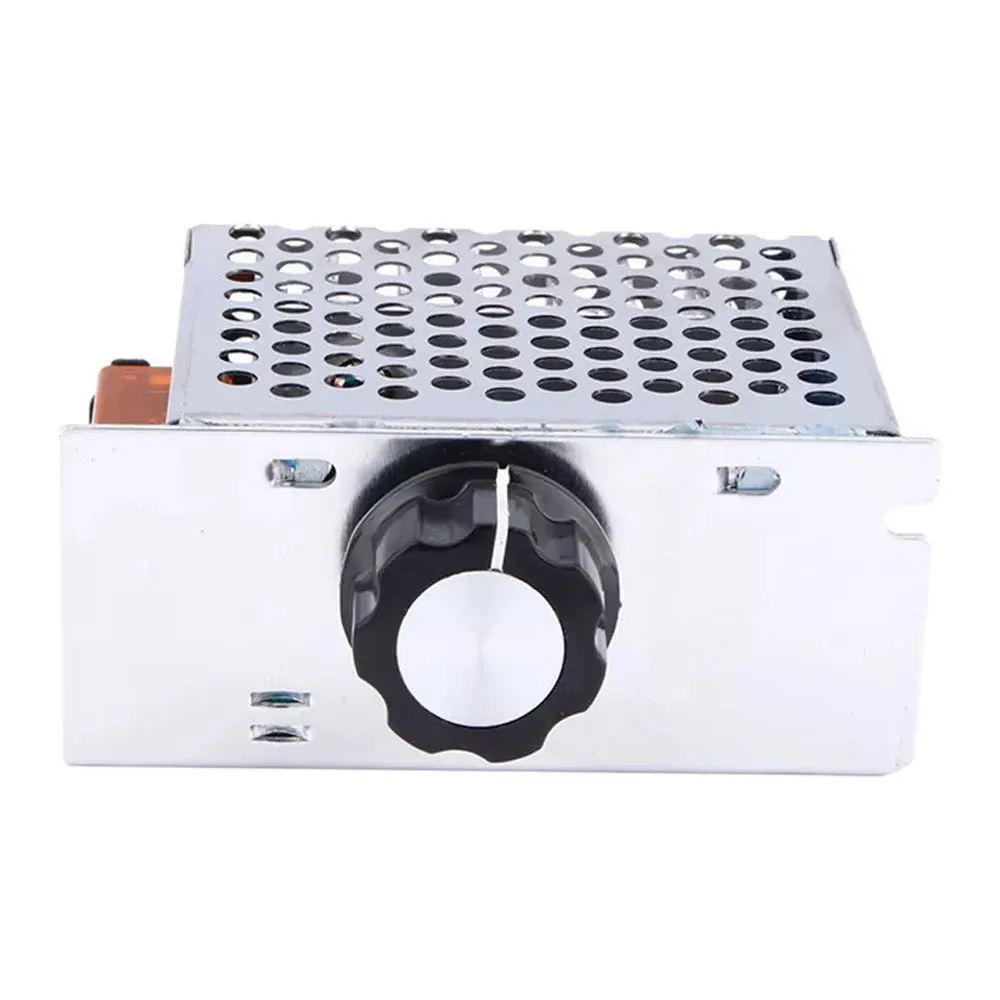

0-220V 20A Pulse Width Modulator PWM Electric Motor Speed Controller 6000W High Power Thyristor lectronic Regulator

Specifications:

Product Name: 6000W AC Voltage Regulator

SCR model: BTA41600B

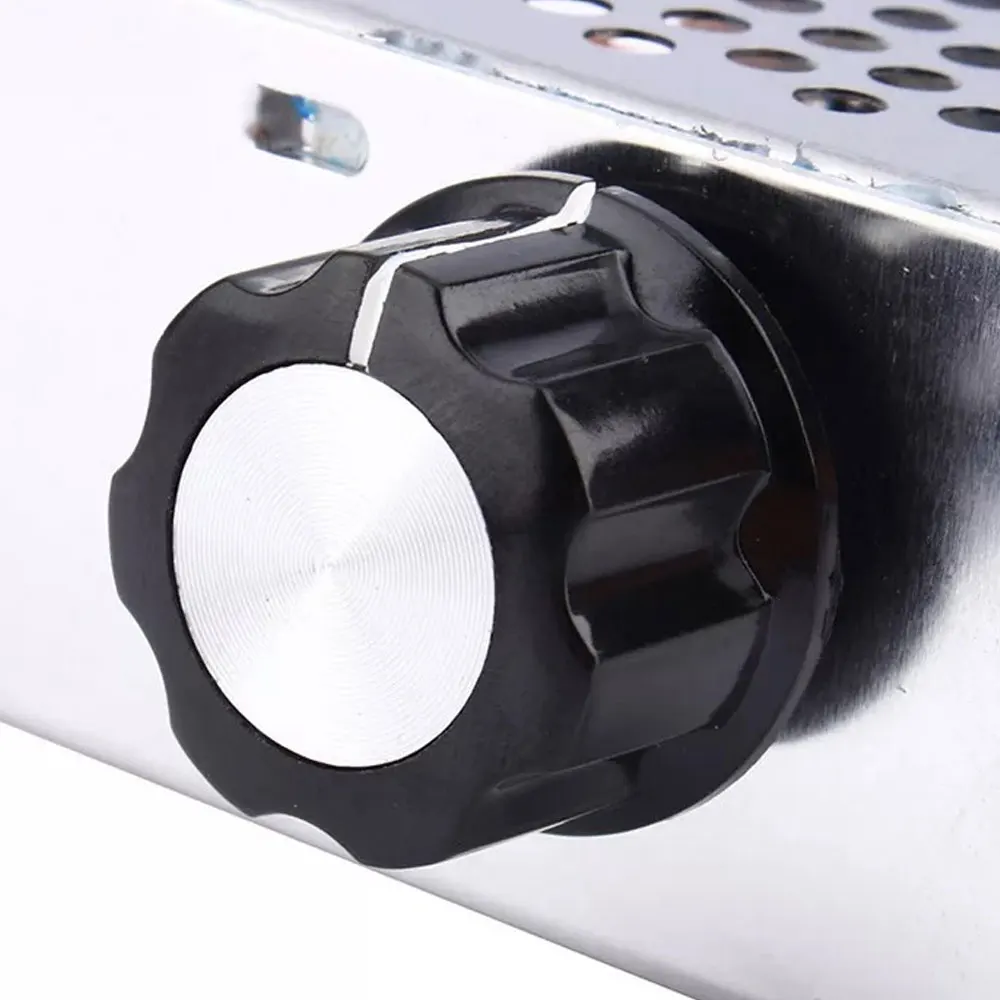

Dimensions: length 130* width 60* height 47mm, knob inner hole 6mm. Without protruding knob, manual measurement, there is error, subject to the actual object

Net weight: 210g

Z high power: 6000W (resistive load limit power), the power should be reduced for a long time, it is recommended to use temperature resistive load within 3000W (key parameters, please pay attention).

Efficiency: 90% or more

Working voltage: AC 220V

 Adjusting voltage: AC 0-220V, resistive load condition, starting up to ten volts, callback can be 0.

Note that the load must be connected before the voltage is adjusted.
SCR is mainly used for resistive loads (electric heating incandescent lamps, etc.), most of the single-phase AC motors are also available, but they are not guaranteed. Other types of loads should be confirmed by the buyer.
Note that the plastic cover on the connector is too strong to break the cover, and the express delivery may also be crushed. It is a wearing part, but it will not affect the use of the module. All the problems related to the plastic cover are not responsible for the return.

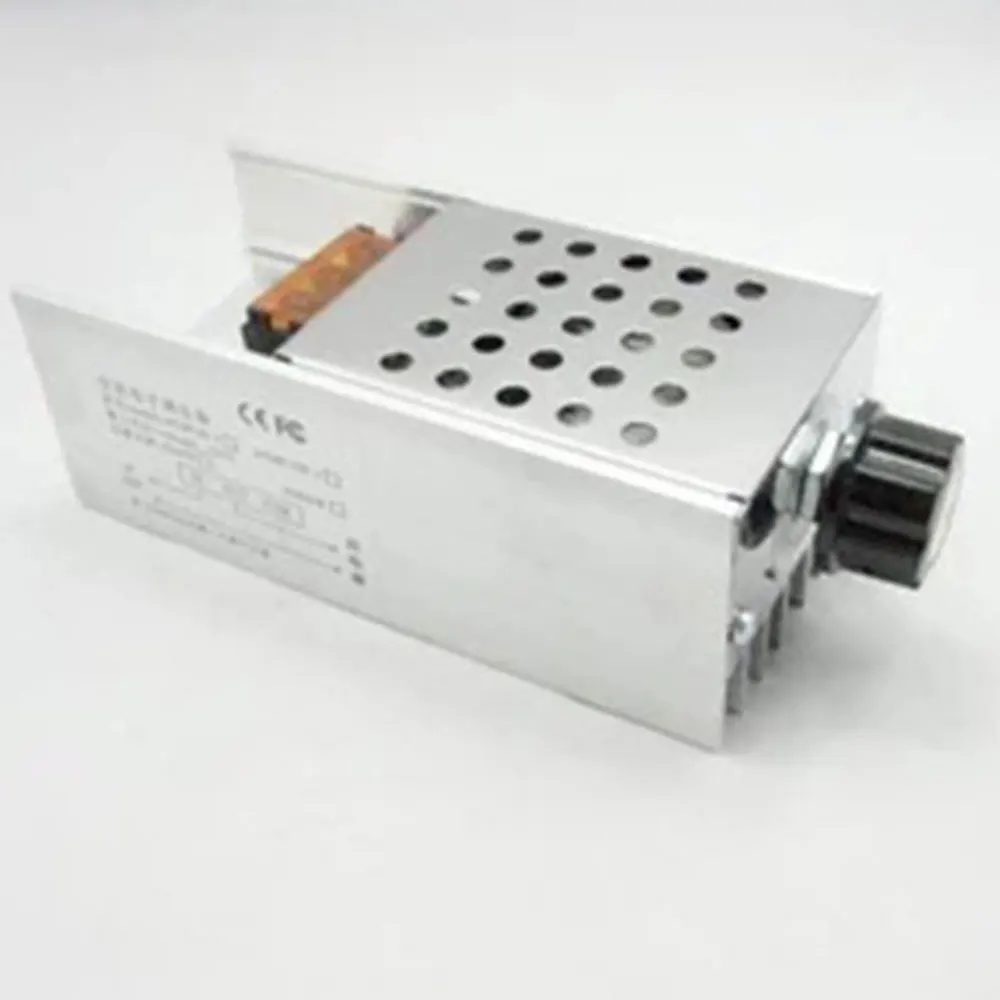

The housing regulator has a more secure QUAN, which is more convenient to install and is more suitable for families and factories that are not convenient to install.

Use imported 41A thyristor.



Using 1.6 thick FR-4 high temperature circuit board, the circuit design is reasonable, and the thickened welding circuit design is adopted, even if the large current is passed, it is enough to be used, and the more stable QUAN is more reliable.



The circuit has undergone several technical improvements, and each accessory has been selected. The QUAN technology is now mature. The dual-capacitor design (safety capacitor + metal film capacitor) effectively absorbs surges and voltage spikes, and more effectively protects the thyristor, making it more efficient and more stable.
