Yatour YTBTK Bluetooth Car Kit For vw Golf Passat Alpha 5 Beta Gamma Audi Chorus 1 2 Concert radios Audio MP3 Player | Автомобили и



                                                                     ------YTBTK Bluetooth Kit

        Nowadays, using mobile phone during driving is widely considered dangerous

,and hands free car kit ensures driving safety. As the using of smart phone is

widespread, it is urgent need for most of drivers to enjoy huge music sources and

other Apps of their smart phone via car stereo.           For above demands, Yatour Bluetooth Car Kit (BTK) is released. Developed according to original protocol of OEM car stereo, BTK is a high-tech product innovatively integrated with latest standard Bluetooth technology.

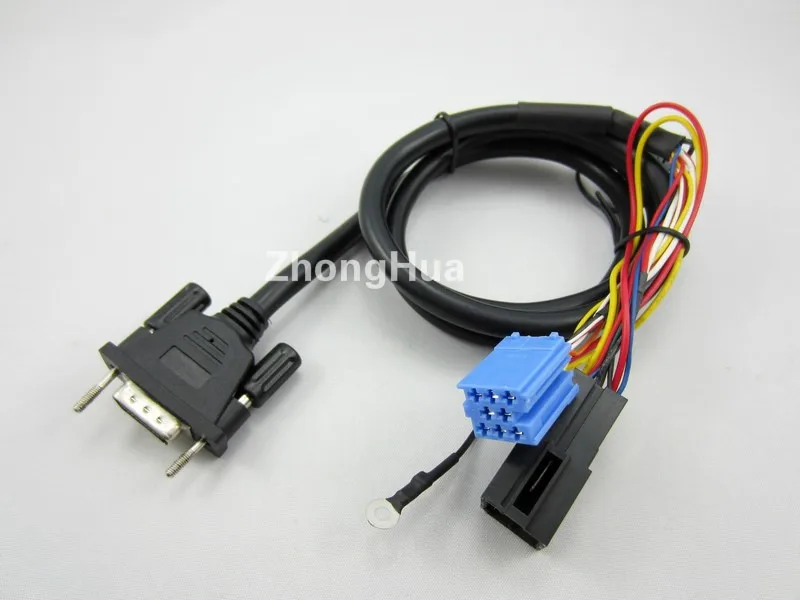

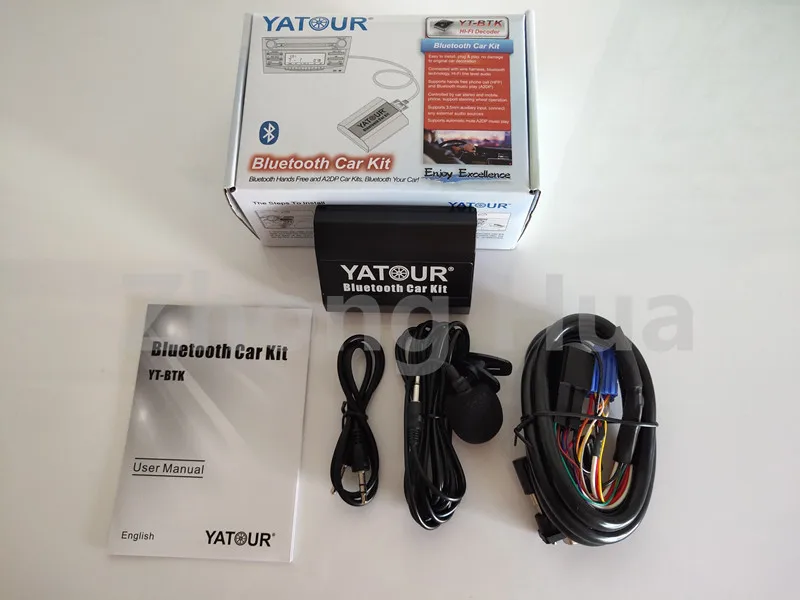

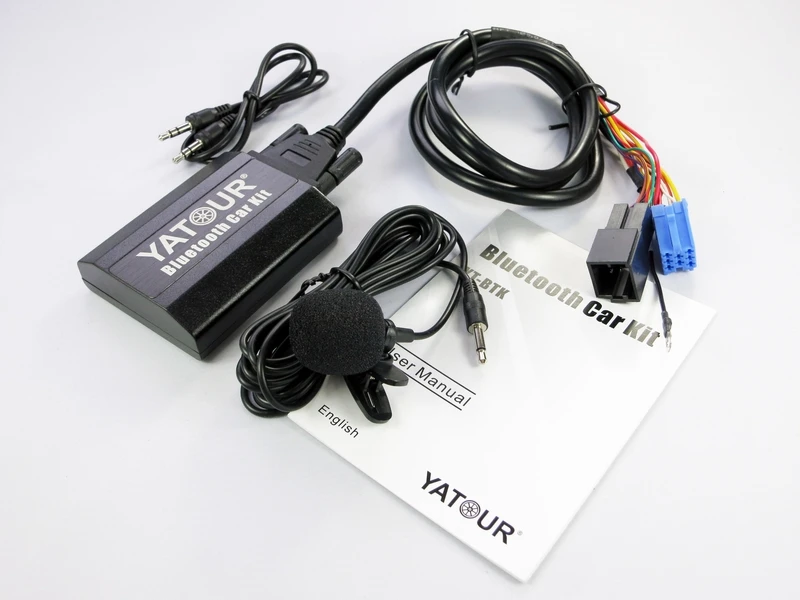

YTBTK-VW8D   Includes: 1.Module unit for VW 2.VW 8pin plug(with built-in splitter cable) 3.AUX cable 4.Microphone Compatible Models VW 1999-2008 Beetle, 1998-2001 Cabrio, 1998-2002 Golf/GTI/R32, 1999-2002 Jetta, 1999-2001 Passat, 1999-2004 Polo, 1999-2002 T5, 1998-2001 Sharan Skoda 2003-2008 SuperB ,2003-2007 Octavia,2003-2008 Fabia , Audi 1999-2005 A2, 2001-2006 A3,1998-2006 A4/S4,2001-2004 A6/S6,1999-2003 A8/S8,2000-2005 AllRoad, 1999-2003 TT Seat 1996-2004 Ahambra ,1997-2004 Arosa, 2003-2006 Cordoba, 1999-2007 Ibiza, 2000-2005 Leon, 1999-2005 Toledo, 1999-2005 Vario Compatible  Head Units VW Alpha 5, Beta 5,Gamma 5,New Beetle Alpha 5, Gamma, New Beetle Gamma CD, Monsoon, Phaeton Rhapsody, Premium 4 Clarion, Premium 5 Delco, RNS-MCD,Z6Z9(Phaeton), Z9Z7(New Beetle), MFD Navi Audi Chorus 1,Chorus 2, Concert 1, Concert 2, Symphony 1, Symphony 2, Navigation Plus 1(non MMI), Navigation Plus 2 (non MMI), Delta(excluding Delta CC), etc Skoda MFD Navi,MS 303, MS 501, MS 502,Symphony CD & Kassette, Melody, Rhapsody, Sat Compass; Seat Alana, Aura, Aura CD,Beta,Elba,Lena,Liceo, Scala, MFD, Highline, Odeon, Dynamic Navigation ,etc Ford Sound 2, MFD, Navi RNS, Compatibility Notice 1. Able to hook up with existing CD Changer
2.Not work with Polo 2004 with single-disc CD radios without MP3 function.
3. Audi 20pin connector(YT-Audi20) is optional for avoiding modification on Audi 8pin radios































NOTE:

pleae check the back of your radio if come with 8 pins connector?thanks!

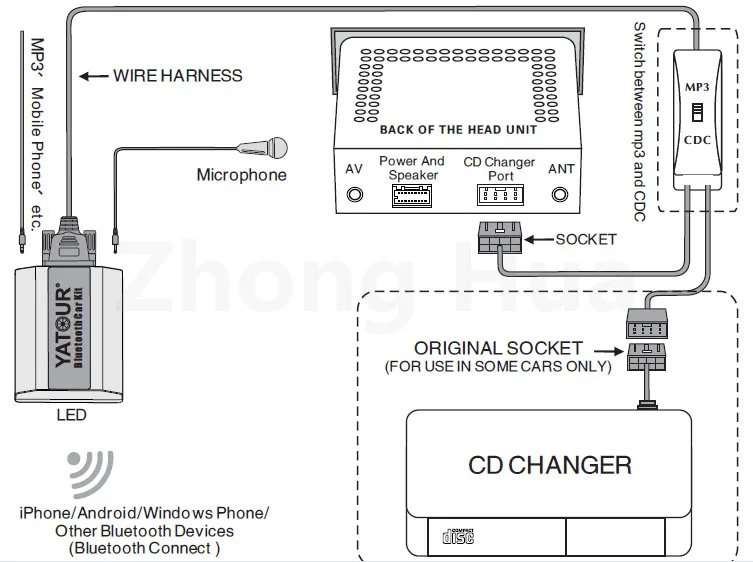

llation guidance:
1, Plugs in to the back of the Car Stereo. It uses CD changer port of your stereo.
2, Plug-and-play operation.
3, Works as an AUX Input converter for any MP3 player.
To remove your existing car radio, You may be able to find more information via websites or by contacting a dealer/qualified installer.

Customs code(HS code):8522909100

Specification: Module size: 74 x 62 x 20mm Voltage Input : 11V~14.6V DC Operational Current : 600mA Standby Current : 20mA Operating Temperature: -35℃~+75℃ DAC Resolution : 20bit Total Harmonic Distortion : 0.05% SN Ratio : 90dB Frequency Response : 20HZ-20KHZ

Features:

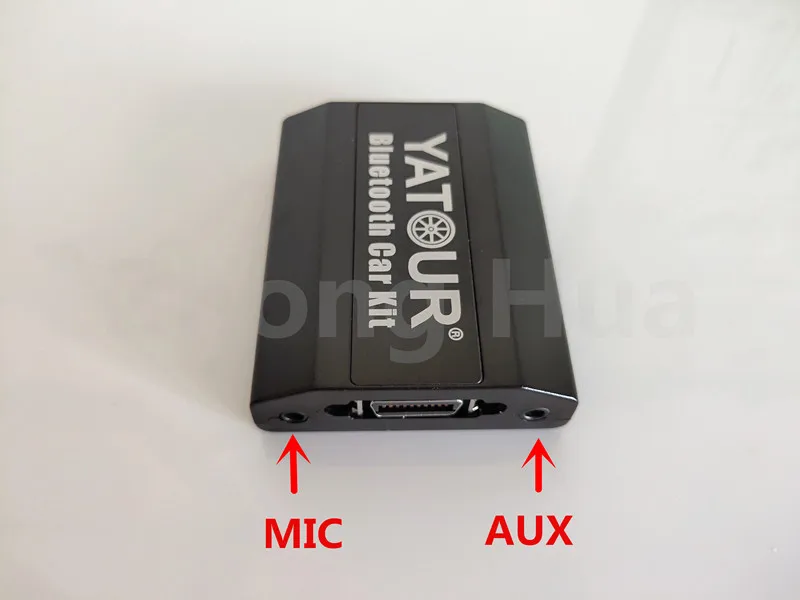

1. Plug & Play: installed via original CD changer port, easy and fast, perfectly integrated with the car. 2. Hands-free Phone Call (HFP): supports Answer/Hang up etc., via car radio buttons and steering wheel buttons. 3. Wireless A2DP Playback: easily streaming music of Bluetooth devices into factory car stereo system. 4. Bluetooth AVRCP Control: controls Prev/Next Track, Pause/Play, Fast forward/backward via car radio buttons or steering wheel easily and safely. 5. AUX Input: Supports 3.5mm auxiliary input, able to connect any external audio sources. 6. Hi-Fi Sound Quality: Connected to car stereo via wire harness, no interference and no loss of sound quality, rivaling original CD sound. BTK allows you to easily have popular configuration of advanced car stereo, is the best choice for safe driving and enjoying digital music.

Note:Before bidding ,Please confirm your car can use this CD changer,if possible

please sent us the picture of your car's headunit(front and back).we will confirm it for you,thanks!



Installation Preparation 1. The product only operates on a vehicle with 12 Volt DC negative ground system. Do not use it on other voltage system. 2. This product only fits OEM or aftermarket car stereo with CD changer port, and different solutions of Bluetooth adapter would be adopted according to different brands of vehicles or different car radios. 3. Make sure car stereo is powered off before installation, otherwise the car stereo may be damaged. It is suggested to install it at car dealer shop or professional car stereo store. 4. Usually, the car stereo needs to be removed so as to plug BTK’s main connector into CD changer port on radio back. For some car models, BTK can be installed in glove box or trunk where external CD changer port is located (Requires special splitter cable).   Working Modes Instruction After finishing installation of BTK, press once or twice the CD (or Disc / Mode / CDC / SOURCE / AUX etc.) button to switch to CD changer working mode (BTK mode). Yatour BTK offers 2 types of working modes: HFP/A2DP mode, AUX IN mode. Under BTK Bluetooth HFP/A2DP working modes, the car stereo should be under CD1 mode, and you should see CD 1-1 on you car stereo. When you disconnect current bluetooth connection from your mobile phone and BTK will switch to AUX IN mode, BTK’s AUX input will be valid.   1. BTK doesn't work after installation. Please check whether the wire harness is correctly connected. And if there is GND wire (for some car models), please check whether it connects well with metal parts of car radio. 2.Frequently switching or other unknown reasons cause playback stuck. Music playback is from function of mobile phone, you just need to start the playback from mobile phone menu. 3.External audio input(AUX IN) sounds too low or too much noise. Adjust volume of earphone output of your external audio device;It is not proper for external audio devices to use car power, because common ground noise will occur in this case. External audio device should use its own battery to play. 4. Why I can still hear the former mobile phone Bluetooth A2DP music when I plug in AUX device? When you need AUX IN function, you have to disconnect current bluetooth connection from your mobile phone and BTK will switch to AUX input mode status .   Warranty&Return: We offer ONE YEAR warranty from the date of product received, each item is double tested before shipping, please do remember to check the parcel before you sign it, or refuse it if broken and contact us immediately for the solution. We will supply lifetime technical support, what you need to do is to avoid the misuse & misunderstand on using the product, reading the user manual carefully and ask an expertised technician to help install it. We will not be responsible for the damage from improper installation, accident, misuse, abuse, improper wiring and incorrect voltage while operating the unit against the instructions in the owner's manual. 30 days money back, buyer pays return shipping; No refund accepted after 30 days of receipt.Returns made for non-defective merchandise will be charged 10% restocking fee.Buyers pay shipping costs for the FREE repair in one year, warranty seal and serial numbers on the unit cannot be removed or damaged.   Customs&Tax: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. We can write lower value to avoid high custom duty, and also per the buyer's request. Please check with your country’s custom office to determine what these additional costs will be prior to bidding/buying. Import tax is out of our control, if you don’t have a special request of how much declare to customs, we will help buyers to minimize the risk of paying tax, but is not responsible for any buyers' local import tax or customs delay.        All items will normally be shipped within 3-5 working days(excluding Saturday, Sunday and public holiday) uponreceipt of your payment.there will have some delay, thanks for your understand. Combined Shipping: the discount depends on your detailed combined items, please email us when you want to buy more than one item. Mostly we often use DHL, EMS for most countries, EMS shipping for the economic method, DHL shipping for the fastest way; we choose EMS service for Brazil and Russia to avoid custom duty. North American countries like Canada and USA, buyers could use their own shipping method. Shipping rate is calculated based on normal destination delivery. If your address destination belongs to Remote Areas (according to FedEx/ DHL's standard, you can check it at remoteareas.dhl), additional cost (about $45) needs to be charged as per courier's shipping rate standard. Or you have to use EMS service(free shipping) by default.     When you do the payment, please let us know the following for shipping: 1.Telephone number 2.Contact person 3.Shipping address 4.Zip Code        We do care about our valued customers and understand the concerns and frustrations you might have and will try our best to resolve all the issues.we appreciate your business, if you are satisfied with our service, please leave us a positive feedback . We strive to answer all emails as quickly as possible, but due to high email volume it may take time for us to reply. Thanks in advance for your patience!Our goal is to make sure you are a happy buyer and pleasant shopping with us.Please email us before leaving negative feedback or open any dispute.We understand the concerns and frustrations you might have, and will do our endeavor to resolve the issues. If you do not receive your item on time, please contact us immediately for further assistance.  Please give us the opportunity to resolve any problem. thank you !
