Descriptions

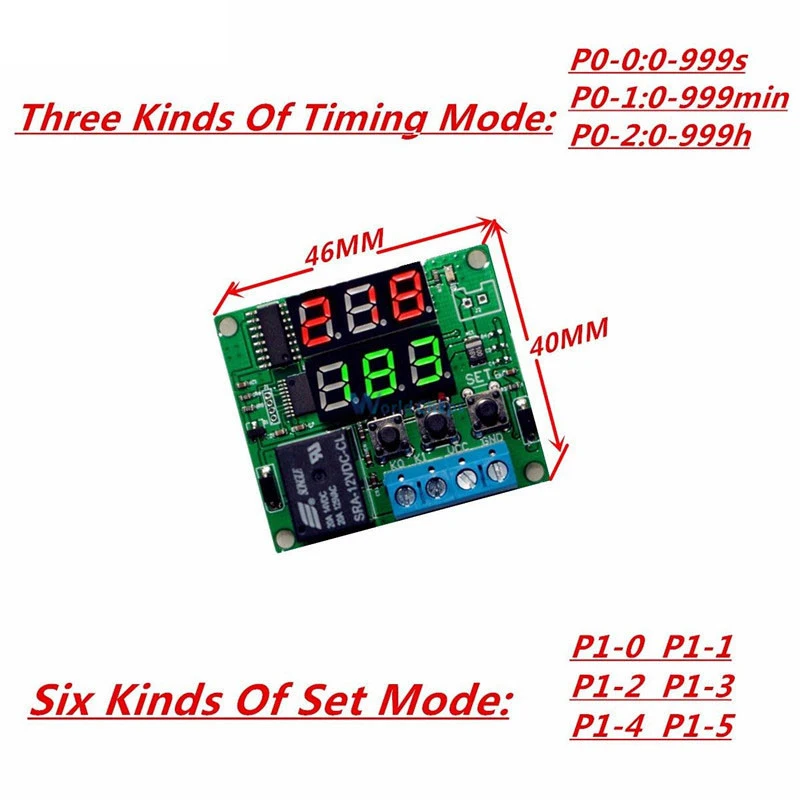

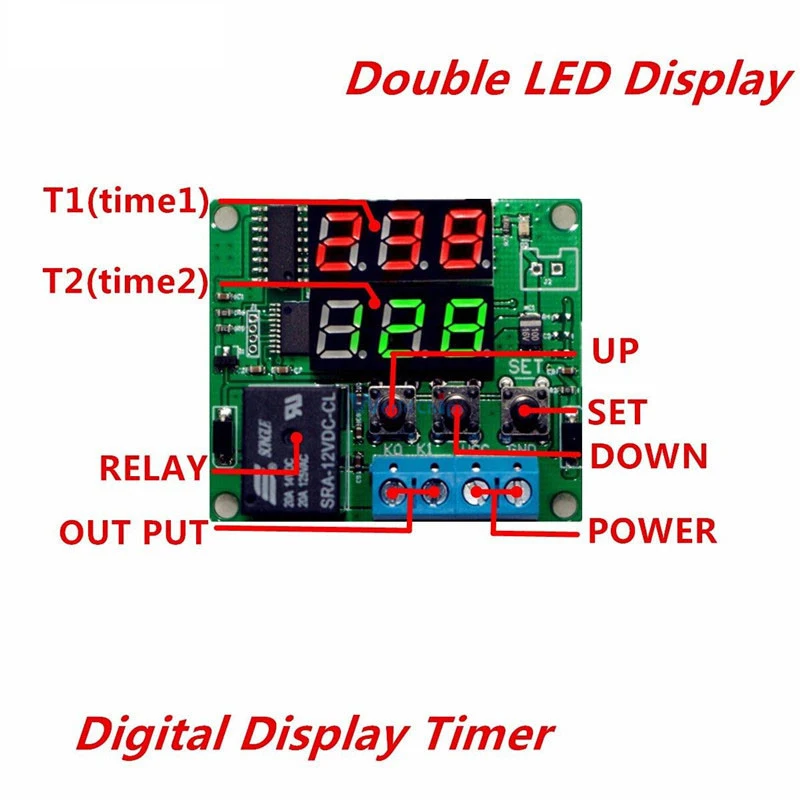

- Firstly: It has double LED displays, so you can set two group timing time T1 and T2. It will very convenient to customers - Secondly: There are three timing time for your choice: 0-999s 0-999min and 0-999h. You could set the timing mode as your requirement. - Thirdly: There are six operating modes for your choice.

Specifications

- Temperature Control Range: -50 to 110 C - Resolution: -9.9 to 99.9 at 0.1 other temperature range 1 at 0.1. - Accuracy of temperature measurement: 0.1 Celsius - Control accuracy: 0.1 C - Backlash accuracy: 0.1 Celsius - Refresh frequency: 0.5S - Input power supply: DC 12V - Measurement input: NTC (10K 0.5%) waterproof sensor - Output: 1 relay output, capacity = 20A 125VAC, 20A 14VDC - Environmental requirements: - 10 - 60 C humidity 20% - 85%. - Specification and size: 48.5*40mm - Power Consumption: Static Current:
