 4inch touch screen  H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3A Output;

TI-9618-ADHW-01

4inch touch screen  H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3AOutput;

Added network line test function (an additional network port)+Network cable test box

TI-9618-CADHW-01

4inch touch screen  H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3AOutput;

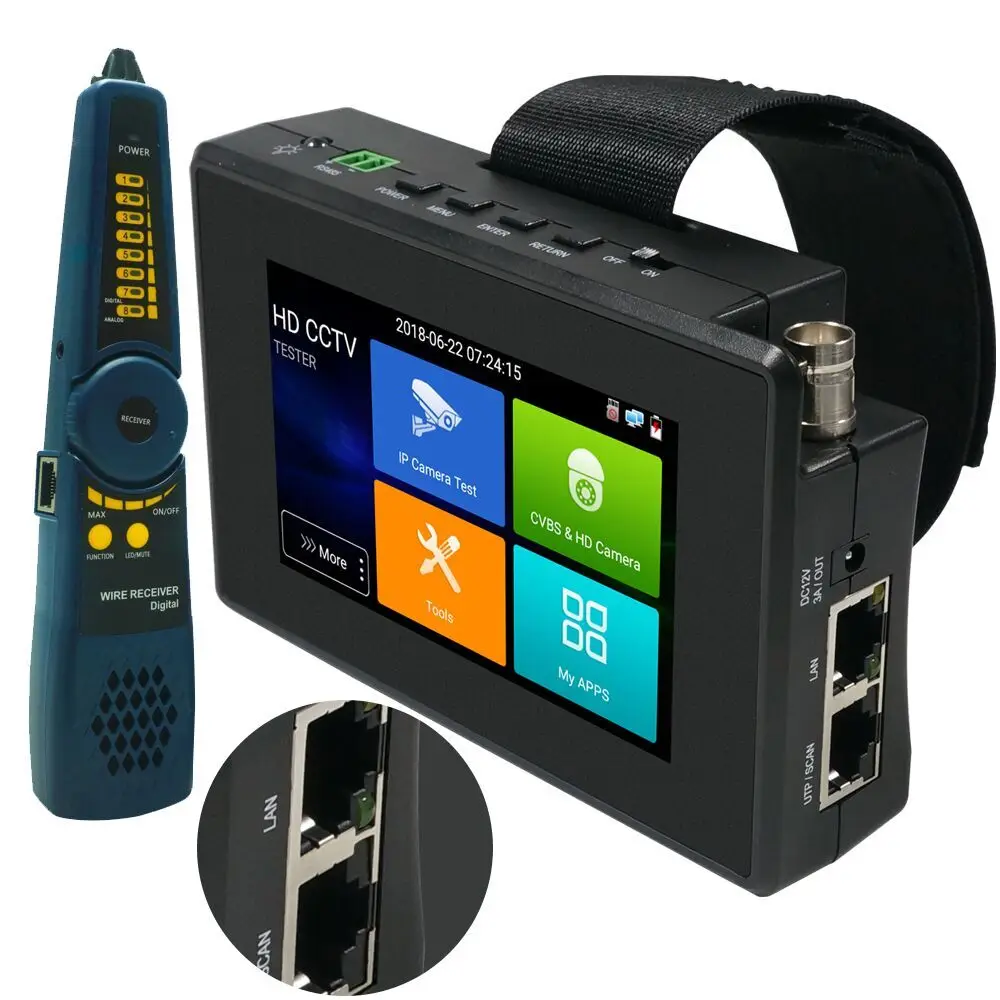

Added network line test function (an additional network port)+Cable tracer

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese ,German,Turkish,Serbian,Czech

4 inch IPS touch screen, 800*480 resolution

8MP TVI, 8MP CVI, 8MP AHD camera test

H.265/H.264, 4K video display via mainstream

Dual window test, IP &Analog camera test

CVBS and PTZ control

DC12V 3A, DC48V PoE power output

HD coaxial video signal quality

PPPOE dial test

Rapid ONVIF, auto view video and create testing report

Hik test tool, hikvision camera , Image test, can modify the user name, password and IP parameters

TI-9618-ADH-01

TI-9618-ADHW-01

TI-9618-CADHW-01

4 inch IPS touch screen,800*480 resolution

New- 8MP TVI test,3840 *2160P 15 FPS,video record and playback ,coaxial PTZ control and call camera OSD menu

8MP AHD test, 2560*1944P 12.5F/ 20F,video record and playback ,coaxial PTZ control and call camera OSD menu

8MP CVI test,2560*1440P 25/30 FPS ,video record and playback ,coaxial PTZ control and call camera OSD menu

IP & CVBS camera test, PTZ controller

New-IP discovery , just by one key to detect all network cameras IP address

Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS

Hik test tool ,pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)

PoE DC48V power output, Max power 24W,DC 12V /3A power output

PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

Item series

IPC-1800ADH Plus

Display

New 4 inch IPS touch screen , 800*480 resolution

Video Mode

CVBS

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP camera test

4K/H.265/H.264

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video

Auto view the video, create testing report

Hik test tool

pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

Dahua test tool

Dahua camera test, modify the user name, password and IP parameters

Coaxial HD test

8MP TVI camera test, 3840*2160P 15 FPS, UTC control/ call OSD menu

8MP CVI camera test, 2560*1440P 25/30 FPS, UTC control d call OSD menu

8MP AHD test, 2560*1944P 12.5F/20F, UTC control d call OSD menu

Zoom Image

Zoom, Screen snapshot, record, save, view, record and play back

12V/3A power

Output DC12V/3A power out, supply temporarily power for the camera

Power output

PoE power output

48V PoE power output, max power 24W

Network test

Link monitor, port flashing, Ping test

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

Drop-down menu

You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface

External power supply

DC 12V/1A

Battery

Built-in 7.4V Lithium polymer battery , 2400mAh

Rechargeable

After charging 4~5 hours, normal working time 8 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

1-30 (mins)

Working Temperature

-10---+50

Working Humidity

30%-90%

Dimension/Weight

126mm *83mm* 33mm / 0.32kg

The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to contact us.
