Cjmcu-226 Ina226 Bi-Directional Voltage Current Power Alert Monitor Module I2C Iic 36V |

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Features:
1.Senses Bus Voltages From 0 V to 36 V
2.High-Side or Low-Side Sensing
3.Reports Current, Voltage, and Power
4.High Accuracy:0.1% Gain Error (max)
Product Introduction:
1.Common Mode Voltage:36V (max)
2.Input Offset:10uV (max)
3.Input Offset Drift:0.02uV/C (typical)
4.CMRR:126dB (min)
5.Bandwidth:7KHz
6.Supply Voltage:5.5V (max)
7.Operating Temperature Range:-40~125 celsius
8.Special Features:alert function;bi-directional;I2C;low-side capable
colour: blue
Material: PC+metal
Package Contents:

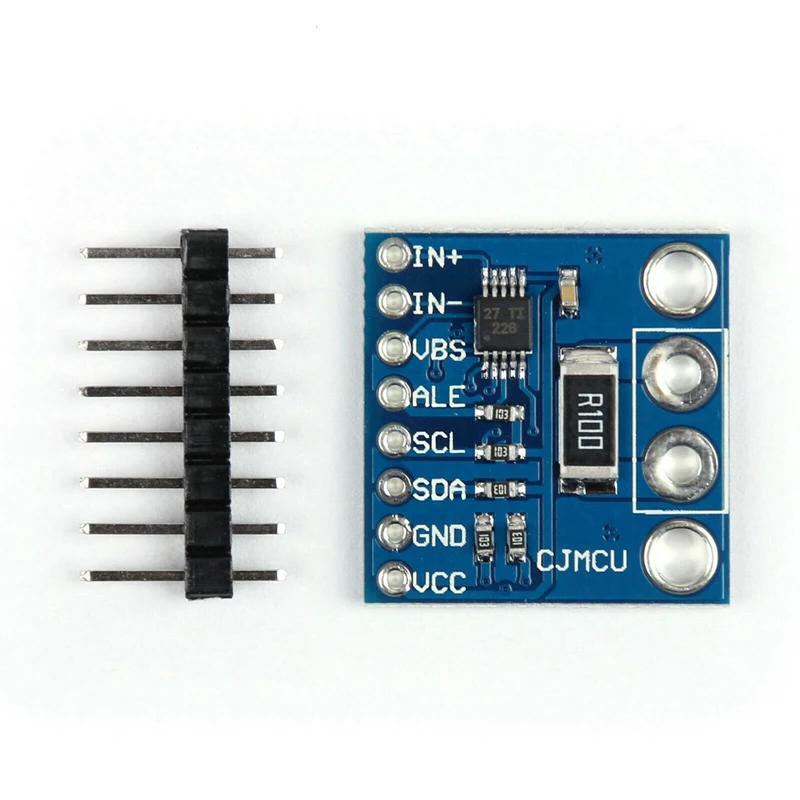

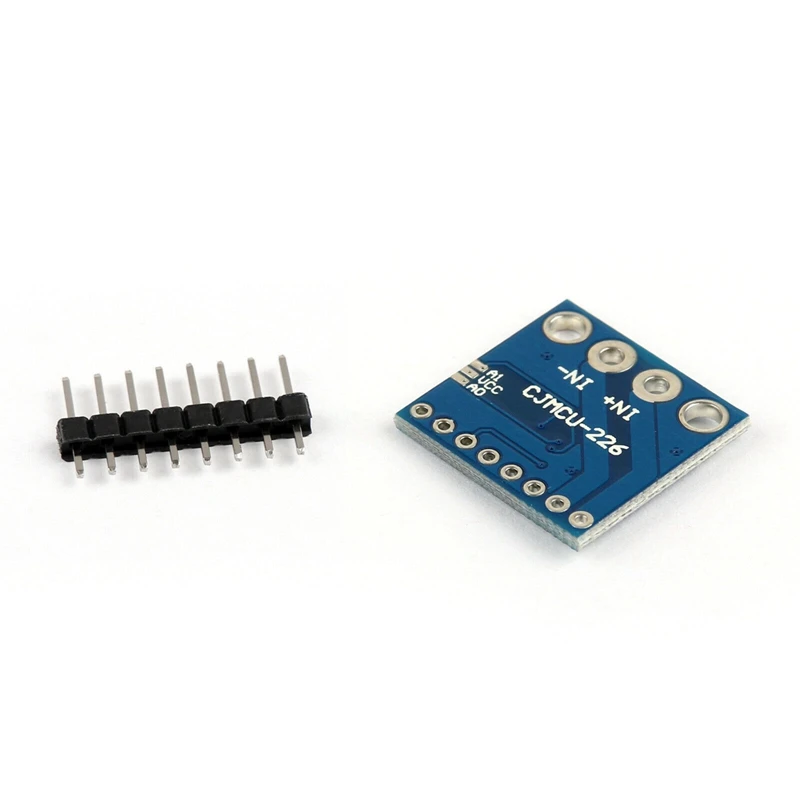

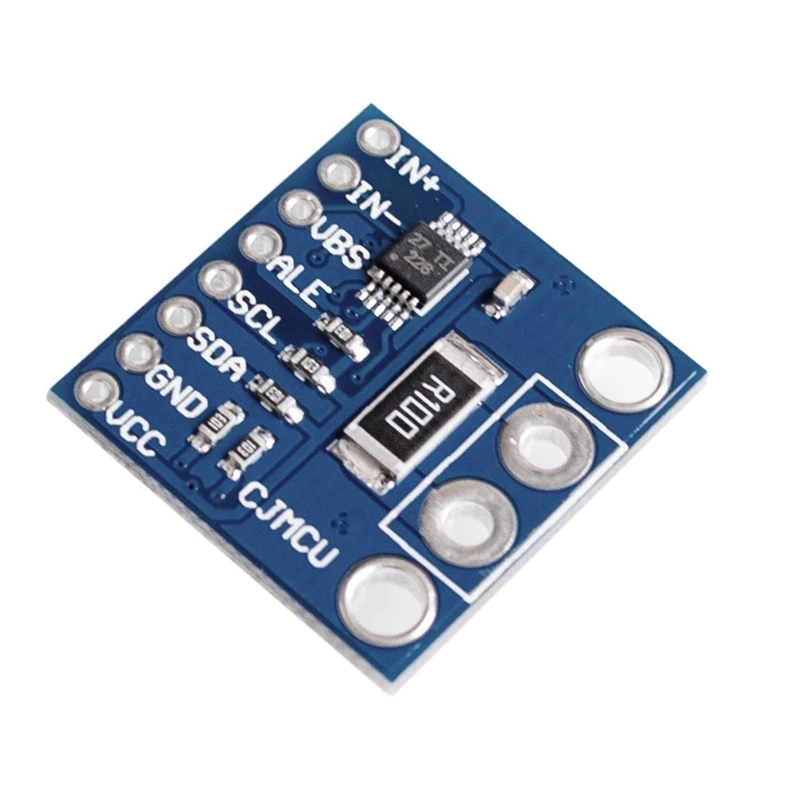

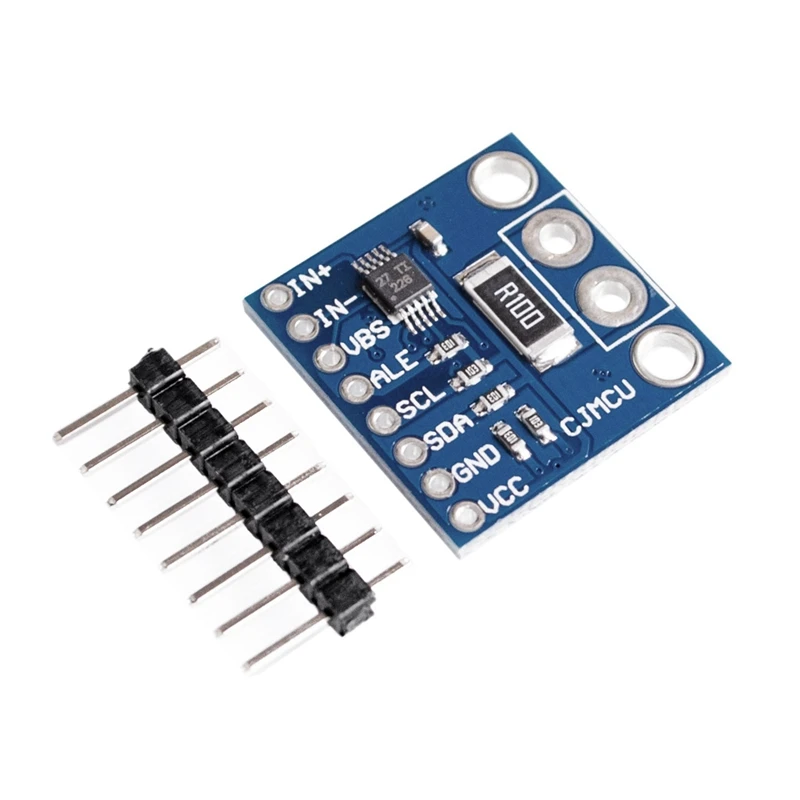

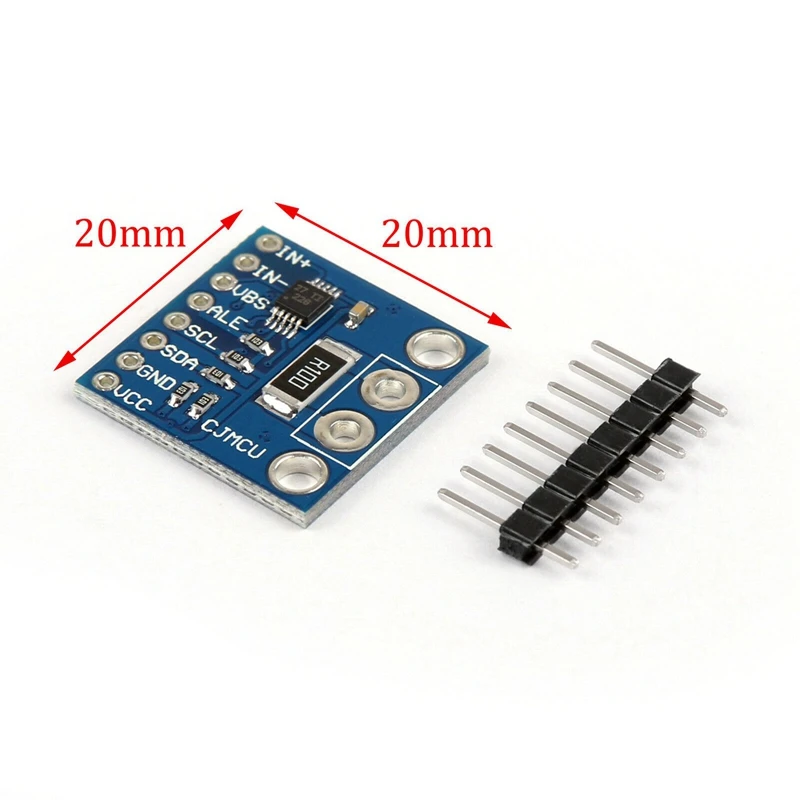

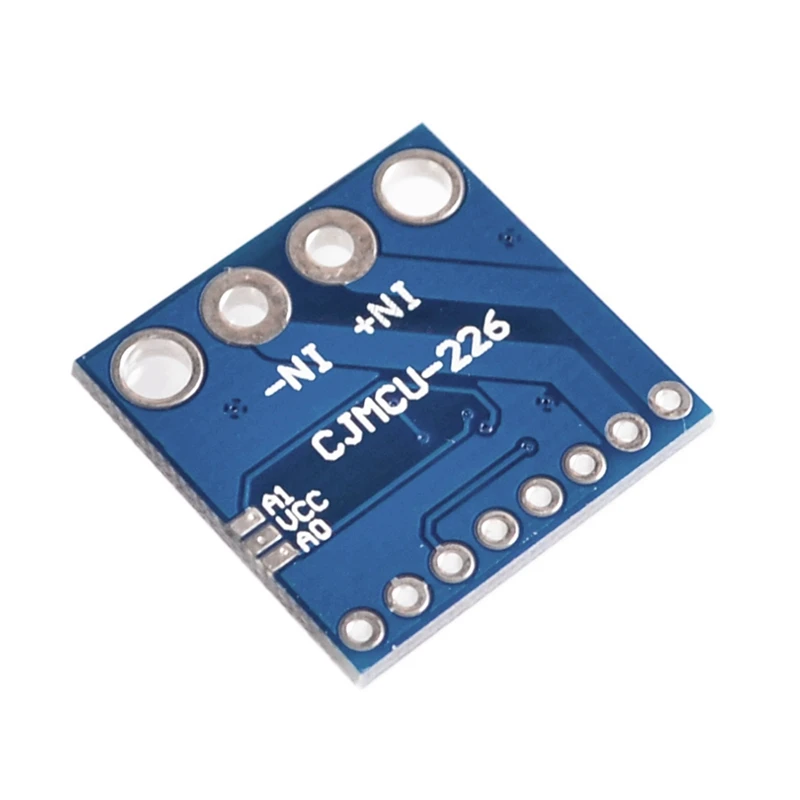

1 x INA226 Bi-Directional Voltage Current Power Alert Monitor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
