KINGBOLEN YA-101 Car OBD2 Code Reader for Check Engine Light, O2 Sensor and EVAP Test, On-Board Monitor Test Mode 6, Smog Check, OBD2 Diagnostic Scan Tool

YA-101 is a versatile car fault diagnosis instrument with reading fault code, clearing fault code and supporting multi ECU module battery. Detection, screen capture and other functions. The product is stable, cost-effective, easy to operate and easy to use. Suitable for owners without maintenance experience, not only save maintenance time and money, but also imp-rove the safety factor of driving.

Have you met these situation before?

1. High cost from dealer
2. No warranty from workship .
3. No prefessional yourself

Why the YA-101 Car Code Reader deserve to own?

1. Read Codes: Reads DTCs from vehicle's computer with KOEO or KOER.

2. Erase Codes: Deletes DTCs from vehicle's memory.

3. Live Data: Live Data menu lets you view, record and playback real time PIDs data fromthe electronic control module. In live data menu, you can insert the selected item to front by holdingpressing the key for 3 seconds.

4. Freeze Frame: Displays a snapshot of operating conditions at the time of a fault.

5. Battery Test: EDIAG YA101 support Battery test.

6. Vehicle Info: Scan tool displays the vehicle's VIN number, Calibration ID (s) and CVN that identify the software version in the vehicles control module (s.) The tool also displays In-Use Performance Tracking of important readiness monitors.

7. Component Test: Tool will display a list of components and their locations on the vehicle.This function will always appear on the Main Menu .This selection will appear on the Diagnostic Menu only when the toollhas a list of component locations for the currently selected vehicle.

8. On-Board Monitoring: Scan tool controls the operation of vehicle components, tests or systems.

9. O2 Sensor Test: Displays oxygen sensor monitoring test results from the vehicle's memory,the O2 Monitor Test is NOT an ON-DEMAND TEST. If the engine light is not turned off in time. it will Cause Serious environmental pollution

10. I/M Readiness: Displays a snapshot of the state of the vehicle's OBDII Monitors.
* To review I/M Readiness status,make sure that the ignition key is switched to ON with the engine off.
* Not all monitors are supported by all vehicles.There are two types of l/M Readiness tests:
* Since DTCs Cleared -shows status of the monitors since the DTCs werelast cleared.
* This Drive Cycle-shows status of monitors since the start of the currentdrive cycle.

11. DTC Look Up: Looks up definitions of DTCs stored in scan tool, and shows the possible causes of the DTC. (NOT every DTC with possible causes reason)

12. Voltage Test: This function is used to monitor the voltage present on pin 16 of the OBDIIData Link Connector.

13. Data Logging: Turn on /off the data log function to record the device data through vehicle.

14. Self-test: Display Test. Used to check the display screen. Keyboard Test. Verifies that the keys are working correctly.

15. Lifetime Free Update: pls install update tool from Official webiste, and copy the newest firmware, paste to the YA101.

16. Scrreenshot Function

17. Support 9 kinds of Language: English, French, Russian, Spanish, German, Italian, Portuguese, Japanese, Chinese

Ediag YA101 VS. CR3001

Ediag YA101 Support 9 Kind of Languages

Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Traditional Chinese, Russian.

Live Date Function

Live Data menu lets you view, record and playback real time PIDs data fromthe electronic control module. In live data menu, you can insert the selected item to front by holdingpressing the key for 3 seconds.

DTC Lookup.

Looks up definitions of DTCs stored in scan tool, and shows the possible causes of the DTC. (NOT every DTC with possible causes reason)

Support Car Models for OBDII Diagnostic Function:

(Note: YA101 only Support 12V cars, Does not support 24V Truck )

YA-101 coversall obd2 protocols and all OBD diagnostic services. Therefore, it will work with virtually all obd2 cars with 16 pin Data Link Connector.

American Car

Need Standard OBD2 Protocols from 2000 to now.

for Chrysler, for Ford, for GM, For Jeep ...

European Car

Need Standard OBD2 Protocols from 2001 to now.

For Alfa romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Peugeot, for Renault For Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Citroen, for Volvo, for Fiat, for VW, for Ford, for Jaguar...

Japanese/Korean Car

Need Standard OBD2 Protocols from 2006 to now.

for KIA, for Isuzu, for Honda, for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota...

Chinese Car

Need Standard OBD2 Protocols from 2009 to now.

YA101 Support OBD2 Protocols Car

1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Enhanced OBDII- On-Board Monitor Test MODE6

Mode 06 keeps watch on how all of the sensors and other emission control components are functioning. it can reveal the inner workings of the OBD II system, and can tell you when a code is going to set even before it sets the code and turns on the Check Engine light.

Misfire Cylinder Test: Helps to clear the fault code of one abnormal cylinder. Helps to the PCM read the CKPS information and detect which cylinder has issue.

Enhanced OBDII-EVAP System test (MODE 8)

EVAP System test (Component Test) lets you initate a leak test for the vehicle’s EVAP system. After fixed a problem with the fuel system, you can verify your fix right away, without waiting a few days (or longer) for your car to run it automatically

Enjoy Quick Emission Test

The oxygen sensor monitor allows the PCM to verify that the O2 sensors are properly calibrated and functioning without noticeable deterioration under normal engine operating conditions. Ediag YA-101 obd2 scanner helps you get fully prepared for passing the smog check.

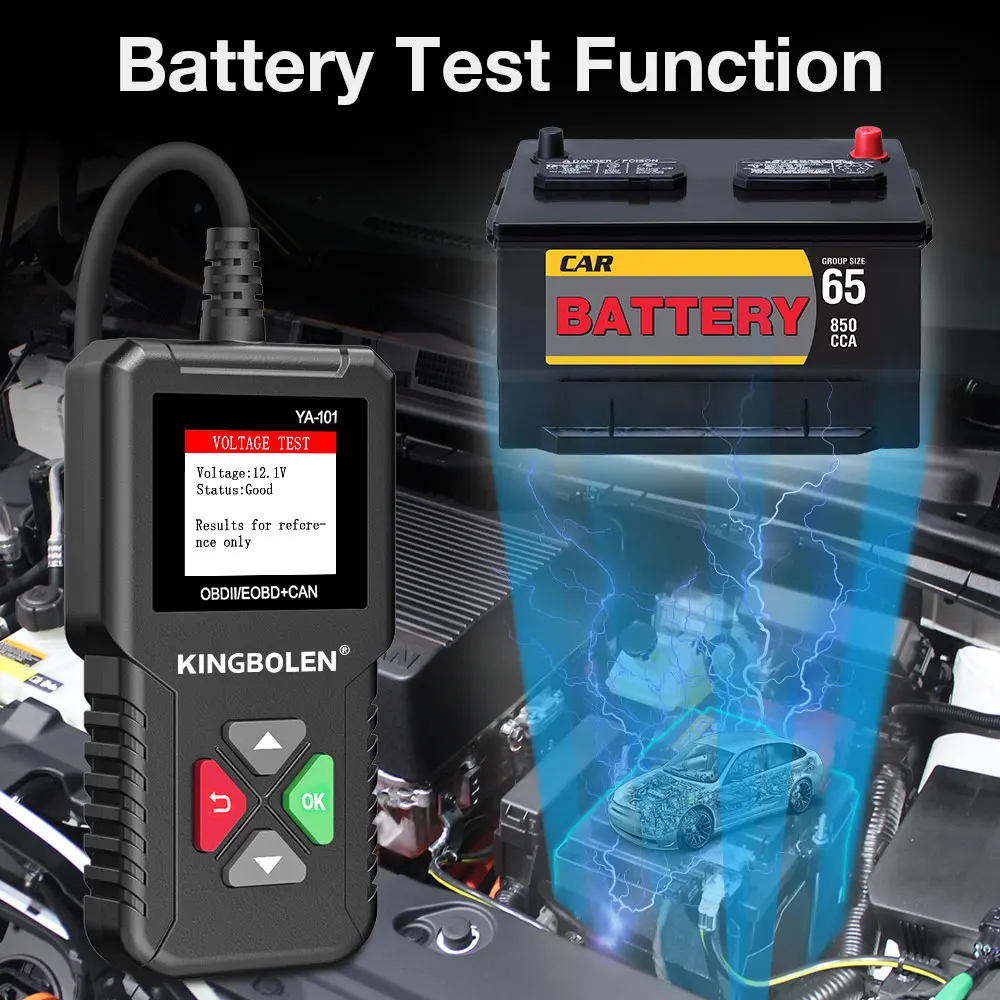

Battery Test Function of EDIAG YA101

Real-time Monitor the Vehicle’s Battery Voltage, Better Know the Battery Status.

Screenshot Function of EDIAG YA101

Hold on the up and downkeys for 5s, ,then release.

EDIAG YA101 supports Lifetime Free Update

Tips: Connect USB to laptop, a removable disk will display, and paste the upgrade files into removable disk, upgrade done.

How to use Ediag YA-101?

Just simply plug into the OBD II port on your car and turn ignition on. NO NEED TO REGISTER BEFORE UTILIZATION

EDIAG YA101 Specifications:

Screen: 1.8 " TFT, 160*128dpi
Voltage Range: 9-18V
Operating Temperature: 0℃ -50 ℃ (32 ℉ -122 ℉ )
Environment Temperature: -20 ℃ -70 ℃ (-4 ℉ -158 ℉ )
Dimension: 125mm*70mm*22mm (4.65" *2.68 " *0.88 " )
Weight: 0.18kg

Ediag YA101 details

EDIAG YA101 Packing List:

1pc * YA101 Code Reader
1pc * English User Manual
1pc * Carton Box
