body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Small size, light weight, good reliability and easy installation.35mm standard DIN-rail mounting in accordance with standard DIN EN50022.Unipolar width (modulus 17.5mm) to DIN43880Standard configuration 5+1(99999.1KWh) digital display.RS485 remote meter reading function.Display and reading: electricity, current, voltage, frequency, power factor.
Standard with passive pulse output (polarity), optional remote passive pulse output (non-polarity), easy access to a variety of AMR systems, in accordance with IEC 62053-31 and DIN 43864.Double color LED indicates the power status (green) and the energy pulse signal (red).Automatically detects the direction of the load current and the indication on the LED (when help 1 is displayed on the LCD, the load current flows in the opposite direction).

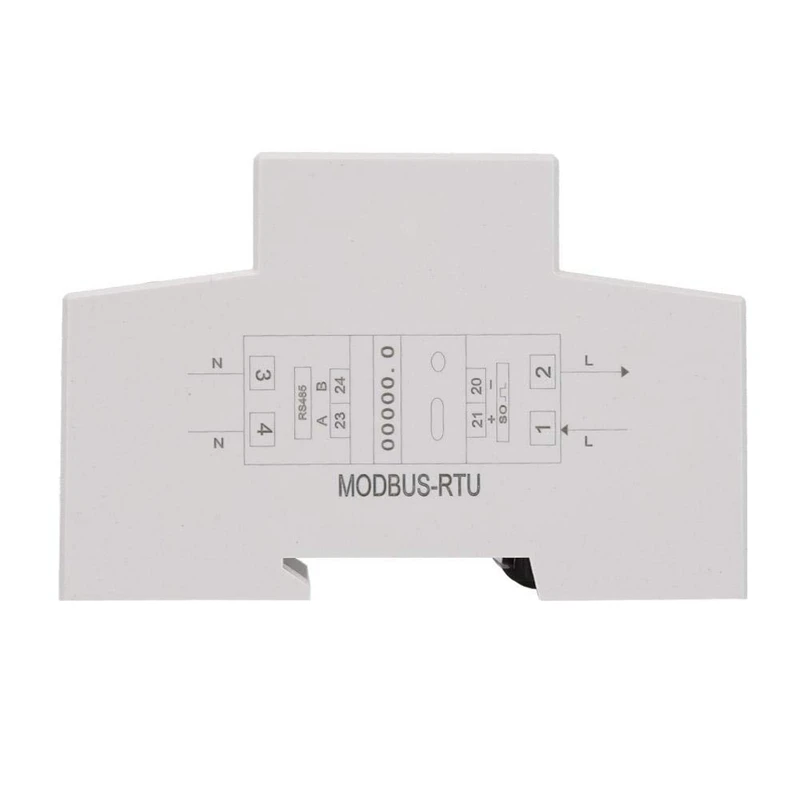

One-way measurement of single-phase two - wire active energy consumption. This has nothing to do with the direction of the load current. Comply with IEC 62053-21.Direct connection operation, Standard configuration S type wiringExtend the terminal cover to protect the use of the security.
Item Type: Din Rail Energy Meter
Model: DDM35SD
Current Specifications: 15(60)A
Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV

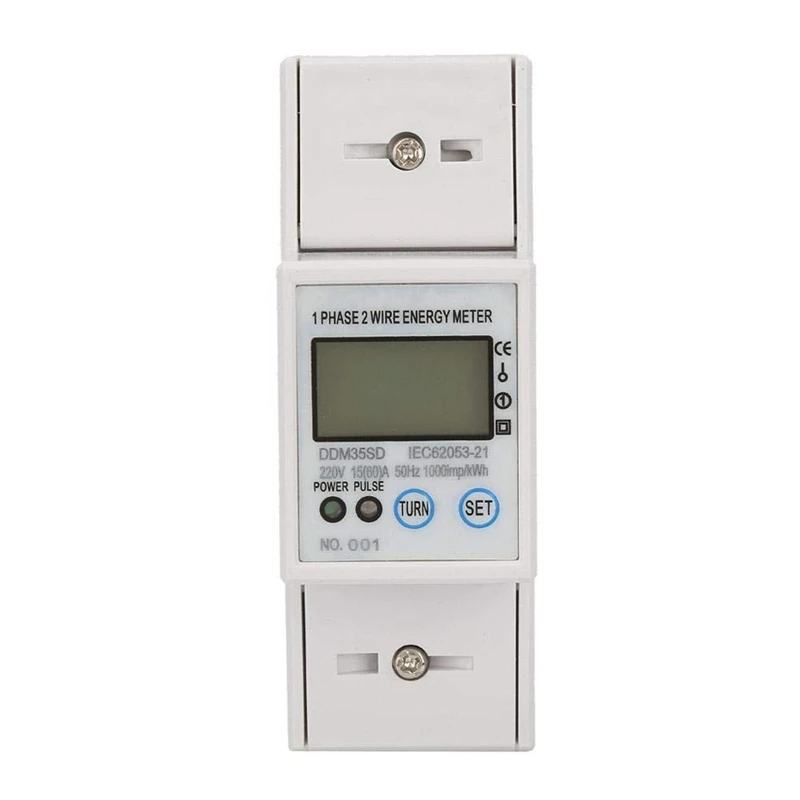

Display mode: LCD display
Installation method: rail installation
Voltage Specification: 220V 50Hz
Frequency: 50Hz
size:100 * 36 * 65mm
Material:plastic
colour:white
Package Contents:
1 * Energy Meter
1 * User manual
Only the above package content, other products are not included.
