Related Huawei 5G Devices

Model

Part Number

Features

Huawei 5G Mobile WiFi

E6878-870

WiFi Hotspot, 4000mAh, Supports 5G / 4G Network

Huawei 5G Mobile WiFi Pro

E6878-370

WiFi Hotspot, 8000mAh, Supports 5G / 4G Network, Reverse & Wireless Charging

Huawei 5G CPE Pro

H112-372

WiFi Router, Supports 5G / 4G Network, 5G n41/n77/n78 /n79

Huawei 5G CPE Pro 2

H122-373

WiFi 6+ Router, Supports All 5G / 4G Network , 3.6 Gbps Downlink,Wi-Fi 6+
Supported 5G frequency bands: n1/n3/n5/n7/n28/n38/n40/n41/n77/n78/n79

Huawei 5G CPE Win

H312-371

WiFi CPE, Supports 5G / 4G Network, Outdoor 5G CPE Router  5G n41/n77/n78 /n79

Learn More: 5G Devices

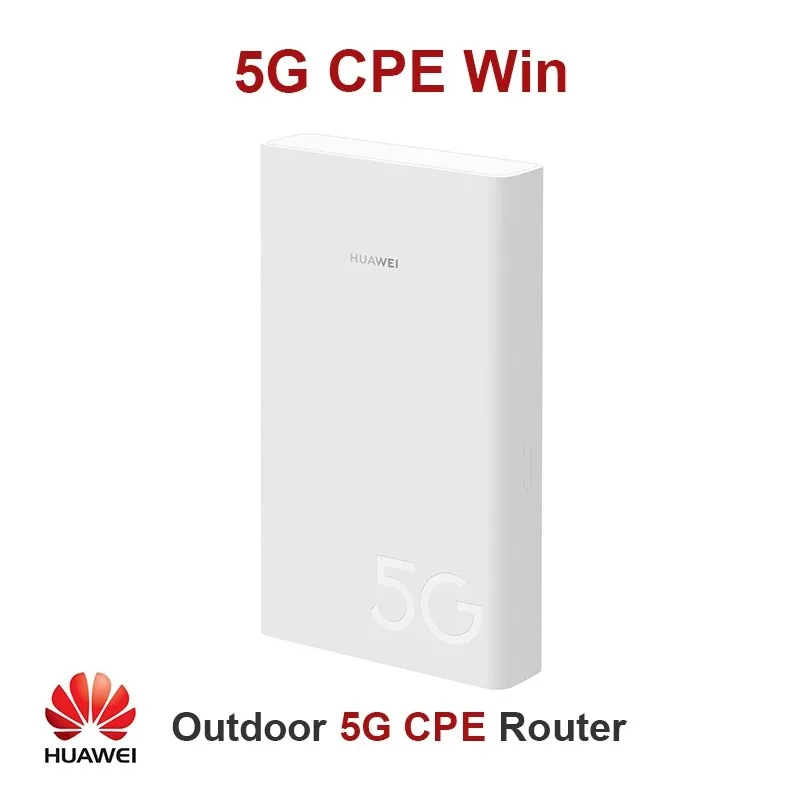

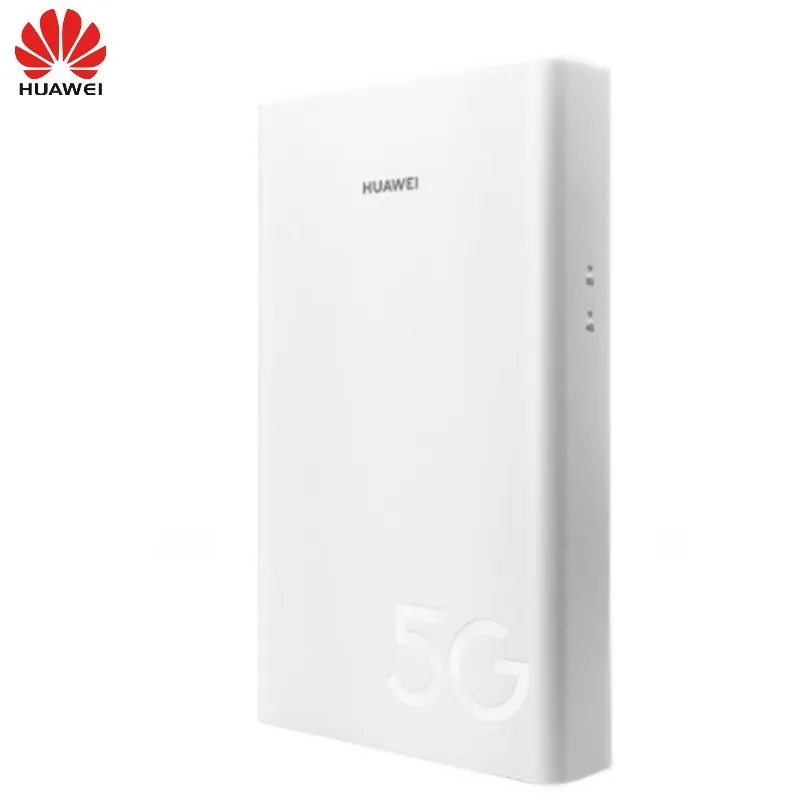

Huawei 5G CPE Win is a Huawei 5G CPE, delivering Balong 5000 chipset, Enhanced 5G Signal and Easy Installation.

Table 1 shows the quick spec.

Model Name

Huawei 5G CPE Win

5G / 4G

Communication Standard: 3GPP Release 15

Applicable Network: 5G/4G

Network Mode: NSA / SA

*SA capabilities depend on the available network and software version, which need to be customized.

5G Transmission Rate: 1.65Gbps / 250Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)

4G Transmission Rate: 1.6Gbps / 150Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)

Wireless

Wireless Frequency Band: 2.4GHz, only for installation and configuration, not for internet access

Antenna

5G / 4G Antenna Type: 5G / 4G main and diversity antennas

WLAN Antenna Type: Built-in 2.4GHz Wi-Fi antenna

Dimensions (W×H×D)

29.6mm×112mm×187mm

Huawei 5G CPE Win provides these features:

Built with Balong 5000, the first multi-mode 5G chipset, HUAWEI 5G CPE Win supports both NSA and SA network modes with super high speed. Backwards, it also uses 4G as an alternative plan if the area does not have a 5G network.

The 4 x 5.5dBi omni-directional antennas design ensures consistent coverage over a broad area with high-bandwidth 5G signal. Plus, the uplink signal strength is boosted to 26dBm2 under SA mode. And the signal's edge rate is also increased by 20%.

With the 5G SRS (Surrounding Reference Signal) Antenna Switching by 4 antennas, HUAWEI 5G CPE Win detects the signal in real time to provide you with reliable performance even when encountering interference. It also helps to accelerate speed by 20%3 by intelligently pairing different channels.

HUAWEI 5G CPE Win features outdoor installation, which makes it easier to receive 5G signal, even in remote regions where 5G signal is weak.

Providing you two ways of installation, wall-mounted and pole-mounted installation, it is also toughly built to withstand all kinds of weather conditions, rain or shine.

Equipped with a Gigabit Ethernet port, this HUAWEI 5G CPE Win can be connected to a host of devices with Ethernet cables, making it possible to be applied in varied scenarios.

1. HUAWEI 5G CPE Win: 1 (standard configuration)

2. PSU: 1 (standard configuration)

3. PSU power cable: 1 (standard configuration)

4. Ethernet Cable: 1 (standard configuration)

5. Base: 1 (standard configuration)

6. Adjustable pole strap: 1 (standard configuration)

7. Nameplate: 1 (standard configuration)

8. Internal hexagon wrench: 1 (standard configuration)

9. Screw: 4 (standard configuration)

10. Expansion anchor: 4 (standard configuration)

11. Quick Start: 1 (standard configuration)

12. Warranty Card: 1 (optional)
