2MP 1920*1080 Wide angle USB Webcam Camera module CMOS OV2710 MJPEG 30fps/60fps/120fps High Speed Camera Board

Package include:

*CMOS OmniVision OV2710 sensor for high quality image and low power consumption.

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance – ideal for any lighting condition.

*Super small outline and thin profile for embedded applications.

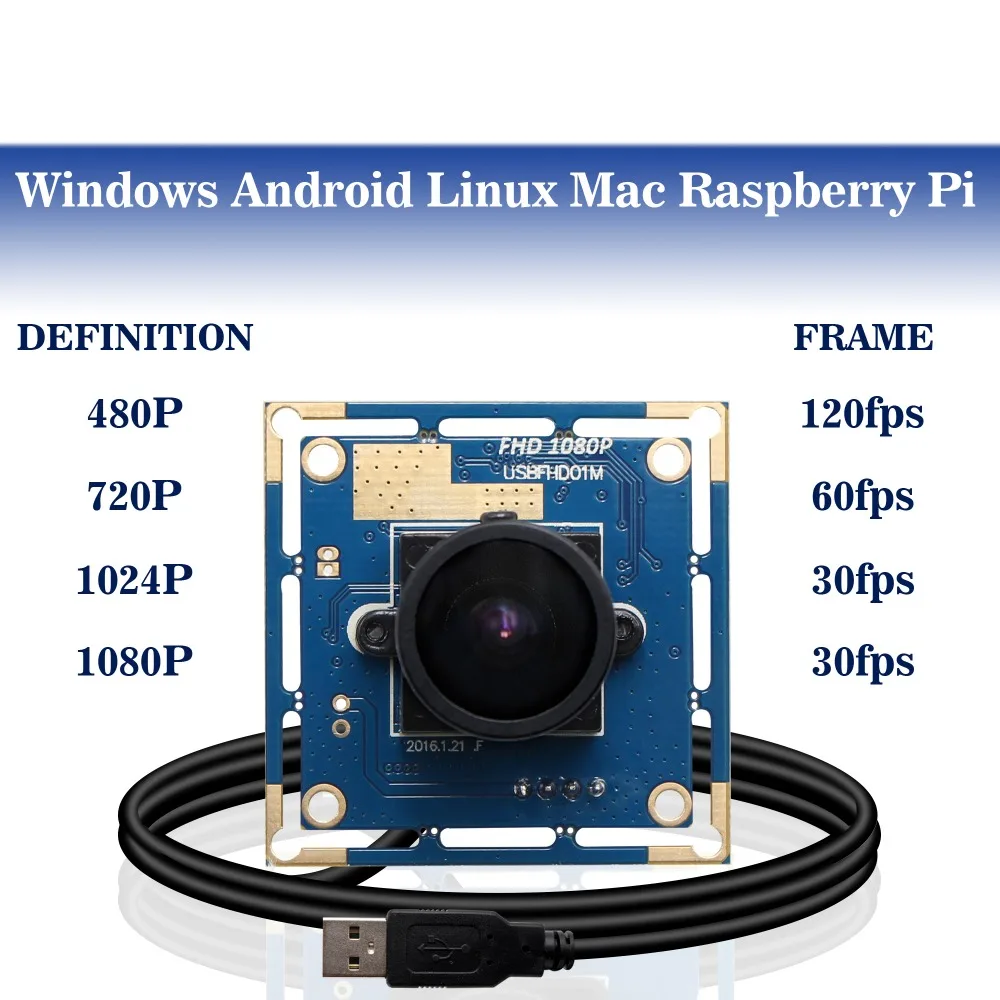

*High frame rate– deliver 120fps in 640X480 resolution, 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.

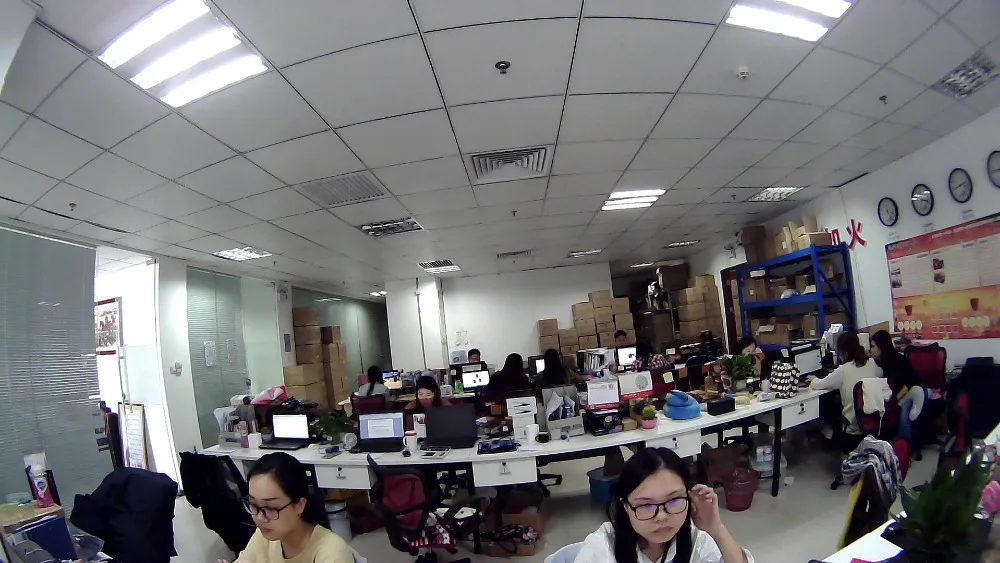

*High quality lens, wide angle 170 degree fisheye lens

*Low power consumption – ideal for portable equipment.

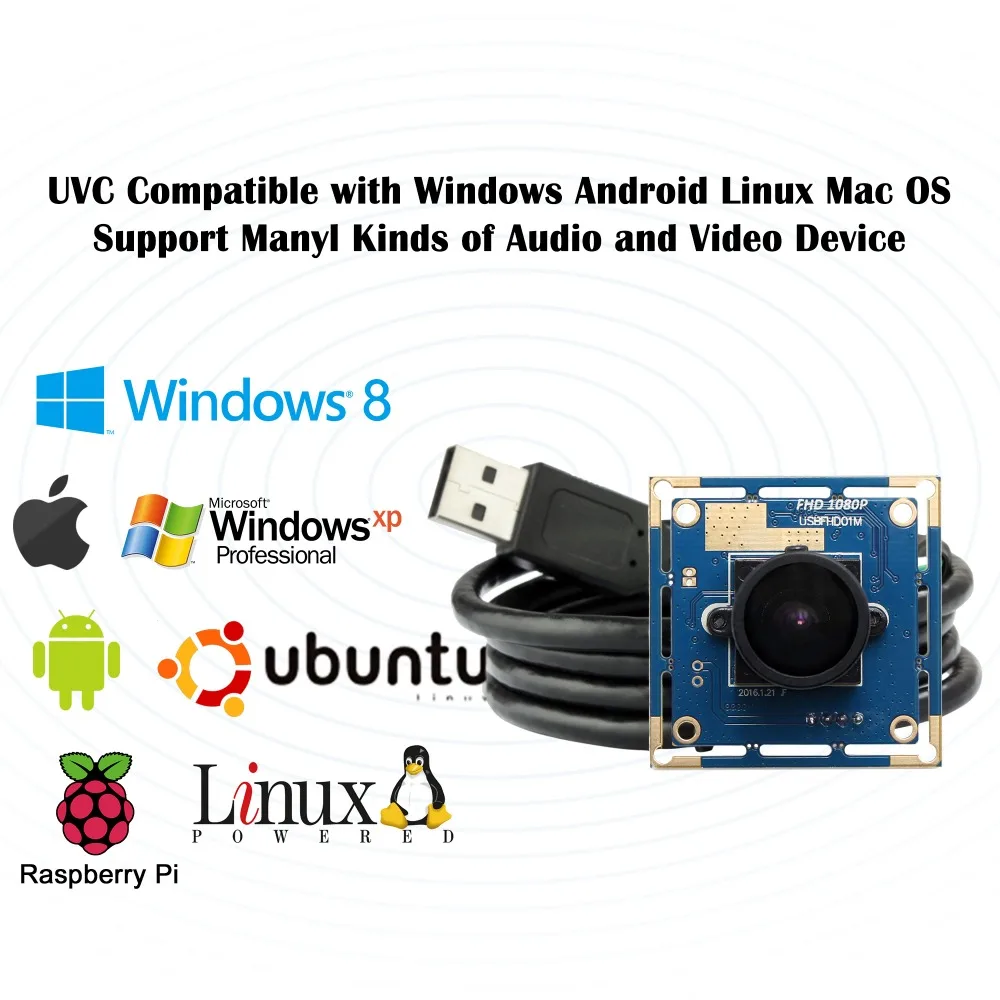

*UVC for use in Linux, Windows XP, WIN CE, MAC, Android.

*Cable: 1m USB cable (2M/3M/5M optional)

Optional models

ELP-USBFHD01M-L170

Sensor

1/2.7" CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

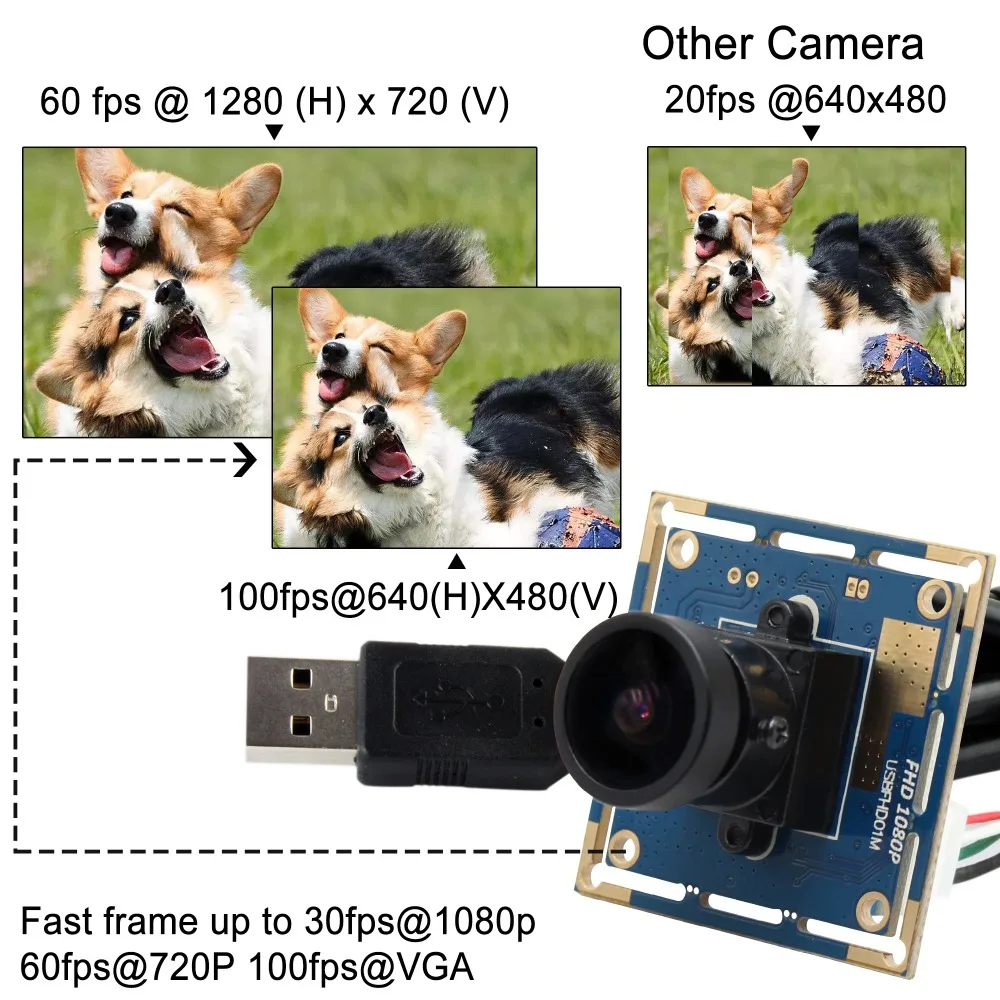

Frame rate

1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps
1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps
800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps
640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps
352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps
320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

140 degree

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

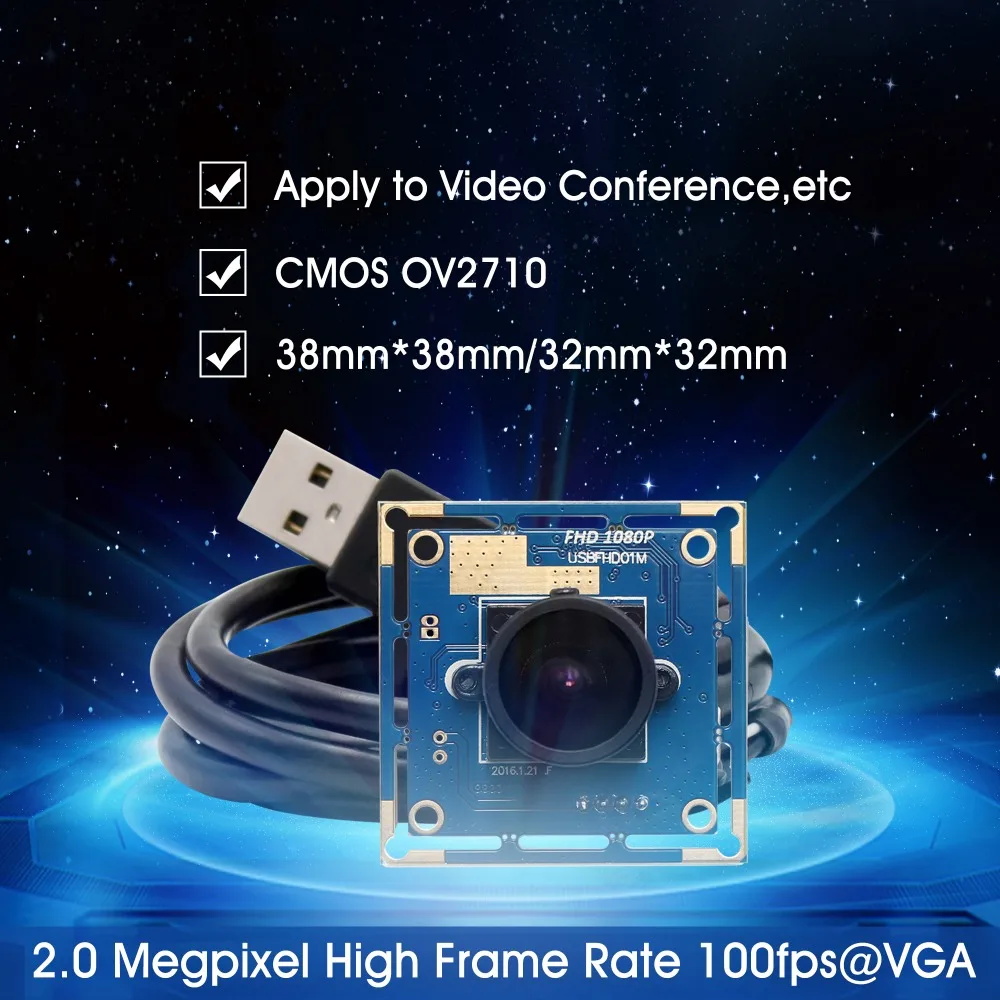

Size

32x32mm/38*38

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
