FA-2 1Hz-6GHz Frequency Counter Kit Frequency Meter Statistical Function 11 bits/sec + Power Adapter

Introduction of CH1: 62519
- CH1 Frequency: 1Hz-200MHz
- CH1 Input Impedance: 50 OHM/1M OHM

CH1 Input Sensitivity Reference:
- @50 OHM: 25mVrms-2Vrms
- @1MR: 25mVrms-2Vrms

CH1 Frequency Accuracy:
- 0.1s Gate Time: 0.001Hz@10M
- 1s Gate Time: 0.0001Hz@10M
- 10s Gate Time: 0.00001Hz@10M

- CH1 Test Speed: 11 bits/second@10MHz
- CH1 Power Test Range: -50DBM to +20DBM, 1M to 550M@50 OHM
- CH1 Power Test Accuracy: 0.5DB@10MHz
- CH1 Connector Type: BNC

Introduction of CH2:
- CH2 Frequency: 30MHz-6GHz
- CH2 Input Impedance: 50 OHM

CH2 Frequency Accuracy:
- 0.1s Gate Time: 1Hz@1GHz
- 1s Gate Time: 0.01 Hz @1GHz
- 10s Gate Time: 0.001 Hz @1GHz

- CH2 Input Power: -20dBM to +13dBm@0.5 to 5G
- CH2 Connector Type: SMA

Operating Modes:
- CH1 Frequency Test Mode
- CH1 Statistical Pattern
- CH2 Frequency Test Mode
- CH2 Statistical Pattern

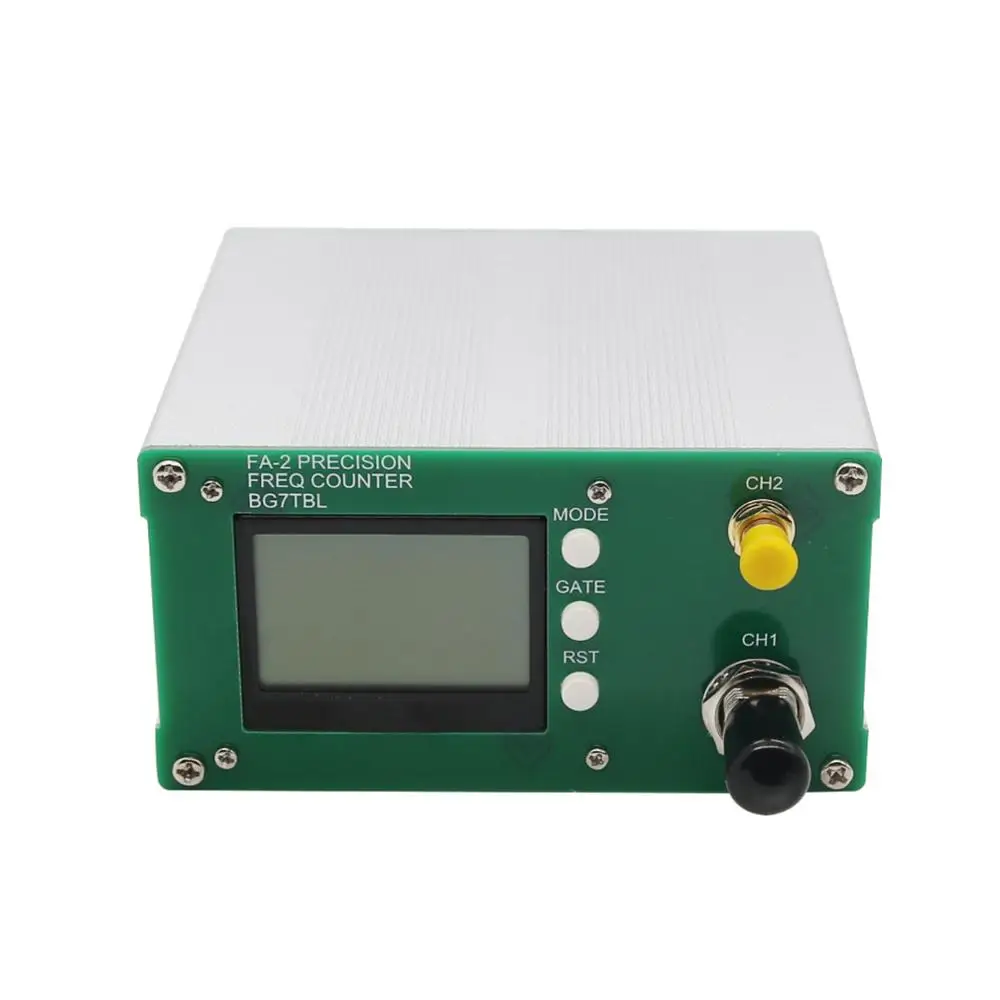

Functions of Front Panel:
- MODE: Change operating modes
- GATE: Change gate time
- RST: Start to test again
- CH1: Channel 1 input
- CH2: Channel 2 input

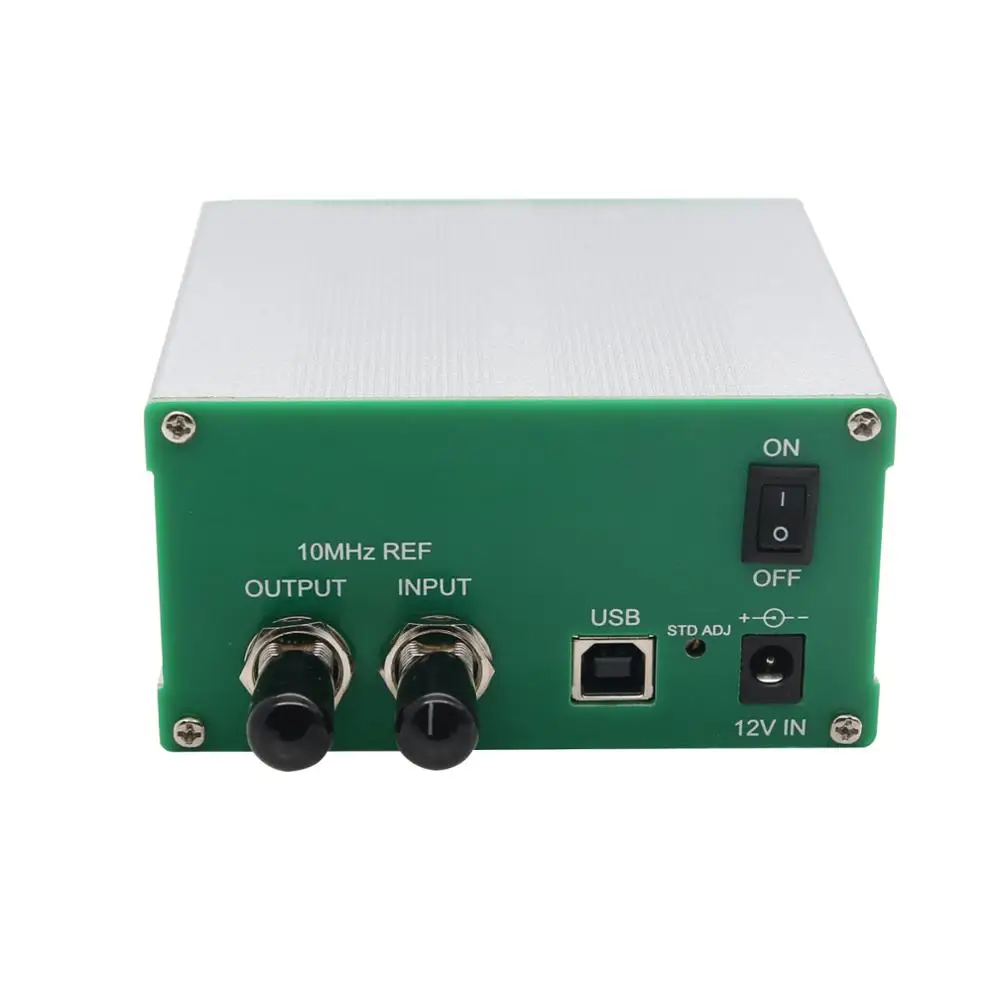

Functions of Rear Panel:
- 10M REF INPUT: External 10M input reference
- 10M REF OUTPUT: 10M output reference
- USB: USB port
- STD ADJ: Internal OCXO frequency fine adjustment
- ON/OFF: Power switch
- 12V IN: DC port

Specifications:
- Model: FA-2
- Data Types of Statistical Pattern: Average, Max., Min., P-P
- Power Supply: DC11.7-12.5V; Start: <0.4A; Stabilize: <0.2A
- Size:106 x 55 x 105mm (L*H*D)
- Weight: 350g

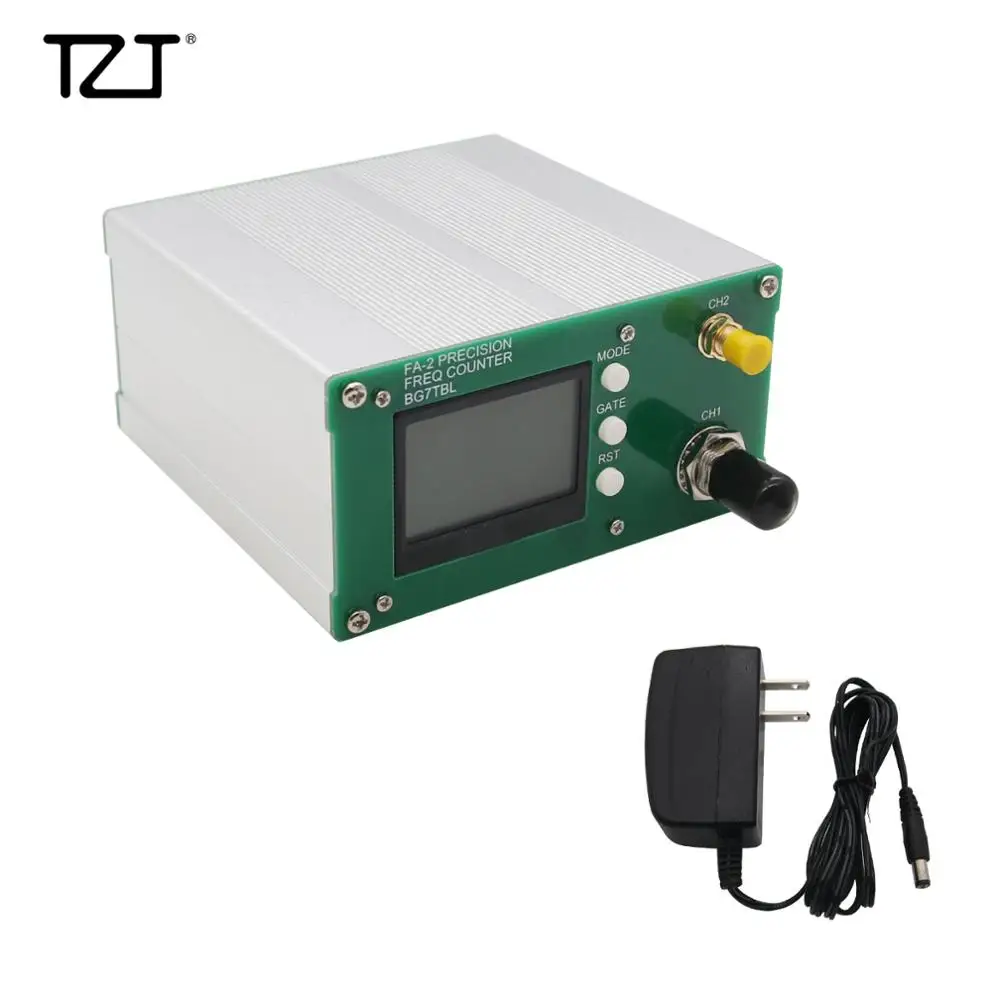

Package Included:
- 1 x Frequency Counter
- 1 x DC 12V Power Adapter
