UNI-T UT136B+ Portable Automatic Range Digital Multimeter Capacitance Resistance Tester | Инструменты

UNI-T UT136B+ Portable Automatic Range Digital Multimeter Capacitance Resistance Tester

Feature:

1. UT136B+ automatic range digital multimeter with capacitor and frequency for easy operation.

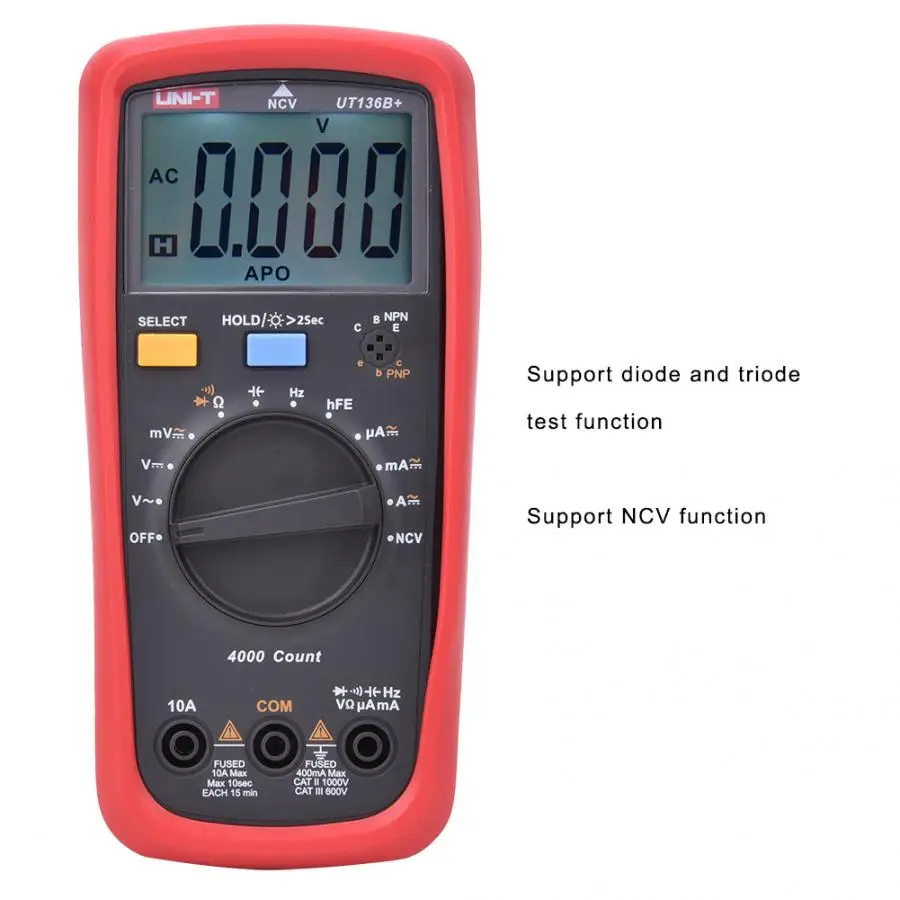

2. Maximum display 3999, support diode and triode test function, support NCV function.
3. Support on-off test, data hold, auto power off, low voltage display and screen backlight.
4. Safety level CAT II 1000V, CAT II 600V, passed the 1m drop test. It can measure AC and DC voltages up to 1000V and can measure currents up to 10A (20A at 30S measurement time).
5. Full-featured mis-test protection, can withstand 1kV voltage shock, and is more convenient to use.
6. The large screen LCD provides a clearer display and a better using experience.
7. Capacitance test function, temperature function, and non-contact inductor (NCV) test function are supported.
8. It is a digital multimeter preferred for electronic and electricians for civilian/commercial and heating and air conditioning technicians.

Specification:

Condition: 100% Brand New
Item Type: Multimeter
Material: ABS

Basic Function Range Basic Accuracy DC Voltage (DCV) 400.0mV ±(0.7%+3) 4.000V ±(0.5%＋2) 40.00V ±(0.7%+3) 400.0V 1000.0V AC Voltage (ACV) 400.0mV ±(1.0%+3) 4.000V ±(0.7%＋3) 40.00V ±(1.0%+3) 400.0V 1000V AC Current (ACA) 400.0μA ±(1.0%+2) 4000μA 40.00mA 400.0mA 4.000A ±(1.2%+3) 10.00A ±(1.5%+5) DC Current (DCA) 400.0μA ±(0.8%+3) 4000μA 40.00mA 400.0mA 4.000A ±(1.0%+5) 10.00A Resistance (Ω) 400.0Ω ±(1.0%+2) 4000Ω ±(0.8%+2) 40.00kΩ 400.0kΩ  4.000MΩ ±(1.2%+2) 40.00MΩ ±(1.5%+5) Capacitance 4.000nF ±(4.0%+10) 40.00nF 400.0nF 4.000uF ±(3%+5) 40.00uF 400.0uF 4.000mF ±10% 40.00mF Frequency Hz 400.0Hz-40.00MHz ±(0.1%+4) Non-contact Voltage Detection (NCV) √ Triode √ Diode Measurement √ On-off Beep √ Low Voltage Display √ Data Hold √ Automatic Power-off √ Operating Temperature 0℃-40℃ Safety Certification Level CAT II 1000V/CAT III 600V General Characteristics Color Red and Gray Battery 2 x AA Battery (Not Included) Product Size Approx. 175 x 83 x 53 mm / 6.9 x 3.3 x 2.1 in Weight Approx. 441g / 15.6oz

Package List:

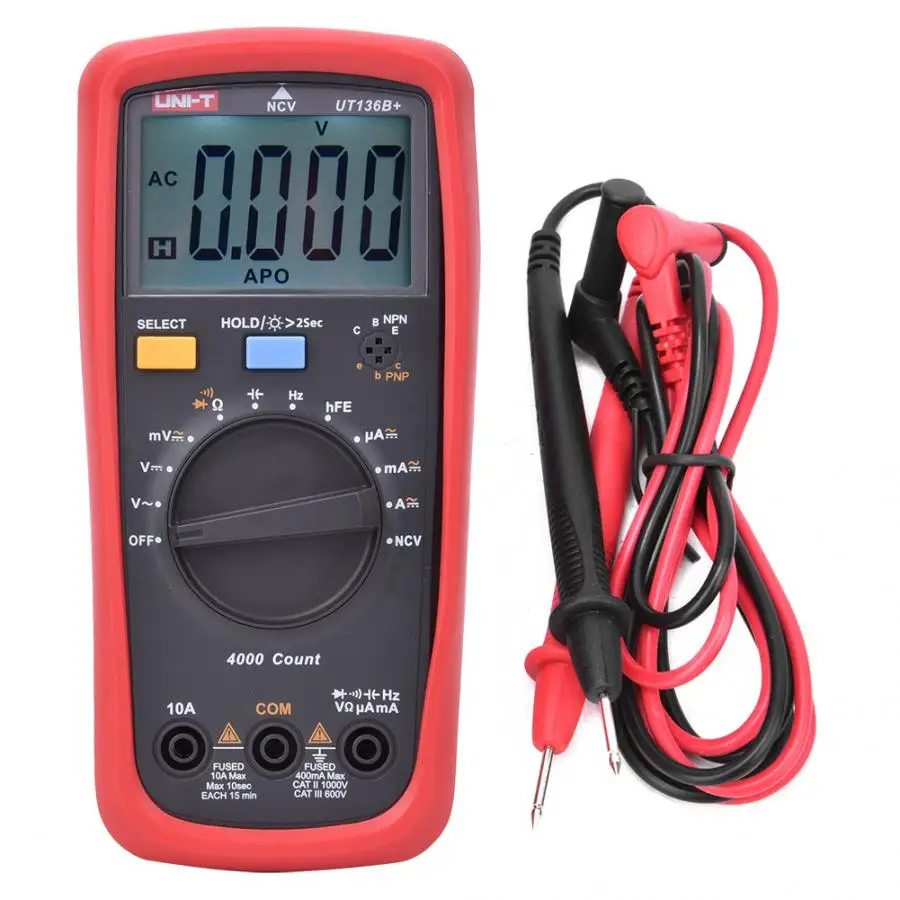

1 x Multimeter (Battery Not Included) 1 x English Instruction Manual 1 Pair x Test Lead
