Car Diagnostic Scanner OBD 2 ELM 327 Bluetooth V2.1 for Android Torque Symbian PPC Support OBDII Protocol |

Car Diagnostic Scanner OBD 2 ELM 327 Bluetooth V2.1 for Android Torque Symbian PPC Support OBDII Protocol |

This ELM327 suport TORQUE software for Android system cell phone, OBD scope software for Symbian system cell phone, PPC(Windows Mobile) system cell phone, ScanMaster-ELM for PC etc.

Bluetooth password: 1234

Bluetooth ELM327

Super Blue

ELM327 V1.5

Super Blue

ELM327 V2.1

Fireware

V1.5

V2.1

Software

V2.1

V2.1

Connect Way

Bluetooth

Bluetooth

Support 9 Protocols

✔

✖

Support lOS System

✖

✖

Chip PIC18F25K80

✔

✖

Support System

Android/PC

Android/PC

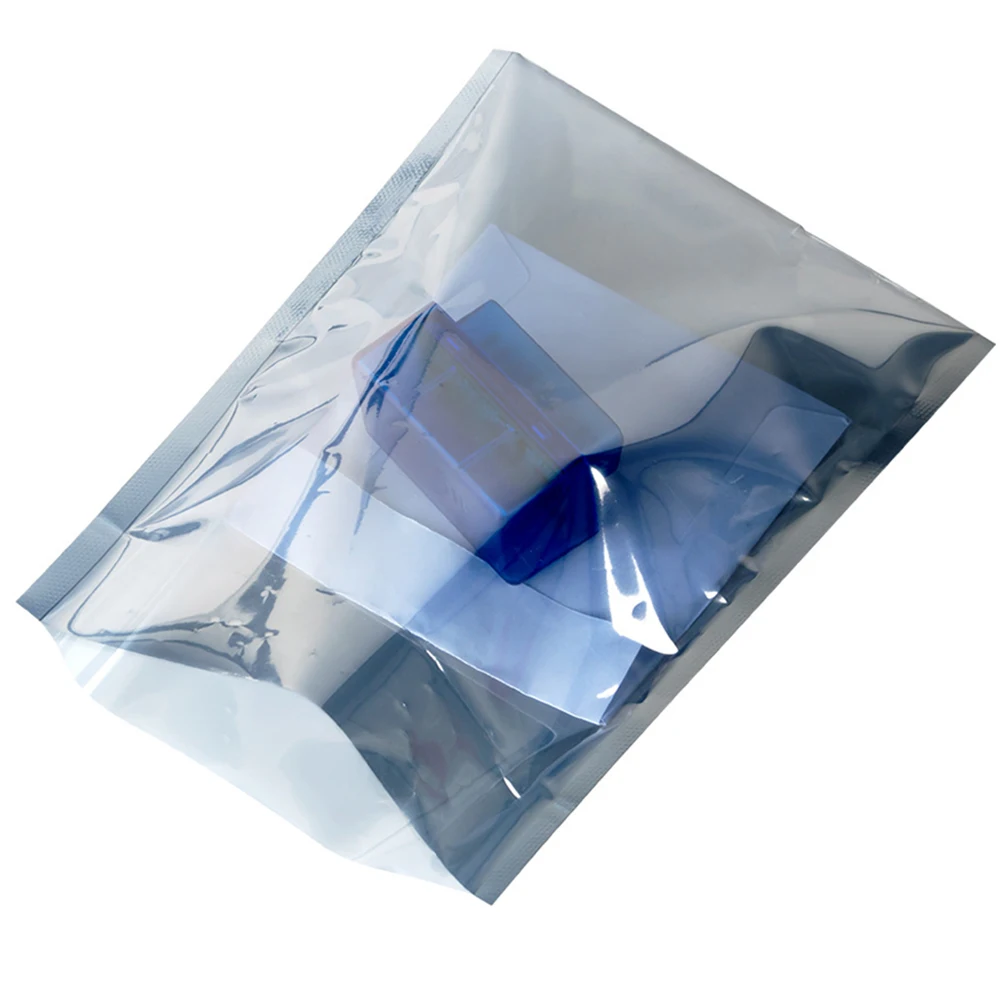

Package

PE Bag

PE Bag

Functions:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2. Clear trouble codes and turn off the MIL ("Check Engine" light) 3. Display current sensor data, including: Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen Sensor Voltages/Associated Short Term Fuel Trims, Fuel System Status, Fuel Pressure

Description:

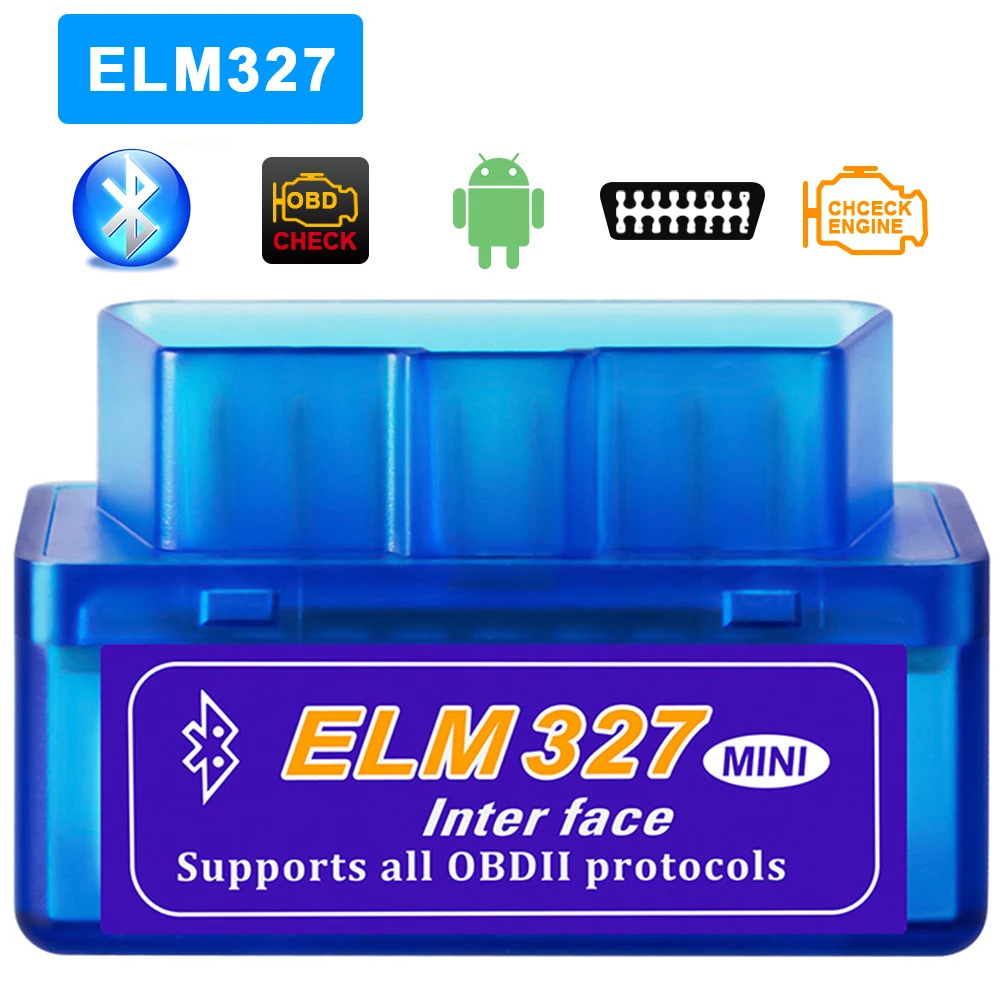

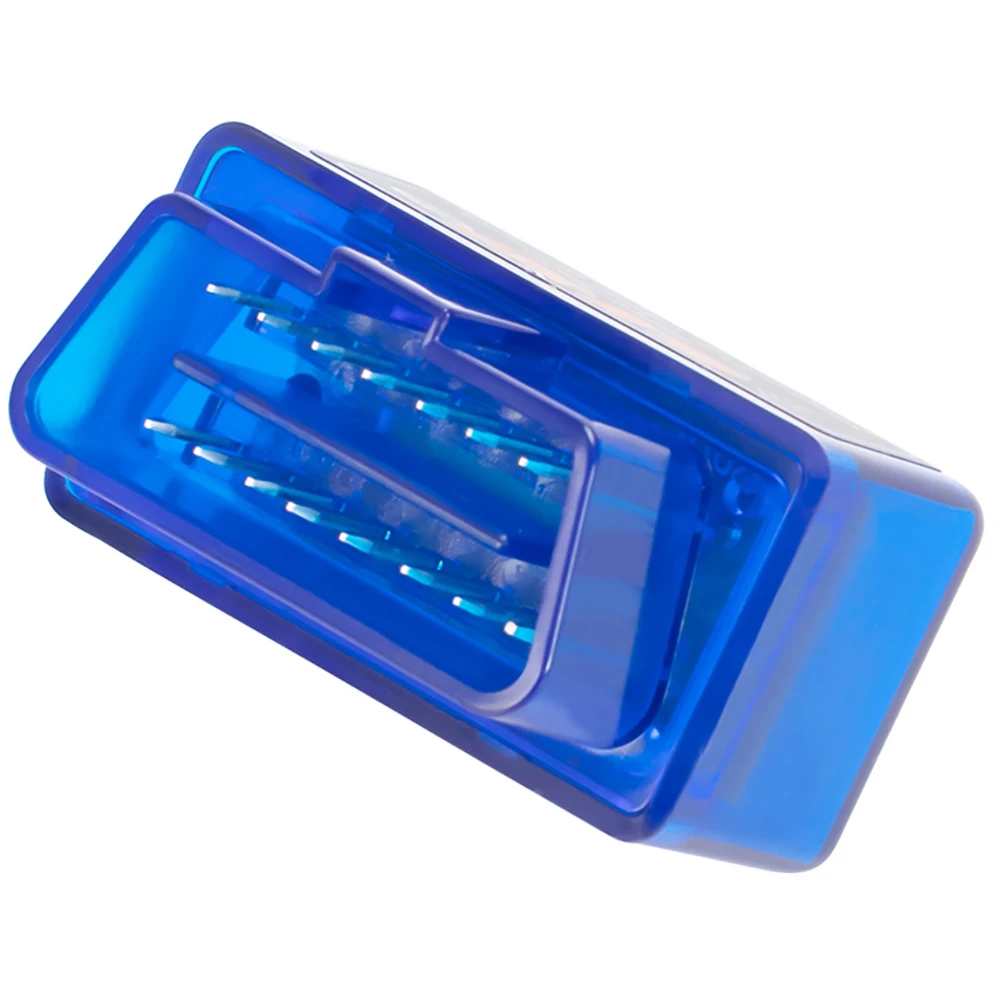

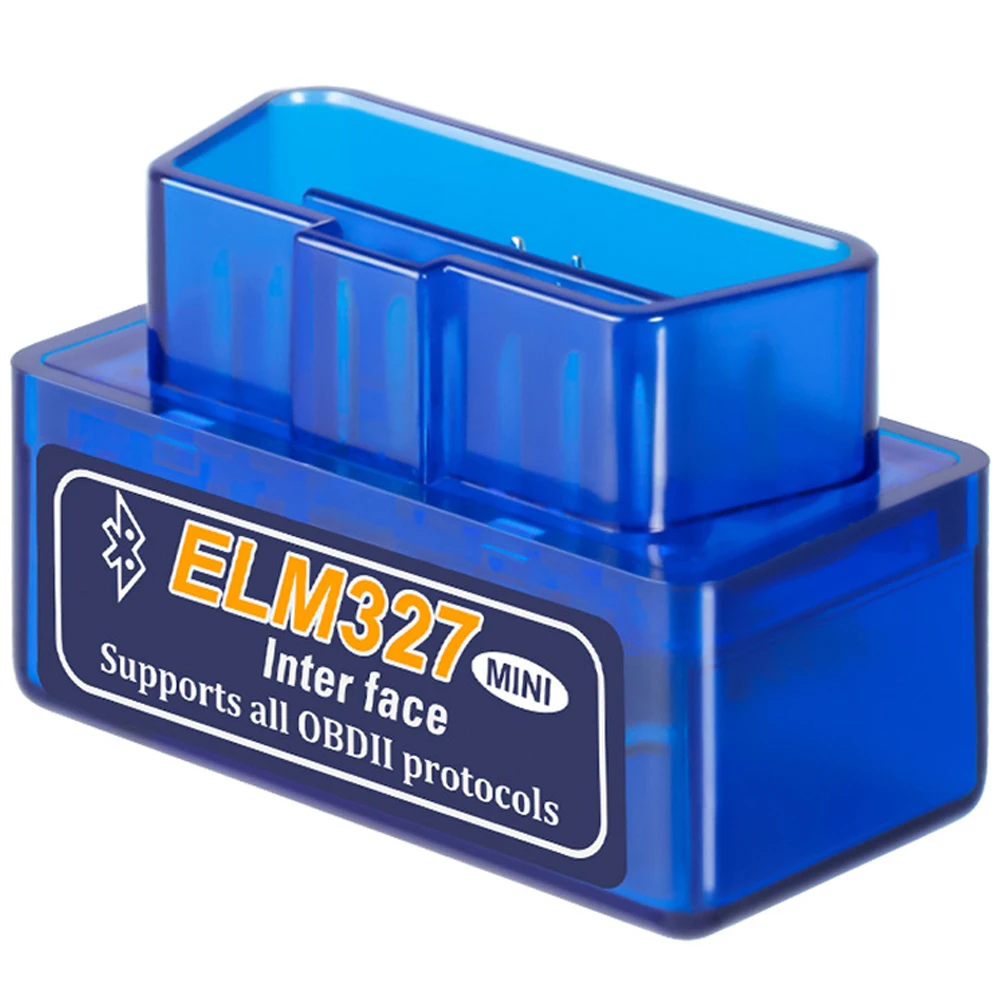

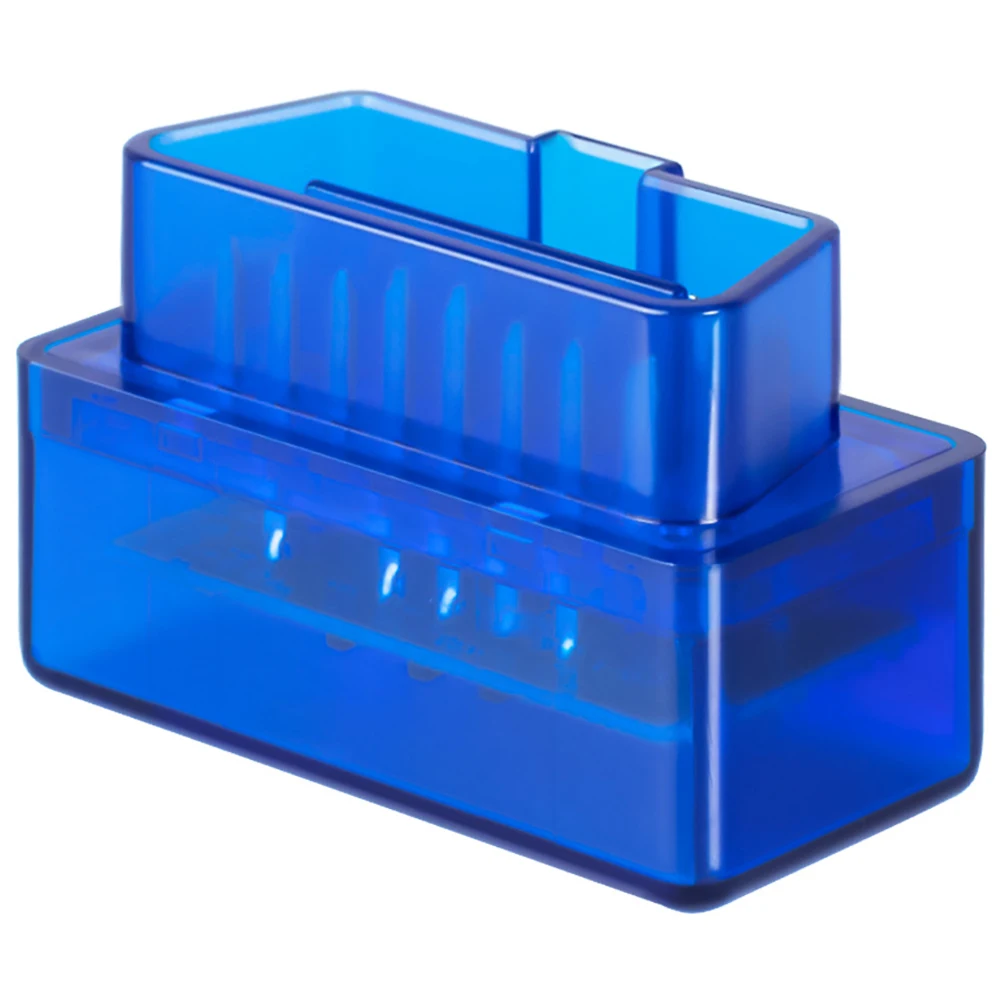

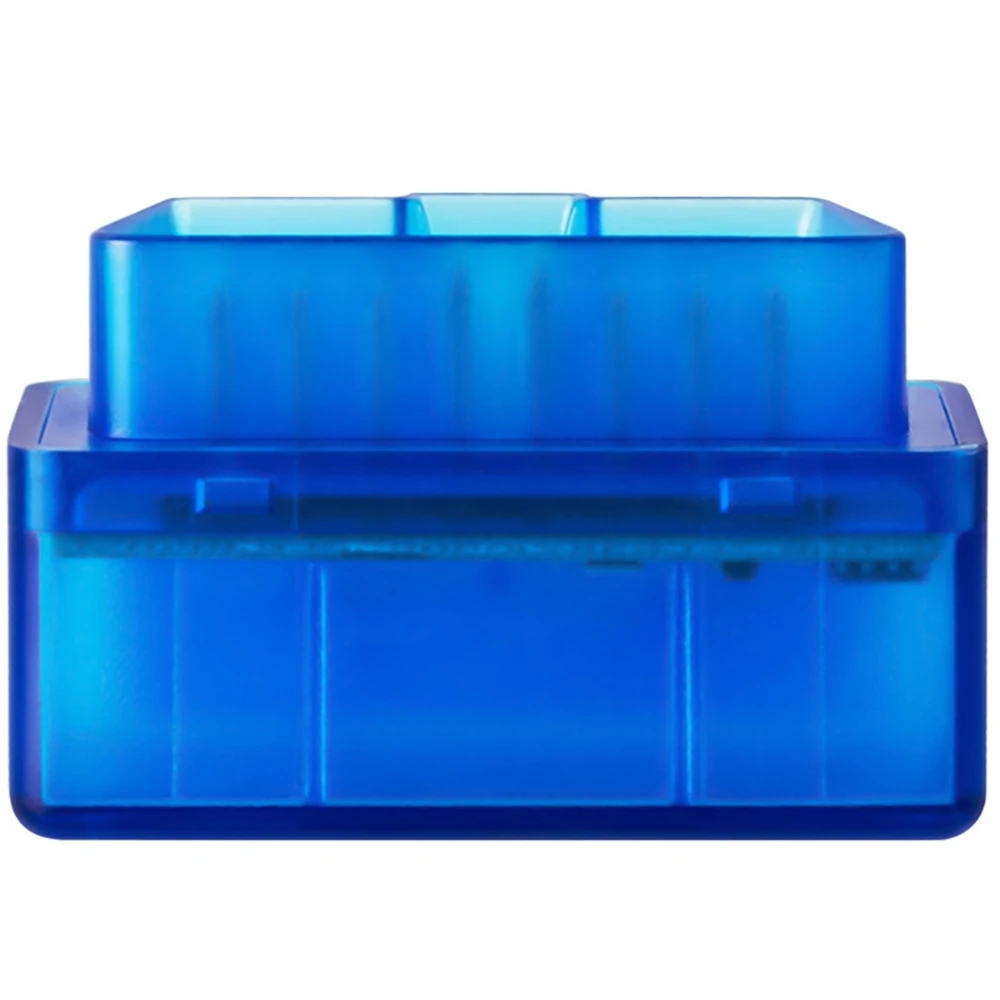

- Super Mini ELM327 OBD2 OBDII Bluetooth Auto Car Diagnostic Interface Scanner, Easy to take. - Works with all OBD-II compliant vehicles. - Wireless (Bluetooth) 5~10m. - Software included for Palm, PDA, Mobile, Windows PC, Smartphone. - Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). - Clear trouble codes and turn off the MIL ("Check Engine" light). - Support OBD-II protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM. - Product type: Mini ELM327 V2.1 OBD2 II - Weight: 36g.

Protocol

ELM327 V1.5

ELM327 V2.1

ISO9141-2(5 baud  init,10.4Kbaud)

✔

✔

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

✔

✔

ISO14230-4 KWP (fast init, 10.4 Kbaud)

✔

✔

ISO15765-4 CAN (11bit ID, 500 Kbaud)

✔

✔

ISO15765-4 CAN (29bit ID, 500 Kbaud)

✔

✔

ISO15765-4 CAN (11bit ID, 250 Kbaud)

✔

✔

ISO15765-4 CAN (29bit ID, 250 Kbaud)

✔

✔

SAE J1850 PWM(41.6Kbaud)

✔

SAE J1850 VPW(10.4Kbaud)

✔

Warm Tips:

1. If the CD is broken or can't be read, Software Link: http://www.elm327.com/soft/ 2. Can do most of OBDII gasoline cars, but can't support all OBDII cars.This one can't support for Diesel or Trucks.

BMW X5 2002 (ISO) -3, -5/X5/Z3/Z4/Z8/740I/740L/750IL, (ISO1941)

Chevrolet Aveo (ISO)

Citroen C3 2004(ISO)

Daihatsu YRV 2005(ISO), Daihatsu YRV Turbo 2006(ISO)

Fiat Tipo 2002(ISO)

Ford New ocus 2006(CAN)

Honda Accord 2006 JDM(ISO), Honda Accord Euro R 2004 JDM(ISO), Honda City GD8(ISO), Honda Civic ES 1.6A(ISO), Honda Integra Type R DC5 JDM(ISO),

Honda Jazz 1.4M(ISO)

Hyundai Accent 2004(ISO), Hyundai Getz 1.3A 2004(ISO), Hyundai Getz 1.6M 2004(ISO), Hyundai Matrix 2004(ISO), Hyundai Santa Fe 2.4A(ISO), Hyundai Sonata GLS(ISO), Hyundai Sonata 2005(ISO), Hyundai Tuscani FX(ISO)

Kia Carens 2005(ISO), Kia Magentis 2005(ISO), Kia Rio LS (ISO), Kia Sorento SUV 2005(ISO).

Lexus es300

Mazda 2(CAN), Mazda 5 (CAN), Mazda 6 (CAN), Mazda Premacy 2001(ISO), Mazda RX8 (CAN).

Mitsubishi Colt 2003 (ISO), Mitsubishi Colt Plus 2005(ISO), Mitsubishi Eclipse (GST--Turbo Car can be tested for the year 1995-2000; 8.2 * 4.6 * 2cm RS/GS 1994-1996 GS all can do; Turbo Car for the year 1996-2000, only have speed and TPS, can clear the DTCS), Mitsubishi Lancer Evolution IX 2006(ISO), Mitsubishi Pajero 3.5 V6 2006(ISO).

Nissan Sunny B14(ISO), Nissan Sunny VIP FB15(ISO), Nissan X-Trail 2.0L 2004(ISO), Nissan X-Trail 2.5L 2004(ISO), Nissan Sunny (N16), Nissan Cefiro (Teana)2005, Nissan sentra 1.8 2000/2005, Nissan Cefiro (Teana)2005.

Peugeot 206 2001 Only can show RPM, Peugeot 206 (ISO), Peugeot 407 (ISO), Peugeot 206 2000.

Renault Megane II 2005(ISO), Renault Kangoo 2006(ISO).

Subaru Impreza 1.6TS 2002(ISO), Subaru Impreza WRX 2005 (ISO), Subaru Legacy GT 2005

Proton Perdana V6

Suzuki Jimny 1.3 2000 .

Toyota Corolla G9 2002 (ISO)Toyota Vios 2004 (ISO), Toyota Camry 2.0A 2004 (ISO)Toyota Camry 2.4A 2005 (ISO), Toyota Corolla Altis 1.6A 2005 (ISO), Toyota Corolla GLXi G8 1999 (ISO)

Package Include:

1 x Mini ELM327 V2.1 OBD2 II Bluetooth Car Auto Diagnostic Interface Scanner 1 x CD-ROM

Where is the OBD interface?

Most of the car's OBD interface is located in A and B, A small part of the car will be in C, D and E.

How to connect with the Phone and Software?

1.Android phone system requirement: Android 4.0-4.4 or higher.

2.Software Installation: After insertion of ELM327 Install APP: Install---Continuous click "Next" continue the next installation---Click "Done" Install software

3.Connect Bluetooth:

1.Turn on the Bluetooth switch 2.Find "OBDII" and connect it, the password is: 1234 or 0000 3.Enter the Torque, and set the connection way: Bluetooth, then Choose Bluetooth Device: OBDII

Car Diagnostic Scanner OBD 2 ELM 327 Bluetooth V2.1 Scanner for Android Torque Symbian PPC Support OBDII Protocol
