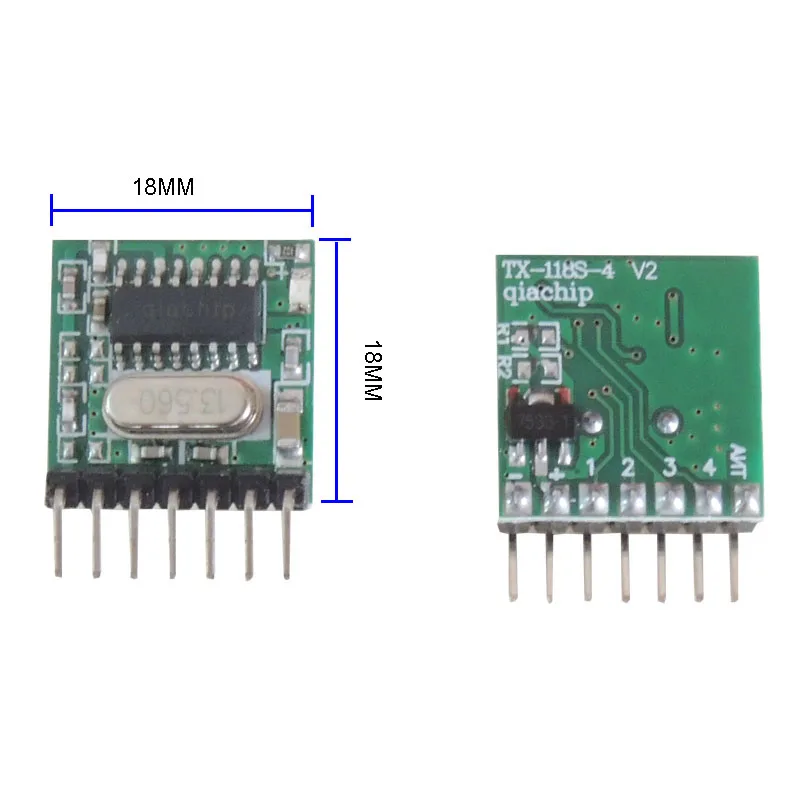

     Transmitter Model:TX118SA-4
     Transmitter Power: 11dbm
     Distance:50m
     Emission Current:10MA
     Rate of Fire:maximum 10KB/S
     Transmit deviation:+/-7.5KHZ/narrow-band emission
     Modulation mode: ASK
     Operation Voltage:DC 3-24V
     Encoding:EV1527 Learning code
     Customizable special code:MCU type.
     Key Date:ABCD groups of 4 inputs can be combined into 15 groups
     Each module has a unique ID address code.
     ALL modules K1-K4 four key code is the same

       Working Voltage:DC 3.3~5V
     Quiescent Current:<5MA
     Working Frequency:315Mhz/433Mhz
     Receive Sensitivity:-108dm
     Receive Distance:15meters above
     Frequency Band: ±0.2MHz
     Working Temperature: -25~75
     Max current:10 A

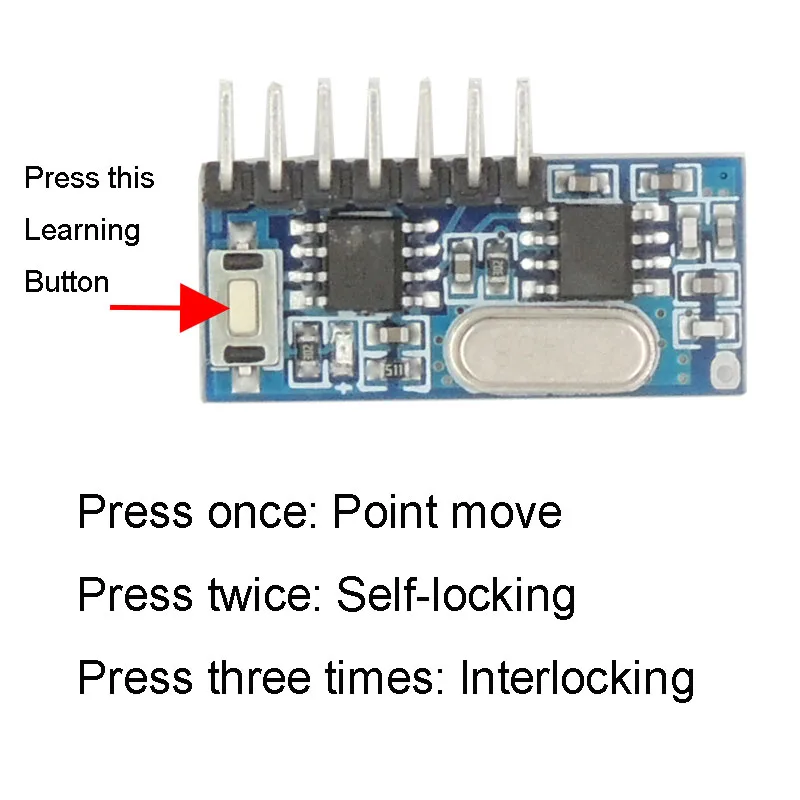

     Working Mode:Point move,Self-locking,Interlocking
     The output:4 channel CMOS level signal just like the remote control ABCD buttons

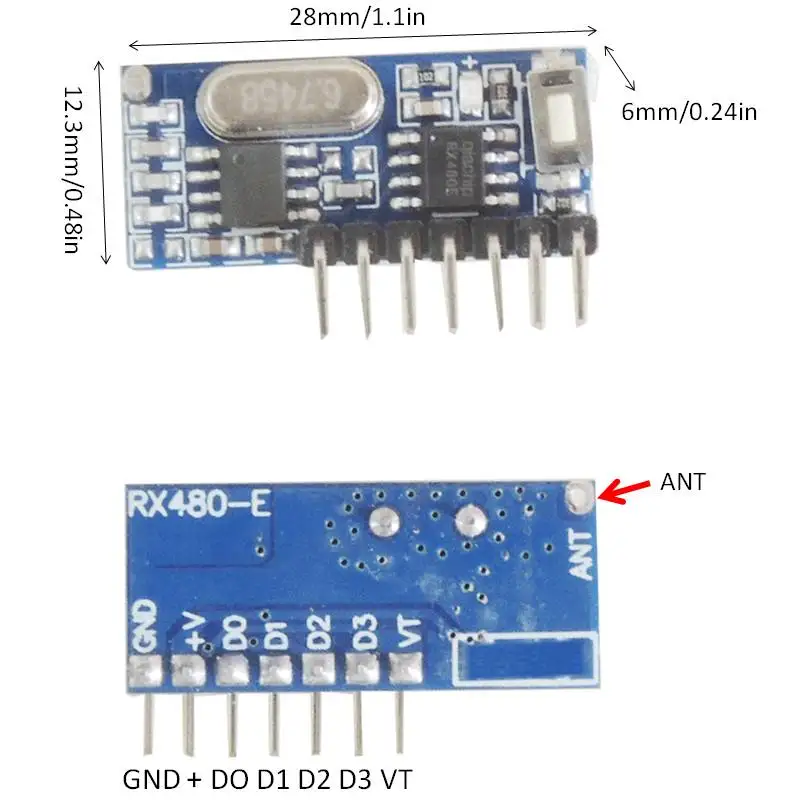

  GND: Ground or negative pple
  +V:DC3.3~5V input
  D0:Data output
  D1:Data output
  D2:Data output
  D3:Data output
  VT:output

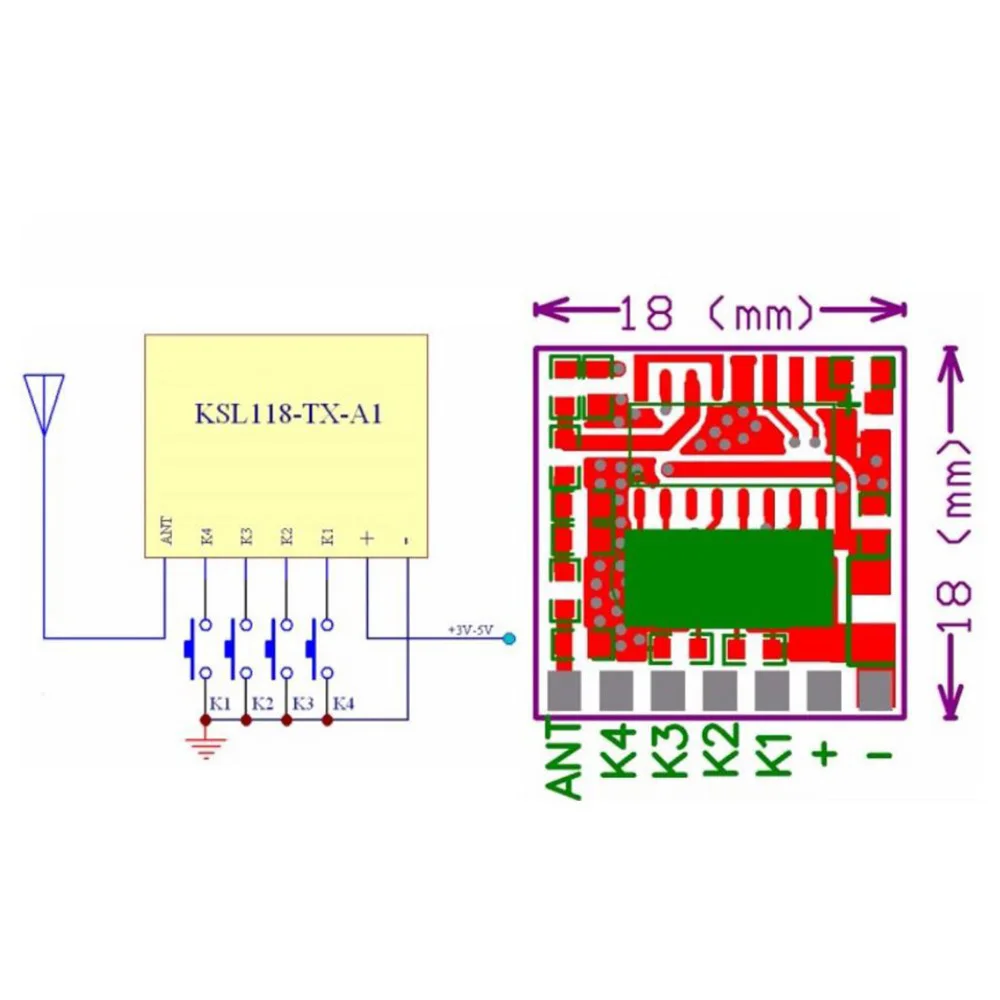

  - : Negative power supply
  +: Positive power supply.DC3-24V
  K1:External input keys, short to ground start transmitting data to 1.Just like A button
  K2:External input keys, short to ground start transmitting data to 2.Just like B button
  K3:External input keys, short to ground start transmitting data to 3.Just like C button
  K4:External input keys, short to ground start transmitting data to 4.Just like D button
  ANT:Transmitting Antenna

          Compatible transmitter encoding type: EV1527. If you are not using the transmitter encoding EV1527 will not be applied to the receiver.
       If you need to customize other decoding modes such as PT2262, HT6P20B, HCS301, T301A, T301E, HT6P20B, HCS301, T301A, E301E etc; need order more than 500pcs (each 500pcs) welcome custom orders, please contact us.

          You can use this product in many ways such as Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Perfect Craft & Detail Control

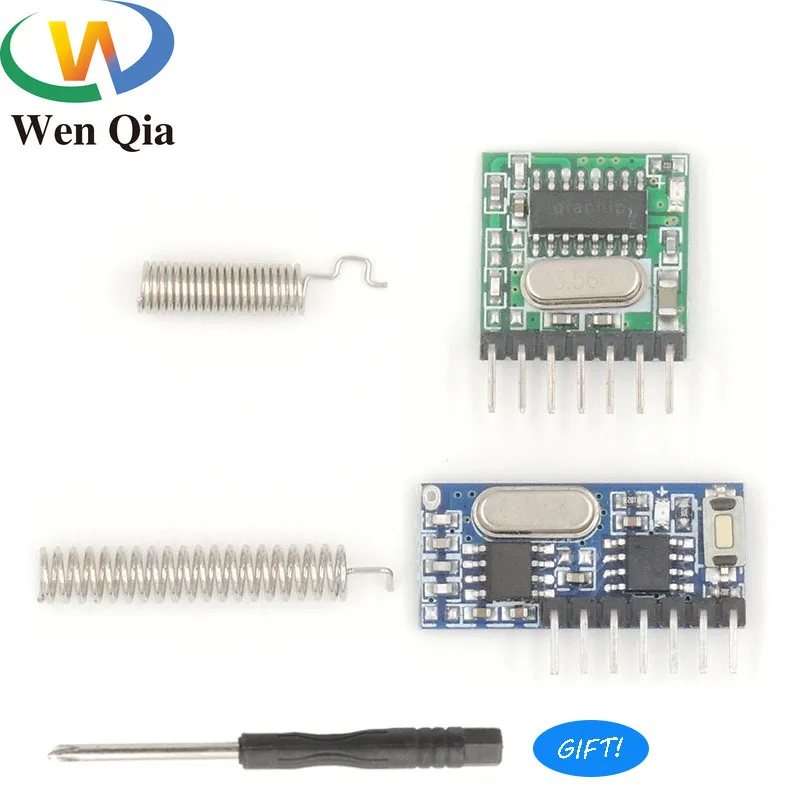

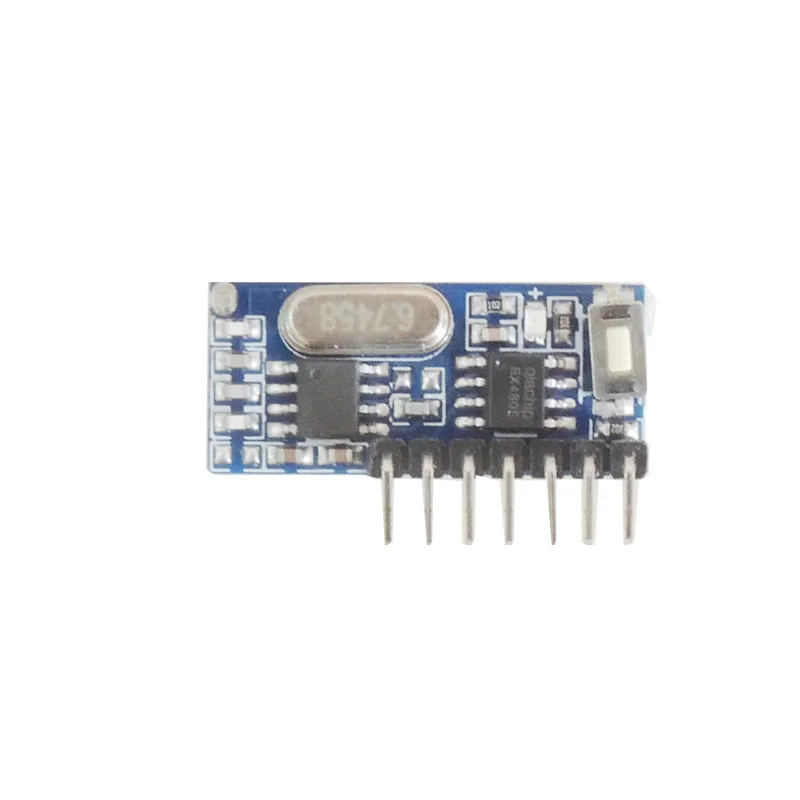

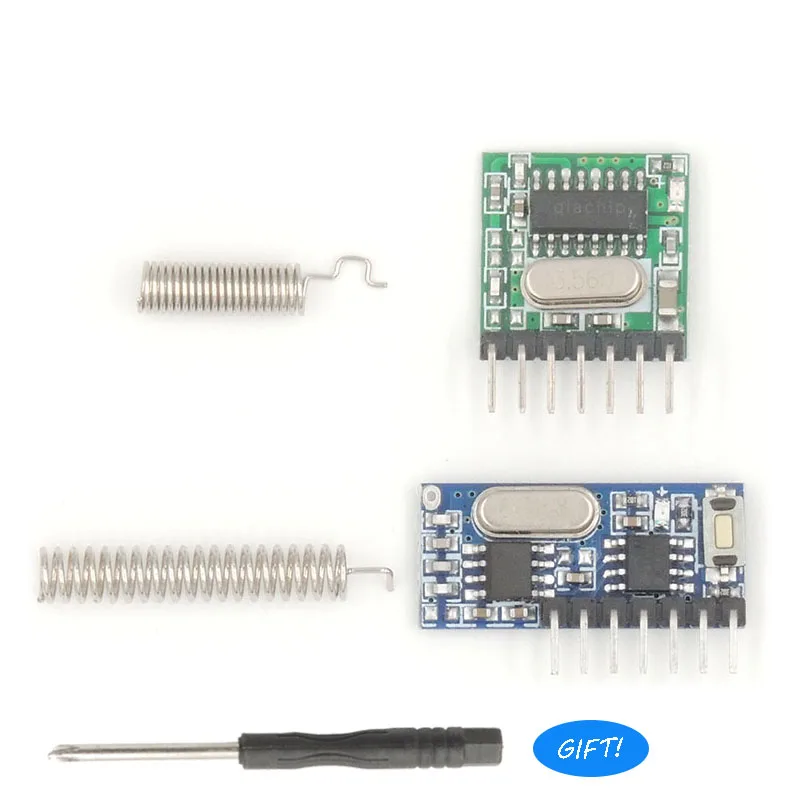

Receiver module (RX480E-4) * 1 piece  ;

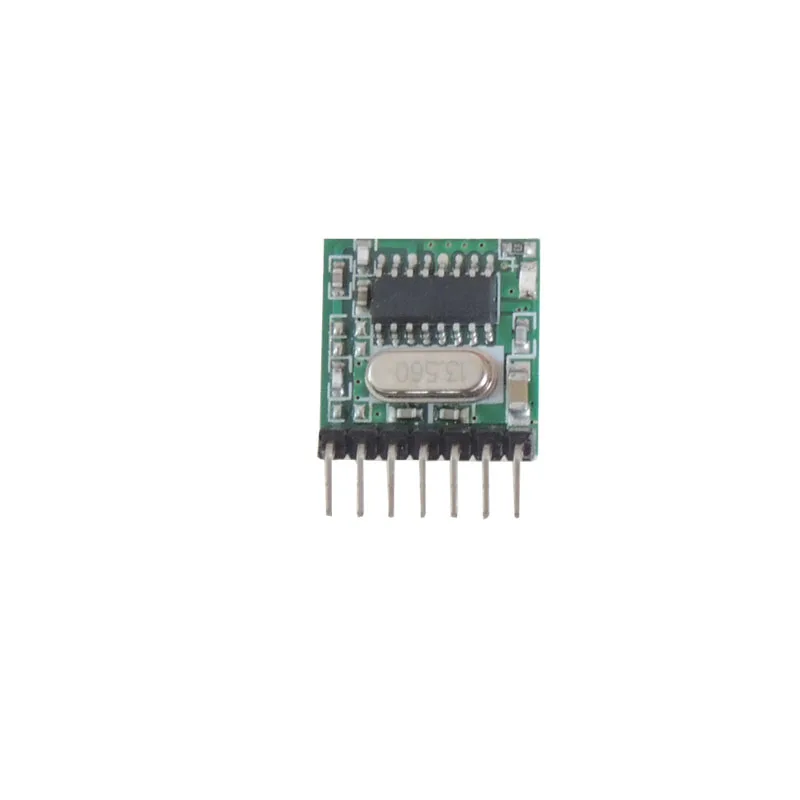

Transmitting module(TX118SA-4)  * 1 piece ;

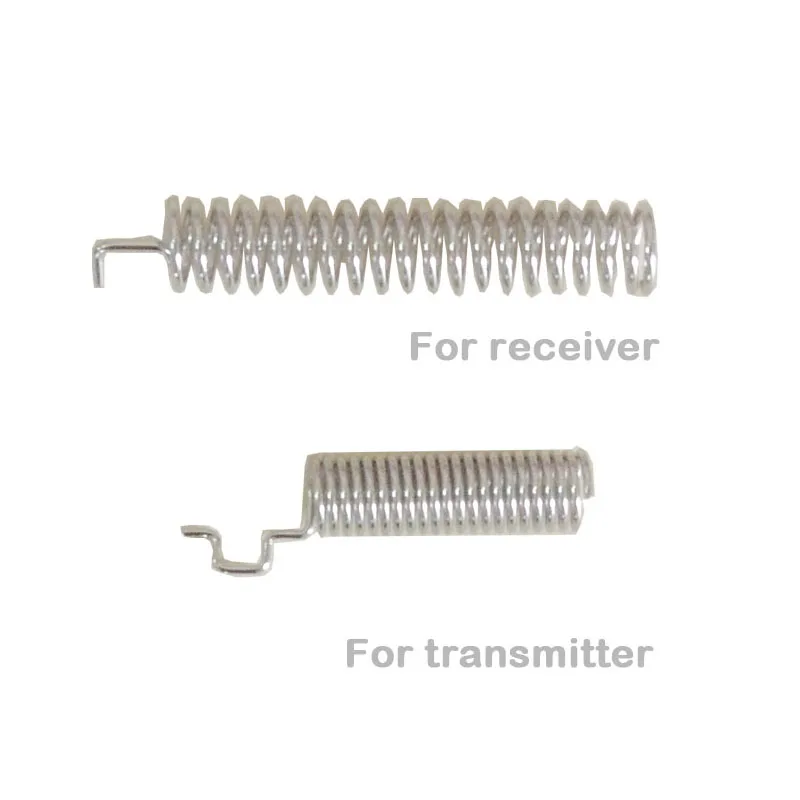

Long Spring Antenna * 1 pieces : For Receiver;
Short Spring Antenna * 1 pieces : For Transmitter;

1 PCS*Cross Screwdriver

1 PCS*Electric pen

Attention Please!!!:
