Практичная водонепроницаемая панель переключателей с 6 группами для автомобилей, судов, с LED-индикатором, автоматическим предохранителем, вольтметром, из нейлона, новая, плоская, постоянного тока.

Практичная водонепроницаемая панель переключателей с 6 группами для автомобилей судов LED-индикатором автоматическим предохранителем вольтметром из нейлона новая плоская постоянного тока.

Unavailable in

Specification:
Product material: ABS + PC + Nylon high and low temperature resistant environmental
Product size: 15 * 9 * 10.2CM
Opening size: 11.9 * 4.7CM
Packing size: 13.1 * 12.5 * 22.6CM
Number of switches: 4 digits, 6 digits, 8 digits
Input voltage: DC12V-24V
Output voltage: DC12V-24V
Output current: 12V / 20A 24V / 10A
Working temperature: -25 ° C——80 ° C
Product color: black
Light color: Turn on the white light and turn on the blue light.

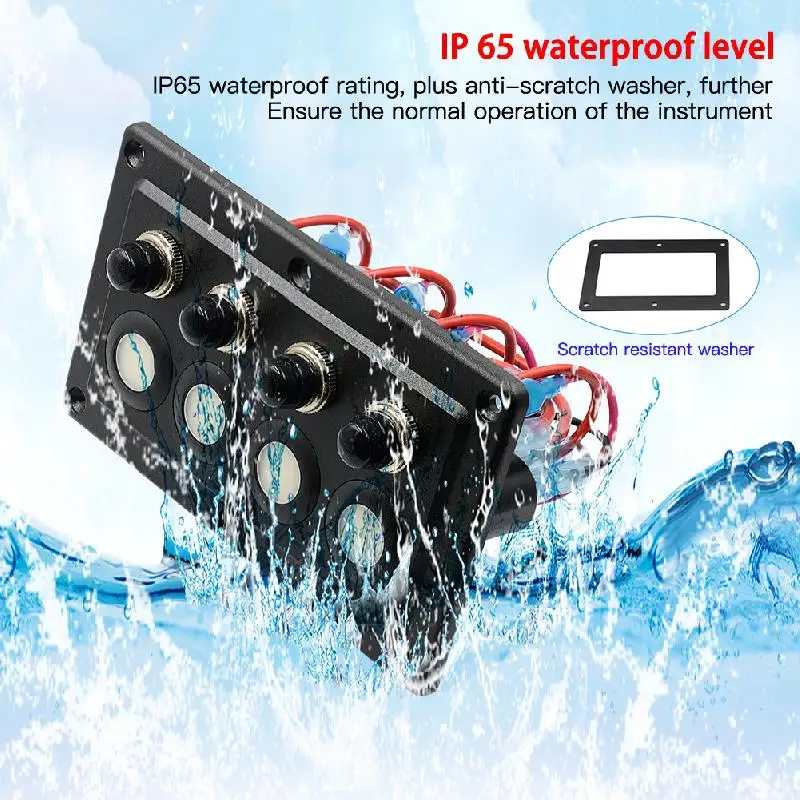

Waterproof grade: IP65
Related certificate: CE / ROHS / FCC / UL

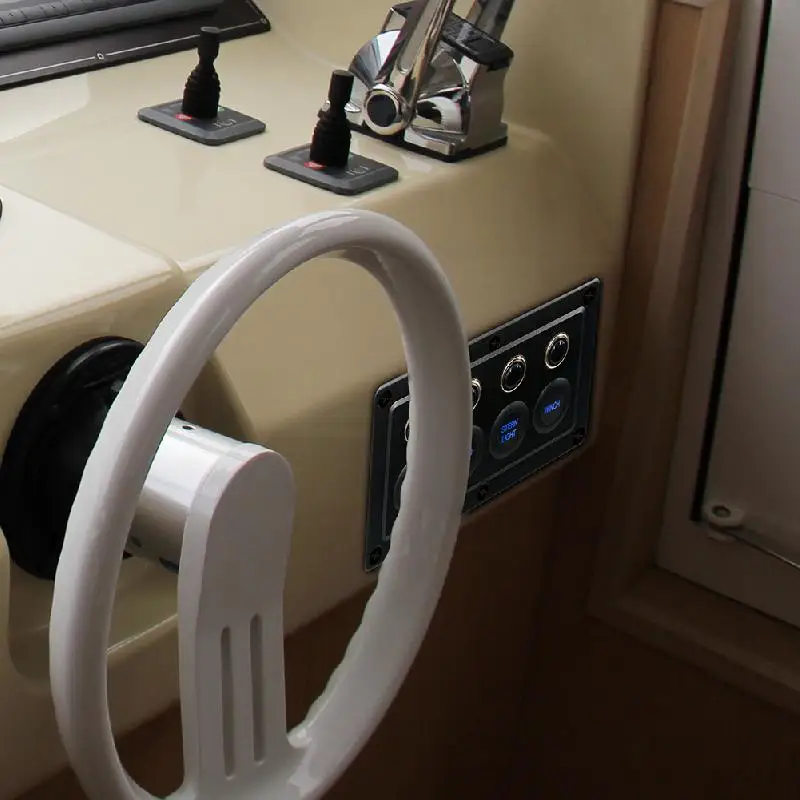

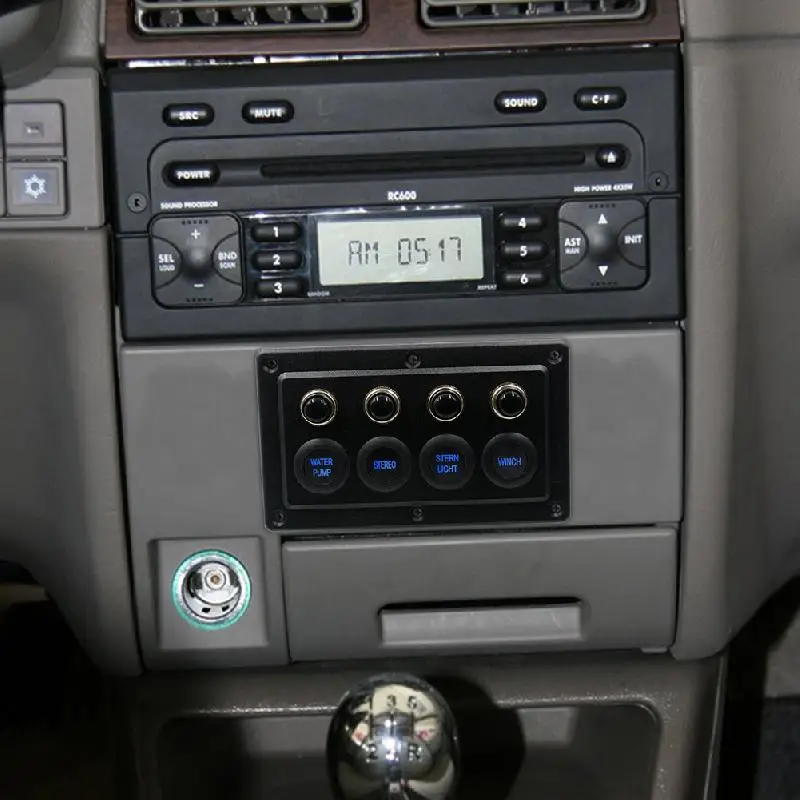

Scope of use: suitable for installation and use of high-end large-scale travel tools such as ships, yachts, motorhomes, buses, etc.

Feature:
[1] The product is a 4-position single-touch switch panel with 4 switches, which can control the switching states of 4 electrical appliances

       [2] The input voltage of the product is 12 / 24V, all boats and vehicles can be installed and used, and the use range is very wide

   [3] The product panel is resistant to high and low temperature, flame retardant and environmentally friendly materials, and can be used in environments with a minimum temperature of -25 ° and a maximum temperature of 80 °

     [4] The product has an overload protector. When a single switch-controlled consumer exceeds the maximum input current of the corresponding overload protector, it will automatically power off without causing any damage to the consumer. After the overload protector is pressed again, Electric appliances installed with corresponding current can continue to be used

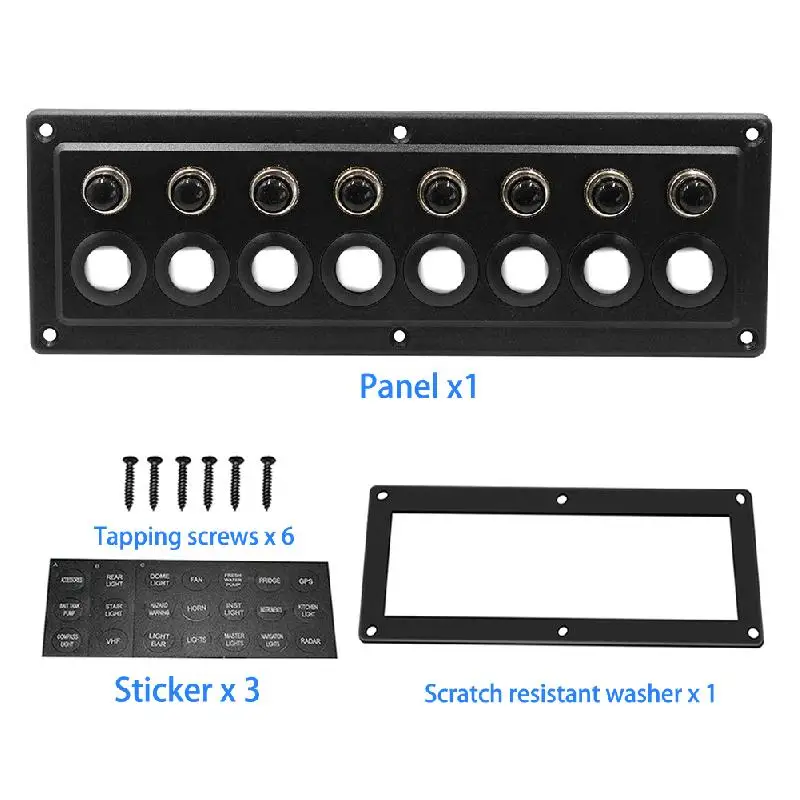

Package Content:
Panel switch * 1, self-tapping screw * 6, function sticker * 3, scratch-resistant gasket * 1
