Prevent Reverse Connection Module Lifepo4 Lithium Lipo Li-ion Battery Charger Anti-reverse Protection Positive Negative | Электроника

Prevent Reverse Connection Module Lifepo4 Lithium Lipo Li-ion Battery Charger Anti-reverse Protection Positive Negative | Электроника

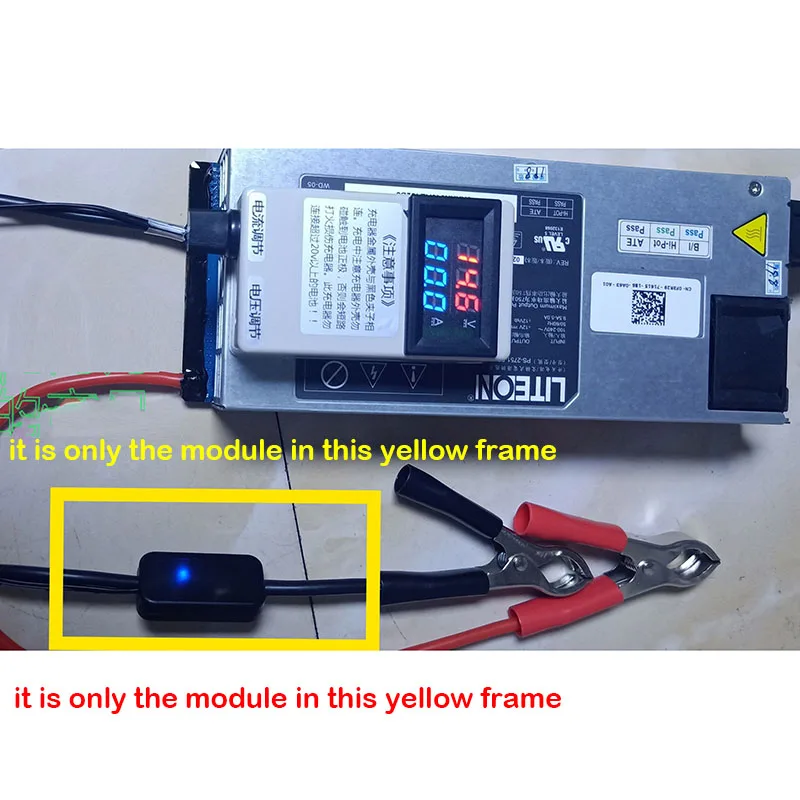

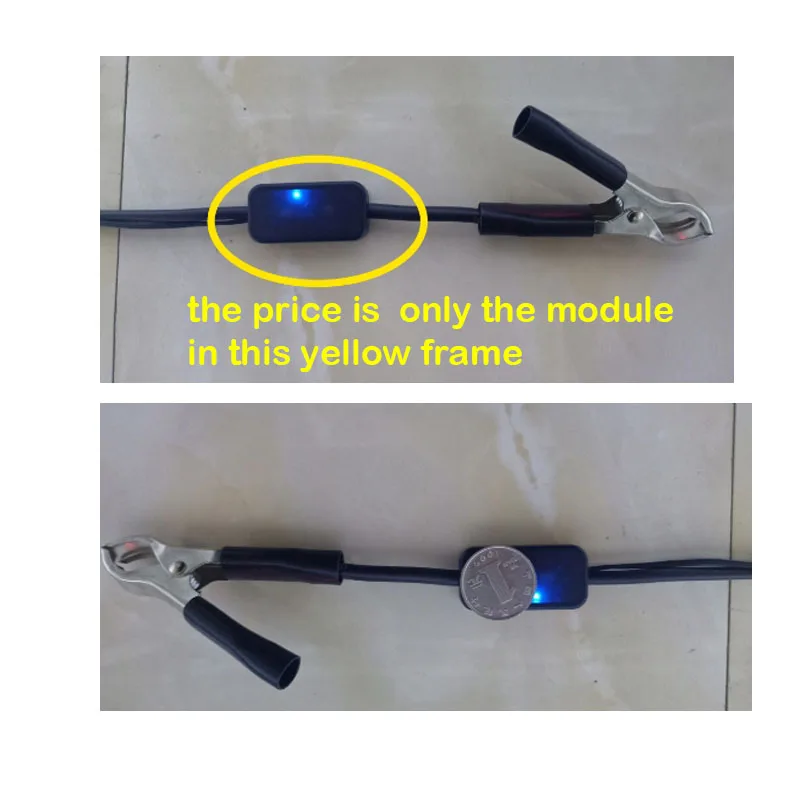

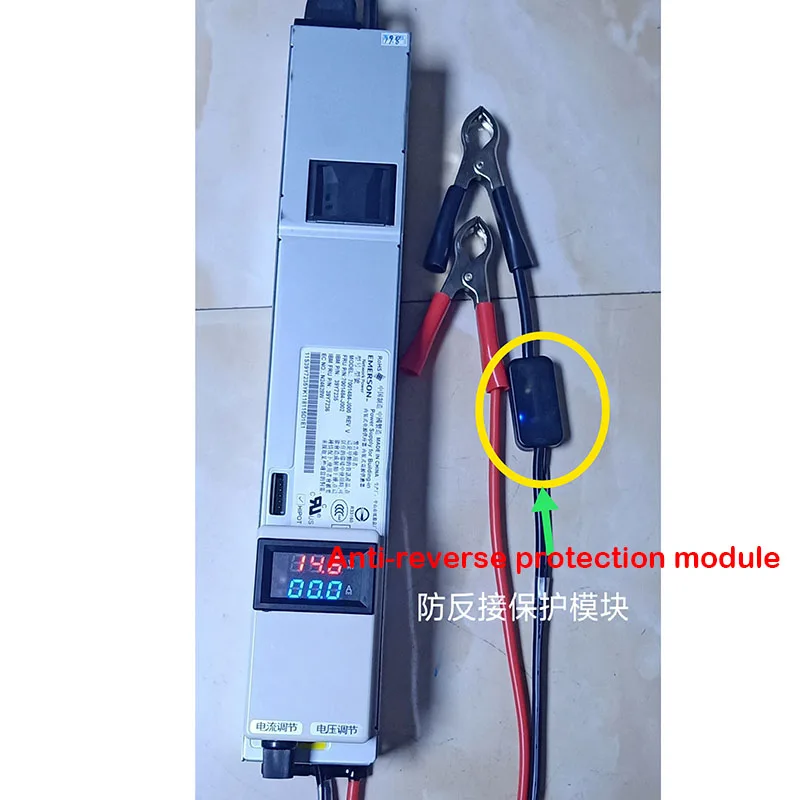

this price is include Anti-reverse Protection Module, don't include clip and charger

Module withstand voltage: 20V (above 20V can be customized separately, exceeding the withstand voltage will be damaged) Working current: 75A Instantaneous current: 300A Protection current: 80A Ultra-low internal resistance: 0.7MR Recovery after protection: The knob current switch, after turning off and on, can restore the output, and can also disconnect the main power supply and restart. Module features: This module is ultra-small, with ultra-high sensitivity short circuit and reverse connection protection. There is an indicator light in the module. When the light is on, the output is normal. When this module is used with the charger in this store, it also has a differential pressure detection protection function. For example, the voltage will be protected when the voltage is adjusted to 14.6V and charged below 10V, and the battery will be stopped when the voltage is charged at 12.6V and 3.65V. This feature greatly reduces the possibility of charging the battery due to negligence to the wrong voltage setting.
