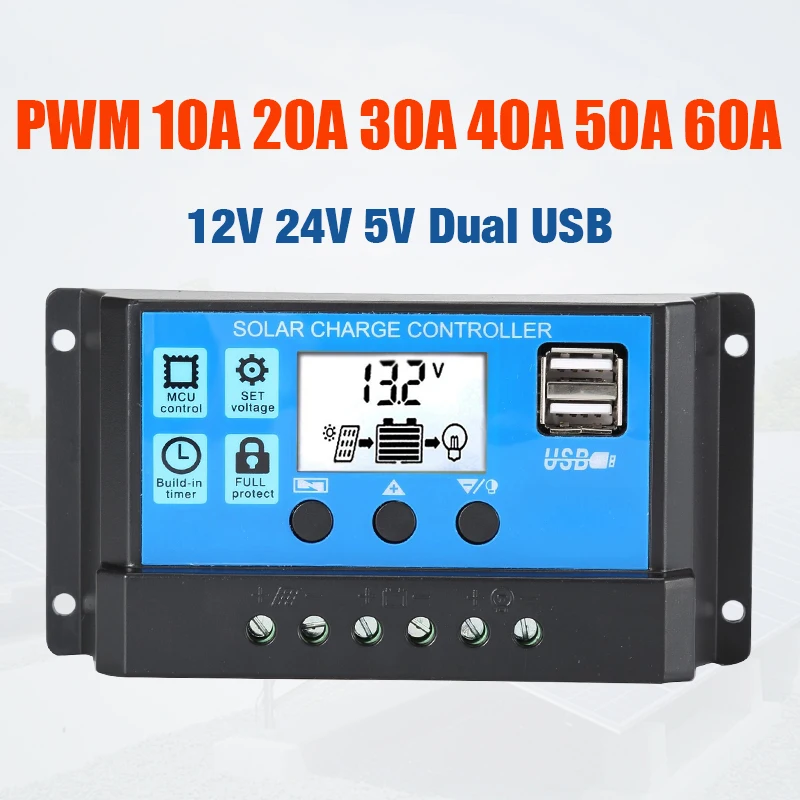

10A 20A 30A 40A 50A 60A Solar Charge Controller 12V 24V Auto PWM 5V Output Regulator PV Home Battery Charger LCD Dual USB

A:Specification
Voltage: DC 12V/24V
Rated charge current: 10A / 20A /30A
Floating charge voltage: 13.7V (adjustable)
End-off voltage: 10.7V (adjustable)
Discharge recover voltage: 12.6V (adjustable)
USB output: 5V/3A
Standby current: <10mA
Operating temperature: -35°-60°
Size:150 * 78 * 35mm / 5.9 * 3 * 1.4in
Color: blue+black
Material: ABS

Package list: 1*solar charge controller, 1*user manual

-- Dual USB port: The solar charge controller is designed with dual USB ports, USB output: 5V/3A max.
-- Solar battery: Solar charge controller just works with lead-acid batteries: OPEN, AGM, GEL, not for nickel hydride, lithium, or other batteries.
-- Multiple protection: Short-circuit protection, open-circuit protection, overcurrent protection, overload protection, safety for using.

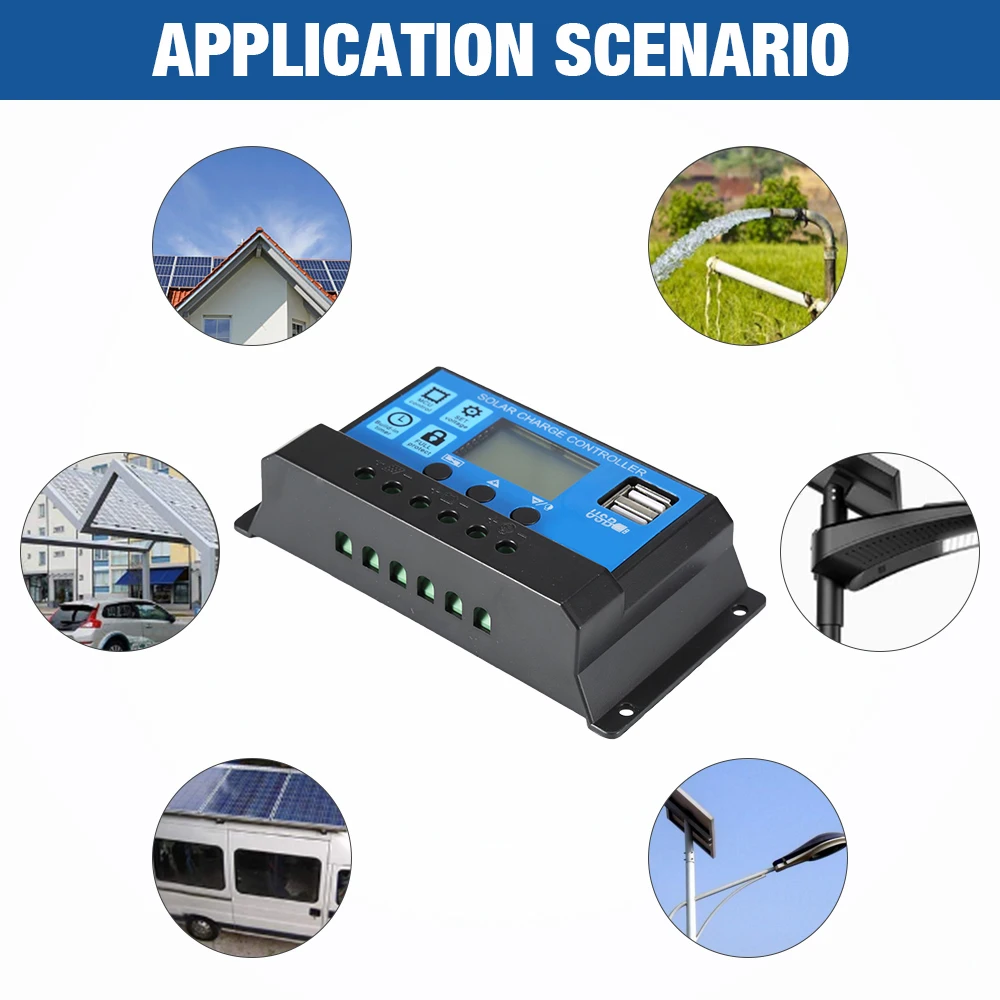

-- Widely use: Suitable for home, industrial, commercial, workshop etc.
-- Easy to install and operate: Clearly indicate the status and data, can be conveniently switched modes and parameter configuration.
-- LCD display: Large LCD display, easy to read the data.

-- Warm tips:
1. Please keep it in cool and well ventilated place to maintain good heat dissipation.
2. Ensure your battery has enough voltage for the controller to recognize the battery before first installation.
3. The working temperature of this controller is -35°C to 60°C, please keep the controller stay in cool and well-ventilated place to maintain good heat dissipation during the summer day.

-- Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.

B:Test lead

Material: PVC, Silicone
Color:Red, black,grey
Cable Length: 1100mm
Maximum current: 20A
Test voltage range: 1000V Ma

Features:
With rubber shrouded, it is comfortable to grip
Universal multi-meter plug, convenient to use
It is one of the useful tools that will brings a lot of convenience for your electronic work
An integral part of the complete measurement system and extend the capabilities of your digital multimeter.
Universal test lead fit for most of multimeter meters and voltage testers.

Package included:
1 Pair of Multimeter Cables

Note:
Please allow 1-4cm errors due to manual measurement
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
