HDMI Audio Extractor 5.1 /2.0 Splitter To Optical TOSLINK SPDIF |

HDMI Audio Extractor 5.1 /2.0 Splitter To Optical TOSLINK SPDIF |

Features:

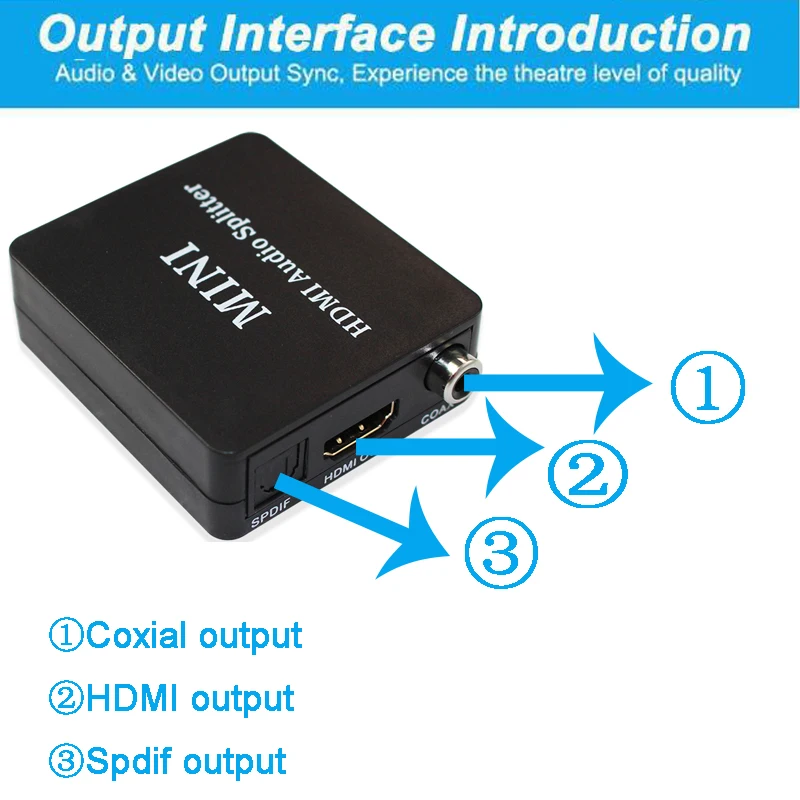

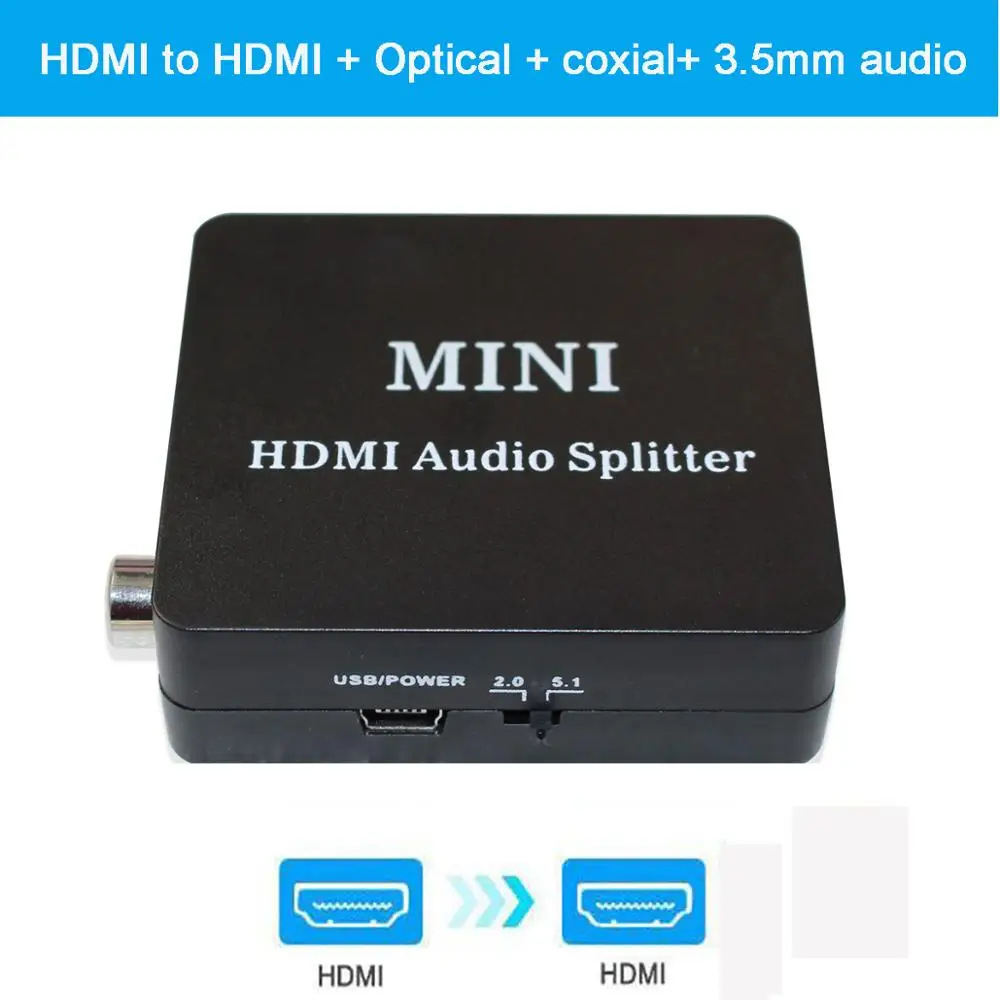

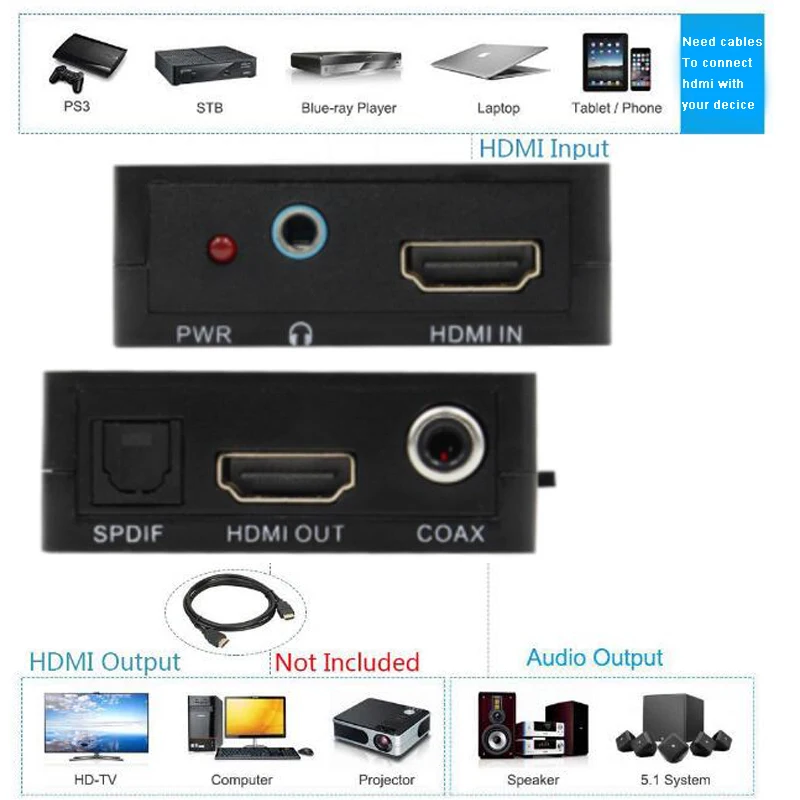

*HDMI input converted to one hdmi-compatible+audio output(SPDIF+coaxial);

*Output audio support: SPDIF+coaxial  analog audio output;

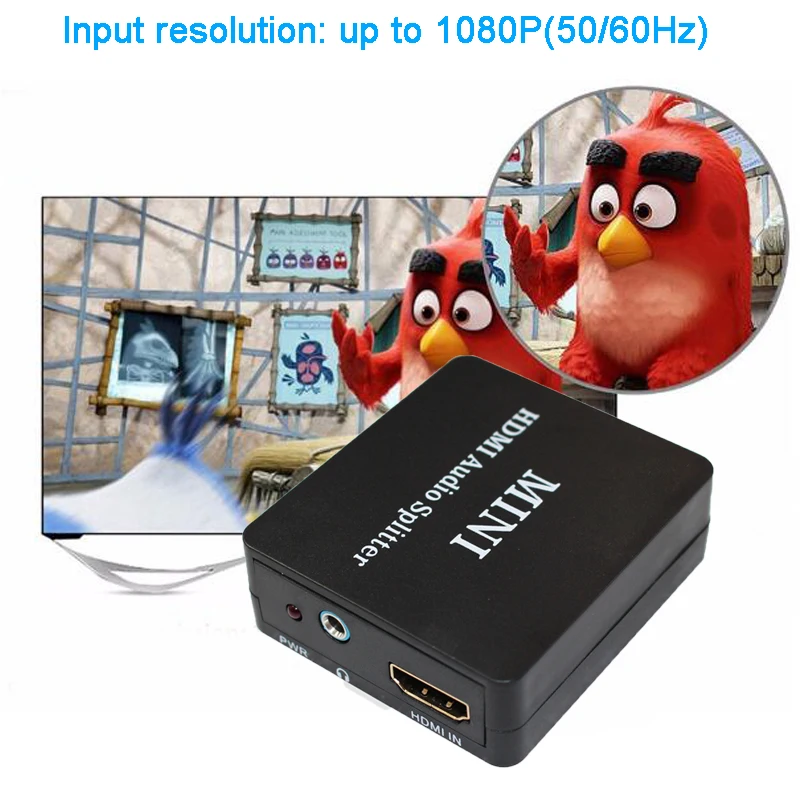

*Input resolution: up to 1080P(50/60Hz);

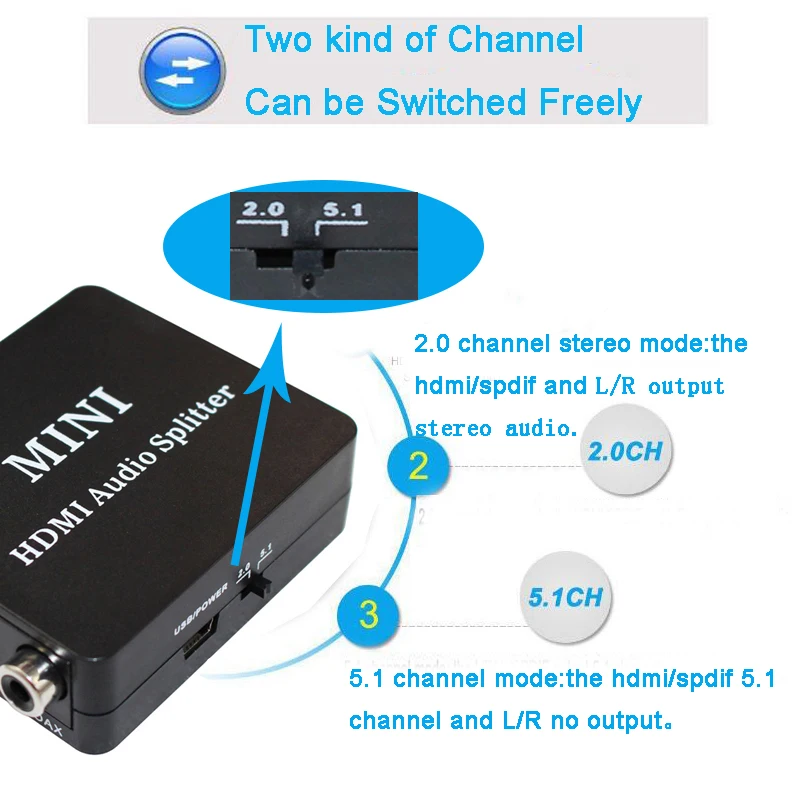

*HDMI to achieve the synchronization of audio signal separation,There are 2.0CH/5.1CH two kinds of audio mode options;

*LED indication:when source of link is working,LED relative to is light;

*No loss of quality;

*Installs in minutes;

*It need extrasupply electricity,please use the usb cable to supply power ;

*please note:this converter does not support sony and blackmagic device.If the monitor with dvi port ,it maybe has not the audio

Package include:

1 x HDMI  audio splitter

1 x usb cable

1 x User Manual

1.0 Functionone

Question 1:why it has  not  the sound ?

Answer1:

1)Check the optical port (headport ) weather good

2)Switch to 2.0/5.1 mode on our device .  Restart the audio splitter and observe whether it is normal

3))If step 1)/2) is invalid, please check the hdmi audio output mode of the HDMI source device, make sure to set to PCM or Auto mode

Question 2:why the optical can not output 5.1?

Answer2:

1)Switch to 5.1 mode on our device.Restart the audio splitter and observe whether it is normal

2)If  step 1) is invalid,Please check the HDMI source device(the hdmi audio output mode）, make sure to set to RAW Data or Auto mode

Question 3:why the headport  has noise sound on  5.1?

Answer3:Because this the audio splitter  only has pcm2.0 decoding function, it has not  DTS and Dolby 5.1 signal decoding function.

If you have others question,please tell us
