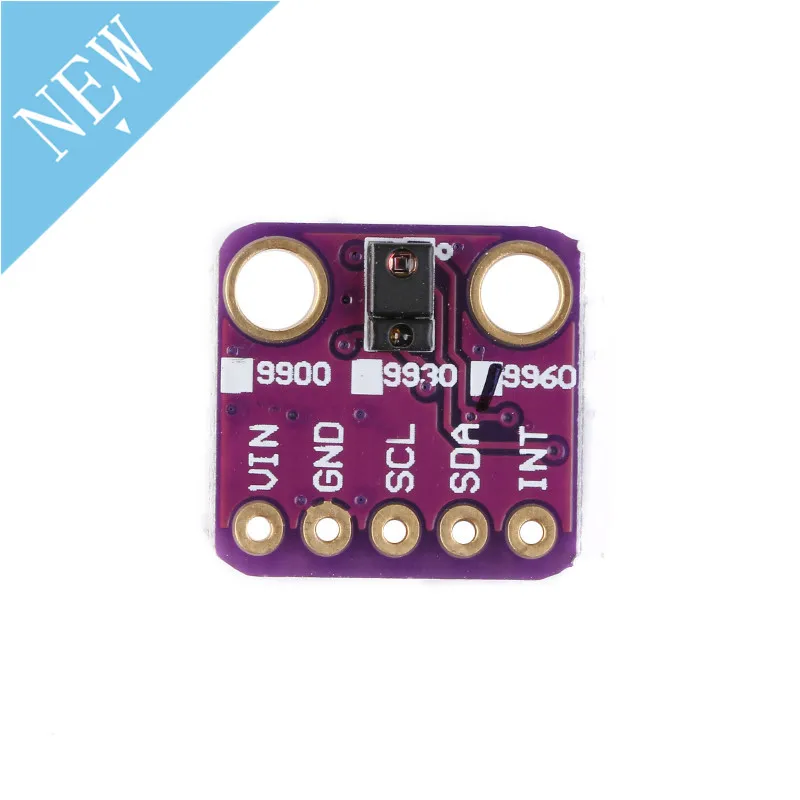

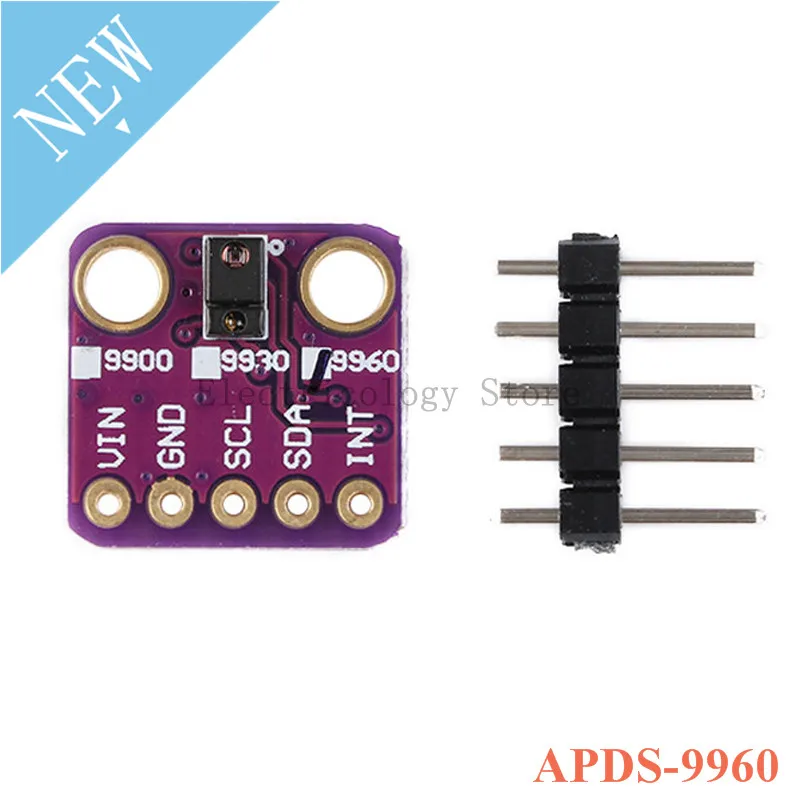

APDS-9960 / GY-9960-LLC / APDS9960

          APDS-9960 is an integrated ALS, infrared LED and proximity detector optical module and ambient brightness sensing (ALS, Ambient Light Sensing) of the ambient brightness sensor, the use of dual-light diode to approximate 0.01 lux illumination similar to the human eye visual response Programmable interrupt function with upper and lower thresholds up to 16-bit resolution for high flexibility even after dark glass, 100mm object detection for close proximity sensors, free of end devices and subassemblies Of the factory calibration requirements. Ambient light dynamic range from the previous 10K lux increased to 30K lux, the sun calibration greatly increased to 50K lux, greatly enhance the sensitivity and avoid the strong light interference. You can work in a large 1.0mm Air Gap precision work, do not do external isolation processing, greatly facilitate the customer's structural design. Its state of standby power consumption - 90μA typical, sleep mode power - 2.2μA typical, more energy saving; up to 400kHz (I2C fast mode) dedicated interrupt pin, providing I2C interface compatible, fully integrated solution for easy structure and circuit design , I believe to give users a better design experience and product value!

    It includes APDS-9960 sensor, providing ambient light and color measurement, proximity detection and contactless gesture detection. With this RGB and gesture sensor, you can control a computer, microcontroller, robot, it's more powerful than your hand a simple swipe function! In fact, the gesture sensor APDS-9960 was used in Samsung GalaxyS5.

It could be applied to ambient light and RGB color sensor, proximity detection, gesture detection.

Product Parameters
