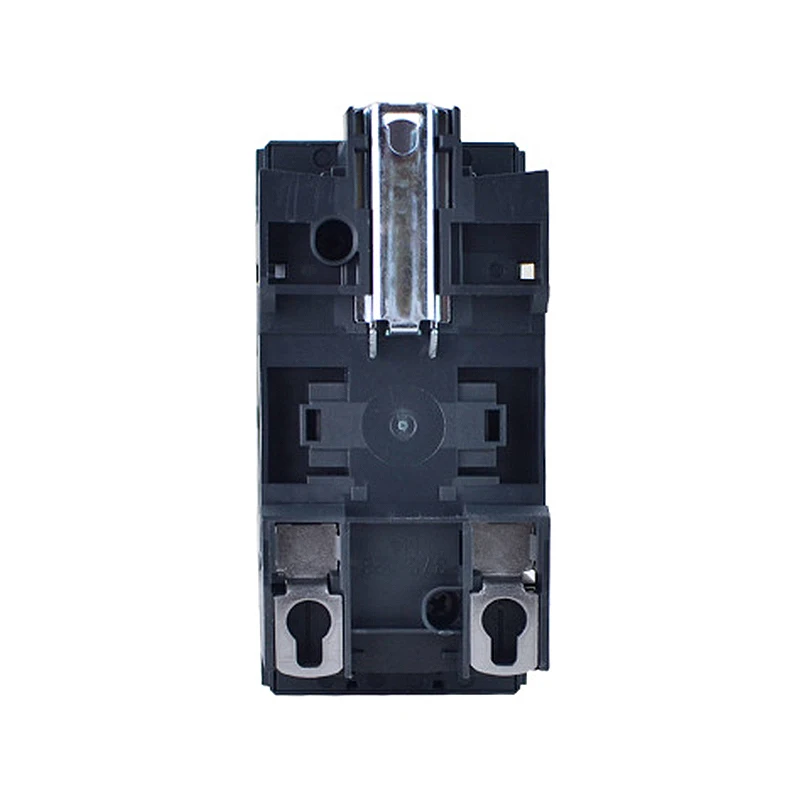

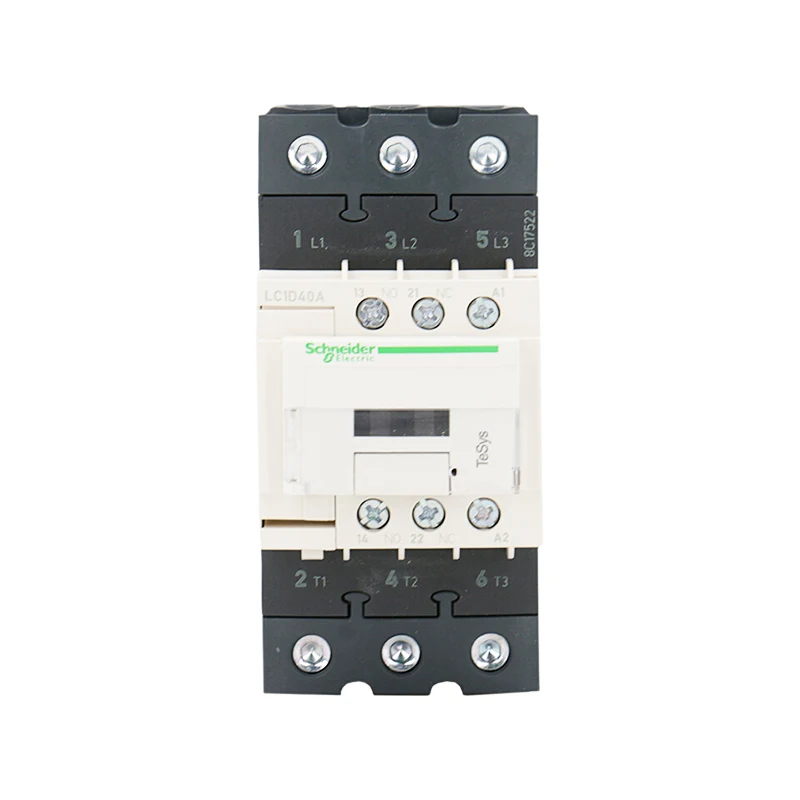

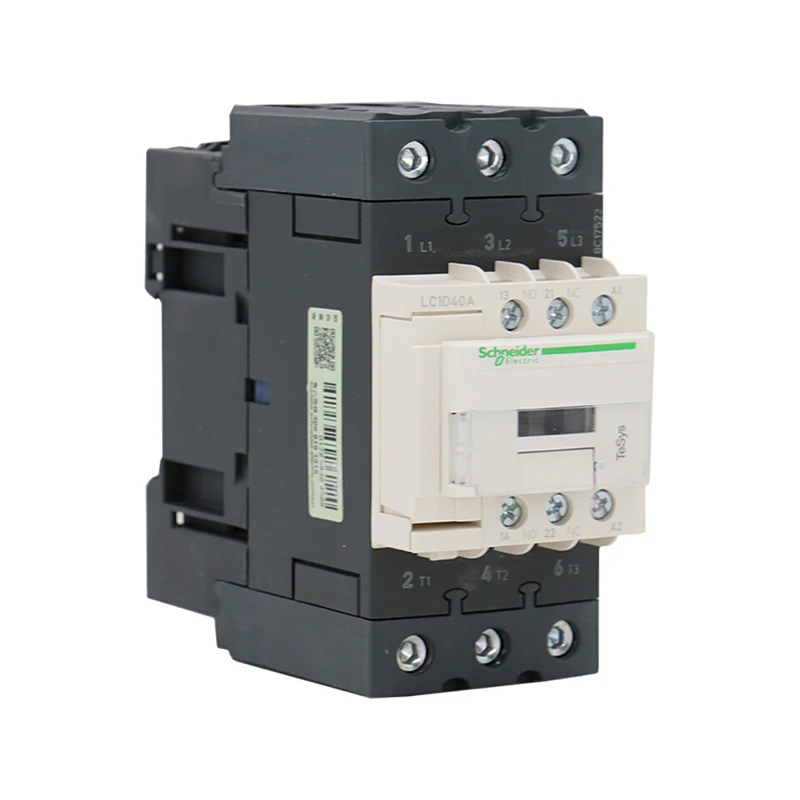

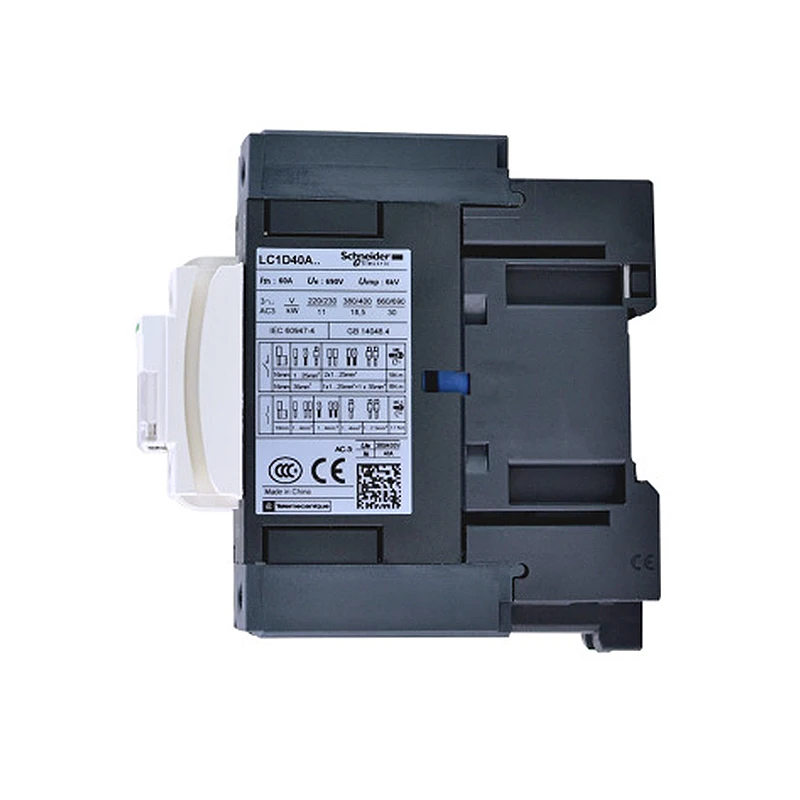

New authentic LC1D40AU7C coil 240VAC 50/60Hz three-level contactor 40A load 11KW-220V standard TeSys D Everlink terminal block |

main information Product Series TeSys product name D product type Contactor Product short name LC1D Contactor application field It is used in AC loads with power factor greater than or equal to 0.95. It is  used to switch on and off the squirrel cage motor that starts normally. Use category AC-1  AC-3 Pole number 3P power pole contact composition 3 NO Rated working current [Ie] 40 A 60 ° C) at <= 440 V AC AC-1 for power circuit  60 A 60 ° C) at <= 440 V AC AC-3 for power circuit Control circuit voltage 240 V AC 50/60 Hz Auxiliary contact type 1 NO + 1 NC Additional information Rated working voltage [Ue] Power circuit: <= 690 V AC 25 ... 400 Hz  Power circuit: <= 300 V DC Motor power (kW) 18.5 kW at 380/400 V AC 50/60 Hz  22 kW at 500 V AC 50/60 Hz  11 kW at 220/240 V AC 50/60 Hz  22 kW at 415/440 V AC 50/60 Hz  30 kW at 660/690 V AC 50/60 Hz Electrical life 1.6 kA².s 40 A AC-3 Ue <= 440 V  1.6 kA².s 33 A AC-3 Ue 660/690 V  14 kA².s 60 A AC-1 Ue <= 440 V Mechanical life 6 kA².s Maximum operating frequency 3600 times / hour at <60 ° C Action time 4 ... 19  ms open 12 ... 26 ms closed Control voltage limit Release: 0.3 ... 0.6 Uc at 50/60 Hz 60 ° C)  operation: 0.8 ... 1.1 Uc at 50 Hz 60 ° C)  operation: 0.85 ... 1.1 Uc at 60 Hz 60 ° C) (~ 50Hz hold) Power consumption (VA) 13 VA 60 Hz 0.3 20 ° C)  15 VA 50 Hz 0.3 20 ° C) Conventional heating current [Ith] 10 A at <60 ° C for signal circuit  60 A at <60 ° C for power circuit Average impedance 1.5 mΩ-Ith 60 A 50 Hz for power circuit Heat dissipation 4… 5 W at 50/60 Hz Rated short-time withstand current [Icw] 320 A on <40 ° C-10 s for power circuit  720 A on <40 ° C-1 s for power circuit  72 A on <40 ° C-10 minutes for power circuit  165 A on <40 ° C-1 minute for power circuit  100 A-1 s for signal circuit  120 A-500 ms for signal circuit  140 A-100 ms for signal circuit Fuses used with relays 10 A gG suitable signal circuit conforms to IEC 60947-5-1  80 A gG on… <= 690 V with type 1 suitable power circuit  80 A gG on… <= 690 V with type 2 suitable power circuit Overvoltage category III Rated insulation voltage [Ui] Power circuit: 690 V conforming to IEC 60947-4-1  Signal circuit: 690 V conforming to IEC 60947-1 Surge suppression module No built-in surge suppression module Auxiliary contact type Type mechanical connection 1 NO + 1 NC conforming to IEC 60947-5-1  type mirrors the state of the main contacts 1 NC conforming to IEC 60947-4-1 Signal loop frequency 25 ... 400 Hz Minimum switching current [Imin] 5 mA for signal circuit Non-overlap time 1.5 ms between power-off NC and NO contacts  1.5 ms between power-on NC and NO contacts Insulation resistance > 10 MΩ Applicable signal circuit Installation method Floor mounting  rail installation Wiring capacity Power supply circuit: EverLink BTR terminal 1 1… 35 mm² lug outer diameter Ø: 16.5 mm Cable selection: flexible cord without wire terminal  Power supply circuit: EverLink BTR terminal 2 1… 25 mm² lug outer diameter Ø: 16.5 mm cable selection: flexible wire without wire terminal  power circuit: EverLink BTR terminal 2 1… 35 mm² lug outer diameter Ø: 16.5 mm cable selection: flexible wire with wire terminal  power circuit: EverLink BTR terminal 1 … 25 mm² lug outer diameter Ø: 16.5 mm cable selection: flexible cord with wire terminal  power circuit: EverLink BTR terminal 1… 35 mm² lug outer diameter Ø: 16.5 mm cable selection: hard wire without wire Terminal  power circuit: EverLink BTR terminal 1… 25 mm² outside diameter of lug Ø: 16.5 mm Cable selection: hard wire without wire terminal  control circuit: bolt fastening 1… 4 mm² cable selection: flexible wire without wire Wire terminal  control circuit: bolted 1… 2.5 mm² cable selection: flexible wire with wire terminal  control circuit: bolted cable 1… 4 mm² cable selection: hard wire without wire terminal Tightening torque Control circuit: 1.7 Nm with screwdriver for screwing Ø 6 flat-mouthed  control circuit: 1.7 Nm with screwdriver for screwing No 2 Phillips screw  power circuit: 8 Nm with EverLink BTR terminal block cable 35 mm² hexagonal 4 mm  power circuit: 6 Nm  tightens hexagonal 10 mm screws with bolts: M6 power circuit: 5 Nm via EverLink BTR terminal block cable 1… 25 mm² hexagonal 4 mm height 122 mm width 55 mm depth 120 mm Control loop characteristics AC at 50/60 Hz Rated impulse withstand voltage [Uimp] 6 kV conforming to IEC 60947 safety cover no (~ 50Hz pull-in) Power consumption (VA) 140 VA 60 Hz 0.75 20 ° C)  160 VA 50 Hz 0.75 20 ° C) product weight 0.85 kg Contactor compatible features M2 model LC1D surroundings Standards compliant GB 14048.4  IEC 60947-4-1 certified product CCC Pollution level 3 Protective measures TH conforms to IEC 60068-2-30 IP protection level IP2x front  panel main circuit is suitable for compliance with IEC 60529 IP2x front panel coil circuit is suitable for compliance with IEC 60529 Operating temperature -5… 60 ° C Storage temperature -60… 80 ° C Ambient air temperature -40… 70 ° C (permitted under Uc) Working altitude 3000 m without Fire resistance and abnormal high temperature resistance 850 ° C conforming to IEC 60695-2-11 Shock and vibration resistance Seismic properties contacts open (2 gn (5 ... 300 Hz )) to IEC 60068-2-6  seismic performance of the closed state of the contacts (4 gn (5 ... 300 Hz )) to IEC 60068-2-6  anti Shock performance 11 ms Contact open (10 gn) according to IEC 60068-2-27  Shock resistance 11 ms Contact closed state (15 gn) According to IEC 60068-2-27 Quality mark CE statement
