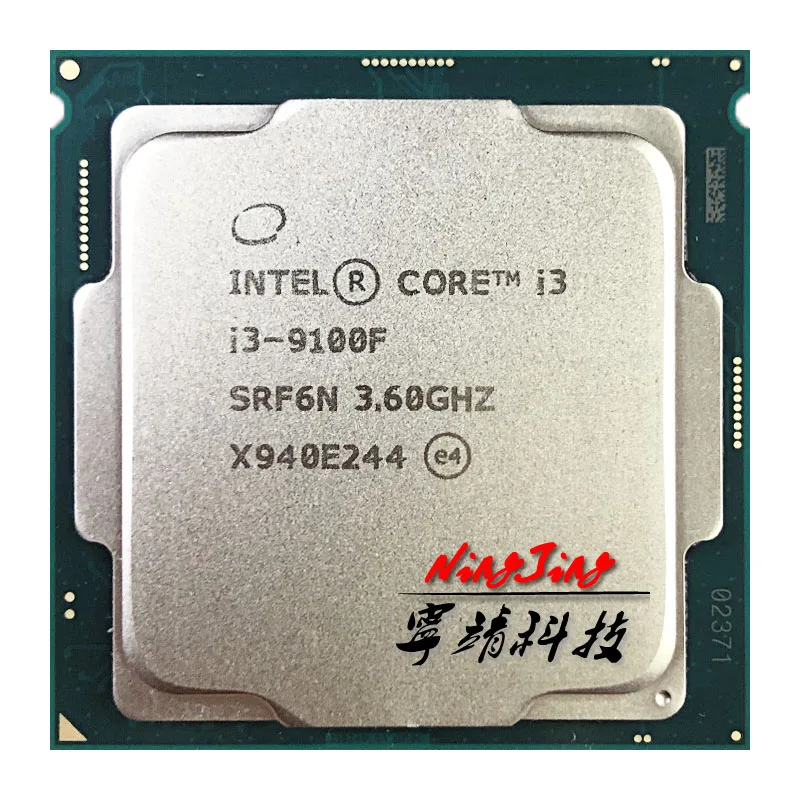

Процессор Intel Core i3-9100F i3 9100F 3 6 GHz SRF7W четырехъядерный процессор 65W 6M ProcessorLGA 1151 |

Intel Core i3-9100F specifications



The specs can be used for short-term
listings on auction and classifieds sites
General information Type CPU / Microprocessor Market segment Desktop Family
Intel Core i3 Model number  ?
i3-9100F CPU part numbers
CM8068403358820 is an OEM/tray microprocessor CM8068403377321 is an OEM/tray microprocessor BX80684I39100F is a boxed processor (English version) BXC80684I39100F is a boxed processor (Chinese version) Frequency  ?  3600 MHz Maximum turbo frequency 4200 MHz Low power frequency 800 MHz Bus speed  ?  8 GT/s DMI Clock multiplier  ?  36 Package 1151-land Flip-Chip Land Grid Array Socket Socket 1151 / H4 / LGA1151 Size 1.48" x 1.48" / 3.75cm x 3.75cm Introduction date 2nd quarter 2019 Price at introduction $122 S-spec numbers Part number ES/QS processors Production processors
QRJT SRF6N SRF7W BX80684I39100F
+ + BXC80684I39100F
+ + CM8068403358820
+
CM8068403377321

+ Unknown +

Architecture / Microarchitecture Microarchitecture Coffee Lake Processor core  ?  Coffee Lake-S Core steppings  ?  B0 (SRF7W)
U0 (QRJT, SRF6N) Manufacturing process 0.014 micron Data width 64 bit The number of CPU cores 4 The number of threads 4 Floating Point Unit Integrated Level 1 cache size  ?  4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches Level 2 cache size  ?  4 x 256 KB 4-way set associative caches Level 3 cache size 6 MB 12-way set associative shared cache Physical memory 64 GB Multiprocessing Uniprocessor Extensions and Technologies MMX instructions SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?  AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions AVX2 / Advanced Vector Extensions 2.0 BMI / BMI1 + BMI2 / Bit Manipulation instructions F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions EM64T / Extended Memory 64 technology / Intel 64  ?  VT-x / Virtualization technology  ?  VT-d / Virtualization for directed I/O TBT 2.0 / Turbo Boost technology 2.0  ?  Security Features NX / XD / Execute disable bit  ?  MPX / Memory Protection Extensions SGX / Software Guard Extensions SMAP / Supervisor Mode Access Prevention SMEP / Secure Mode Execution Protection Low power features Core C1/C1E, C3, C6, C7, C8, C9 and C10 states Package C2, C3, C6, C7, C8, C9 and C10 states Enhanced SpeedStep technology  ?  Integrated peripherals / components Integrated graphics None Memory controller The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR4-2400
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 38.4
ECC supported: Yes Other peripherals Direct Media Interface 3.0 (4 lanes) PCI Express 3.0 interface (16 lanes) Electrical / Thermal parameters Minimum/Maximum operating temperature  ?  0°C (case temperature) - 71°C (case temperature) [1]
100°C (Digital Thermal Sensor) Thermal Design Power  ?  65 Watt Notes on Intel Core i3-9100F Intel Optane memory is supported The processor has the following security, data protection and/or software features: Intel Secure Key, Identity Protection technology, OS Guard and Boot Guard.

[1] - Information is not confirmed
