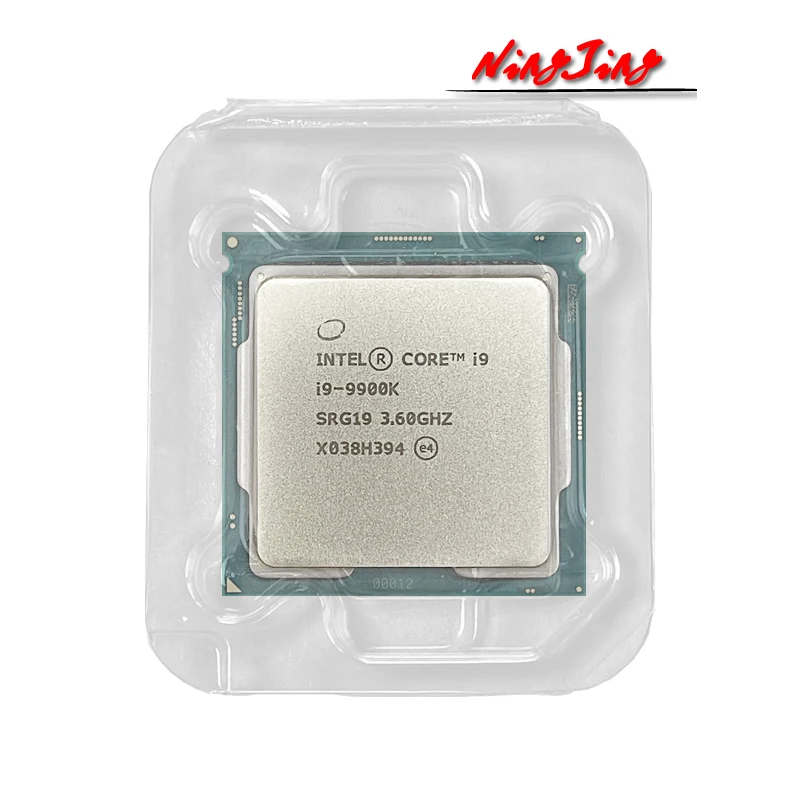

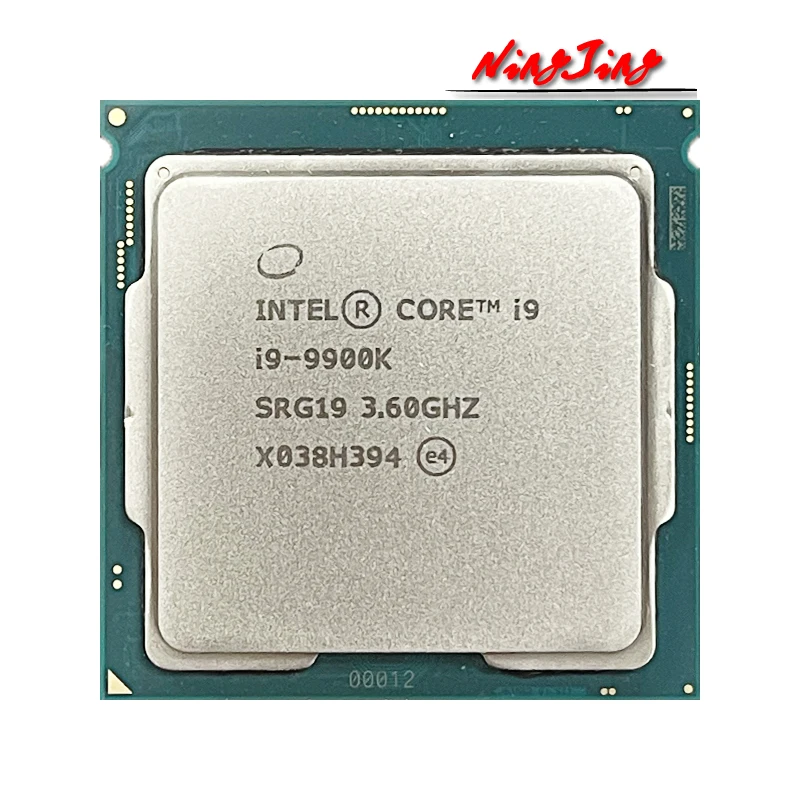

Intel Core i9-9900K i9 9900K 3.6 GHz Eight-Core Sixteen-Thread CPU Processor 16M 95W LGA 1151 Sealed and new but without cooler |

Intel Core i9-9900K i9 9900K 3.6 GHz Eight-Core Sixteen-Thread CPU Processor 16M 95W LGA 1151 Sealed and new but without cooler |

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

Model number  ?

CPU part numbers

CM8068403873914 is an OEM/tray microprocessor

CM8068403873925 is an OEM/tray microprocessor

BX80684I99900K is a boxed processor (English version)

BXC80684I99900K is a boxed processor (Chinese version)

Frequency ?

3600 MHz

Maximum turbo frequency

5000 MHz

Low power frequency

800 MHz

Bus speed ?

8 GT/s DMI

Clock multiplier ?

36

Package

1151-land Flip-Chip Land Grid Array

Socket

Socket 1151 / H4 / LGA1151

Size

1.48" x 1.48" / 3.75cm x 3.75cm

Introduction date

October 8, 2018 (announcement)

Price at introduction

$488 (OEM)
$499 (box)

S-spec numbers

Part number

ES/QS processors

Production processors

QQPP

QRJZ

SRELS

SRG19

BX80684I99900K

+

+

BXC80684I99900K

+

+

CM8068403873914

+

+

CM8068403873925

+

Unknown

+

Architecture / Microarchitecture

Microarchitecture

Coffee Lake

Processor core  ?

Coffee Lake-S

Core steppings  ?

P0 (QQPP, SRELS)
R0 (SRG19)

CPUID

906EC (QQPP)

Manufacturing process

0.014 micron

Data width

64 bit

The number of CPU cores

8

The number of threads

16

Floating Point Unit

Integrated

Level 1 cache size  ?

8 x 32 KB 8-way set associative instruction caches
8 x 32 KB 8-way set associative data caches

Level 2 cache size ?

8 x 256 KB 4-way set associative caches

Level 3 cache size

16 MB 16-way set associative shared cache

Physical memory

128 GB

Multiprocessing

Uniprocessor

Extensions and Technologies

MMX instructions

SSE / Streaming SIMD Extensions

SSE2 / Streaming SIMD Extensions 2

SSE3 / Streaming SIMD Extensions 3

SSSE3 / Supplemental Streaming SIMD Extensions 3

SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?

AES / Advanced Encryption Standard instructions

AVX / Advanced Vector Extensions

AVX2 / Advanced Vector Extensions 2.0

BMI / BMI1 + BMI2 / Bit Manipulation instructions

F16C / 16-bit Floating-Point conversion instructions

FMA3 / 3-operand Fused Multiply-Add instructions

EM64T / Extended Memory 64 technology / Intel 64  ?

HT / Hyper-Threading technology  ?

VT-x / Virtualization technology  ?

VT-d / Virtualization for directed I/O

TBT 2.0 / Turbo Boost technology 2.0  ?

TSX / Transactional Synchronization Extensions

Security Features

NX / XD / Execute disable bit  ?

MPX / Memory Protection Extensions

SGX / Software Guard Extensions

TXT / Trusted Execution technology

SMAP / Supervisor Mode Access Prevention

SMEP / Secure Mode Execution Protection

Low power features

Core C1/C1E, C3, C6, C7, C8, C9 and C10 states

Package C2, C3, C6, C7, C8, C9 and C10 states

Enhanced SpeedStep technology  ?

Integrated peripherals / components

Display controller

3 displays

DVI / DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4

Integrated graphics

GPU Type: Intel UHD 630
Graphics tier: GT2
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1200

Memory controller

The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR4-2666
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 42.7

Other peripherals

Direct Media Interface 3.0 (4 lanes)

PCI Express 3.0 interface (16 lanes)

Electrical / Thermal parameters

Minimum/Maximum operating temperature  ?

0°C (case temperature) - 64.5°C (case temperature) [1]
100°C (Digital Thermal Sensor)

Thermal Design Power ?

95 Watt

Notes on Intel Core i9-9900K

The processor has unlocked clock multiplier

Intel Optane memory is supported

Package C10 low power state is not supported on 200 series chipsets

The processor has the following security, data protection and/or software features: Intel Secure Key, vPro technology, Identity Protection technology, OS Guard and Boot Guard.

The CPU is compatible with DirectX 12, OpenGL 4.5, OpenCL 1.2, OpenCL 2.0 and OpenCL 2.1 APIs.

The graphics unit has the following software features enabled: Intel Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology.
