Erisin Android 10.0 Alfa Romeo 159 Sportwagon Brera Spider Autoradio Car Stereo DAB+GPS DSP Carplay Bluetooth | Автомобили и

Erisin Android 10.0 Alfa Romeo 159 Sportwagon Brera Spider Autoradio Car Stereo DAB+GPS DSP Carplay Bluetooth | Автомобили и

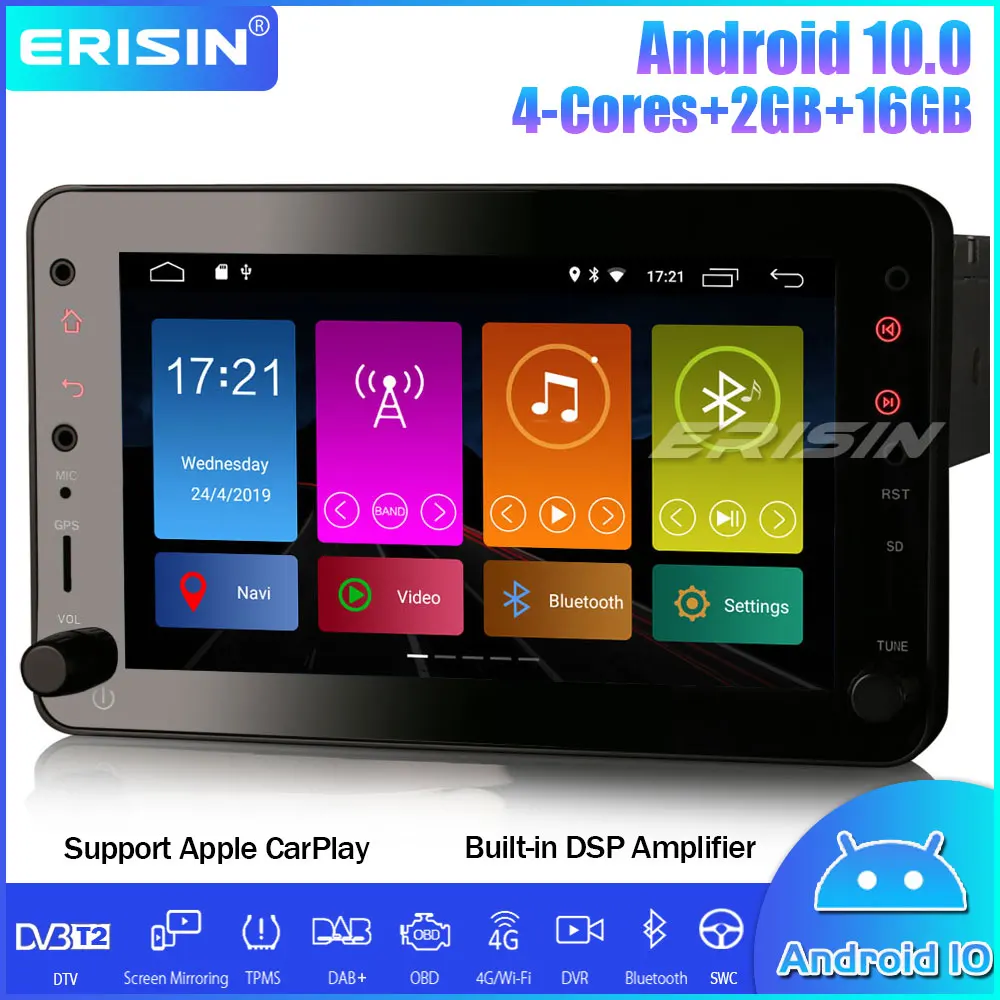

Key Features:

- Android 10.0 OS, Quad Core, 2GB RAM and 16GB ROM, 2 Card/3 USB up to 5*64GB extended Storage.
- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
- Built-in Apple CarPlay module, support iPhone iOS 7.1 and above version to use the latest CarPlay function.
- Built-in Bluetooth module, which supports hands-free function with A2DP Audio Streaming
- Built-in GPS Module, which supports offline GPS Navigation, 16GB TF Card as gift included.
- Built-in WiFi Module for Internet, you can Link mobile hotspot to use Google online Navigation
- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF.
- Built-in USB, TF, Radio, RDS, WiFi, Clock, Calendar.
- Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN, 3G, 4G etc. extended functions.
- Support Mirror Link with iPhone via WiFi and with Android Smartphone via USB or WiFi.
- Support steering wheel control, built-in CanBus decoder (it cost GBP30 in the market) included
- Support panel light colors adjustment, many RGB-colors can be chosen
- Support Split Screen, you can run two apps side by side.


Compatible Models & Years:

Alfa Romeo Spider (2006 onwards) with original Media Player
Alfa Romeo 159 (2005 onwards) with original Media Player
Alfa Romeo Brera (2006 onwards) with original Media Player
Alfa Romeo 159 Sportwagon (2005 onwards) with original Media Player

Important Note:
1. This unit has front panel size 192mm(width)*115mm(High). To make sure the item fits your car, please check the shape and dimensions of the center console or the original car radio of your vehicles which is the same as the description in our listing before purchasing.
2. This unit can fit only above mentioned car model with original Media Player, it DOES NOT fit the car with original Navi-Unit!

ES3020R 7" Quad-Core Capacitive Android 10.0 Car Multimedia Player GPS WiFi 4G TPMS DVR DAB+...

  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch
- Front panel Size: 192mm(width)*115mm(High)
- Package Size: 340mm*260mm*190mm
- Shipping Weight: 3.5kg

  System
- Operation System: Google Android 10.0
- CPU: MT8227L 1118MHz Cortex A7
- RAM: 2GB
- Internal Memory: 16GB
- Extended Card/USB: Support USB/SD up to 64GB

  Display
- Screen Type: Multi-touch screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Icon display: Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 1 live wallpapers, 6 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes

  Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
- 3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
DIVX, XVID). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)

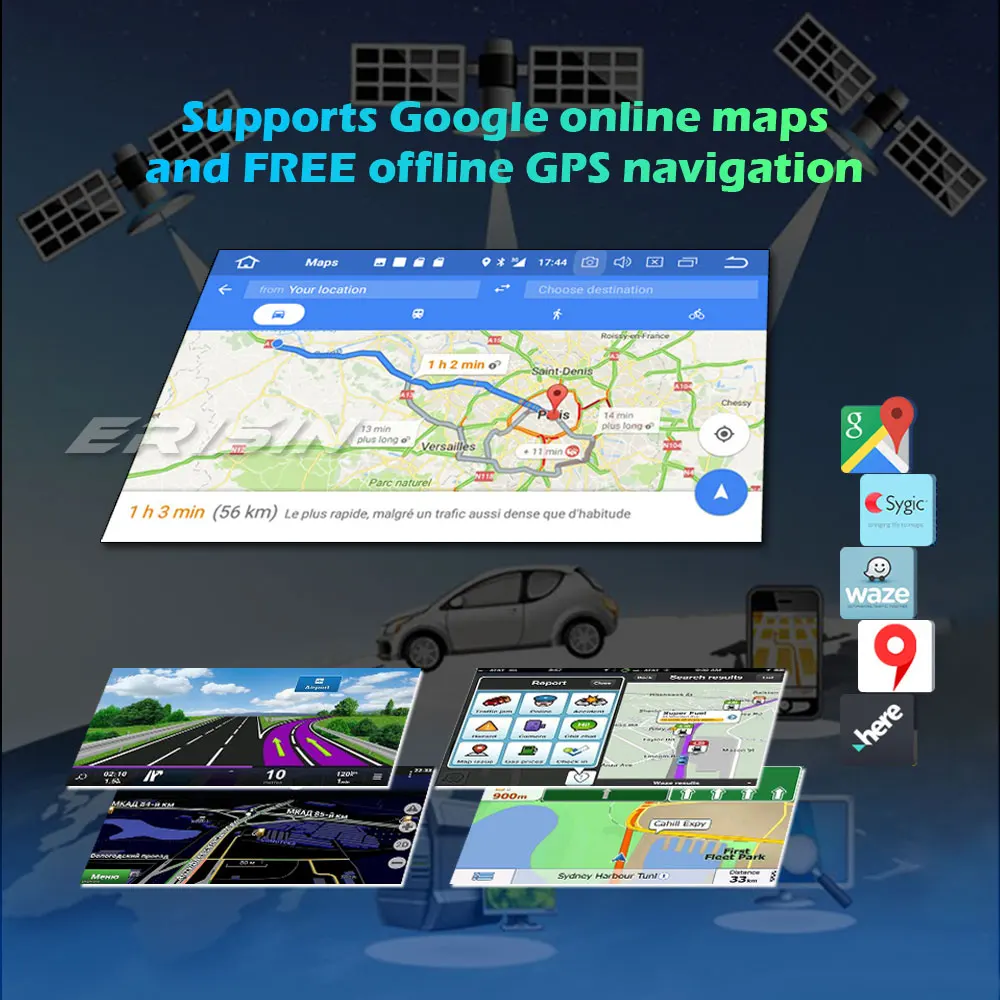

  GPS
- Operation System: Android 10.0
- Support Maps: IGO, Sygic, Waze maps for Android 10.0
- Support offline navigation: Yes, 16GB TF Card incl.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps

  Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back

  Radio
- Main Chips: TEF6686
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

  USB
- Position: 3 USB on the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 64GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  SD/TF
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 64GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  Mirror Link
- Ready to use: Yes
- Built-in Mirror Link App: Yes, the name is EasyConnection
- Support Device: iPhone iOS 7.1 and above, Android phone with Android 5.0 and above
- Connection: iPhone via WiFi and Android Phone via WiFi or USB
- Unit's Screen Control Phone: Just support the most of Android SmartPhones

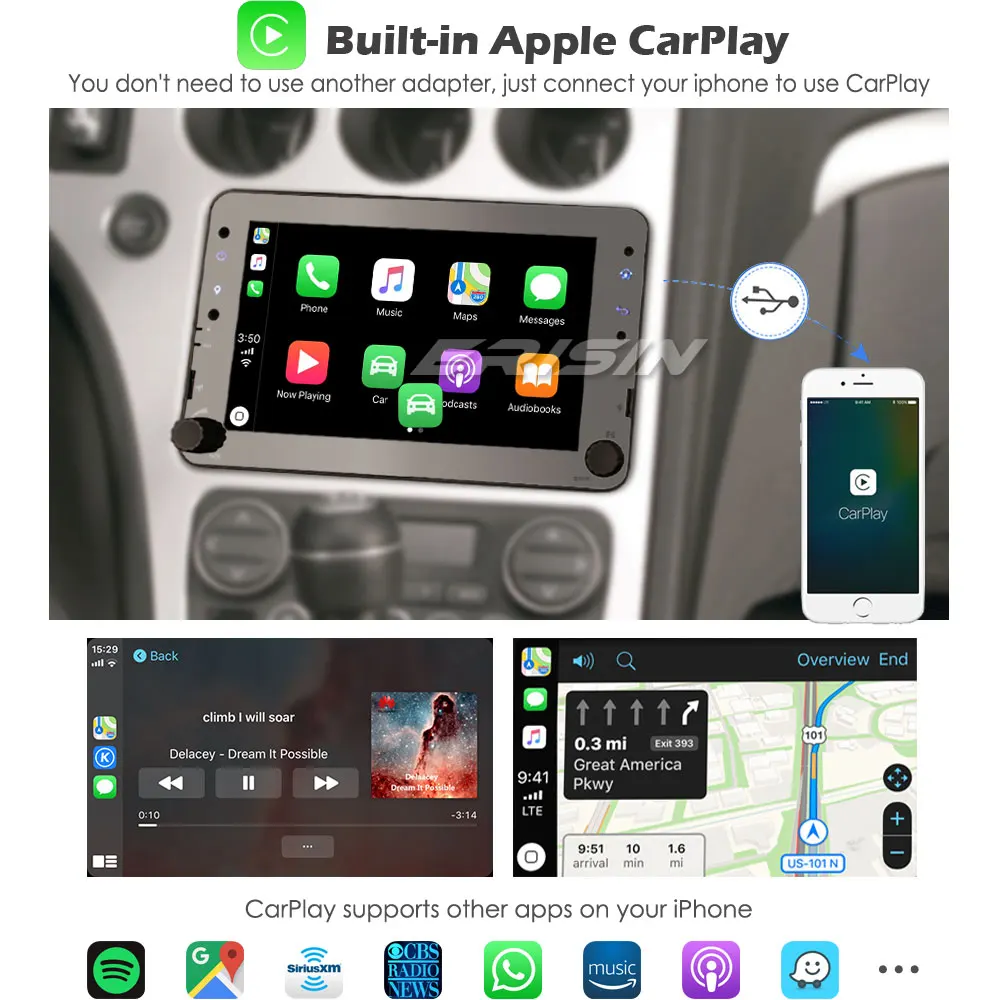

  CarPlay
- Built-in CarPlay: Yes, just connect your smartphone to this unit with USB to use this function
- Connection Port: USB
- Support Device: iPhone iOS 7.1 and above
- Support Wireless connecting: No
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control

  Car DVR
- Built-in DVR App: Yes, just connect a USB DVR Camera to use this function
- Connection Port: USB
- Storing Position: TF Card in Camera
- Touch Control DVR-Camera on unit: Yes
- DVR-Camera incl.: No, you can contact us to buy it together

  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together

  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
- DAB+ Box incl.: No, you can contact us to buy it together

  AV-IN
- Built-in AV-IN App: Yes, Support external Audio & Video Input
- Connection Port: RCA
- Support DTV-IN: Yes, you can connect with a Digital TV Box (DVB-T/T2, ATSC, ISDB) to use

  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support steering wheel control
- Support change panel light colors, many RGB-colors can choose
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF

  Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- CarPlay In: One
- TPMS Box In: One
- DAB+ Box In: One
- Car DVR In: One

  Output
- Video Out: Two
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

  Accessories
- 1*User's Manual in English
- 1*RCA AV Output Cable
- 1*RCA AV Input Cable
- 1*Power Cable with Special Connector
- 1*Special Canbus Decoder
- 1*Ext. Microphone Adapter Cable
- 1*Radio Antenna Adapter Cable
- 1*Front USB Adapter Cable
- 2*Rear USB Adapter Cables
- 1*GPS Antenna
- 1*WiFi Antenna
- 1*16GB TF Card
