FW 921815C Lexia3 PP2000 Diagbox V8.55 Multi-language

Please Note:

1. If you need V8.55 software, we would send you the software link.

2. Softwares need install on Win7 32Bit Only. These three softwares can not install on same laptop. You need install on different laptop individually. Diagbox software include lexia and PP2000. Your laptop system requires at least Intel Celeron/Pentium III 400 MHz,128 MB RAM,50MB free HDD space and USB 1.1 port (USB 2.0 recommended)

3. Please remeber to shut down your anti-virus software And then disconnect the internet Before install the software. If you do not know how to install it, please watch our video first.

4. Diagbox Update Attention: please cut the file "C:AWRoot\bin\fi\APPDIAG.SYS" out before update, and then click update package! after complete update please paste the cutted file back into the previous folder，which can avoid activating problem.

Diagbox Software Update Password:
Diagbox V7.XX to V7.76: scary01
Diagbox V7.76 to V7.82: Maitresox01
Diagbox V7.82 to V7.83: Very Simple!

5. For programming, diagbox support basic programming, but some programming like car alarm system need account username and password, we don't supply& haven't username and password, only for citroen and for peugeot center repair shop has username and password, please note it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Functions:

Unlike other universal car scanner tools which only read fault codes;this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor,CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read identification
Displays complete identification of control unit, e.g. part number,software/hardware version, manufacturer, etc...

2. Read fault codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").
Program supports report printing or copy to clipboard.

3. Clear fault codes
This function clears all stored fault codes and other diagnostic information.

4. Auto-scan (complete car scan/test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values
Program displays live Data like Engine Speed,Battery voltage,Oxygen Sensor,Coolant Temperature, etc.Values can be displayed in graph, 9 values at once, or full listing (all measured values).Logging to file is also supported,which allows offline analysis.

6. Actuator test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

Features:

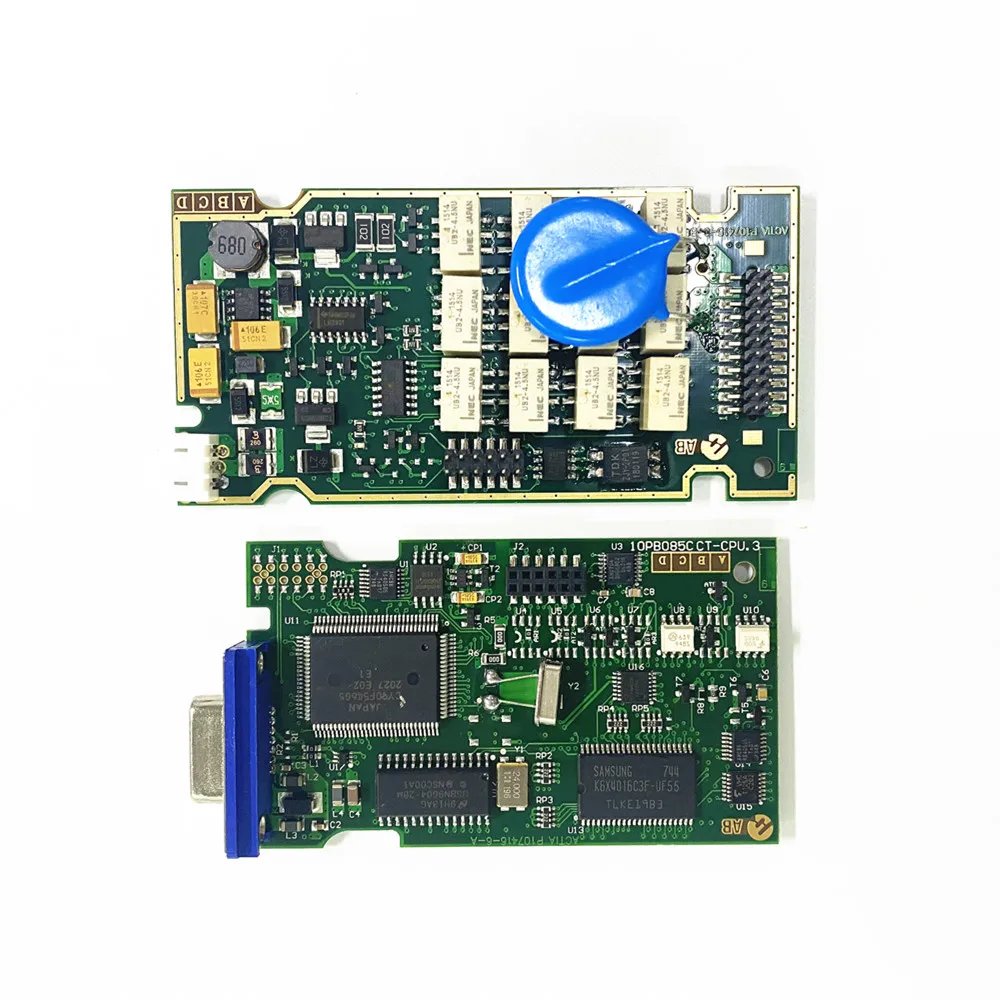

1.Firmware: Normal Version Full Chip 921815C With 12PCS JAPAN NEC Relay+2PCS OPTOCOUPLERS
Software: Lexia3 V48, PP2000 V25, Diagbox V7.83

2. Lexia 3 PP2000 works with most of forCitroen and forPeugeot cars from 1995 to 2015.
3. Functions: read identification, read fault codes, clear fault codes,auto-scan etc.
4. Multi-Languages:

Lexia 3 PP2000 Software supported language:

English, Chinese, German, French, Japanese, Russian, Arabia, Spanish, Turkish, Danish, Iranian, Greek, Israel, Hungary, Indonesian, Italian, Dutch, Norwegian, Polish, Portuguese, Finnish, Slovenian, Swedish, Czech, Croatia, Thai.

Lexia3 Diagbox Software supported language:

English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech.

Please note,our package comes with Diagbox software, italready included lexia and PP2000 software. If buyer need lexia and PP2000 software,please contact us to send you download link.

Compatible Vehicles List:

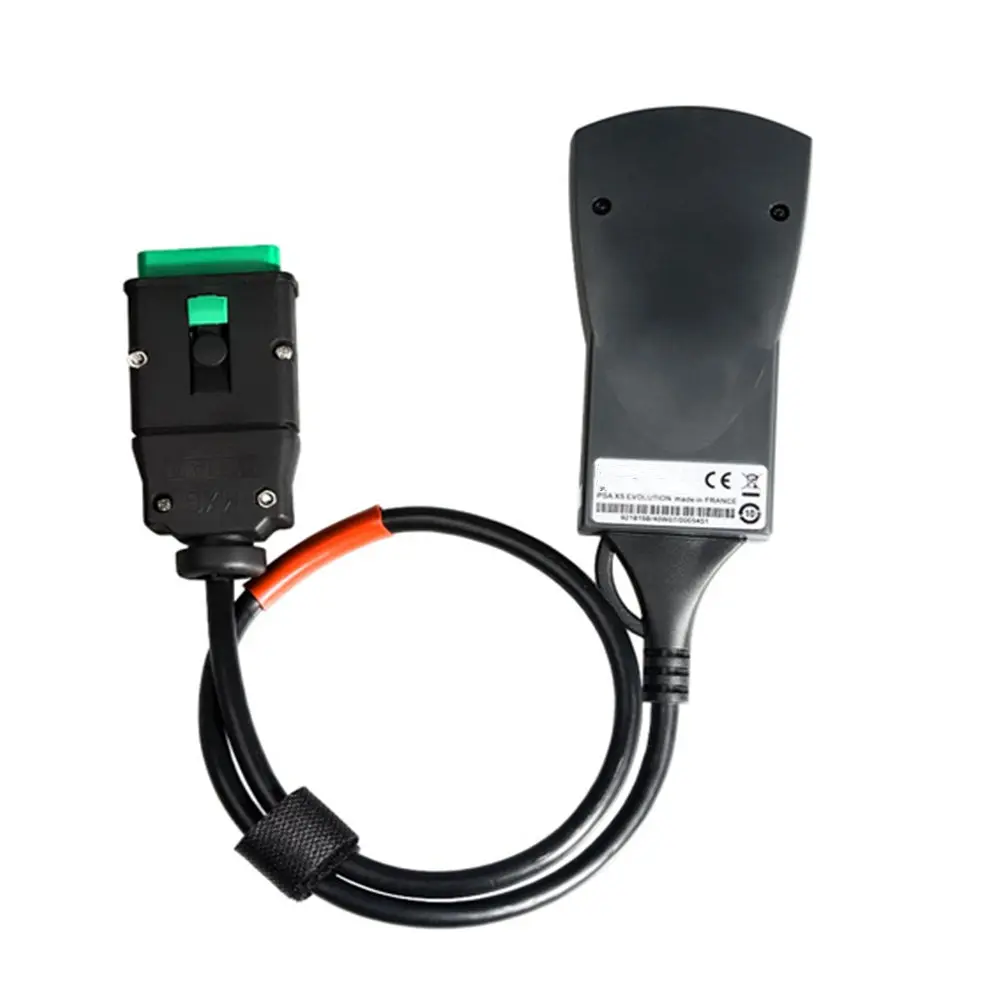

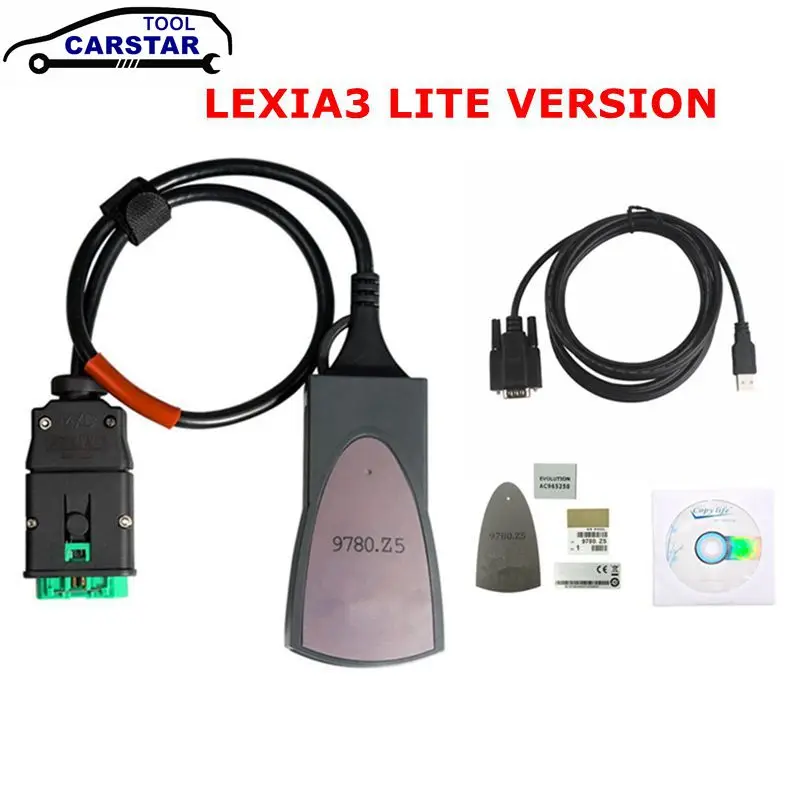

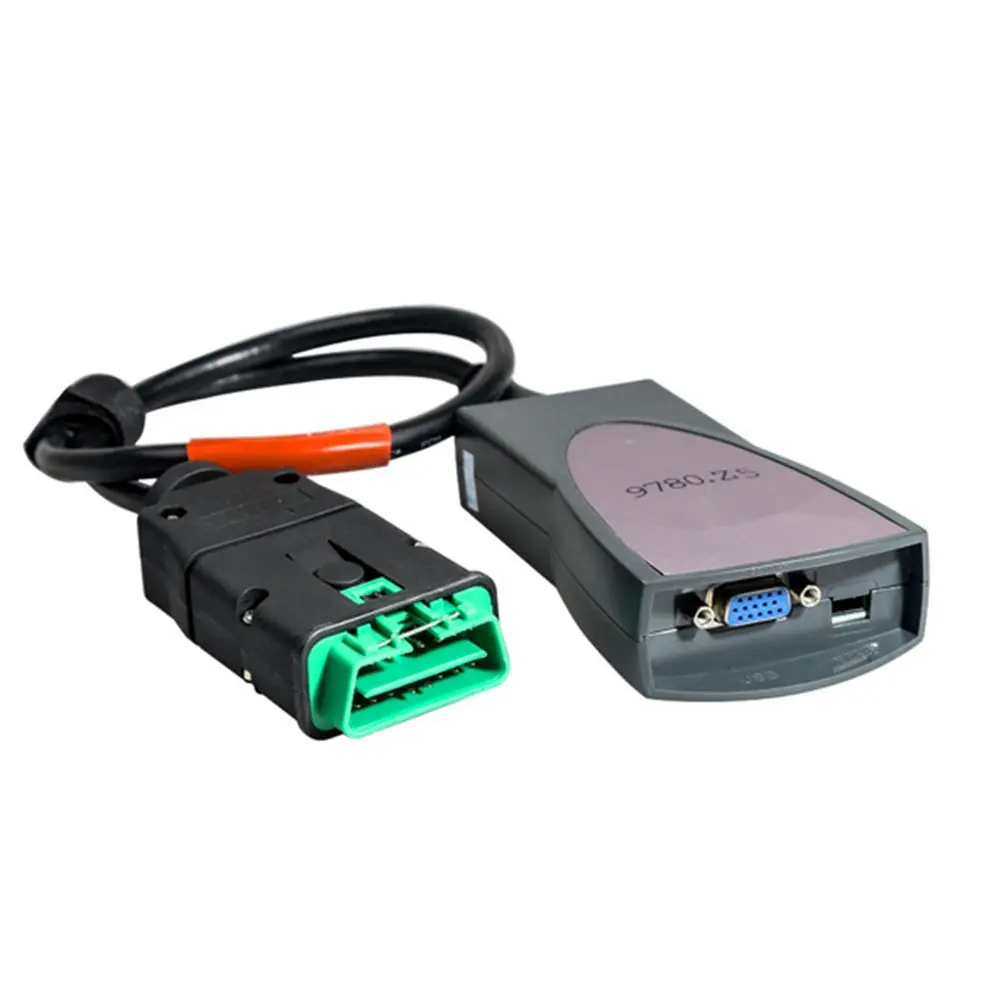

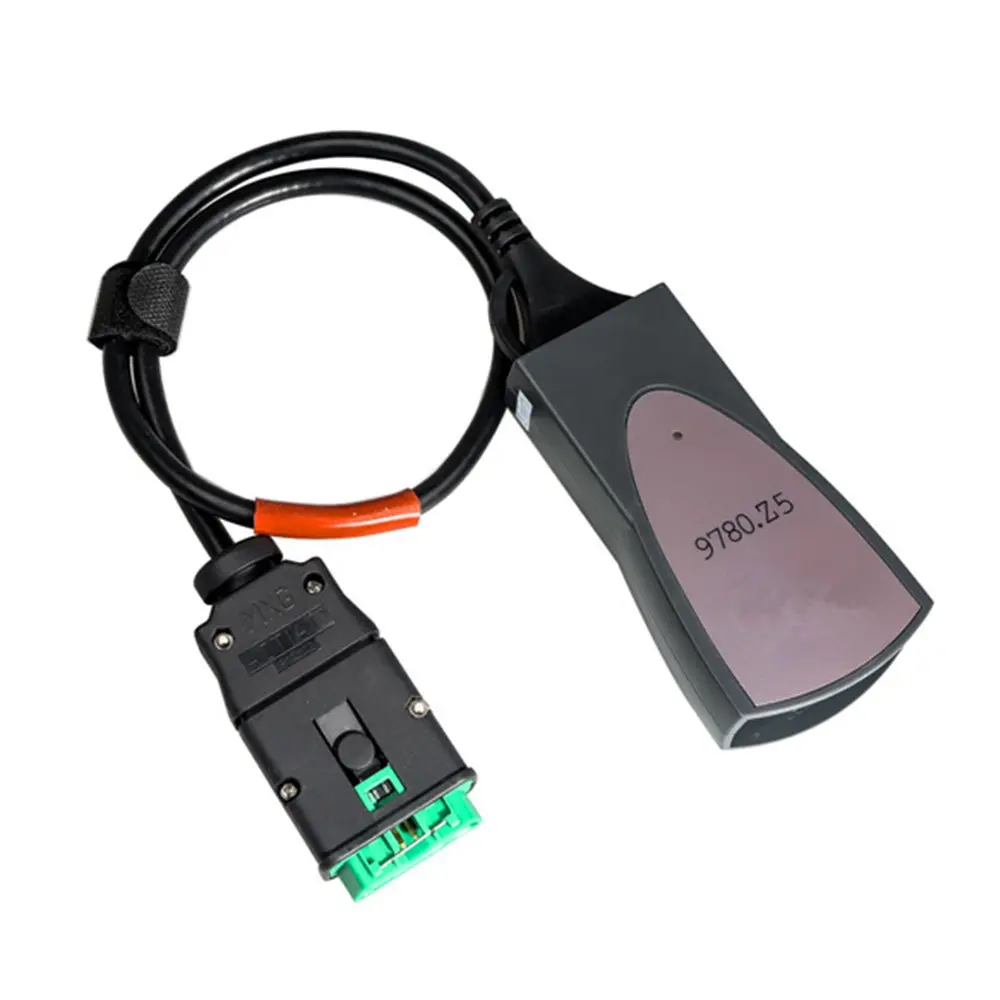

1pc x  Main unit with extension OBD2 cable

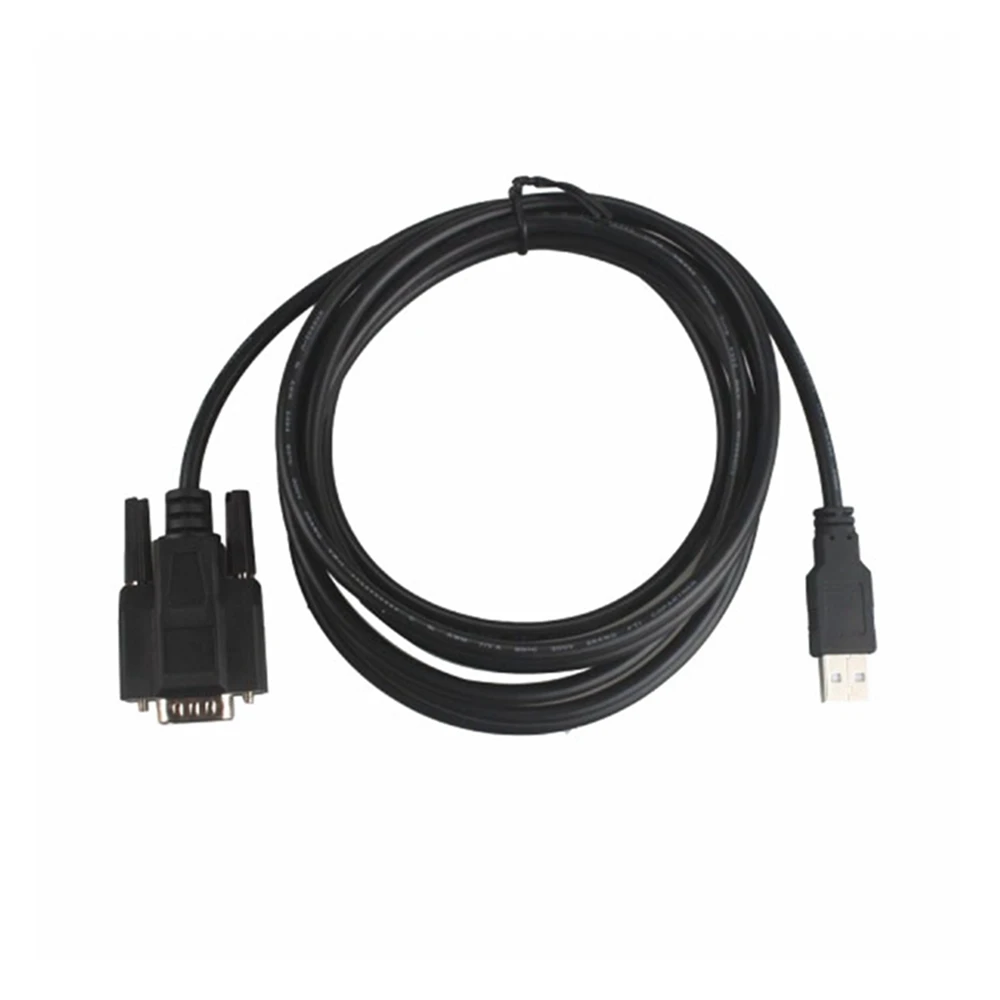

1pc x  Long USB cable
1pc x  Short USB cable
1pc x  CD
