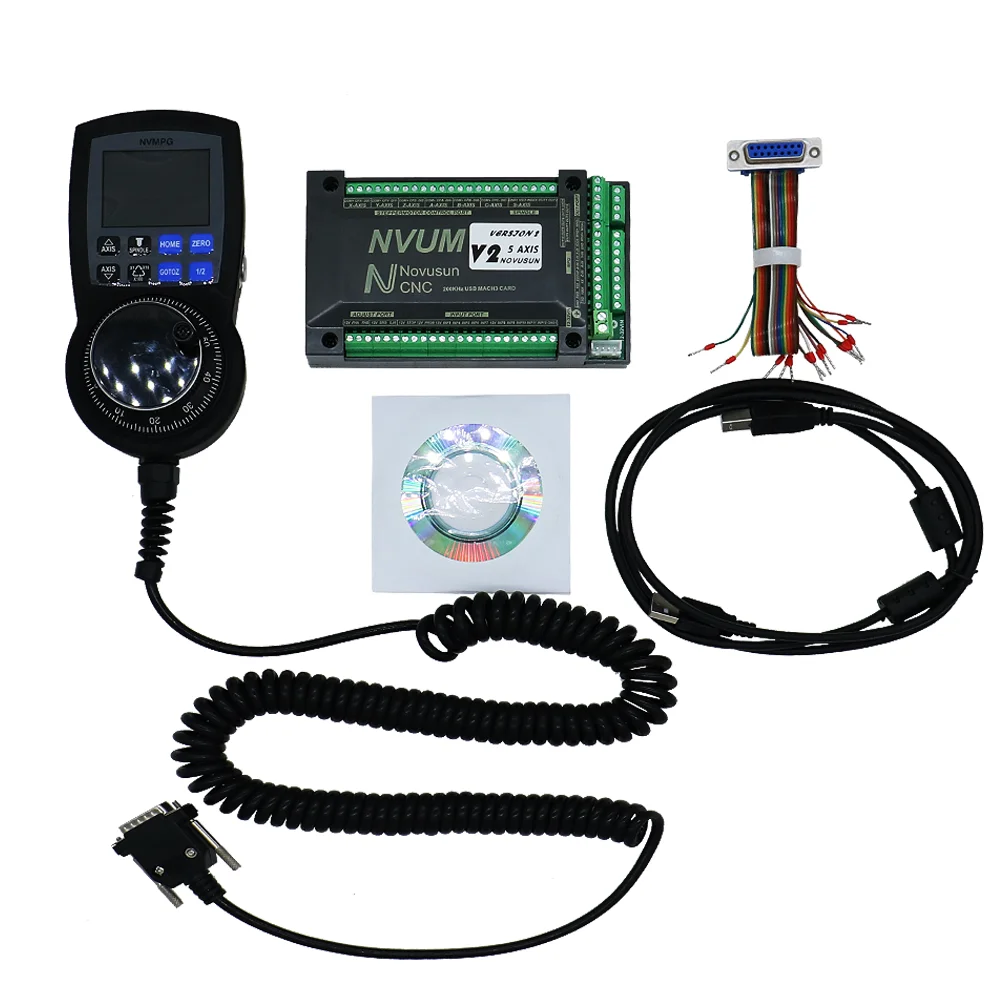

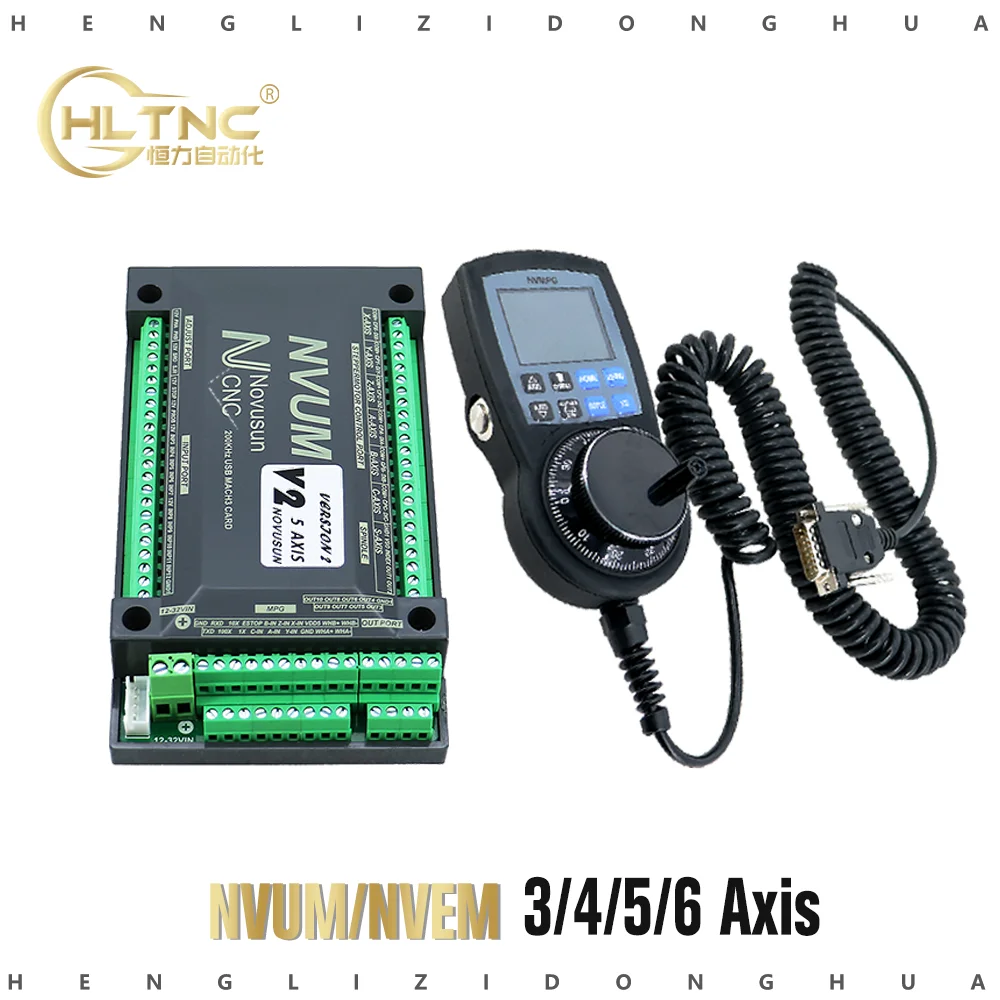

Packing Content :

1 pcs NVUM / NVEM CNC motion controller card
1 pcs cable
1 pcs NVMPG 6axis handwheel

Specification:

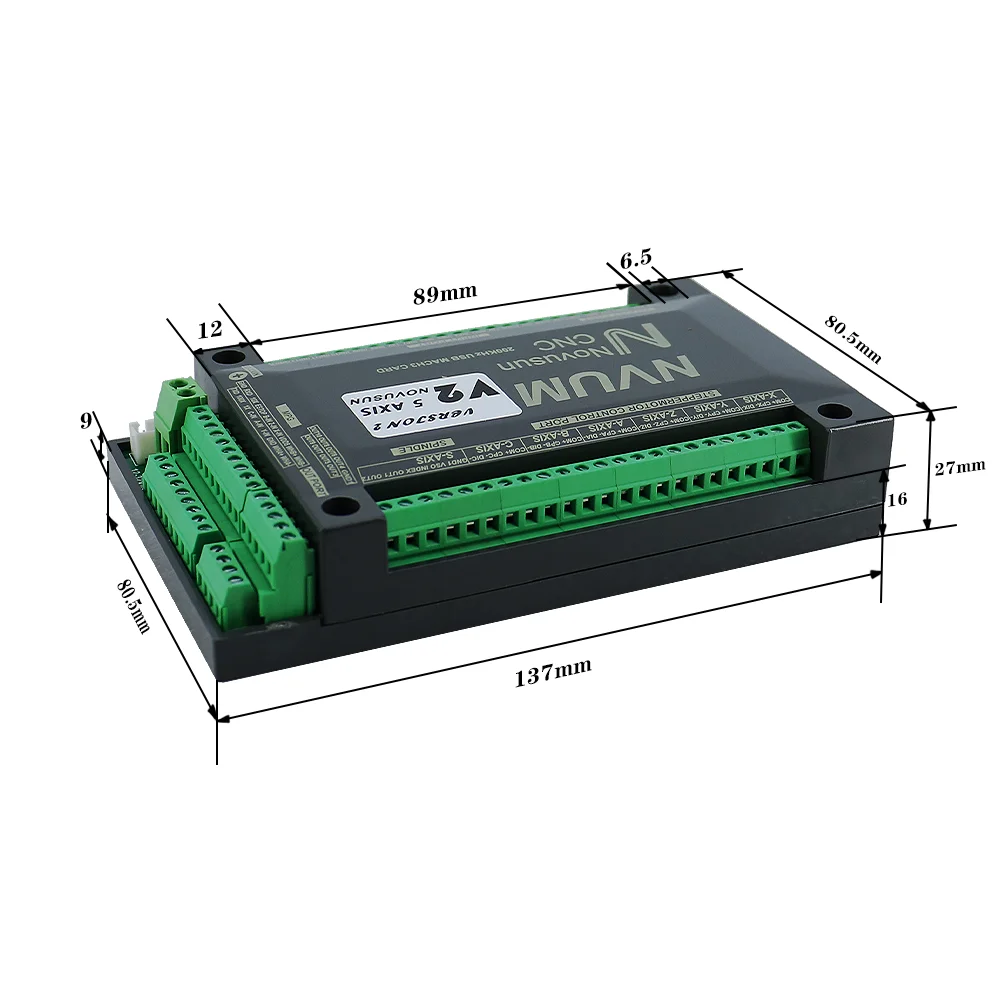

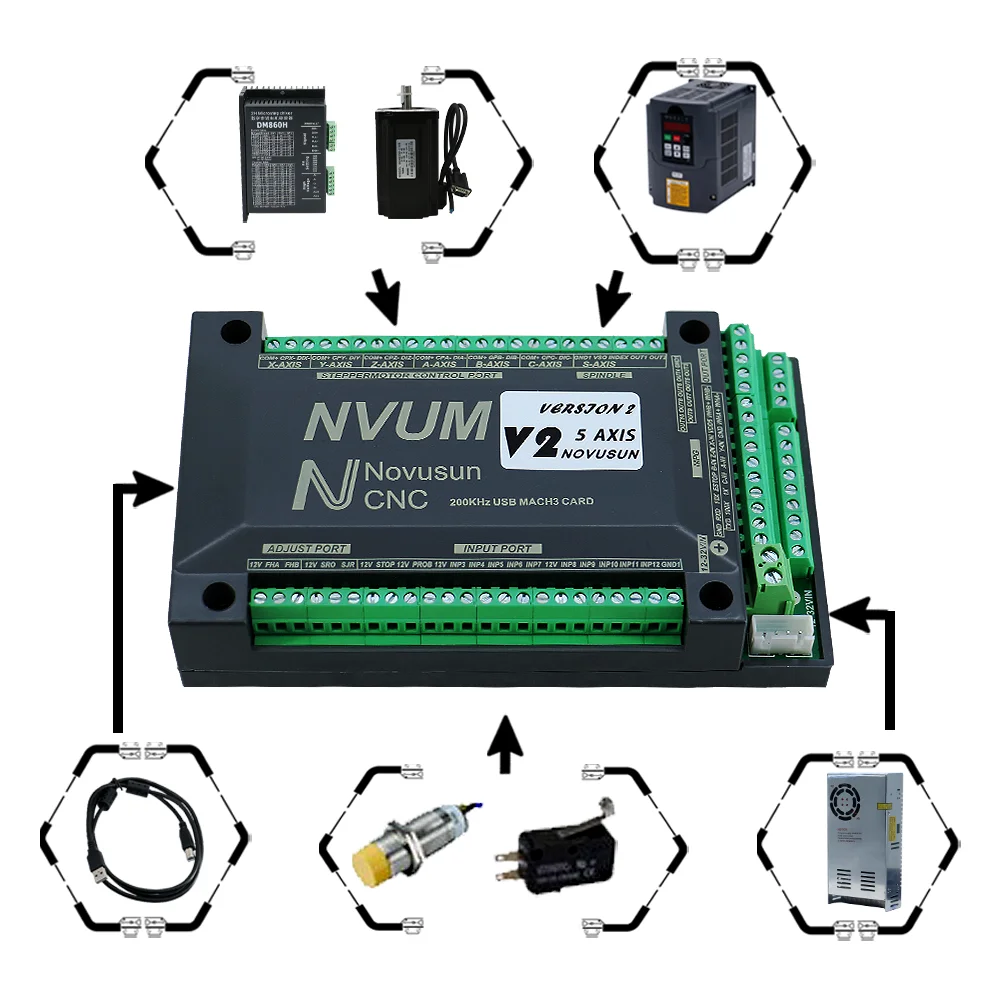

- Model:  MACH3 Card

- Can control 4pcs stepper motor

- with 12 channel programmable input port,can set it for emergency function

- with 10 channel programmable output port,can set for water colling devices

- with 1 channel standard handwheel pendant MPG port

- Spindle PWM output control

- Support MACH3 software

- USB interface,support Mach3 Software

- DCDC electrical isolation

- Optocoupler isolation

- Max 200khz stepper motor pulse output,suitable for most CNC milling machine system

- Support extend encoder to adjust FRO,SRO,SJR parameters

Applications:

- for processing various patterns such as embossing plate, sole mould, zipper mould, pattern die and stamping die, instrument mold, glass mold etc..

- for the advertising industry such as: our brand, signs, architectural models, badges, nameplate, panels, logo, numbers, signs, craft decoration, furniture decoration etc.

- for the portrait, landscape, calligraphy lettering, seals and other graphic art sculpture, calligraphy, Basso relievo, etc..

- With the CNC controller, suitable for all kinds of small and medium-sized automation equipment and instruments.

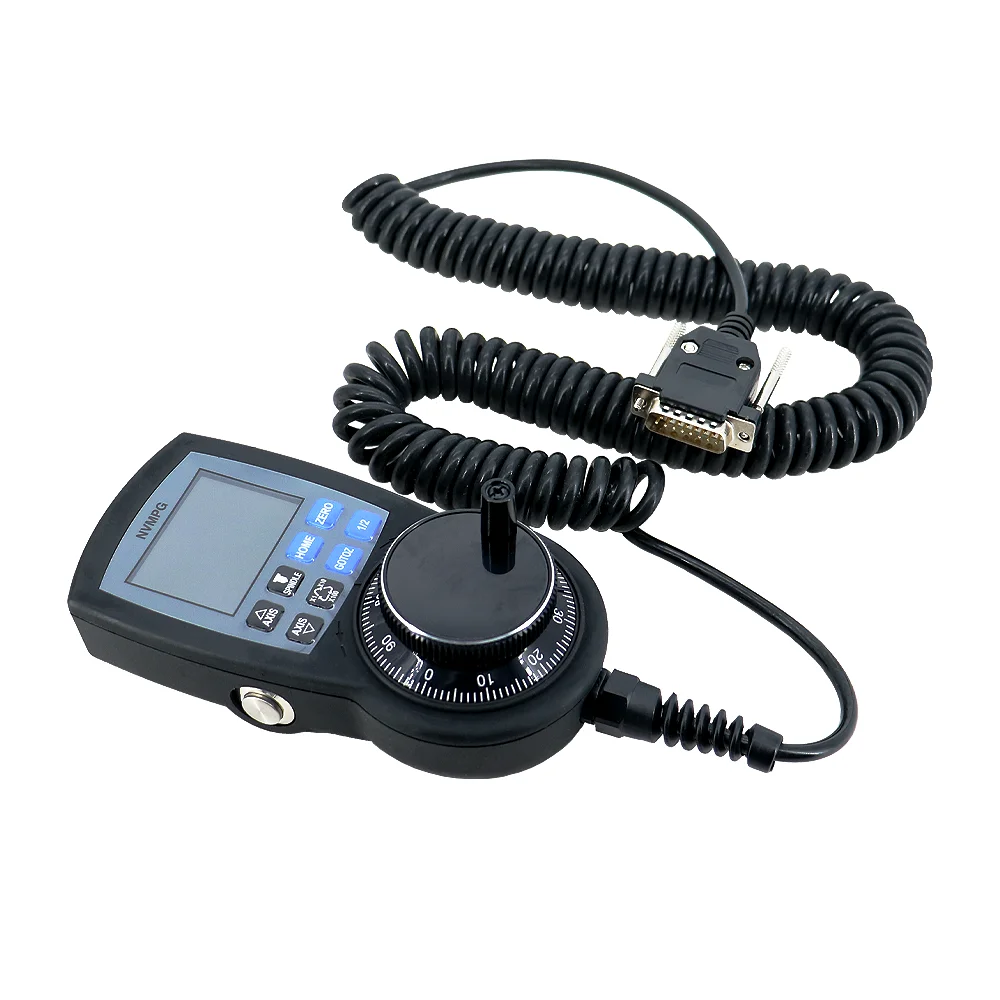

NVMPG: Full-featured mach3 MPG with LCD display, support for common function operation, specific functions are as follows

1,6 axis coordinates

2, SJR/SRO/FRO values

3, hand pulse step value

4, spindle speed

5, spindle start and stop state

6, RESET state

Manual control function is as follows

1,6 coordinate hand pulse adjustment

2, start / reset

3, HOME / GOTO ZERO / points in the function

4, spindle start and stop

Adopt high-quality touch buttons, an 8mm diameter button cap, feel good.

Serial communication is convenient and efficient.

Specification:

Name: Hand pulse

Voltage: 5v

Power: 2W

material: plastic

Colour: Black

Button cap diameter: 8mm

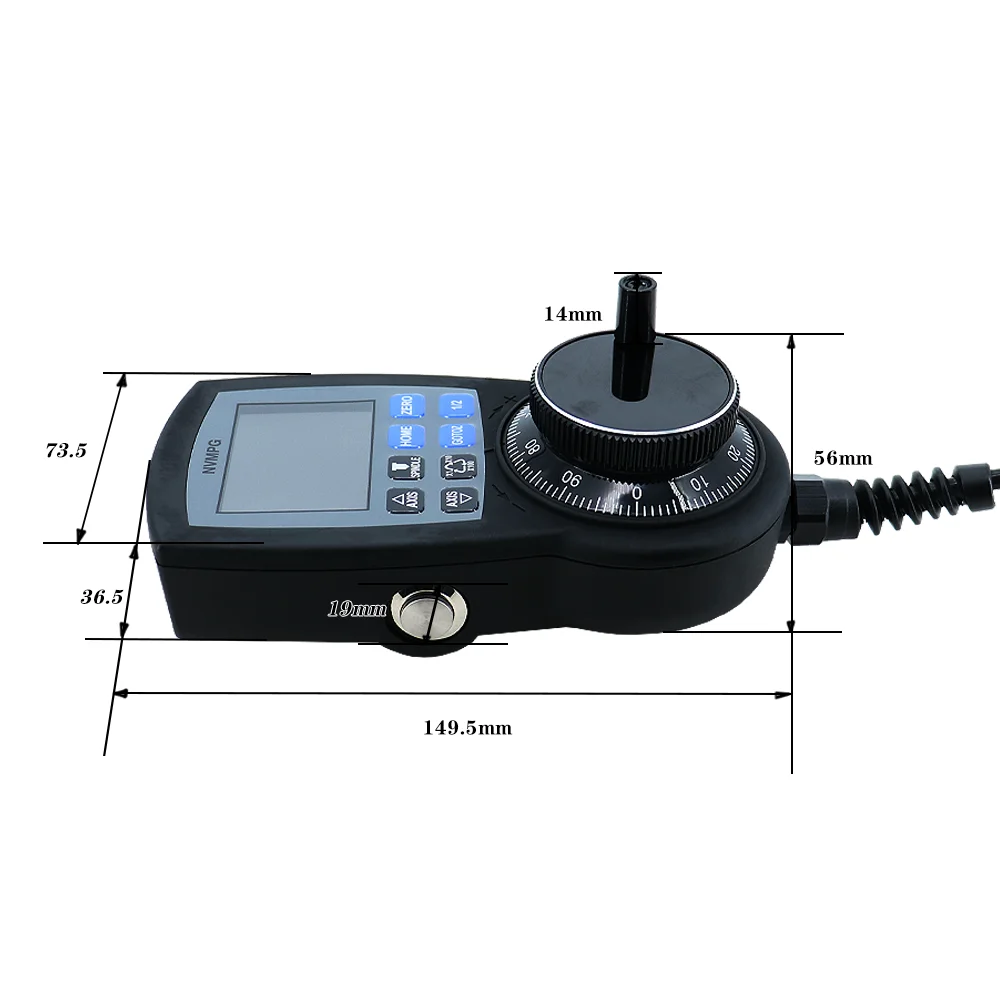

Packing size: 25*10*10cm

Notice and Warning:

Prohibit staying in the rain, it will cause short-circuit.

Please use proper voltage power supply and motor.

Note the power supply connection. Prohibit reverse connection of power supply

Configuration use:

Button 1(START): After loading G code, push this button to run G code.

Button2(AXIS↑):

Button3(AXIS↓): AXIS↑ and AXIS↓ are 2 buttons for change active axis. Each axis has a block above the axis label. Active axis' block is yellow, and the invalid axis' block is black.

You can notice the color of the block when you change the active axis.

Button4 (SPINDLE): Open or shut down the spindle.

Button5(X1/X10/X100): Change the rate of MPG, The rate of MPG is displayed on the screen.

Button6 (HOME): Push this button is making a machine to find its Machine zero port. If you set an active axis, e.g. X, then push this button is going to find X-axis' machine zero port. Or if you set no active axis, then push this button is going to find all axes' machines zero port.

Button7 (GOTOZ): Push is button is making machine to go to workpiece zero port. The method refers to button 6.

Button8 (ZERO): Push this button is making current coordinates to 0. The method refers to button 6.

Button9 (1/2): Push this button is making current coordinates halve. The method refers to button 6.

Button10 (RESET): This button is RESET function.
