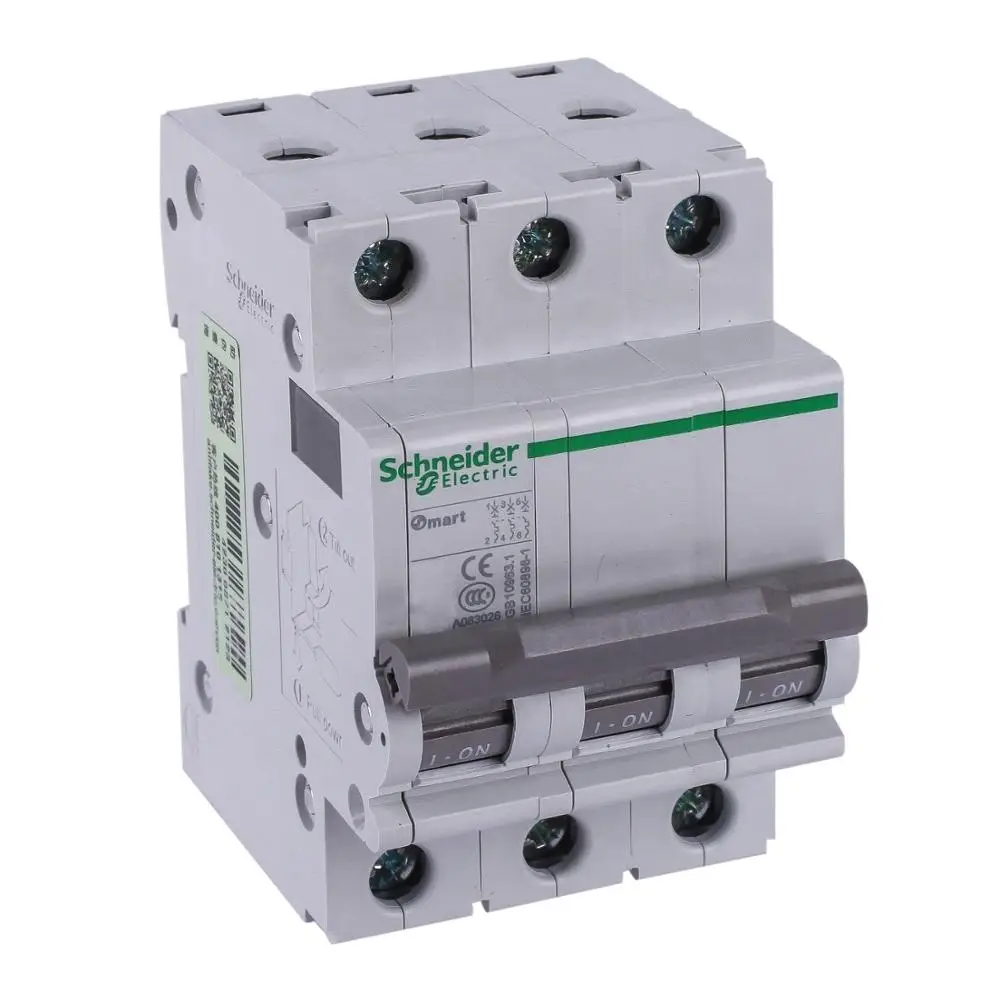

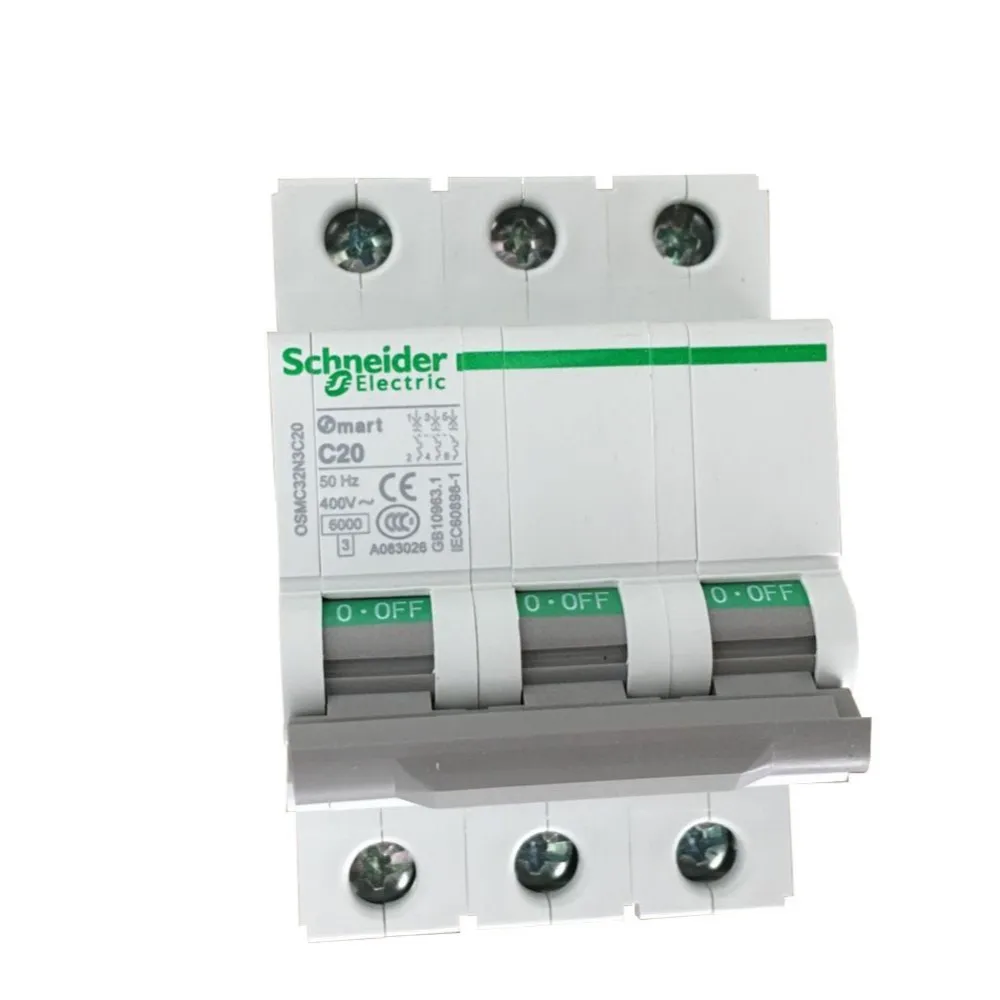

Thermal Magnetic Miniature Circuit Breaker Electrical Air Switch Type C 3P 20A 25A 32A 400VAC 50HZ 6KA Mini OSMC32N3C* | Обустройство

main information Product Series Osmart product name C32N product type Miniature Circuit Breaker Number of poles 3P Number of protection poles 3 Rated current [In] 20 A at 30 °C in accordance with IEC 60898-1  20 A at 30 °C in accordance with GB 10963.1 Trip curve C Additional information Network Type AC Network frequency 50 Hz Rated working voltage [Ue] 400 V AC 50 Hz Trip unit type Thermal magnetic Breaking capacity 6 kA Icn on 230 V AC 50 Hz in accordance with IEC 60898-1  6 kA Icn on 230 V AC 50 Hz in accordance with GB 10963.1 Current limit 3 in accordance with IEC 60898-1  3 in line with GB 10963.1 Installation type Snap lock Installation method DIN rail mounting height 81 mm width 54 mm depth 44 mm product weight 340 g colour Light body: Light grey (RAL 7035)  handle: Dark grey (Pantone 402C)  locking buckle: Light grey (RAL 7035) Mechanical life 20000 times Pollution level 3 Tightening torque 2 Nm wiring or wiring surroundings Standards compliant IEC 60898-1  GB 10963.1 certified product CCS  REACH  CCC Quality identification CE statement Compliance with instructions RoHS Moisture resistance 2 Relative humidity 95 % on 55 °C Operating temperature -30...70 °C
