NOTE:

The remote control does not contain batteries. Please purchase by yourself (CR2025 button battery), thank you!

AHD Video Recorder Monitor

Feature:

7" IPS screen 1024 X 600 resolutions.

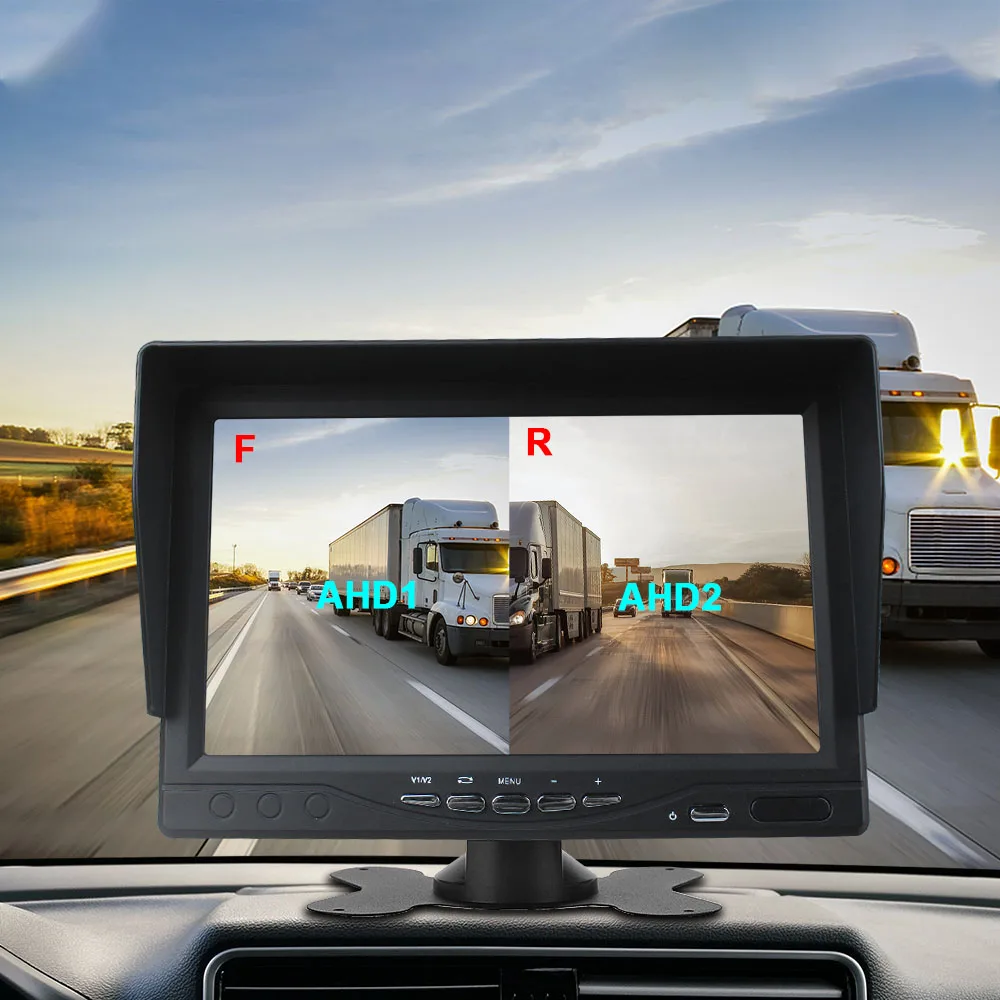

Support 2-channel HD display at the same time.
Support 720P HD recorder video.
Support automatic loop recording.
Support recording video playback.
Apply for truck, bus, school bus, Motorhome,Boat,car and CCTV Security System.
AHD monitor need to be used with AHD cameras.
Operation mode: button and remote control operation.

Specifications:

Surveillance video signal: support AHD digital signal.
Screen size: HD full-screen 7-inch digital IPS screen.
Language: Chinese(Simplified, Traditional), English, Russian.
Screen brightness: 500cd/m², clear video image.
Resolution: 1024 X 600.
Memory card: SD card (not included), maximum support 128GB.
Image mode: 16:9 (4:3).
Signal format: PAL/ NTSC.
Power supply: DC 9V-35V.
Power consumption: about 6W.
Working temperature(Deg.C): -20 - +45.
Video input: 2 AHD video inputs.

2. The AHD Monitor supports 720P/ 960P/ 1080P AHD Cameras

3. You can connect 720P/ 960P/ 1080P AHD Camera to the AHD Monitor directly Needn't AHD DVR

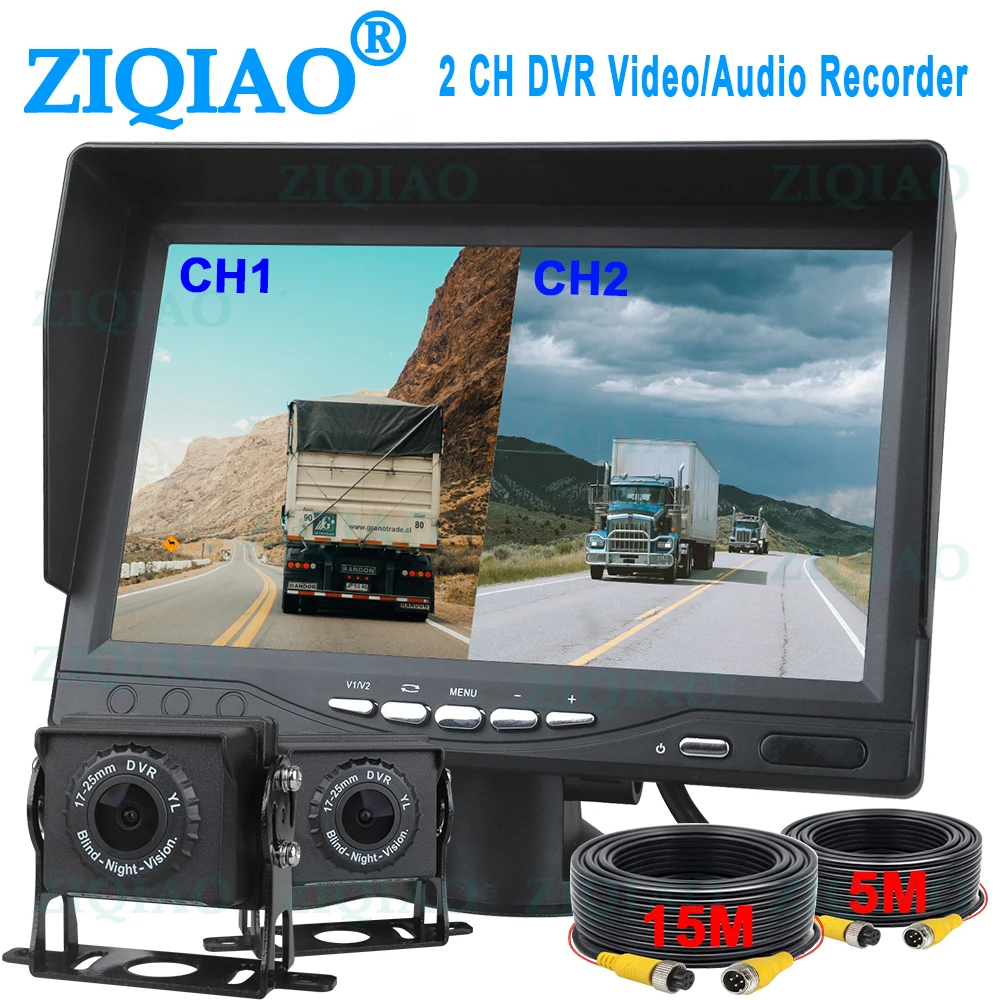

7 Inch AHD IPS Monitor 2 Split Screen

Bus Truck RV Excavator DVR SD Recorder Video Monitor System

Truck's body is long/ high/ large, and it is difficult to drive. Clear images are especially important.

Sudden accidents, we can prevent

Product Parameters:

Menu: video mode, image capture, clock settings, media tools, system settings, language

Recording mode: recording quality, film time, flameout recording time, automatic recording, sound recording, video playback.
Image capture: image quality, photo review.
System settings: screen rotation, reversing line, AHD1/ AHD2 mirror, date format, auto screen off, contrast, brightness, color, color temperature.
Language: English, Chinese (Simplified/Traditional), Russian.

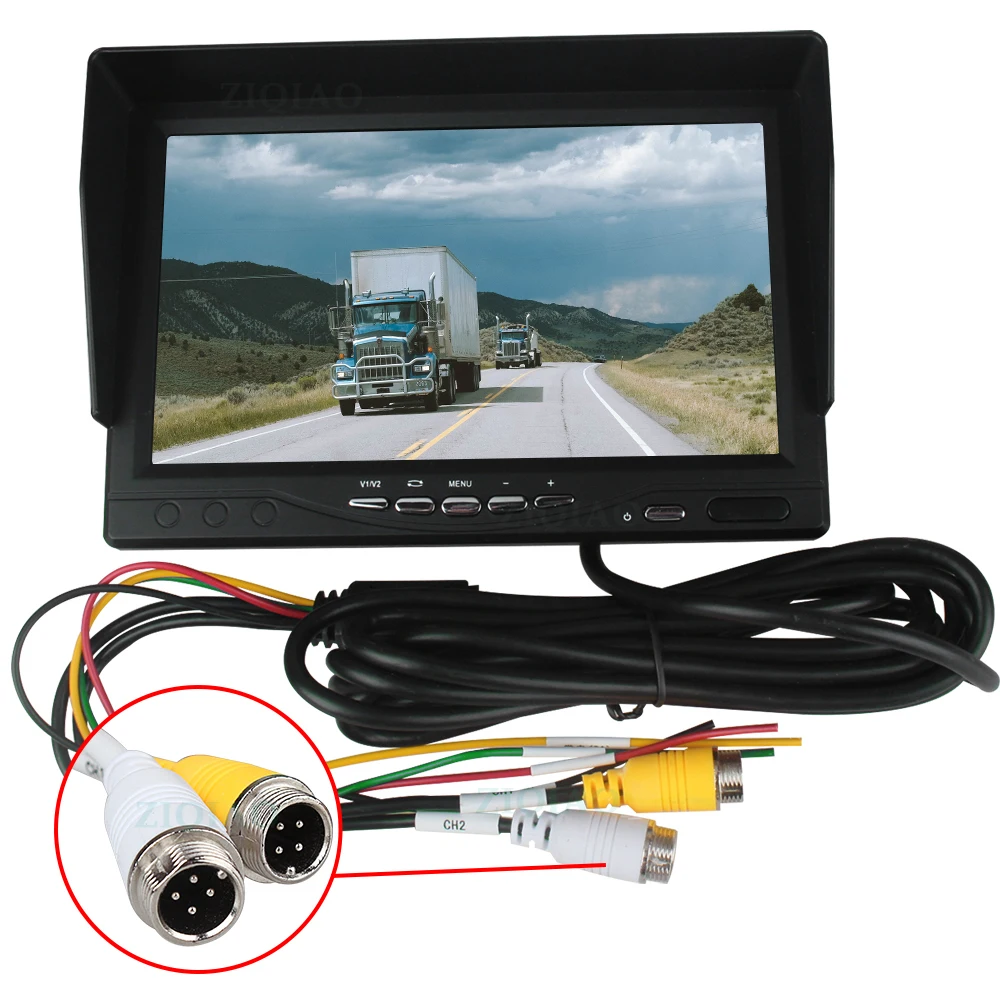

. Green trigger wire connect to reversing light
. Red ACC wire connect to ignition
. Black GND wire connect to Battery-
. Yellow wire connect to Battery+

Product Size:

Due to manual measurement, there may be an error of 1-2mm.

***********************************************

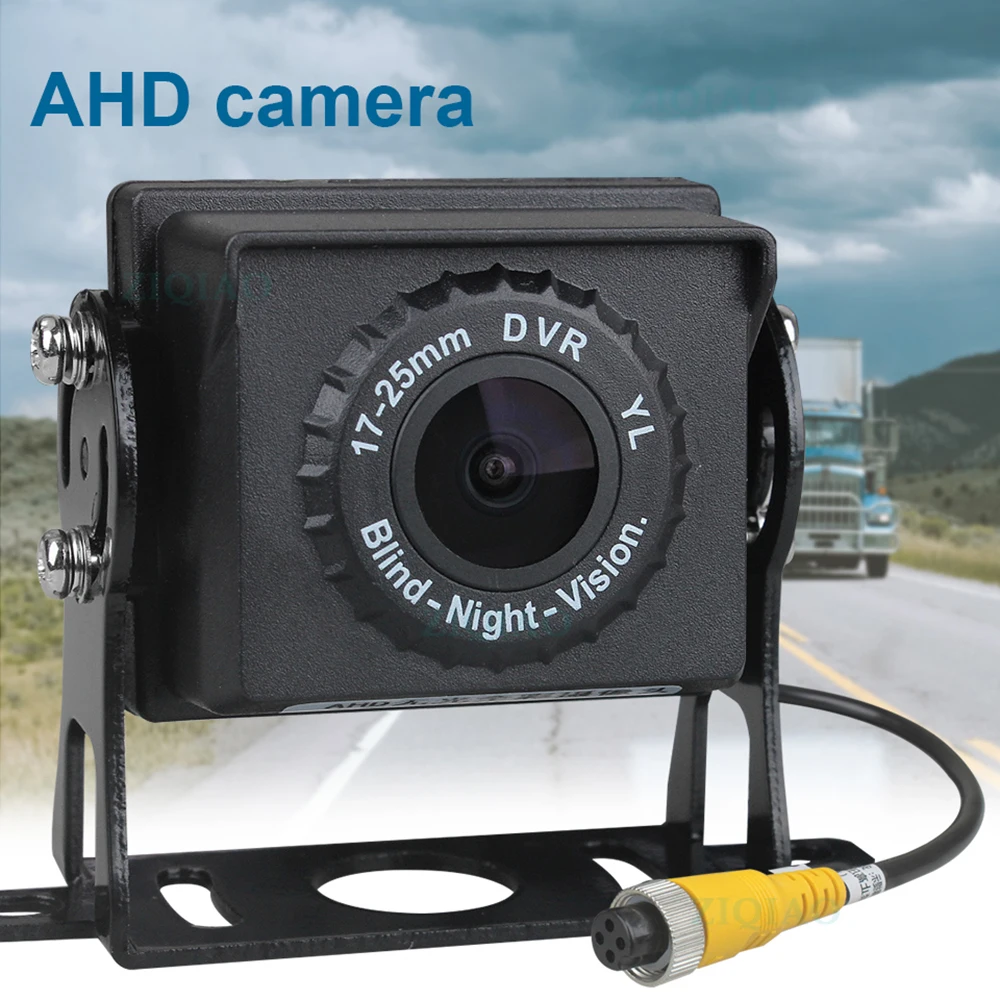

AS001 AHD Truck Bus Camera:

Video format: PAL
Viewing angle: 120 degrees
Pixel: 2 million
Working voltage: 12V
Waterproof rating: IP68
Imaging: Without parking Aid Ruler line

12V-36V Wide Voltage Suitable for Any Models

Apply for truck, bus, school bus, motorhome,boat,car and CCTV Security System

7" AHD Bus Truck Harvester Monitor Kit 2 Split Screen Driving Recorder DVR Reverse Monitor with Truck Bus Front Rearview Camera
