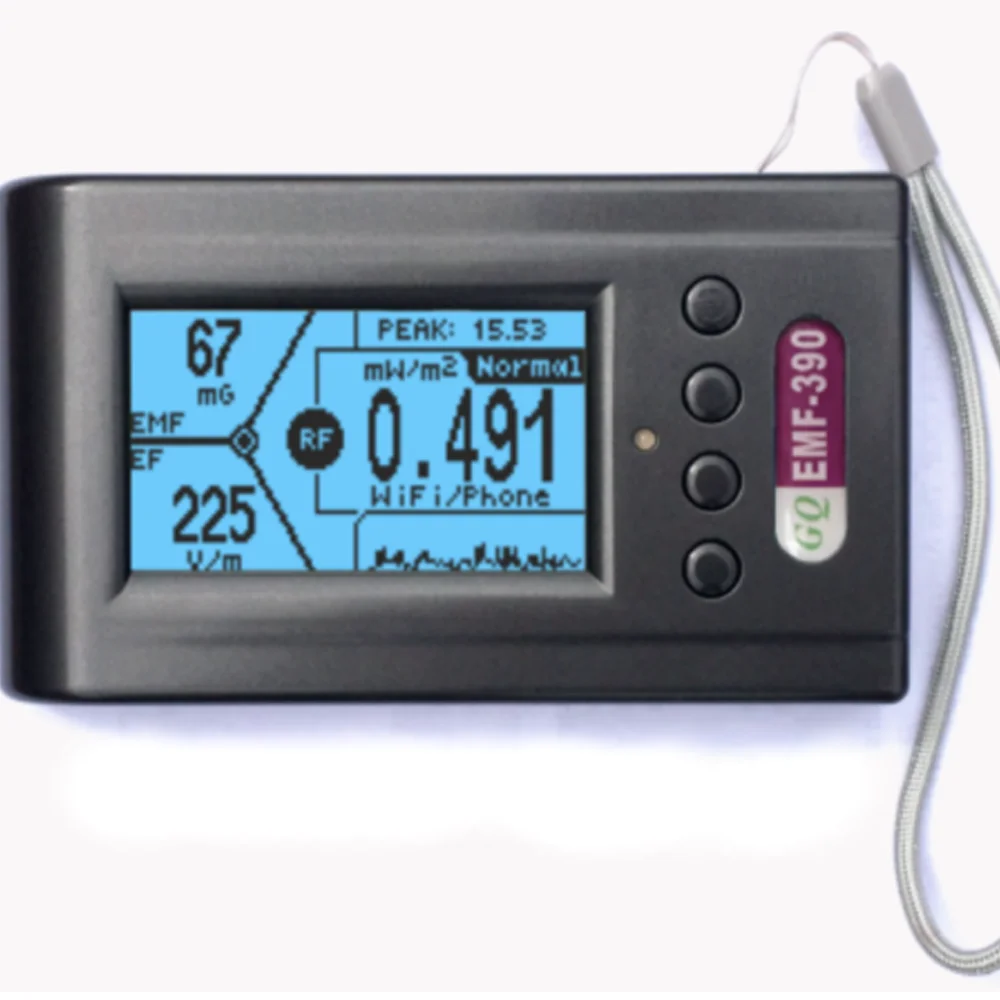

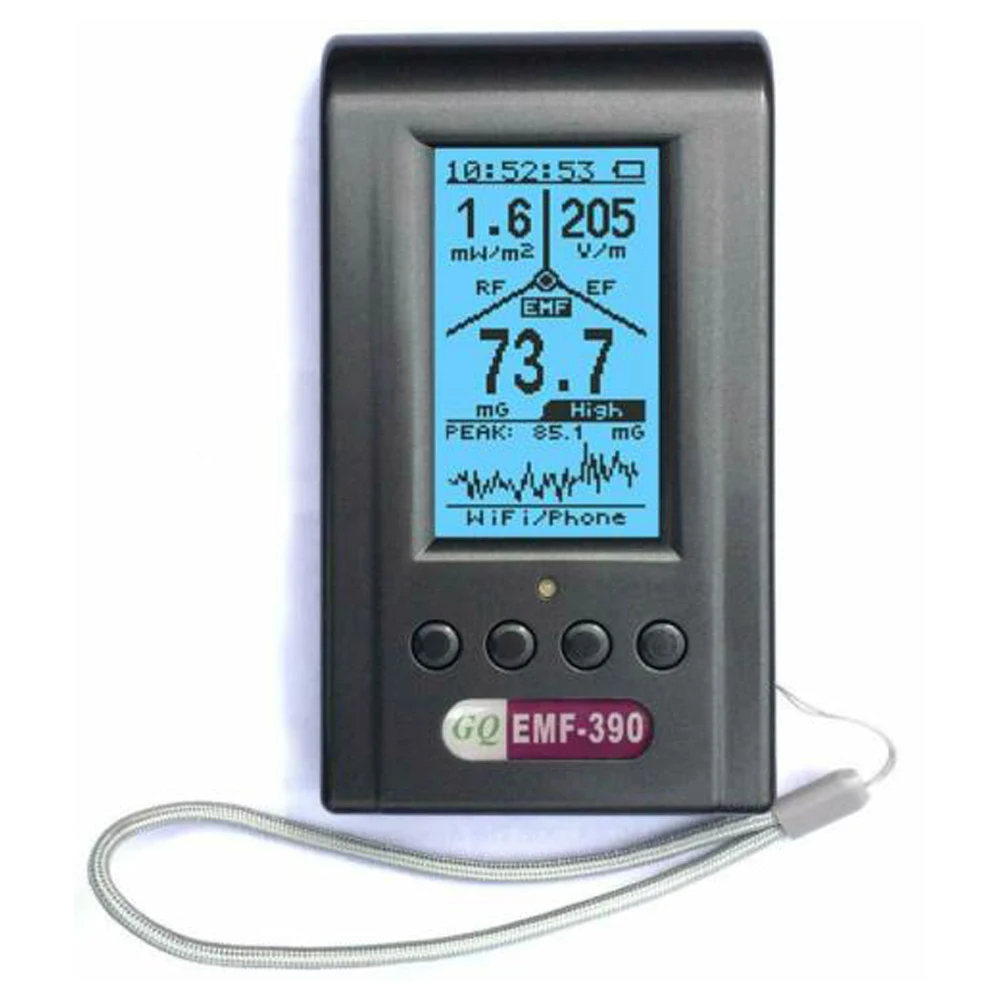

G-Q EMF-390 is ready, the multi-function digital EMF meter is designed to be a portable and convenient device. The device integrated testing features include threeaxis Electromagnetic Fields, Electric Field, Radio Frequency and Radio Spectrum Power Analyzer. The meter is able to identify the common source from EMF measured, such as Power Line, intelligent meter, WiFi, Microwave, Cell Tower etc. It also comes with the built-in audible and visual alarm. It can be used for EMF, ELF, EF, RF detection and monitoring both indoor and outdoor, as well as in other similar environments. It can continually monitor the radiation. When connect the device to a PC, PC software can download the radiation data to the computer and the user is able to analyze those data later.

Features:
G-Q RF Browser is specifically designed for Cellphone, Cell Tower, intelligent Meter, WiFi RF radiation monitoring.
Safety suggestion indicator provides a simple and easy way to understand overall radiation risk.
EMF-390 has built-in flash memory and it is able to log the real-time data EMF, EF and RF power every second, users can download the data from a free software EMF-PRO.
The device is equipped with an USB port, utilized for communication and external powersupply/charging of the internal rechargeable Li-Ion 3.6V/3.7V battery.
The meter installed multiple sensors to ensure maximum scale/range measurement and highest accuracy.
High sensitivity meter allows you to check EMF/RF radiation easily.
Examples: computer mouse, car remote key, cell phone, cell tower, cordless phone, static electricity, electric field, WiFi, computer laptop, microwave, electric heater, hair dryer, vehicle engine, light, outdoor power line.
With RF spectrum power analyzer, you can monitor the WiFi signal power, intelligent meter signal power, spywireless video camera signal,  even track radio/TV signal in air.

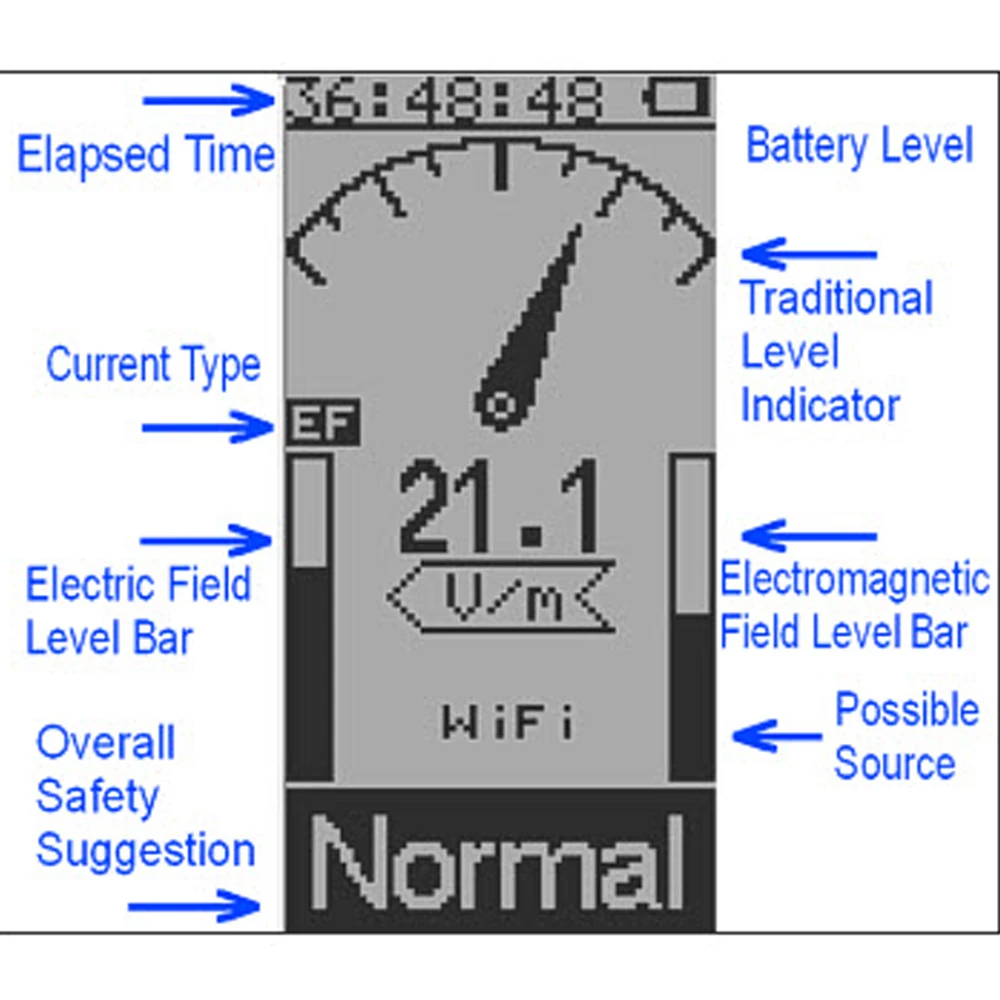

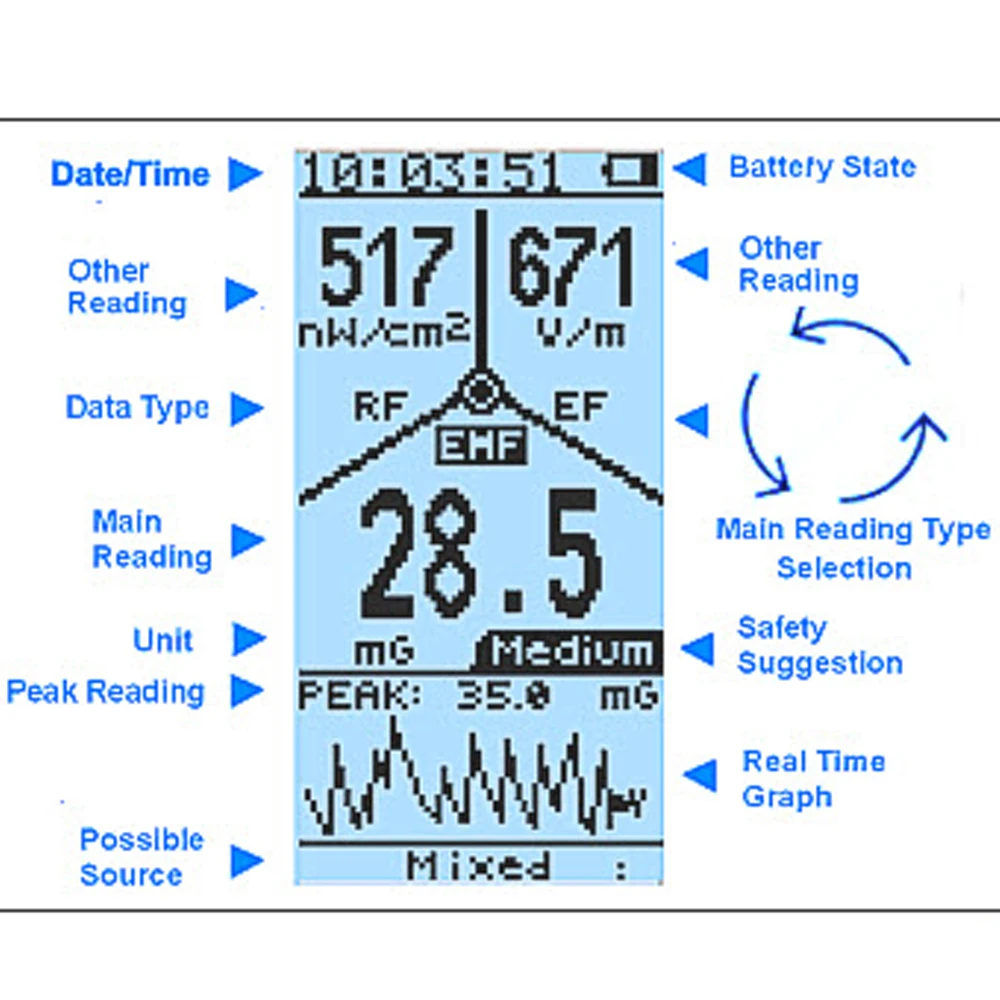

The device also installed a high contrast black/white LCD module and one front LED indicator.
Auto Identify the EMF Radiation Possible Source G-Q EMF Meter is capable to identify the common possible EMF radiation source once it collected valid data from the source.
G-Q EMF Meter provides open G-Q RFC1701 communication protocol for easier system integration, users are able to send the command to operate the meter remotely.
It can be used as industrial, commercial maintenance, research, evaluation, simulation and other analytical or scientific applications in areas such as industrial plants, public utilities, universities, laboratories, and electronic repairing shops.

Function Guide:
Audible alarm: beep/siren
Visual alarm: green, red LED
Display: LCD dot matrix, back lighted
ThreeAxis EMF: Yes
RF Radiation: Up to 10GHz
RF Spectrum Power Analyzer: 2.40 to 2.5GHz, 240 to 1040Mhz, 2.30 to 23.00MHz, 64 to 108MHz, 520 to 1710KHz, 150 to 531KHz
Realtime Clock: Yes
Data Logging/Saving: Yes

EMF (Electromagnetic Field):
Tripleaxis (X, Y, Z) up to 400Khz
Range: 0.0~500mG
EF (Electric Field):
Range: 0V/m to 1000V/m
Resolution: 0.1 V/m
RF Field (Radio Frequency Field):
Frequency: up to 10GHz
RF Spectrum Power Analyzer:
Frequency band 1: 150KHz to 531KHz
Frequency step: 1KHz to 3KHz
Frequency span: 1KHz to 3KHz
Frequency band 2: 520Khz to 1710KHz
Frequency step: 1KHz to 6KHz
Frequency span: 1KHz to 6KHz
Frequency band 3: 64MHz to 108MHz
Frequency step: 10KHz to 100KHz
Frequency span: 40KHz to 100KHz
Frequency band 4: 2.3MHz to 23.00MHz
Frequency step: 1KHz to 180KHz
Frequency span: 1KHz to 6KHz
Frequency band 5: 240MHz to 1040MHz
Frequency step: 1KHz to 10KHz
Frequency span: 50KHz to 4000KHz
Frequency band 6: 2.4Ghz to 2.5GHz
Frequency step: 25KHz to 405KHz
Frequency span: 58KHz to 812KHz

Specifications:
Name: G-Q EMF Meter
Operating temperature: 5 to 40 ℃
Operating humidity: below 80% RH
Working voltage: 3.6-3.7V
Power consumption: 25mW to 125mW (backlight dependant)
Powered by: 1* 3.7V, 1500mAh Li-Ion battery / USB power (both are included)
Item size: 135 * 78 * 25mm / 5.31 * 3.07 * 0.98in
Package size: 200 * 100 * 50mm / 7.87 * 3.94 * 1.97in
Package weight: 400g / 14.11ounce

Packing List:
1 * G-Q EMF Meter
1 * USB Cable
1 * Guideline
