Key Features:

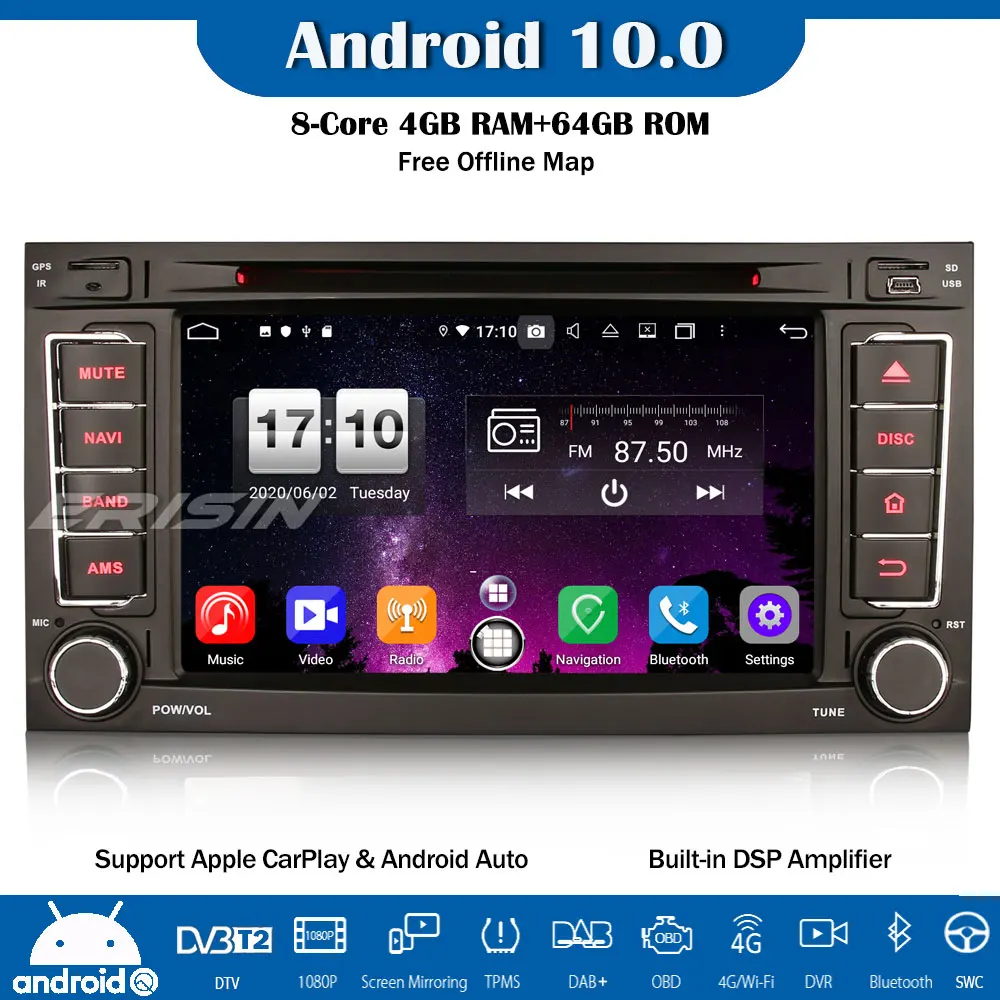

- Android 10.0 OS, Octa Core, 4GB RAM and 64GB ROM, 2 Card/3 USB up to 5*128GB extended Storage.
- CanBus Decoder Box incl. (which costs at least USD 45 in the market).

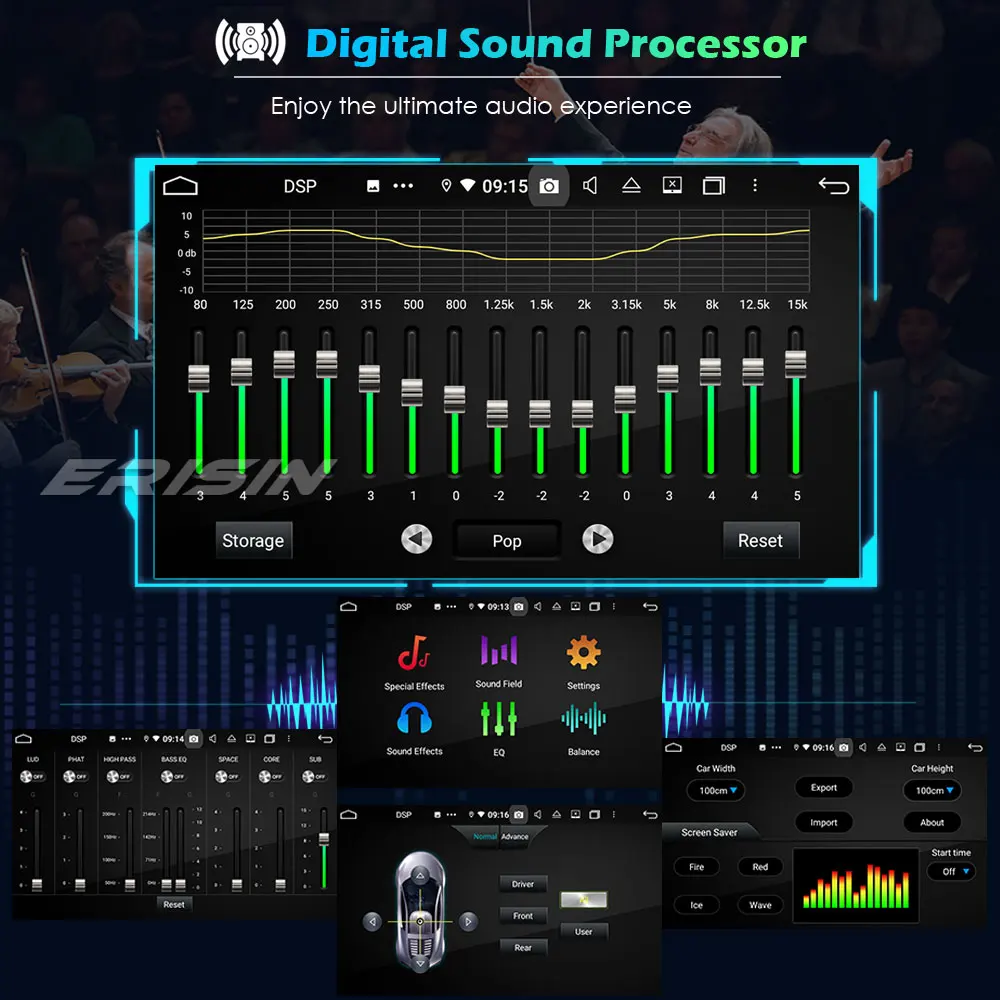

- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
- Built-in Apple CarPlay and Android Auto module. you don't need to use another adapter, just connect your
smartphone to this unit with USB to use CarPlay or Android Auto function.
- Built-in Bluetooth module, which supports hands-free function with A2DP Audio Streaming.

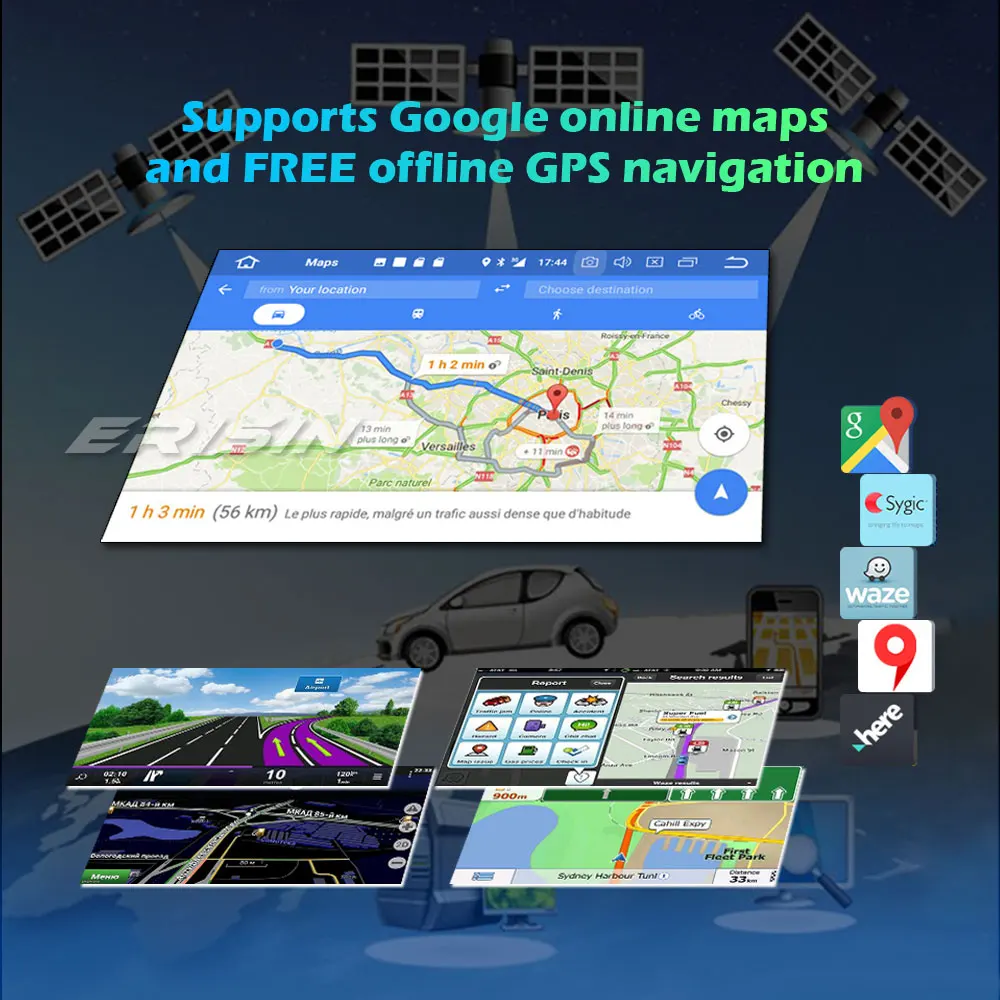

- Built-in GPS Module, which supports offline GPS Navigation, GPS function ready to use.
- Built-in WiFi Module for Internet, you can Link mobile hotspot to use Google online Navigation.
- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF.
- Built-in DVD, USB, TF, Radio, RDS, WiFi, Clock, Calculator, Calendar, Adobe Reader.
- Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN, 3G, 4G etc. extended functions.

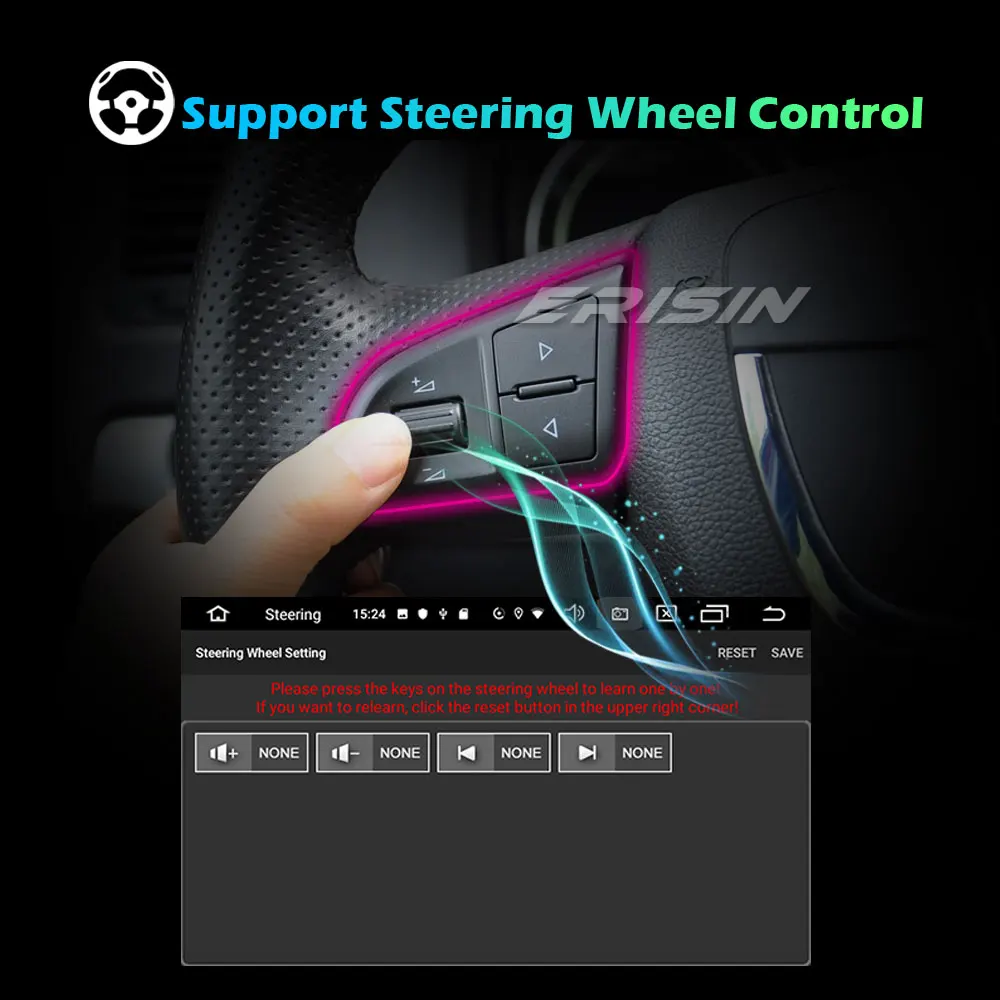

- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
- Unique design with two UI styles switchable, very beautiful and fashionable Design.
- Built-in Video-Out APK, can control Video Output to Dual Headrests independently.
- Support Split Screen, you can run two apps side by side.

Compatible Models & Years:

VW TOUAREG 2004-2010
VW T5 Multivan 2004-2009

Important Note:

1. This unit has front panel size 230mm wide * 117mm high. To make sure the item fits your car, please check your dashboard size and make sure your car dashboard is same as the dashboard photo in our listing before bidding.
2. For few car models, we don't guarantee the MFA Display function is 100% compatible. which depends on your car

3. This unit doesn't support your car's Dynaudio Sound System, it may cause no sound.
4. If your Multivan T5 original car unit has the front panel size 220mm(Top width)* 130mm(High)* 210mm (Bottom width) or 117mm high* 189mm wide, please contact us to buy the other model

ES8706T 7" Octa-Core Android 10.0 Car Multimedia CarPlay & Auto GPS TPMS/DVR/DTV/DAB-IN...

  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch
- Front panel Size: 230mm wide * 117mm high
- Package Size: 300mm*260mm*190mm
- Shipping Weight: 4.0kg

  System
- Operation System: Google Android 10.0
- CPU: Rockchips PX5 1512MHz Cortex A53
- RAM: 4GB
- Internal Memory: 64GB
- Extended Card/USB: Support USB/SD up to 128GB

  Display
- Screen Type: Multi-touch screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 5 live wallpapers, 38 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes

  Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
- 3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: TDA7851, Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)

  GPS
- Operation System: Android 10.0
- Support Maps: IGO, Sygic, Waze maps for Android 10.0
- Support offline navigation: Yes, ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps

  DVD
- Decode IC: 8202TQ
- Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
- OSD/Audio/Subtitle Language: English, Italian, French, Spanish, Portuguese, German, Russian...
- Auto-Save Function: Yes, expediently watch all kinds of disc continuously

  Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back

  Radio
- Main Chips: TEF6686
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

  USB
- Position: 2 USB On the Back, 1 USB on the front panel
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  TF
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  Android Auto
- Built-in Android Auto: Yes, just connect your smartphone to this unit with USB to use this function
- Connection Port: USB
- Support Device: Android Smartphone with Android 5.0 and above
- Support Wireless connecting: No
- Control the connected Android Phone on head unit: Yes

  CarPlay
- Built-in CarPlay: Yes, just connect your smartphone to this unit with USB to use this function
- Connection Port: USB
- Support Device: iPhone iOS 7.1 and above
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control

  Car DVR
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes
- Play recorded Video directly: Yes
- Storing Position: Card/USB Storage can be changed

  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control: Yes

  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch unit's screen to control the connected DAB+ Box: Yes

  DTV-IN
- Built-in DAB Player App: Yes
- Connection Port: Special
- Power Supply to connected DTV Box directly: Yes, you can connect our DTV Box to achieve this function
- Touch unit's screen to control the connected DTV Box: Yes, you can connect our DTV Box to achieve this function

  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
- Built-in Video-Out APK, can control Video Output to Dual Headrests independently.
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF

  Input
- AUX Video In: One
- Front-View Camera Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- TPMS Box In: One
- DTV Box In: One
- DAB+ Box In: One
- Car DVR In: One

  Output
- Video Out: Two

- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

  Accessories
- 1*User's Manual in English
- 1*RCA AV Input Cable
- 1*Front-USB Adapter Cable
- 1*RCA AV Output Cable
- 1*Power Cable with Special Connector
- 1*RCA Camera Input Cable
- 1*Special CanBus Decoder Box
- 1*USB and Microphone connecting Cable
- 1*Radio Antenna Adapter Cable
- 1*GPS Antenna
- 1*Install Fittings
- 1*Remote Controller (Battery excluded)
