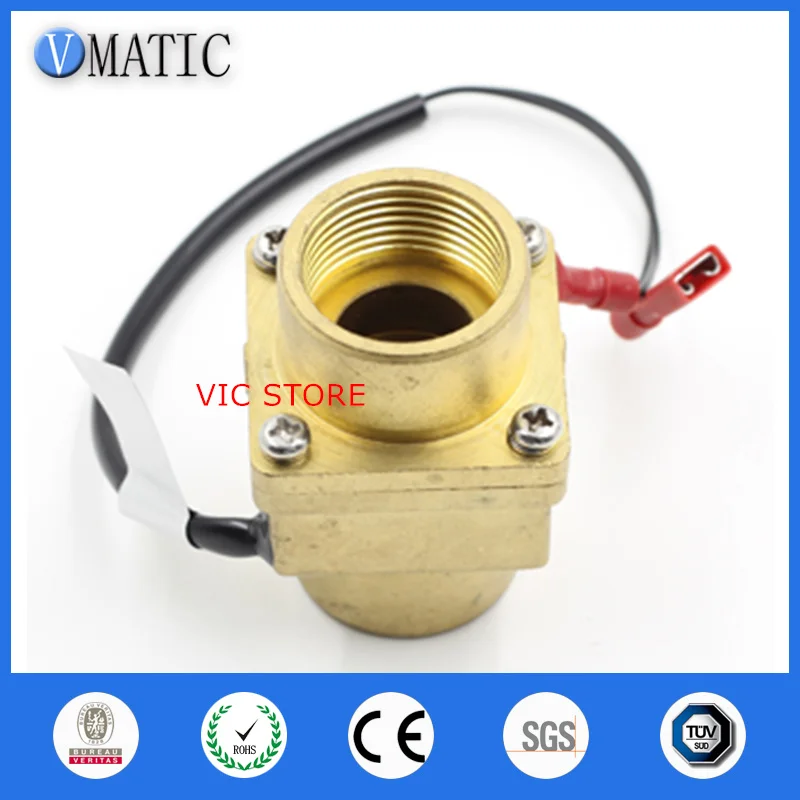

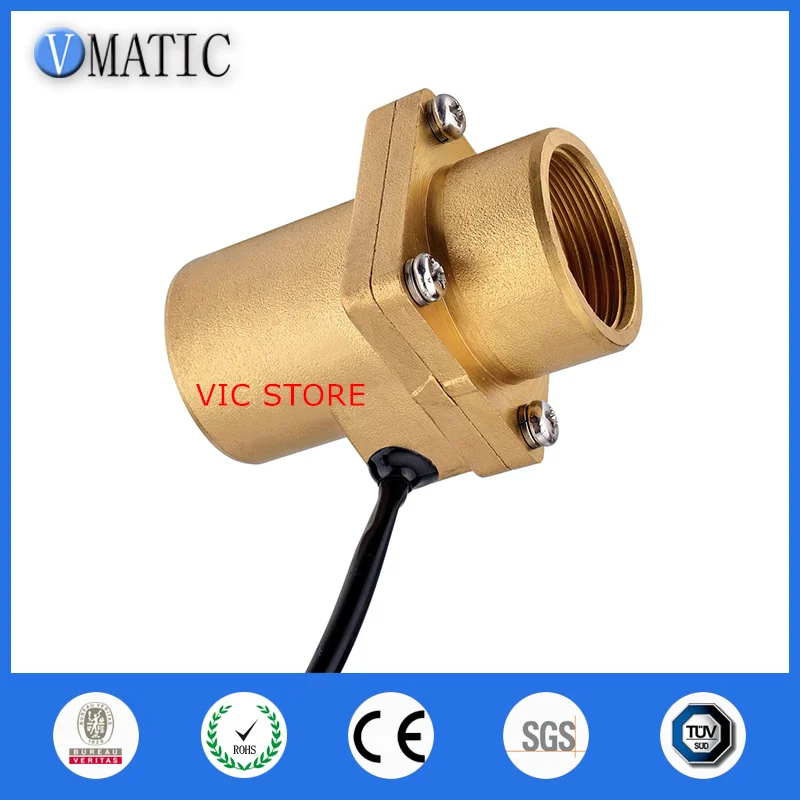

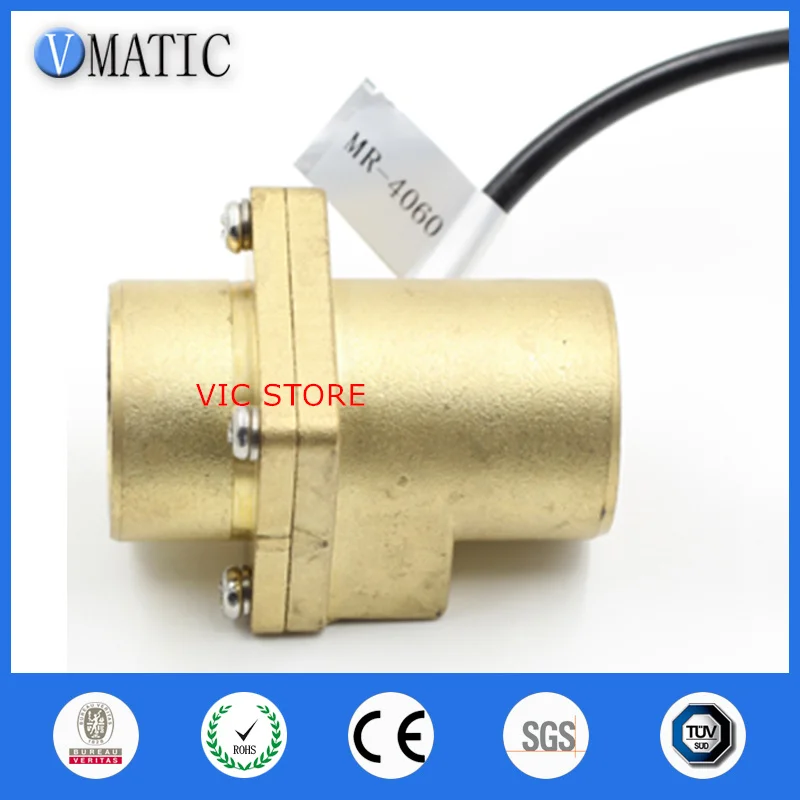

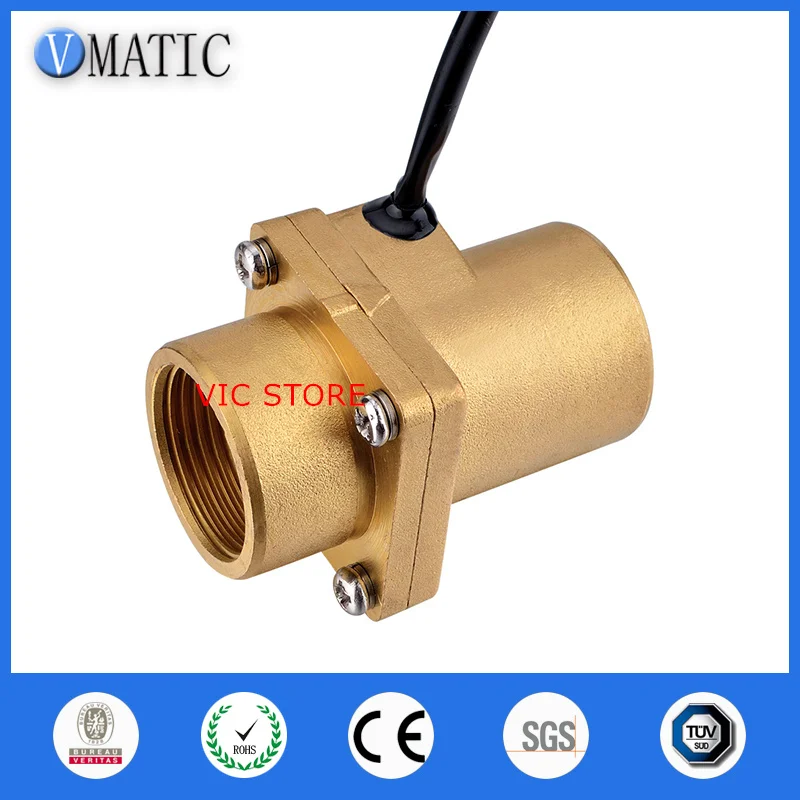

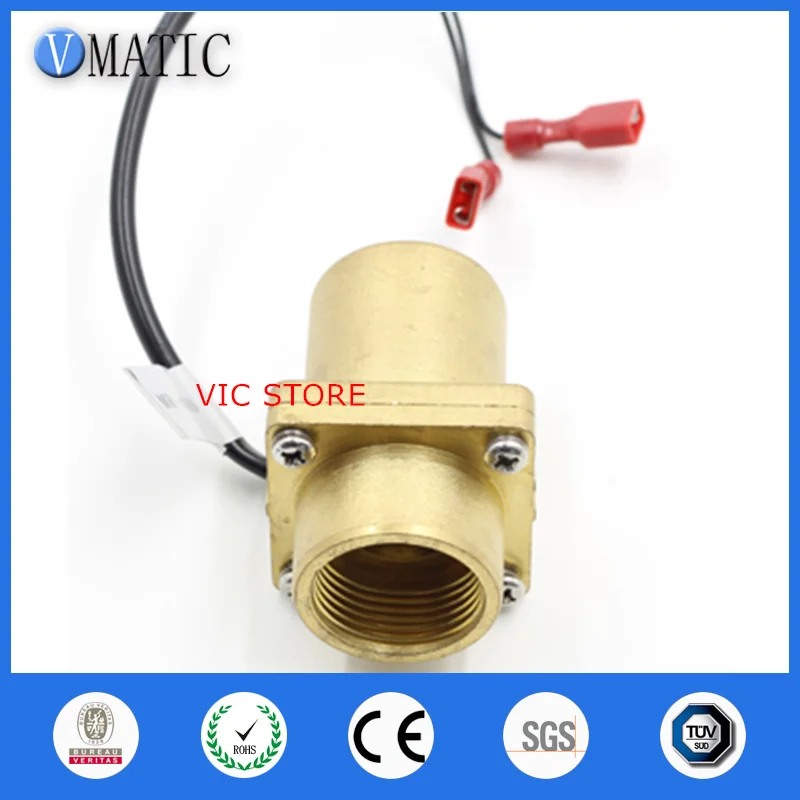

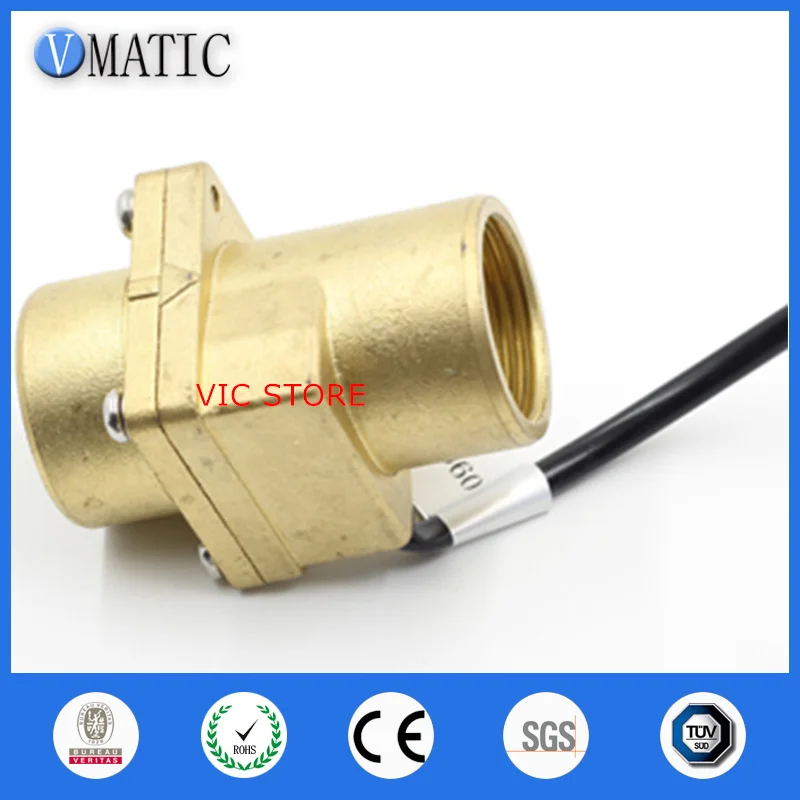

Introduction:  flow sensor consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor activates the magnetic core to trigger hall action, with pulse signal output.

Features: imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.

Applications: it is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.

Sensores de Fluxo

Descrição: o interruptor de escoamento do núcleo, e um alojamento do sensor, quando o líquido por condução da operação do núcleo, fazendo com que a operação de comutação, o sinal de comutação de saída.

Características: Importado elemento de comutação magnética, o princípio de funcionamento é simples, confiável e barato.

Aplicações: aquecedor elétrico de água, aquecedores de água solares de controle de circulação de água, condicionadores de ar e outros sistemas de água, fora do controle da água, interruptor de controle da bomba, controle de válvula solenóide on-off ou a força da água, controle da água alimentado.

Flow sensor

Specifications

Withstand hydraulic pressure

<0.35MPa

Voltage rating

5~24VDC

Insulation res

>100MΩ

precision

0.2~6L/MIN±10%

2~30L/MIN±10%

1~60L/MIN±10%

Max output pulse voltage

>4.7VDC(input voltage5VDC)

Min output pulse voltage

<0.5VDC(input voltage5VDC)

Output pulse duty cycle

50%±10

Junction way

Red wire +,black wire-,white(yellow)wire output signal

Standard export carton packing.

3-8 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Ningbo VMATIC Liquid Control Industry Co., Ltd is a specialized manufacturer and exporter of dispensing systems and equipment for all industries. All fluids can be accurately dispensed either by air pressure or mechanical force. We are dedicated to dispensing design, development, production and sales. We have 10 major series for our products, respective classification according quality and function, etc. Each of our items is abided by providing to all industries a cost-effective solution for the needs to dispense liquids and paste in a controlled manner.

All fluids can be accurately dispensed either by air pressure or mechanical force. We supply simple hand or bench dispensers for single part materials through to automatic robotic dispensing systems with vision recognition and meter-mix equipment for two-part materials, such as epoxies. A complete line of replaceable syringes, barrels, needles and tips are also available.

Our products are suitable for many applications including Medical, Electronic, Jewelry, Automotive and general industrial OEM assembly operations.

We are committed to providing our customers with high quality items and good value for money, which will ensure satisfaction with a high level of dedication.

We look forward to the opportunity to service your dispensing requirements.

our factory founded from 2009, start our demestic sales

we sell fast in our China Market and enjoy great reputation

our imports and exports department establish, we start our international sales

our exports annual sales amount reach USD 5,000,000

Quality Assurance

Protect Your Payment,
Secure Your Order

 High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.

 High Productivity

 Fast Delivery

 Leading Level R & D Department

 Experienced Marketing Manager

 Professional Design Department

 Accept OEM & ODM

 Excellent After-sales Service

Yes, of course, the prices showed on the web, including the shipping cost, but is wil take around 20-25 days to your place. if you need fast express, you could contact me, we have contracted price with express company, such as DHL, UPS, FEDEX,TNT.

We usually make delivery within 2 days, if you order large quantity or OEM items, it will take longer time.

Usually, our MOQ showed on the website,but some items or OEM item, the MOQ will be confirmation after negotiation

Yes, if you order bigger quantity or if you could use your own express account, pls tell me to check the final price.

Yes, each step of production and finished products will be came out inspection by QC department before shipping.
