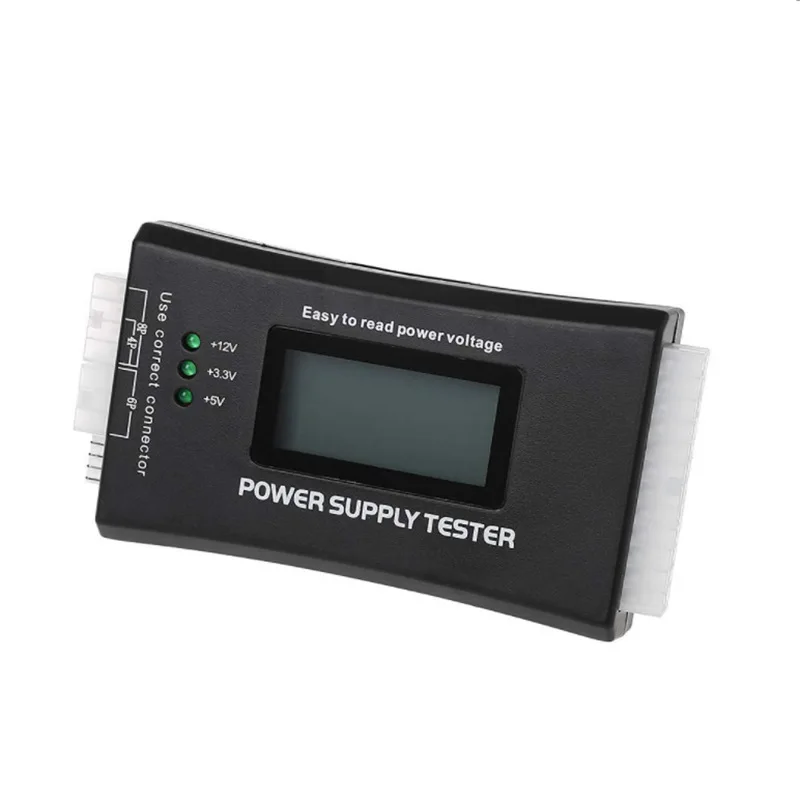

Introduction of LCD Power Tester:

1: Support 20Pin, 24Pin ATX interface

2: Support SATA interface

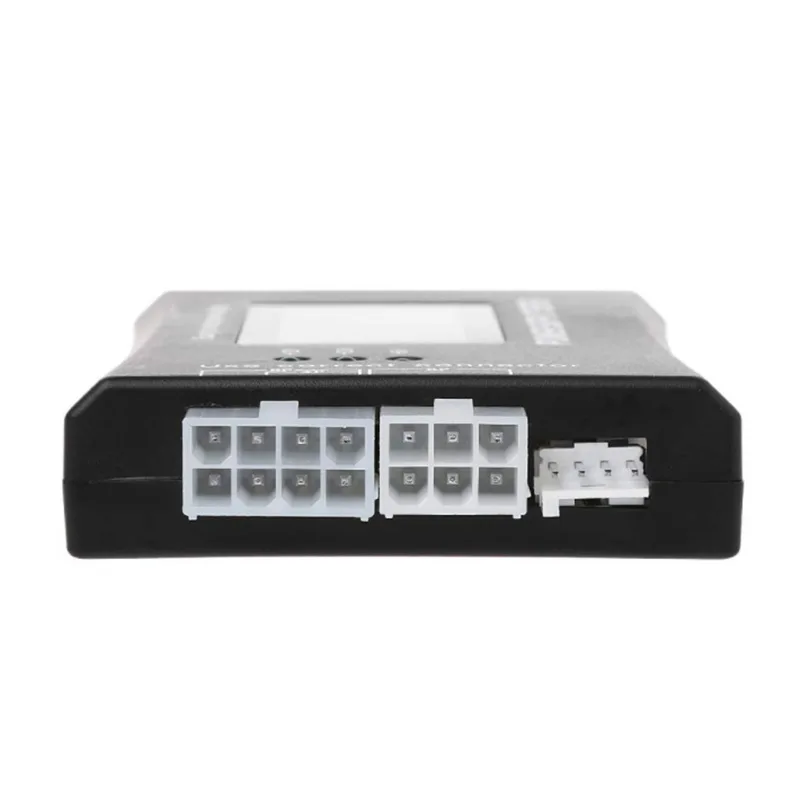

3: Support 4Pin, 8Pin interface

4: Support PCI-E graphics card 6Pin interface

5: Support floppy drive interface 6: Support ATE hard disk interface

7: Test voltage has +3.3V, -12V, +5VSB, +12V1, +12V2, +5V and PG time value

.Raw material: aluminum alloy. Size: 126x64x18.5mm. Weight: 120g

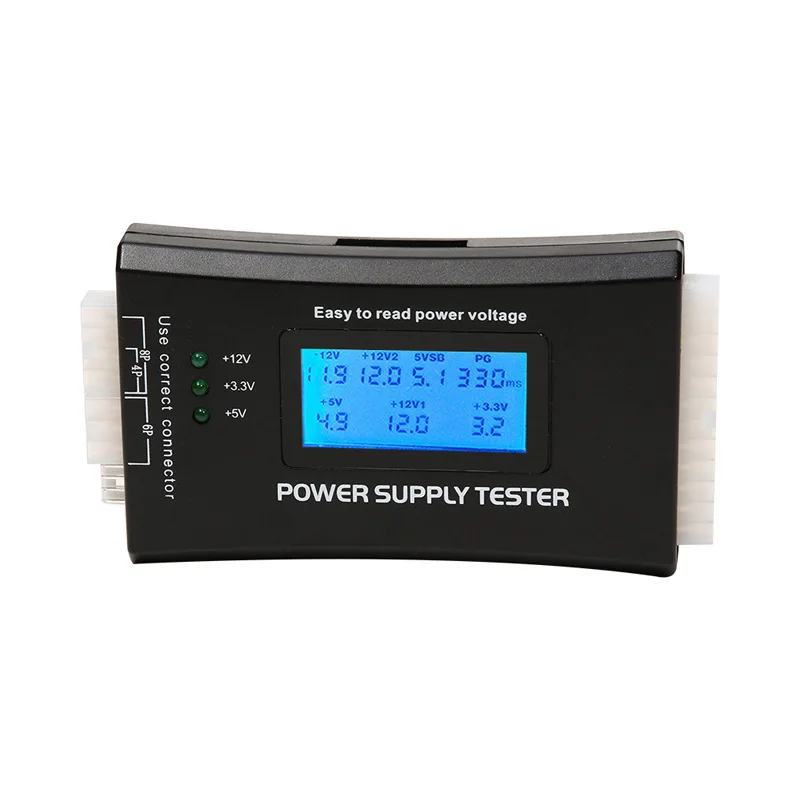

.Features: LCD displays various parameters such as output voltage and PG. When each parameter exceeds the normal value, the buzzer will sound an alarm and the corresponding value will flash.

Overview: The LCD power supply tester is a powerful power supply testing device. This power supply tester only needs to connect the ATX connector of the power supply to easily and intuitively know whether the output of each power supply is normal. It can detect ATX, BTX, ITX, TFX computer power supply, and can display the voltage and PG value of each group of LCD to quickly detect the performance of computer power supply.

The third generation is LCD liquid crystal display, the output voltage is directly

Can measure the voltage of each group of the power supply 3.3V/+5V/+12V/-12V/SB+5V/PG

If there is any defect, the buzzer will automatically alarm.

You can also measure the output wire P4/P6/P8/SATA/IDE, the external DIE/SATA/P6/P8 is displayed by the lamp, and there is no LCD display voltage. Only when connected to 24pin or 20pin will there be LCD display voltage.

A

The number of small and practical power testers now has more and more power output groups. As long as one of them has a problem, the hardware of the computer system may not work properly or even burn out. To measure whether the output voltage of the power supply is stable, players usually use a multimeter. But for ordinary users, it is still a little troublesome. In view of the situation that the power supply sales market cannot judge the quality of the power supply, the portable computer power supply tester developed has an intuitive and accurate LCD display voltage (+/-0.01V), automatic fault alarm, complete test interface, small and beautiful appearance, and test function Many other characteristics. It is a quick test for PC power selection. It is your most reliable helper. The number of outgoing groups is increasing. As long as one of the problems occurs, the hardware of the computer system may not work properly or even burn out related accessories. To measure whether the output voltage of the power supply is stable, players usually use a multimeter, but it is still a bit troublesome for the average user. This power tester only needs to connect the ATX connector of the power supply to easily and intuitively know whether the output of each power supply is normal. Power Star power supply tester is a powerful power supply test equipment, which can detect ATX, BTX, ITX, TFX computer power supply, and can display each group of voltage and PG value on the LCD, quickly test the computer power supply and convenient instrument.◆Support 20Pin, 24Pin ATX power supply
