Mini Digital Clamp Meters AC/DC Current Voltage UNI-T UT210 Series True RMS Auto Range VFC Capacitance Non Contact Multimeter |

Mini Digital Clamp Meters AC/DC Current Voltage UNI-T UT210 Series True RMS Auto Range VFC Capacitance Non Contact Multimeter |

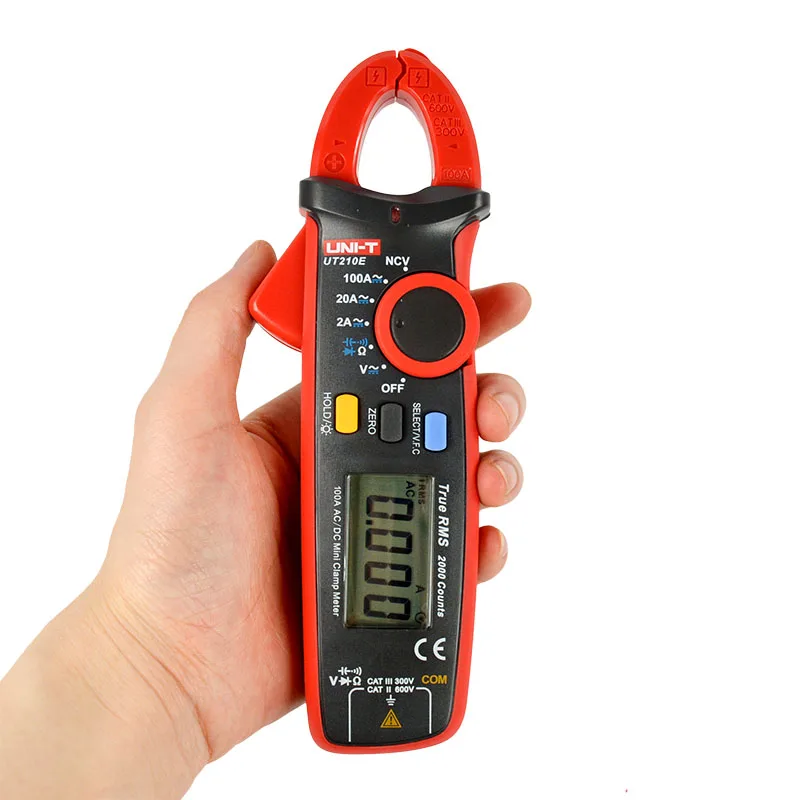

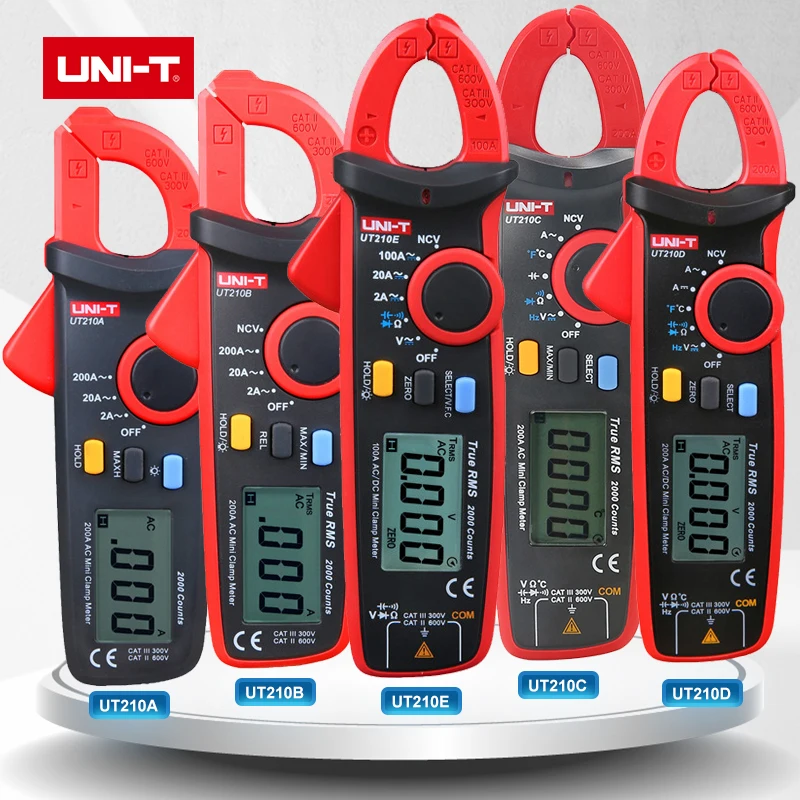

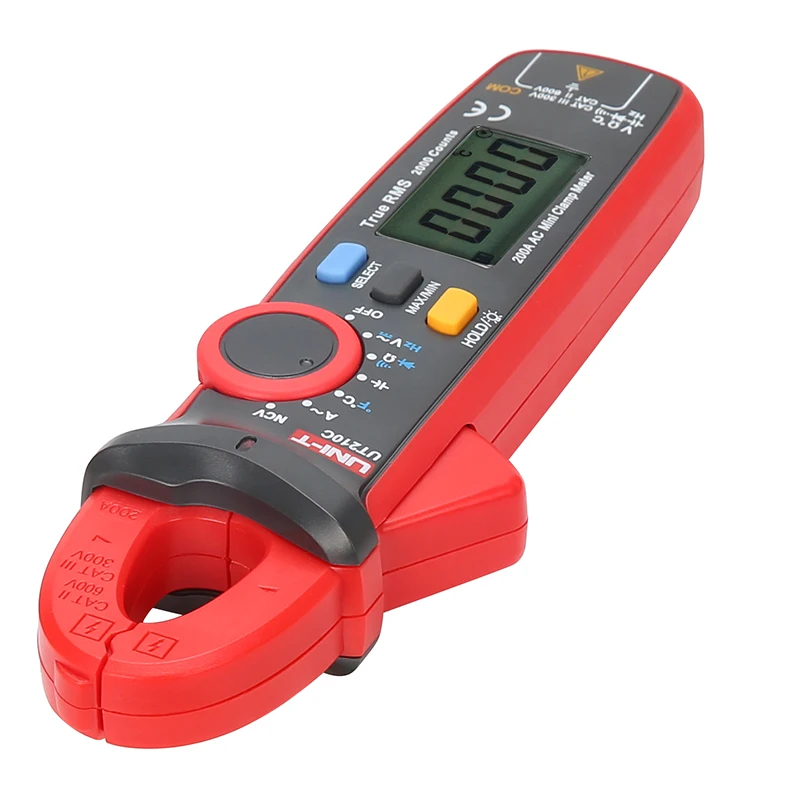

UNI-T UT210A/UT210B/UT210C/UT210D/UT210E Mini Digital Clamp Meters AC/DC Current Voltage True RMS Auto Range VFC Capacitance Non Contact Multimeter

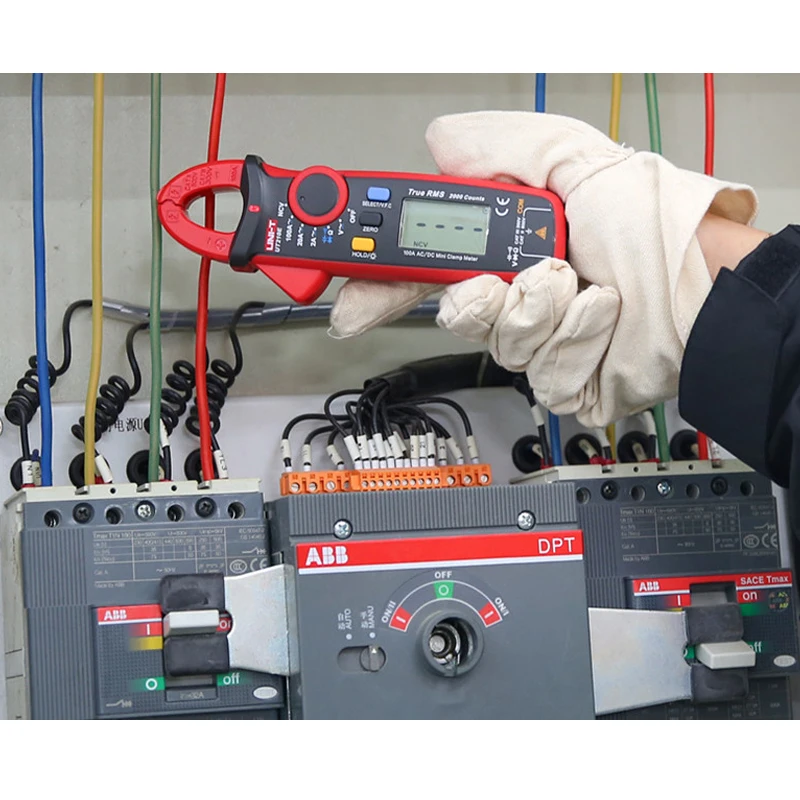

UT210 series mini clamp meters are designed to work well in limited space environments. These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.

Features:

1. NCV (Except UT210A)
2. MAX/MIN (UT210C and UT210D)
3. Ergonomic and lightweight
4. Auto range, 2~3 times/s sampling rate
5. True RMS (Except UT210A)
6. LCD backlight, data hold
7. Auto power off, low battery indication
8. Relative mode (Except UT210A)
9. ZERO mode (UT210D and UT210E)
10. VFC, low pass filter (Only UT210E)

Packing list:

1*Clamp meter
1*Test leads(Except UT210A & UT210B)
1*Pouch bag(Except UT210A & UT210B)
1*English user manual
1*Color box
1*Point contact temperatrue probe(Except UT210A & UT210B &UT210E)

Due to air transportation restrictions, the product does not come with batteries

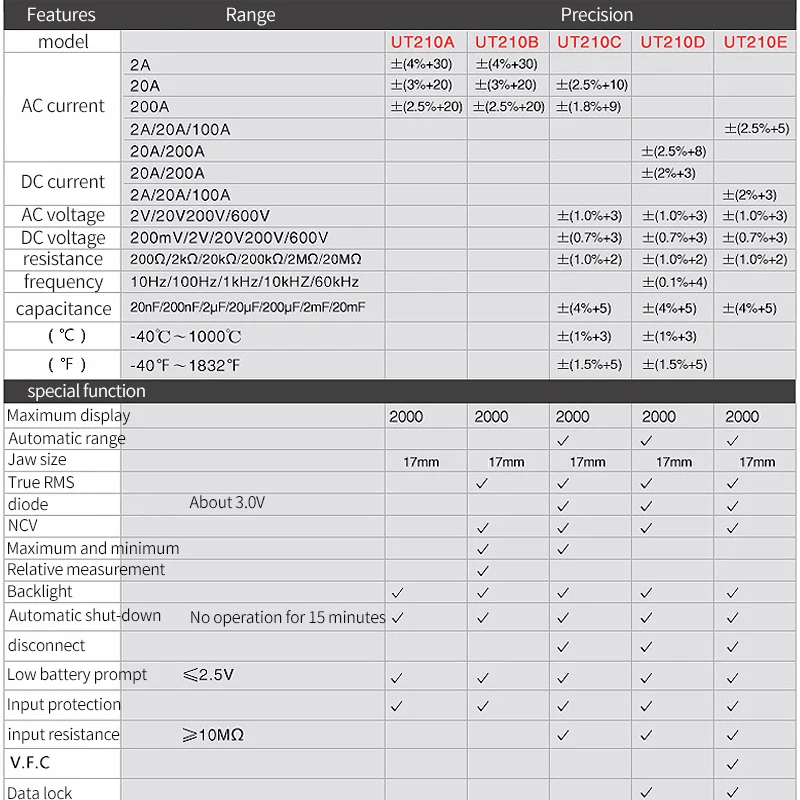

Range

Best accuracy

Model Number

UT210A

UT210B

UT210C

UT210D

UT210E

AC Current(A)

2A/20A/200A

±(2.5%+5)

±(2.5%+5)

20A/200A

±(1.8%+9)

±(2.5%+8)

2A/20A/100A

±(2.5%+5)

DC Current(A)

20A/200A

±(2%+3)

2A/20A/100A

±(2%+3)

AC Voltage(V)

2V/20V/200V/600V

±(1%+3)

±(1%+3)

±(1%+3)

DC Voltage(V)

200mV/2V/20V/200V/ 600V

±(0.7%+3)

±(0.7%+3)

±(0.7%+3)

Resistance(Ω)

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1%+2)

±(1%+2)

±(1%+2)

Frequency

10Hz/100Hz/1kHz/ 10kHz/60kHz

±(0.1%+4)

Capacitance(F)

20nF/200nF/2µF/20µF
/200µF/2mF/20mF

±(4%+5)

±(4%+5)

±(4%+5)

Temperature(°)

-40~1000°

±(1%+3)

±(1%+3)

Temperature(°)

-40~1832°

±(1.5%+5)

±(1.5%+5)

Range

Best accuracy

Model Number

UT210A

UT210B

UT210C

UT210D

UT210E

AC Current(A)

2A/20A/200A

±(2.5%+5)

±(2.5%+5)

20A/200A

±(1.8%+9)

±(2.5%+8)

2A/20A/100A

±(2.5%+5)

DC Current(A)

20A/200A

±(2%+3)

2A/20A/100A

±(2%+3)

AC Voltage(V)

2V/20V/200V/600V

±(1%+3)

±(1%+3)

±(1%+3)

DC Voltage(V)

200mV/2V/20V/200V/ 600V

±(0.7%+3)

±(0.7%+3)

±(0.7%+3)

Resistance(Ω)

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1%+2)

±(1%+2)

±(1%+2)

Frequency

10Hz/100Hz/1kHz/ 10kHz/60kHz

±(0.1%+4)

Capacitance(F)

20nF/200nF/2µF/20µF
/200µF/2mF/20mF

±(4%+5)

±(4%+5)

±(4%+5)

Temperature(°)

-40~1000°

±(1%+3)

±(1%+3)

Temperature(°)

-40~1832°

±(1.5%+5)

±(1.5%+5)
