This electric shear is suitable for using in garment, shoe, cap, necktie and unbrella factories, etc.. It has the characteristics of quick shear-out speed, portable, flexible, resonable structure and complete function. You can have a try.

Features:

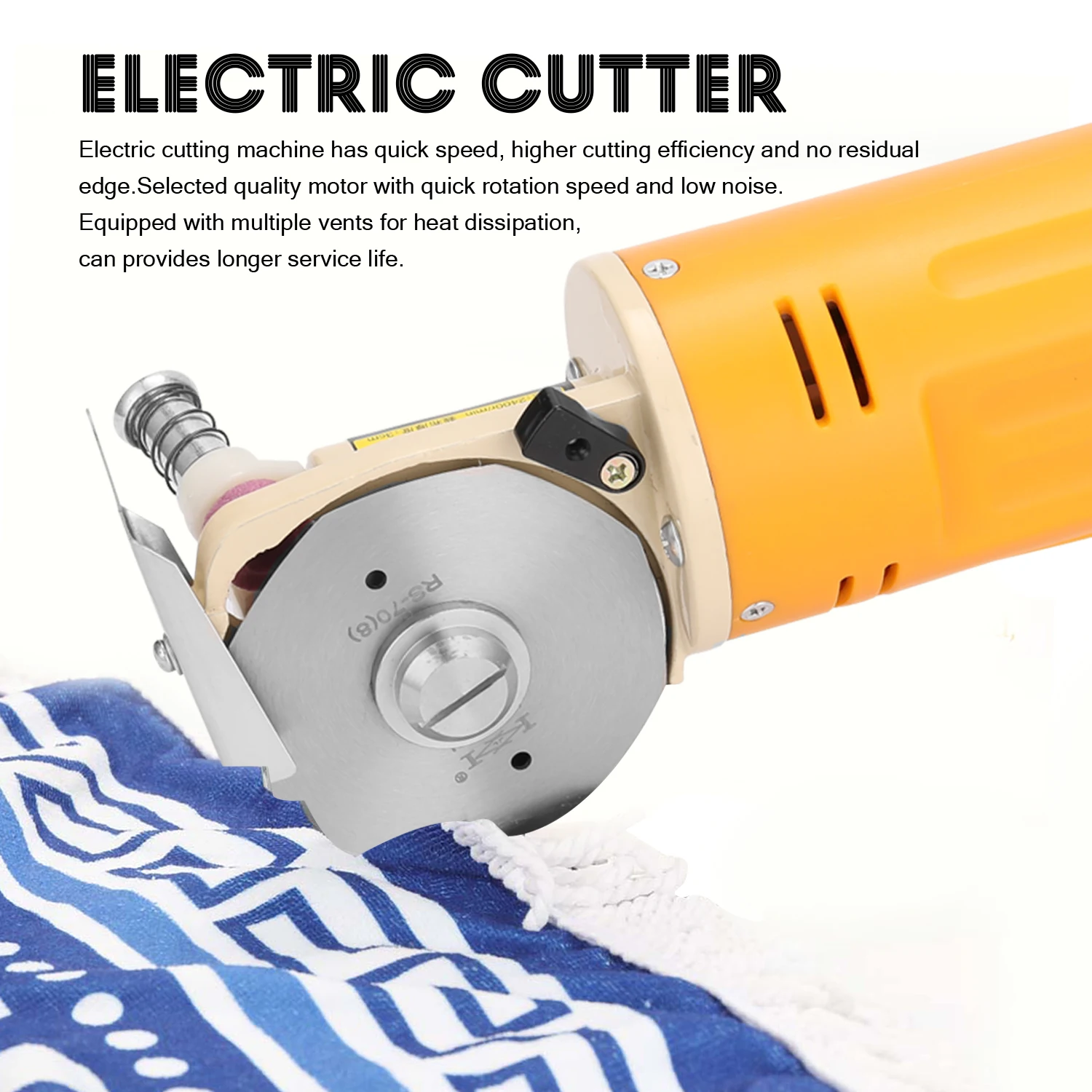

Electric cutting machine has quick speed, higher cutting efficiency and no residual edge.
Selected quality motor with quick rotation speed and low noise.
Equipped with multiple vents for heat dissipation, can provides longer service life.
Compact in size, lightweight and handy, easy to handle and operate.

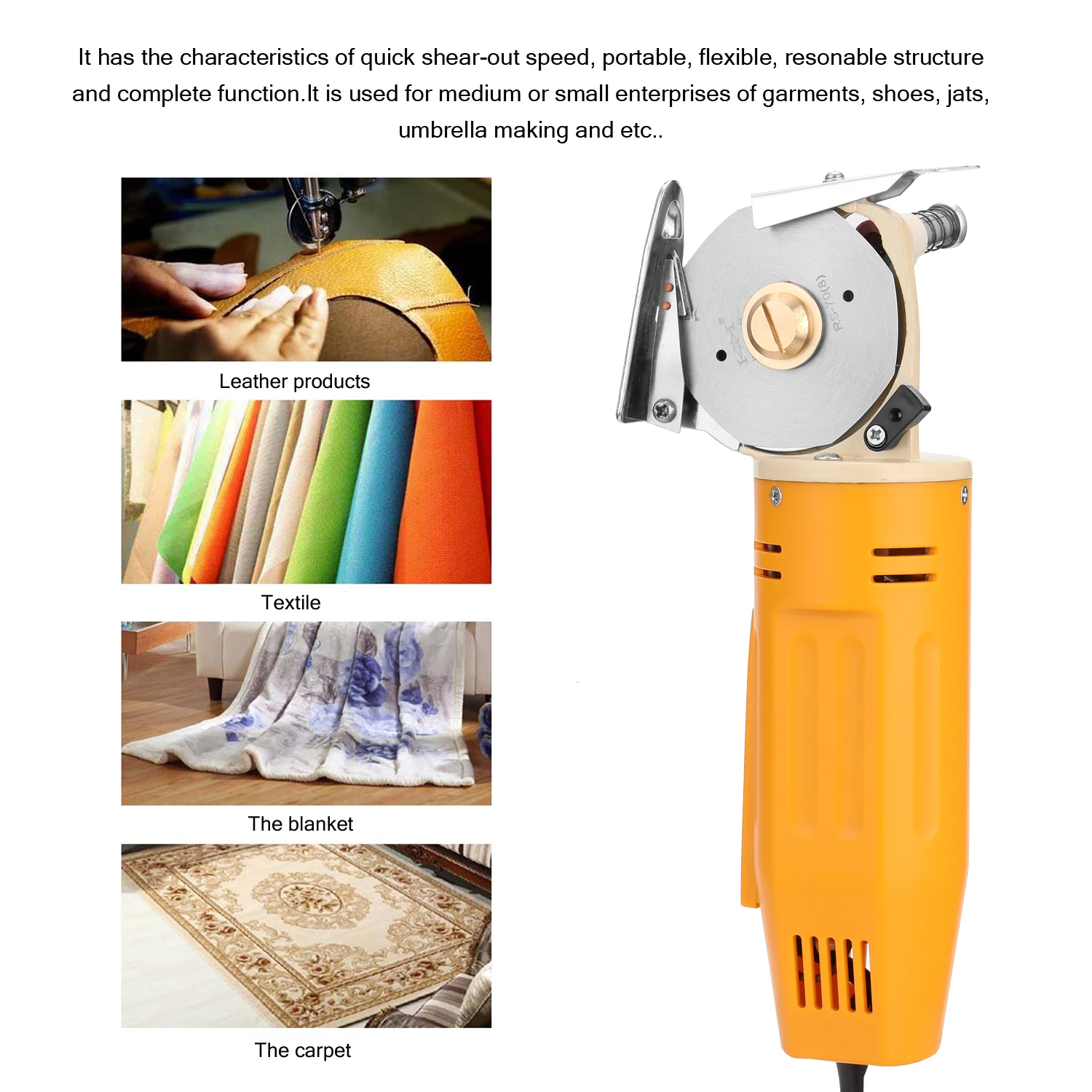

It is used for medium or small enterprises of garments, shoes, jats, umbrella making and etc..
Suitable for cutting various types of cloth, such as cotton, leather, towel, lace, etc.

Directions for use:
Cutter grinding: open electric shear, slightly press down grinding wheel rod(B3), grinding wheel(B7) will automatically grindknife to make bladesharp. If there are too much greasy dirt on the grindign wheel, please cleanit or replace it first.
Fix and dismantle blade: turn cutter blade(B21) hole to the position of grinding wheel hole, insert column pin, then revolve blade cap out or press blade cap(B22) tight.

Maintance:
Grindstone: wash or change the greasy dirt grindstone to keep it effective and diminish the burden of electric motor.
Removing fine dust: Remove the too much fine dust at the backof blade or inside of the motor.

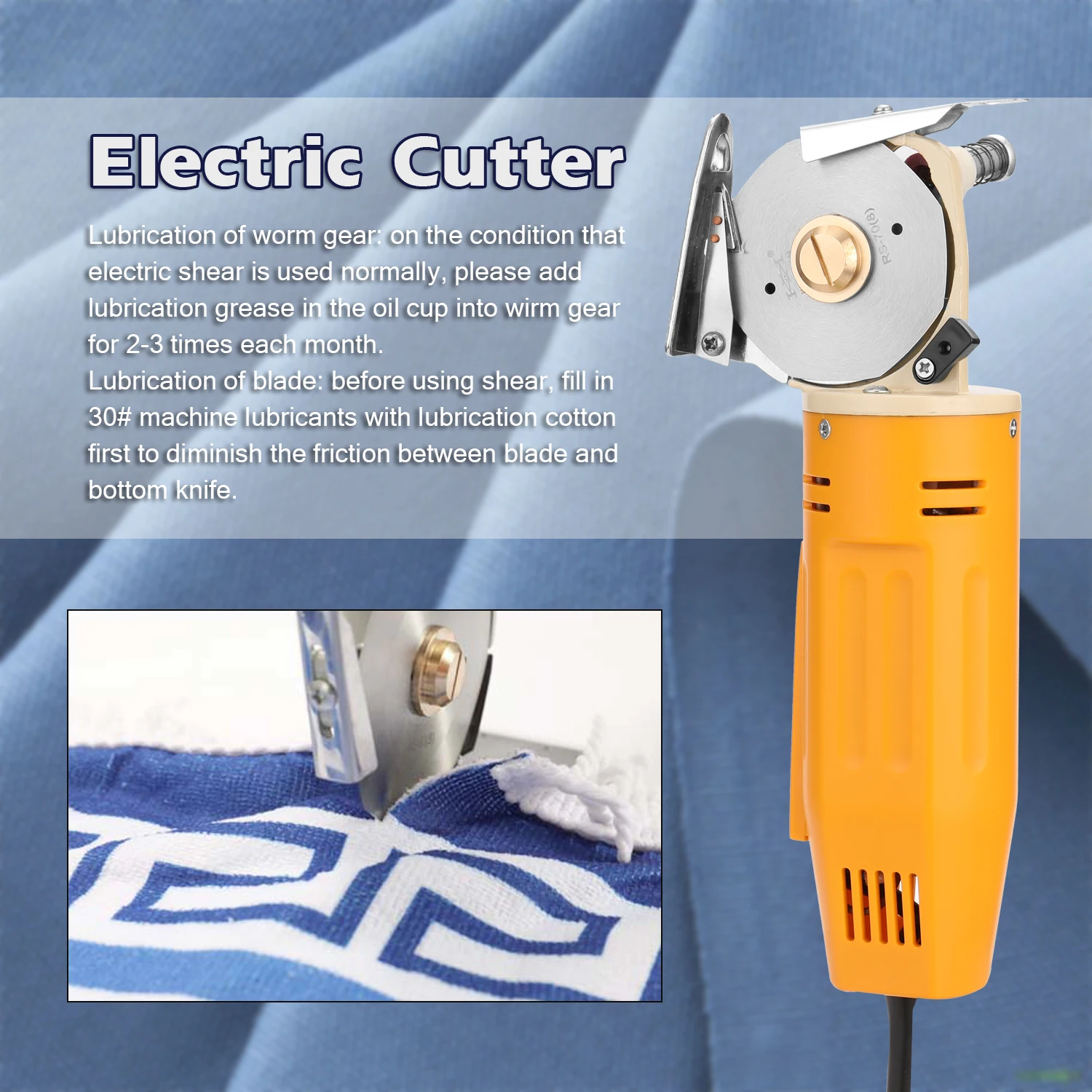

Lubrication of worm gear: on the condition that electric shear is used normally, please add lubrication grease in the oil cup into wirm gear for 2-3 times each month.
Lubrication of blade: before using shear, fill in 30# machine lubricants with lubrication cotton first to diminish the friction between blade and bottom knife.
Replace electric brush: after long-term running, when the electric brush(B53) is worn out over half, please replace electric brush(if the motor runs abnormally, stop machine immediately to check if the brush is normal).

Notes:
The high speed moving blade can not be touched with fingers or another body organ.
Be sure to pull out the plug of power source when fixing or discharging parts.
Pay attention not to cut out the wire of power source, and avoids damaging motor and blade.

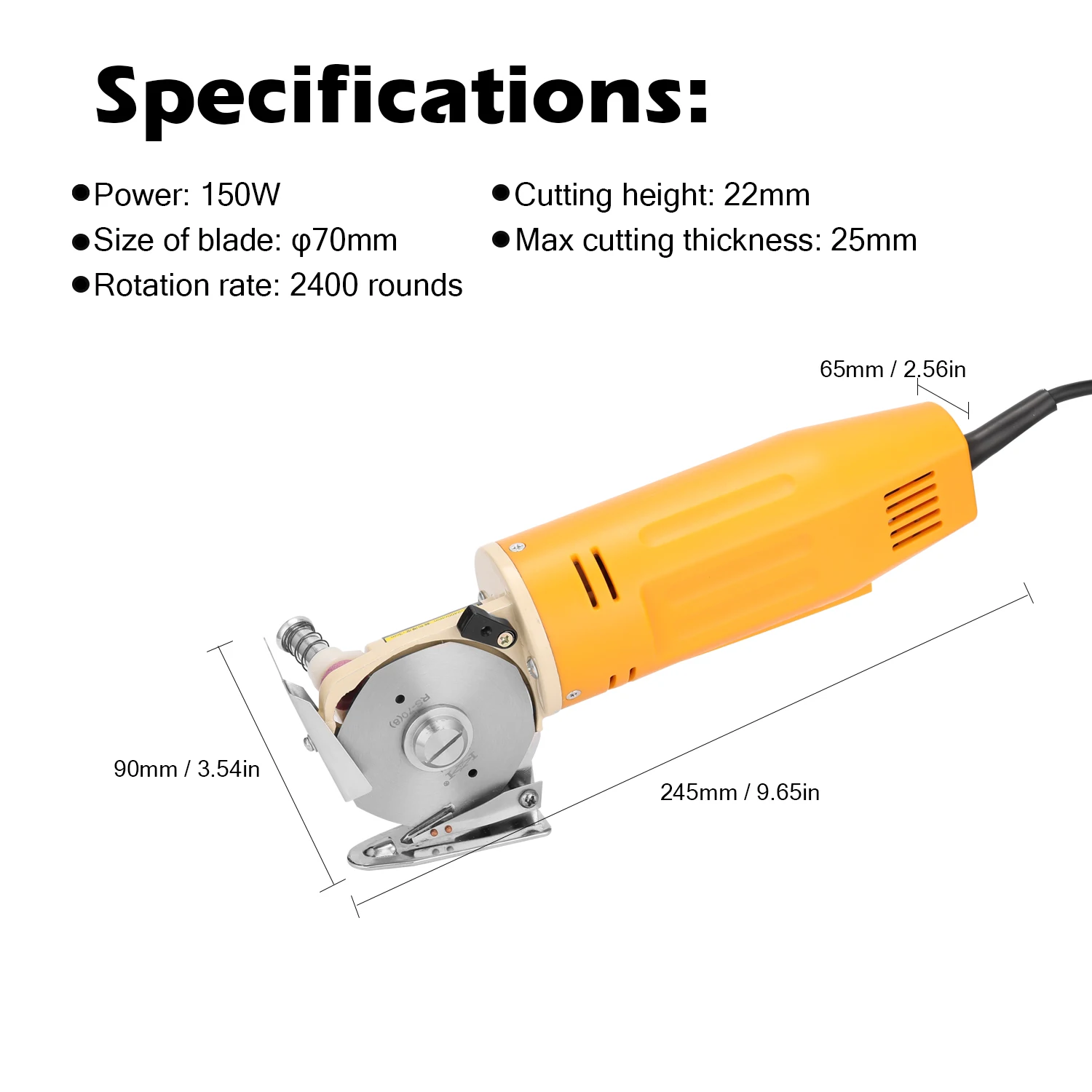

Specifications:
Name: Electric Cutter
Material: ABS+metal
Power: 150W
Size of blade: φ70mm
Rotation rate: 2400 rounds
Cutting height: 22mm
Max cutting thickness: 25mm
Item size: 245 * 90 * 65mm / 9.65 * 3.54 * 2.56in
Item weight: 1203g / 2.65lb
Package size: 325 * 135 * 90mm / 12.80 * 5.31 * 3.54in
Package weight: 1321g / 2.91lb

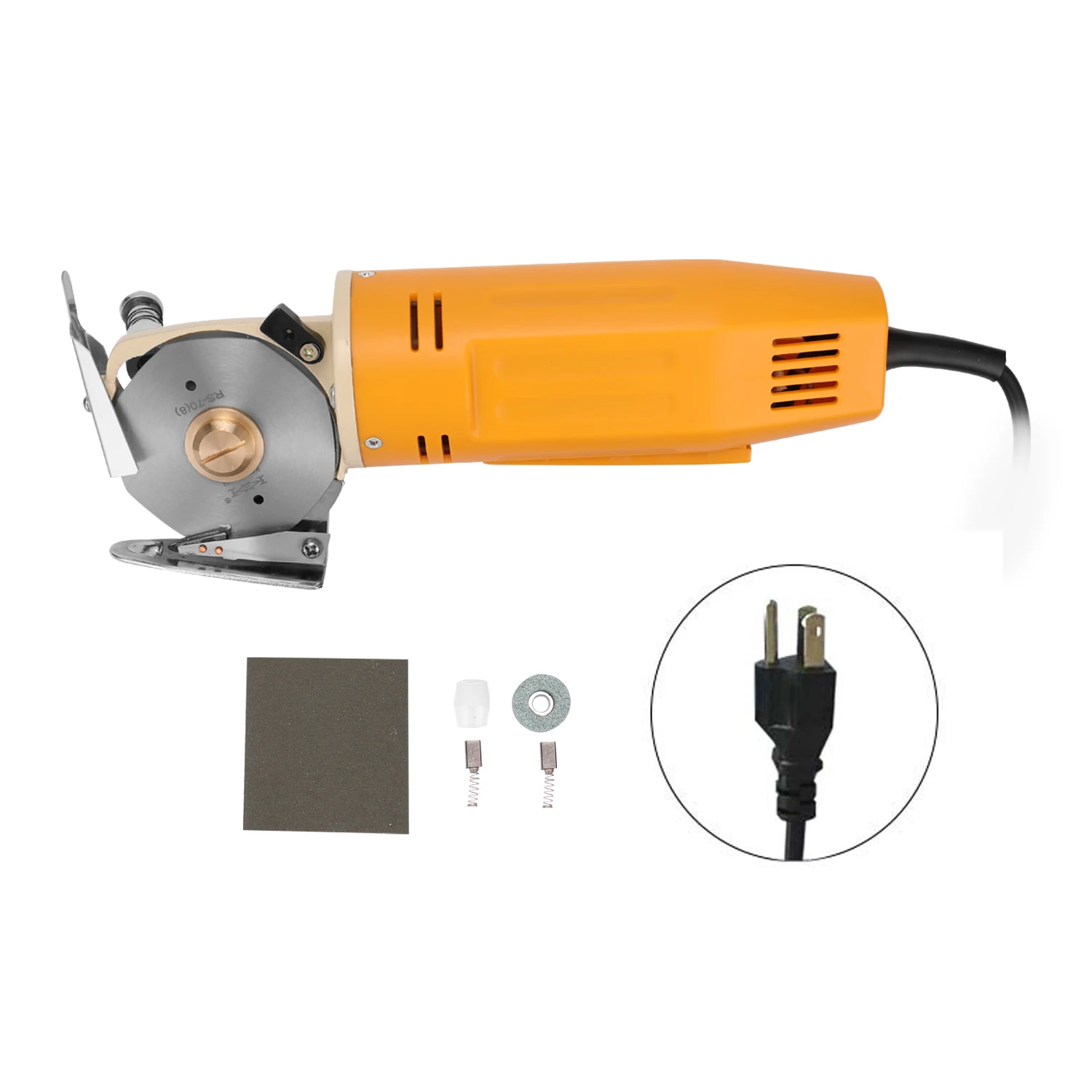

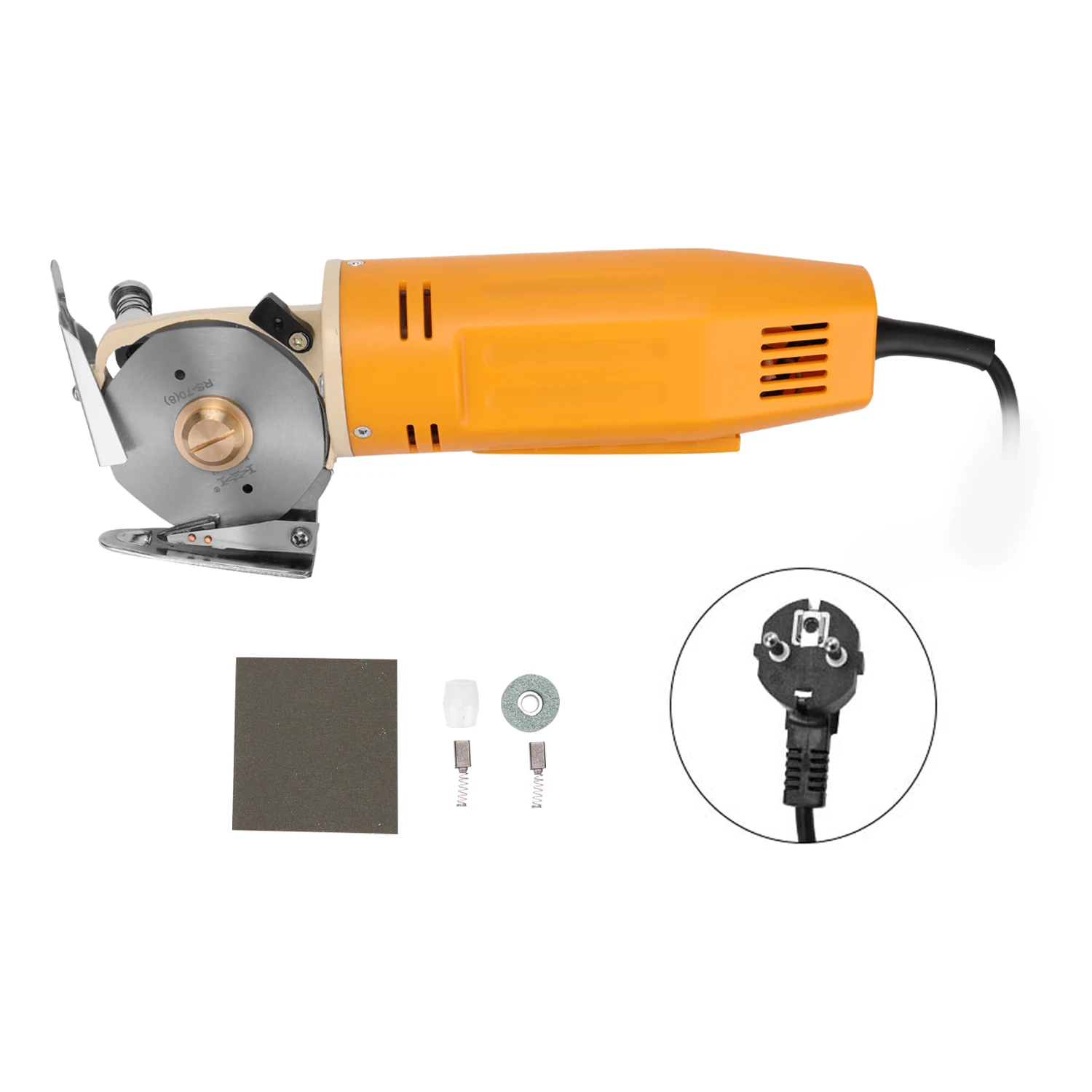

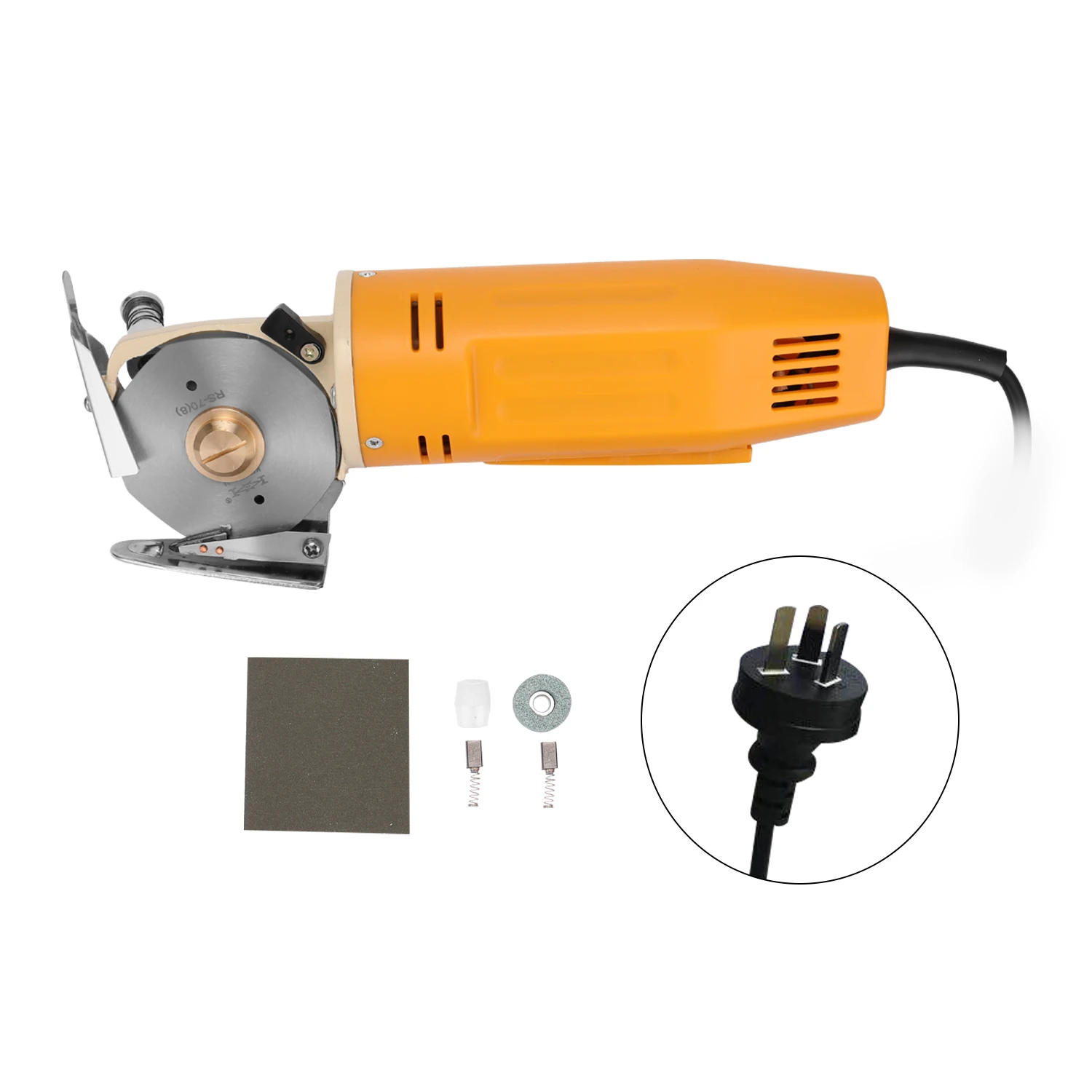

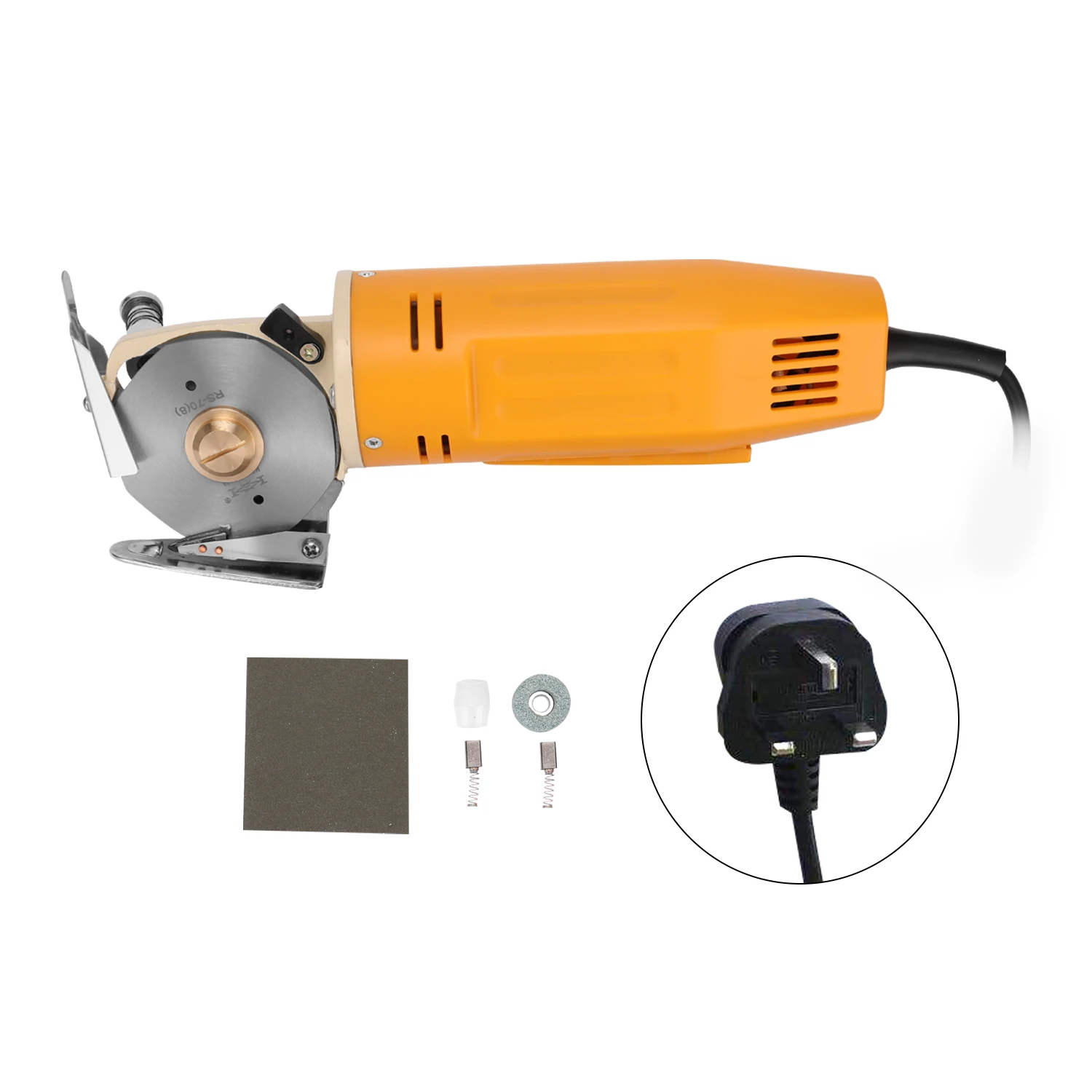

Packing List:
1 * Electric Cutter
1 * Sand Paper
1 * Bag of Accessories
