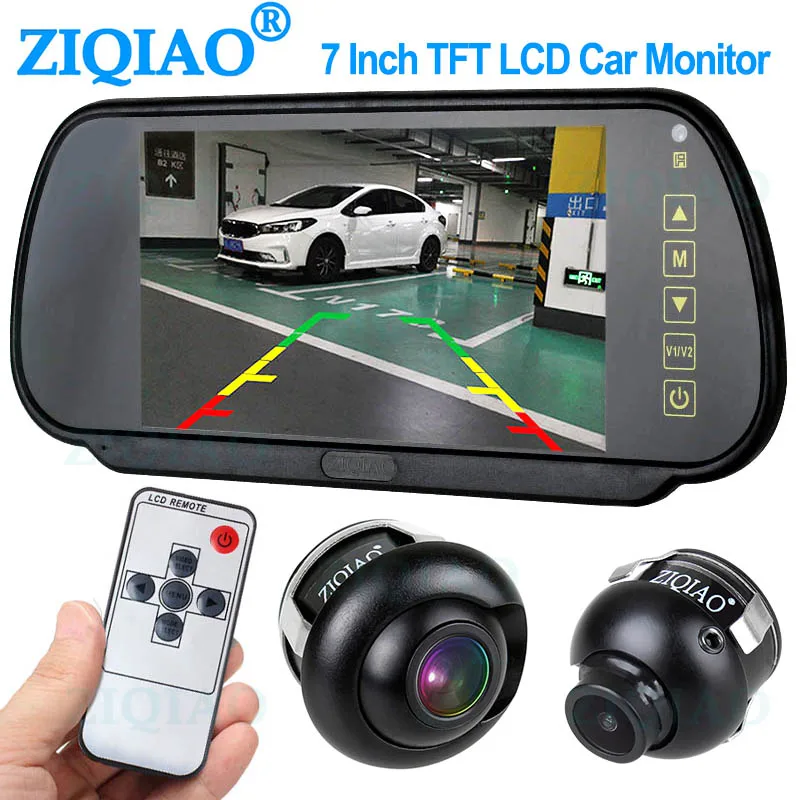

7 Inch LCD Car Mirror Monitor Parking Monitoring System with Night Vision Side Front Rear View Camera

7 Inch Car Mirror Monitor:

Functions:

. 7 inch TFT LCD color display.
. Languages: Chinese, English, Japanese, Russian, Italian, Spanish, German, French, Polish, Dutch
. Full-color LED backlit display.
. With 2-way AV inputs:
a. AV1 is displayed by default, it can be connected to car DVD, VCR and other video-frequency equipment, AV2 to the rear view camera of the vehicle.
b. Connect the monitor's reversing trigger wire and the rear view camera's +12V power wire to the reversing light's +12V working circuit, and connect the rear view camera's -12V power wire to the reversing light's -12V working circuit. When reversing, display will automatically switch to rear-view image.
. The aspect ratio of the screen is 16:9, 4:3 adjustable. The image displayed on the screen can be rotated up, down, left and right.
. Brightness, contrast, color can be adjusted manually.
. No audio input or output.
. Configure the remote control.

Specifications:

. Screen size: 7 inch
. Screen aspect ratio: 16:9, 4:3
. Dimensions: 250mm x 105mm
. Resolution: 800 x 480
. Contrast ratio: 100:1
. Monitor signal mode: Analog signal
. Monitor video format: PAL, NTSC( auto switch )
. Power supply: DC 12-24V
. Power consumption: 6W
. Working temperature(Deg.C): -40 - +80
. Video: 2-way video input(AV1, AV2)
. Blue screen when no video signal.
. Operation mode: touch screen and remote control.

Monitor Packing list:

1 x 7 inch TFT LCD monitor
1 x Wireless remote control(without battery)
1 x Connection cable
1 x User manual

Rear view camera: optional

Functions:

The camera has the function of switching between front view and rear view, and the function of switching between with parking guide line or without parking guide line. The camera default is front looking and no parking guide line. Cut the white line, the image captured by the camera has a parking guide line. cut the green line, the image captured by the camera is switched to the rear view image.

Specifications:

Signal mode: CVBS
Image sensor: CMOS
Video format: NTSC
Pixel: 728 x 512
Resolution: 500 TVLine
Lens angle: Diagonal 170 degrees, flat angle 140 degrees
Rated voltage: DC 12V
Waterproof level: IP68
Length of power cable: 1m
Length of video cable: 6m
Working temperature(Deg.c): - 30 - +80

HS070 Camera Packing List:

1 x Car rear view camera
1 x 6m video cable
1 x 1m power cable
1 x 18.5mm hole saw
1 x Hex key
1 x User manual

HSB012 Camera Packing List:

1 x Car rear view camera
1 x 6m video cable
1 x 1m power cable
1 x 22.5mm hole saw
1 x User manual

rearview mirror monitor dynamic parking line camera rear view mirror monitor display kit

7" HD rear view mirror

2-way AV inputs

Video/ reverse automatic switching, whether it is off or in standby mode, the revers will automatically disply the reversing image.

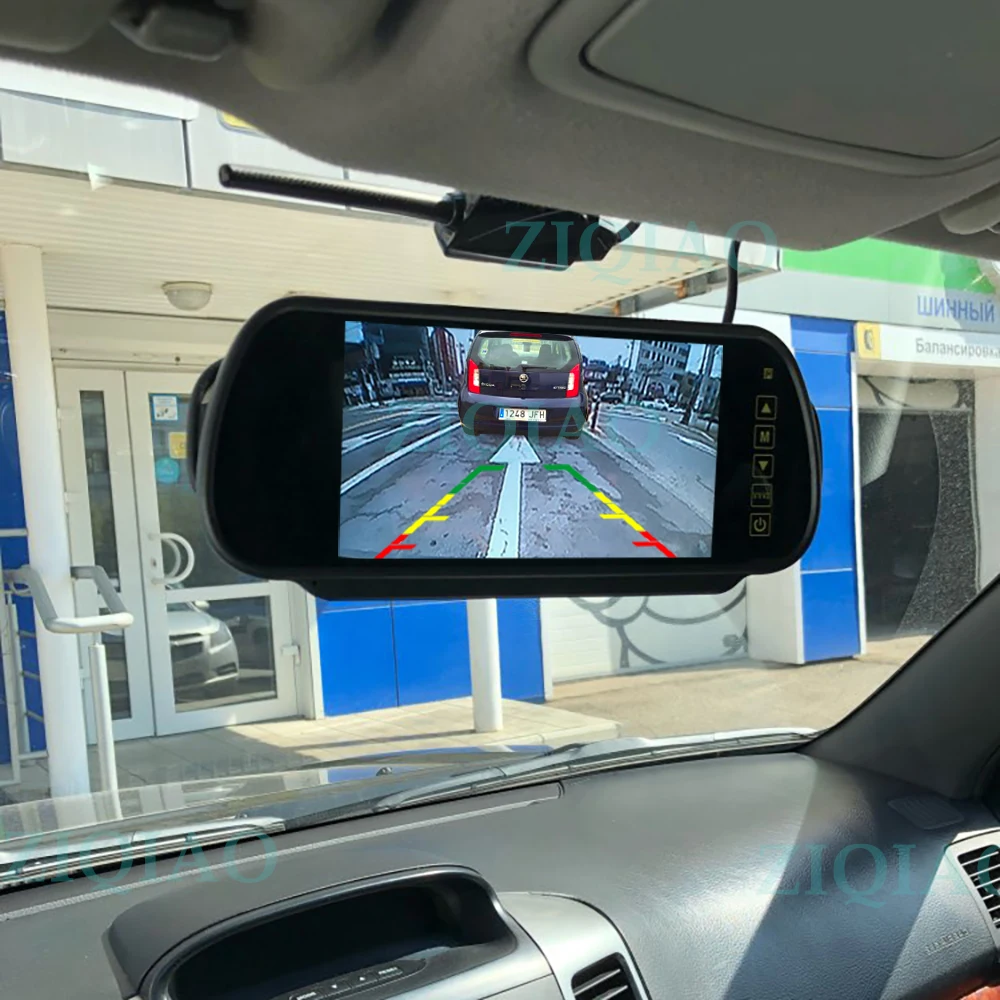

Rear View Mirror Monitor

Picture flip function, do not worry about suspension installation.

Front Side Rear View Reverse Camera

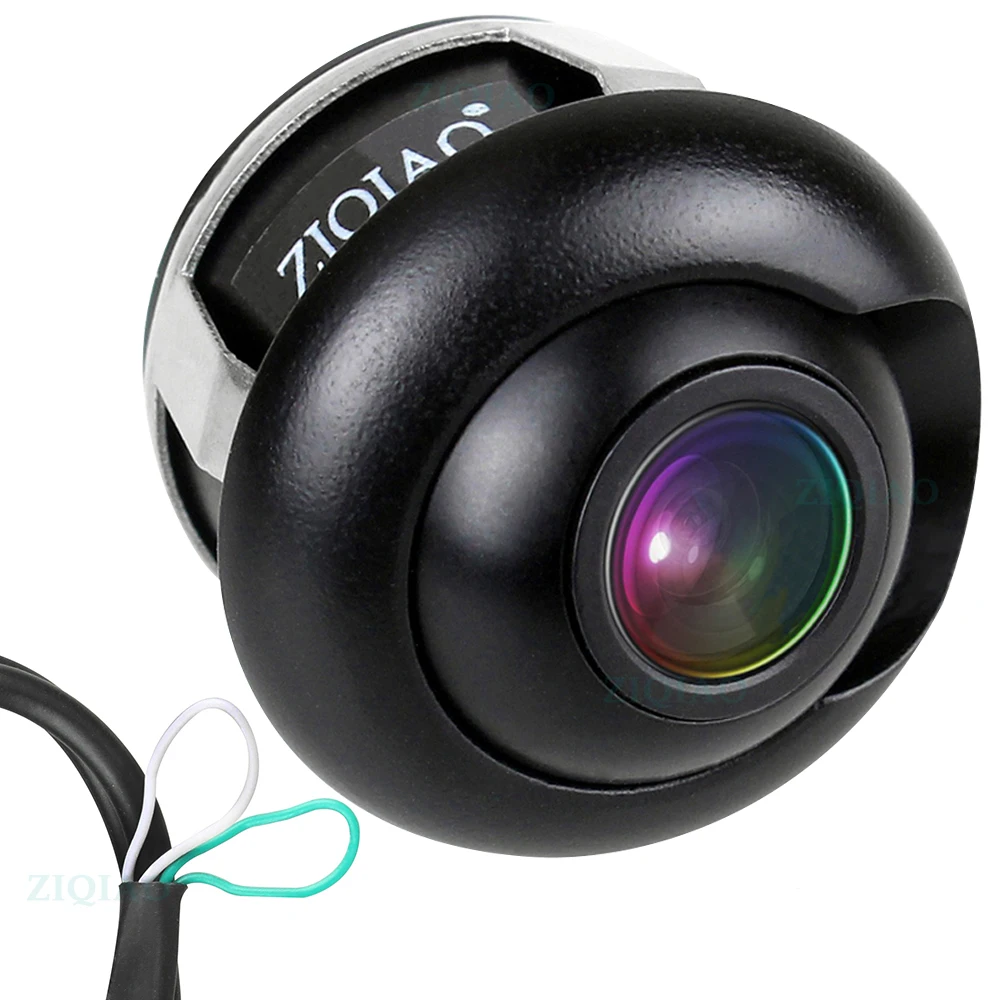

360° Rotate HD Night Vision Car Rear View Parking Camera

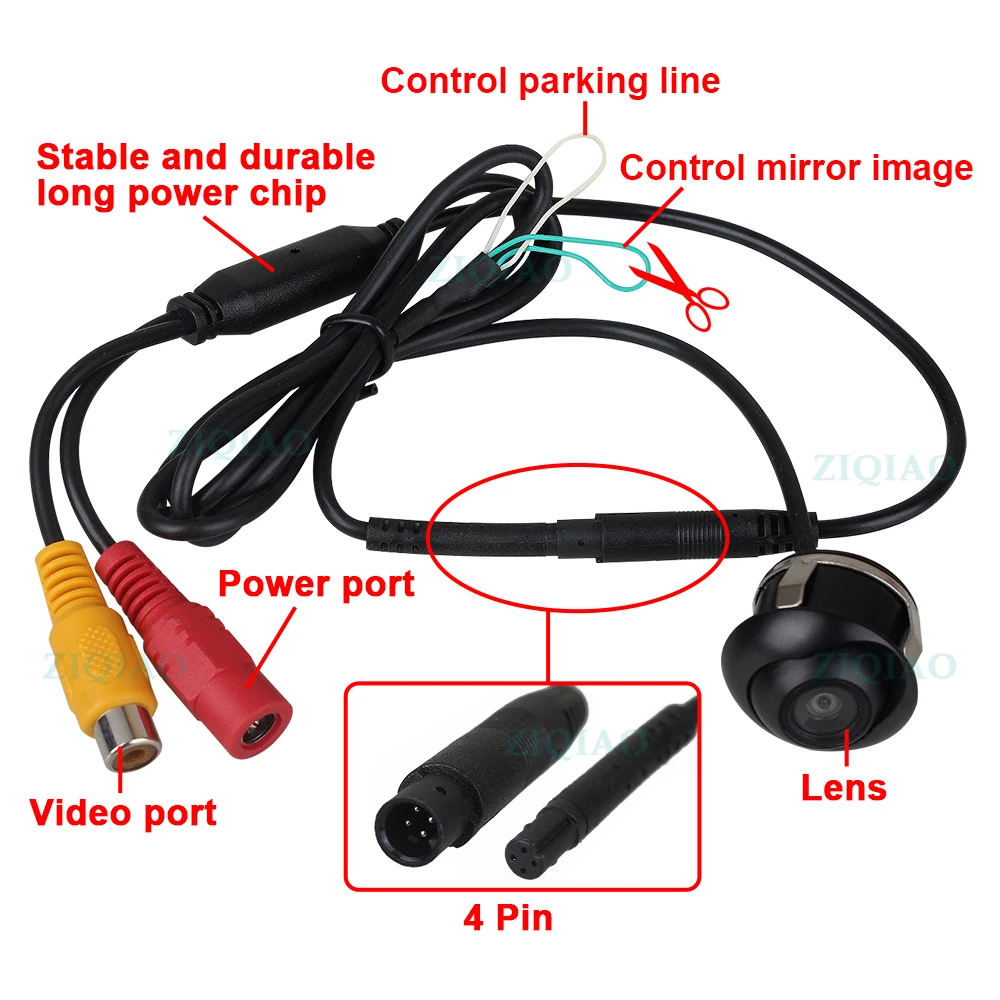

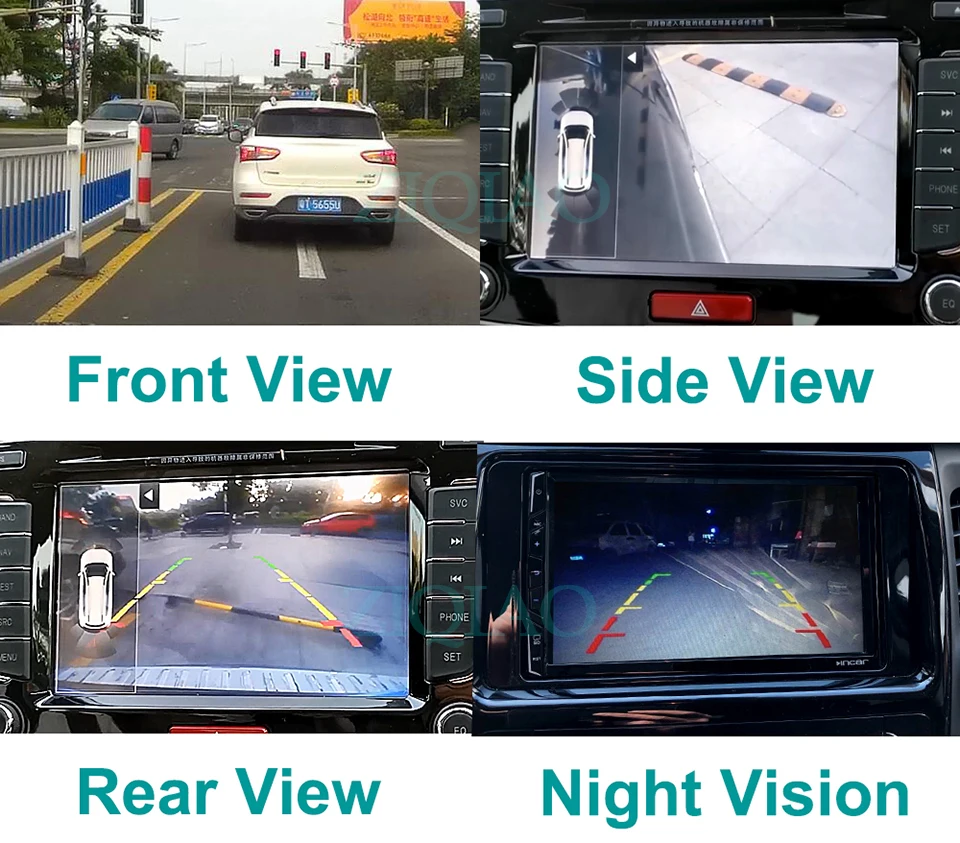

The camera can be used as a rear view/ front view/ side view. The default is a front (original image) camera without parking guide lines. There are white and green wires on the power cable of the camera. Cut off the white wire will turn on the parking guide line, cut off the green wire to convert the image into a rear view image. Please refer to the following usage method:

. If you need a front/side view camera without guide line, do not cut any lines.
. If you need rear view camera without parking aid ruler line, cut off the green line.
. If you need rear camera with parking aid ruler line, cut off the green and white lines.

Product parameters:

Menu: Brightness, Contrast, Chroma, Tint, Mode, Flip, Language, Reset
Aspect Ratio: 16:9, 4:3
Image flip adjustment: optional: up, down, left and right
Languages: Chinese, English, Japanese, Russian, Italian, Spanish, German, French, Polish, Dutch

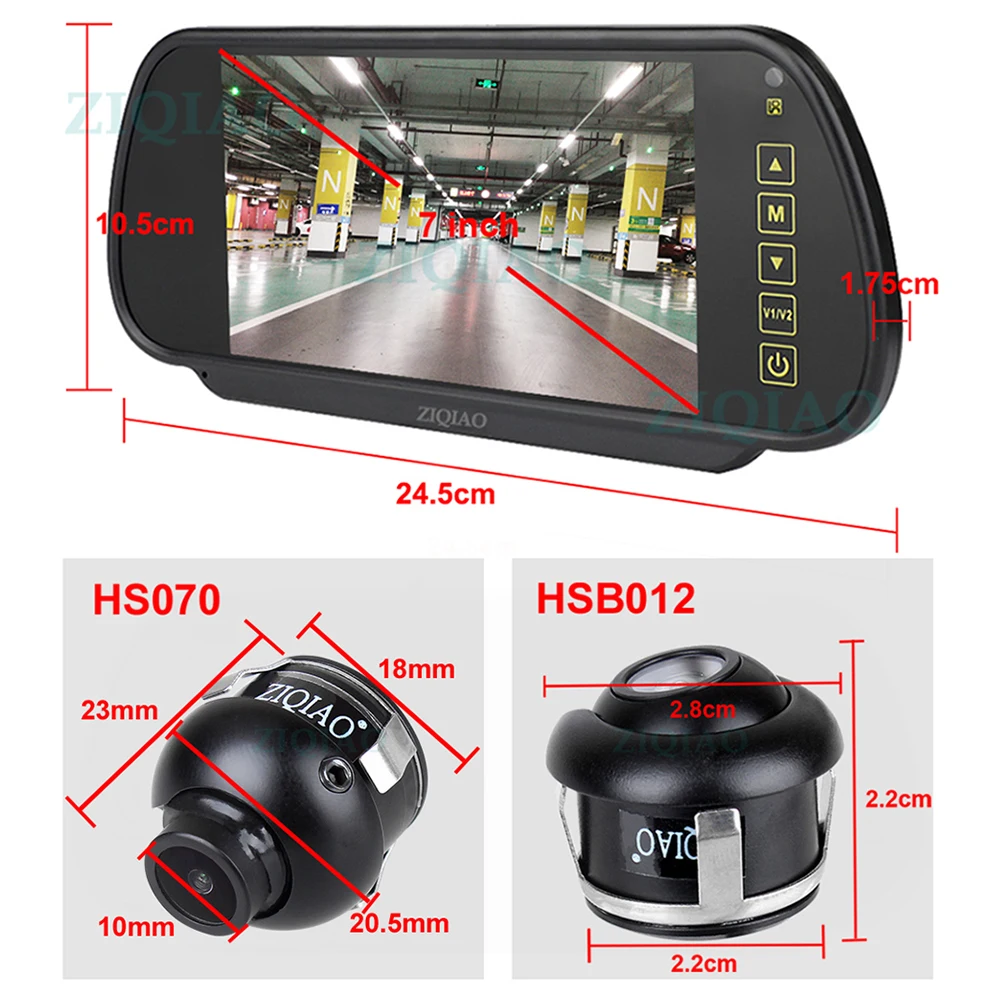

Product Size:

Due to manual measurement, there may be an error of 1-2mm.

Installation Method:

The installation instructions are for reference only. It is recommended that a professional installer install the camera.
