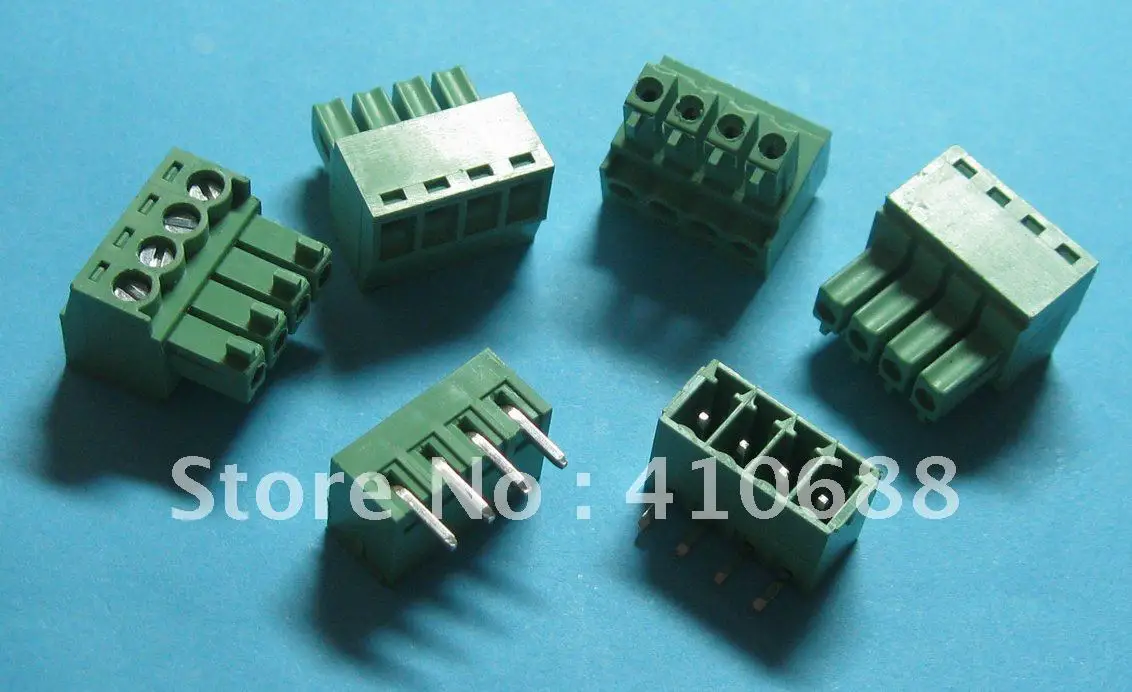

200 Pcs Pitch 3.5mm Angle 4way/pin Screw Terminal Block Connector Green Color T Pluggable Type | Обустройство дома



200 Pcs Pitch 3.5mm Angle 4way/pin Screw Terminal Block Connector Green Color T Pluggable Type



Quantity: 200 pcs
Condition: Brand New
Spec:

Material



- Housing: PA66 UL94V-0
- Contact: Phosphor bronze,Ni plated
- Solder pin: Brass,Tin plated
- Screw: M2 ,Steel,Zinc plated



Electrical



- Rated voltage: 300V
- Rated current: 8A
- Insulation resistance: 5000M?/1000V
- Contact resistance: 20m?
- Withstanding voltage: 2000V/1min
- Wire range: 26~16AWG



Mechanical & operating ambient



- Torque: 0.2Nm
- Strip length: 5~6mm
- Temp.Range: -40°C~+105°C
- MAX soldering: +250°C 5Sec



Part. No.: 15EDCK-15EDCR-3.5
