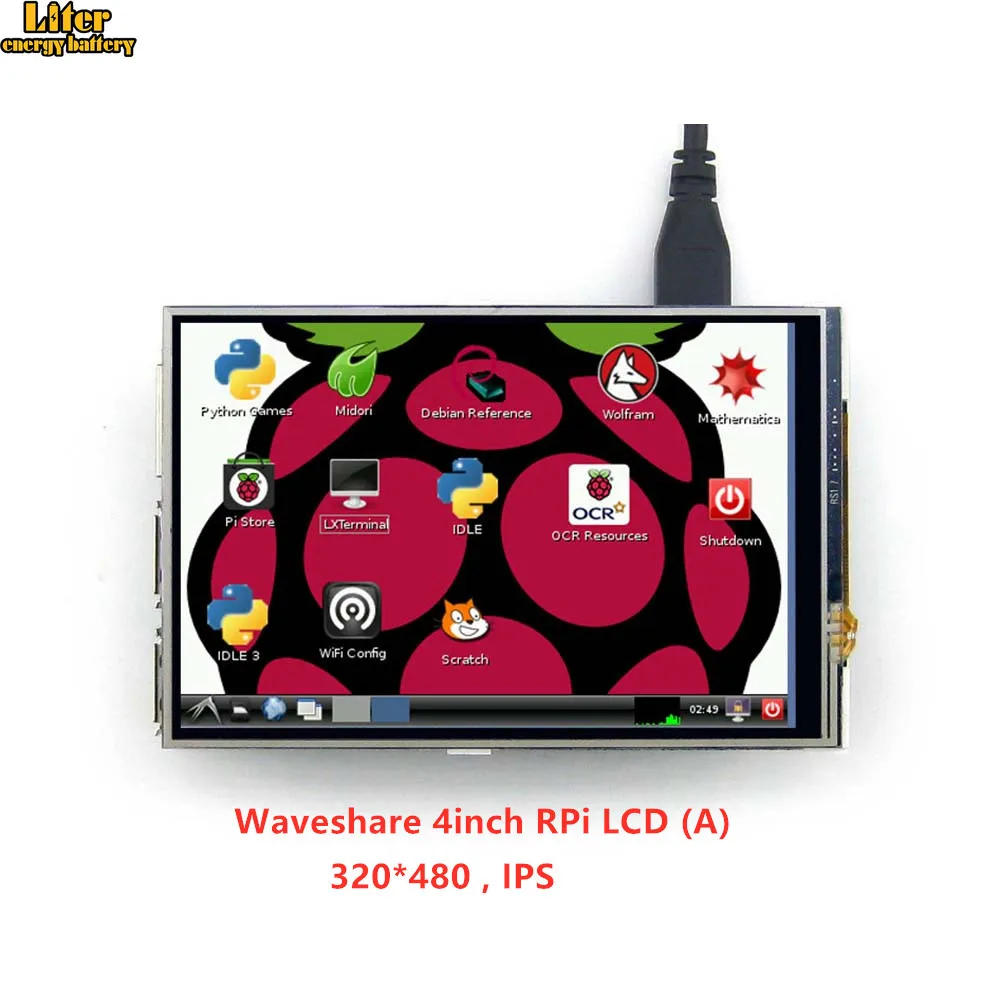

4inch RPi LCD (A) 320*480 TFT Resistive Touch Display Screen SPI Interface for all Rapsberry pi | Компьютеры и офис



Raspberry Pi LCD Display Module 4inch 320*480 TFT Resistive Touch Display Screen SPI Interface for Any Version of Rapsberry pi

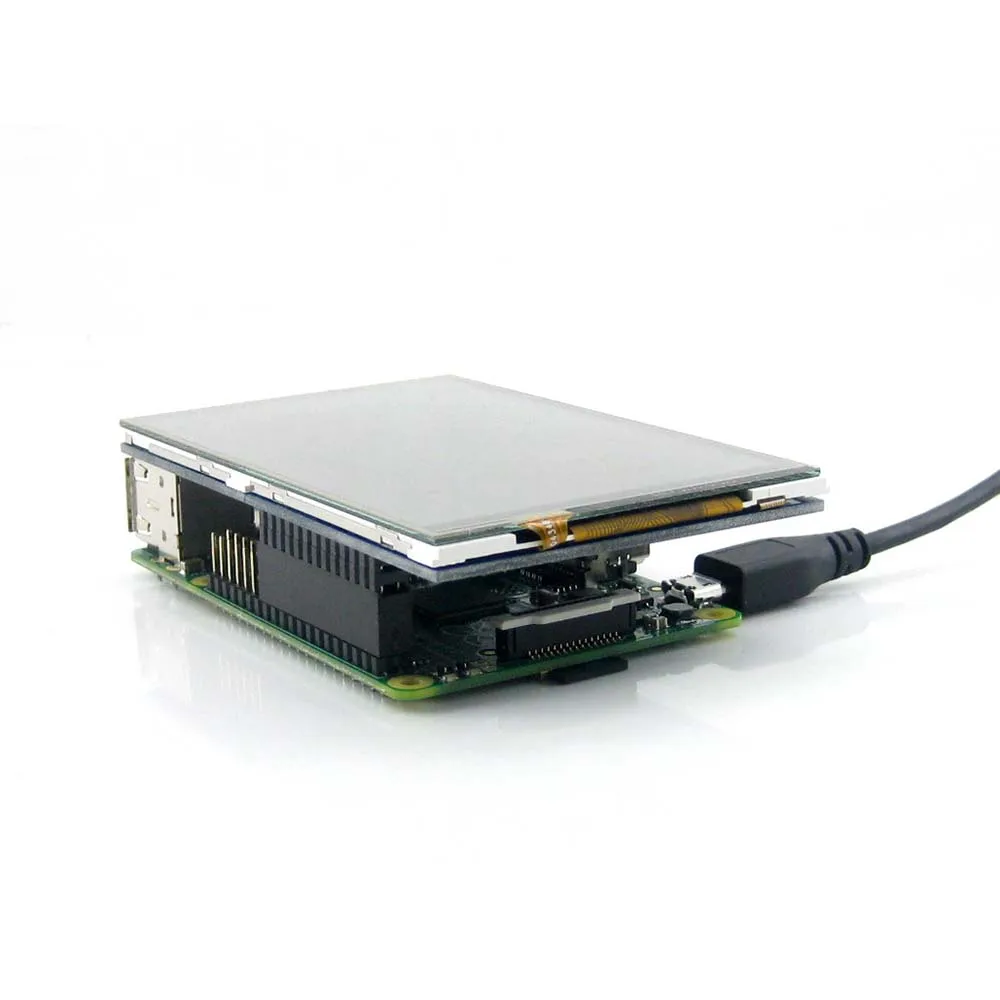

4 inch Touch Screen TFT LCD Designed for Raspberry Pi Features 480x320 hardware resolution Resistive touch control Supports any revision of Raspberry Pi (directly-pluggable) Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie) Supports FBCP software driver as well, allows to config software resolution and set up dual-display IPS technology, high quality and perfect displaying from very wide viewing angle Combined with the Raspberry Pi, allows you to: Take photos by touching (up to 17 camera modes) Use software keyboard (system interaction without keyboard/mouse) Key Parameters


Interface PIN NO. SYMBOL DESCRIPTION 1, 17 3.3V Power positive (3.3V power input) 2, 4 5V Power positive (5V power input) 3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC 6, 9, 14, 20, 25 GND Ground 11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching 18 LCD_RS Instruction/Data Register selection 19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel 21 TP_SO SPI data output of Touch Panel 22 RST Reset 23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel 24 LCD_CS LCD chip selection, low active 26 TP_CS Touch Panel chip selection, low active External Dimension   Downloads

Development resources:Image, schematic, dimension, software, etc.
Download: www.waveshare.com/wiki/4inch_RPi_LCD_(A)

FAQ Anti-Piracy



(Click to enlarge)

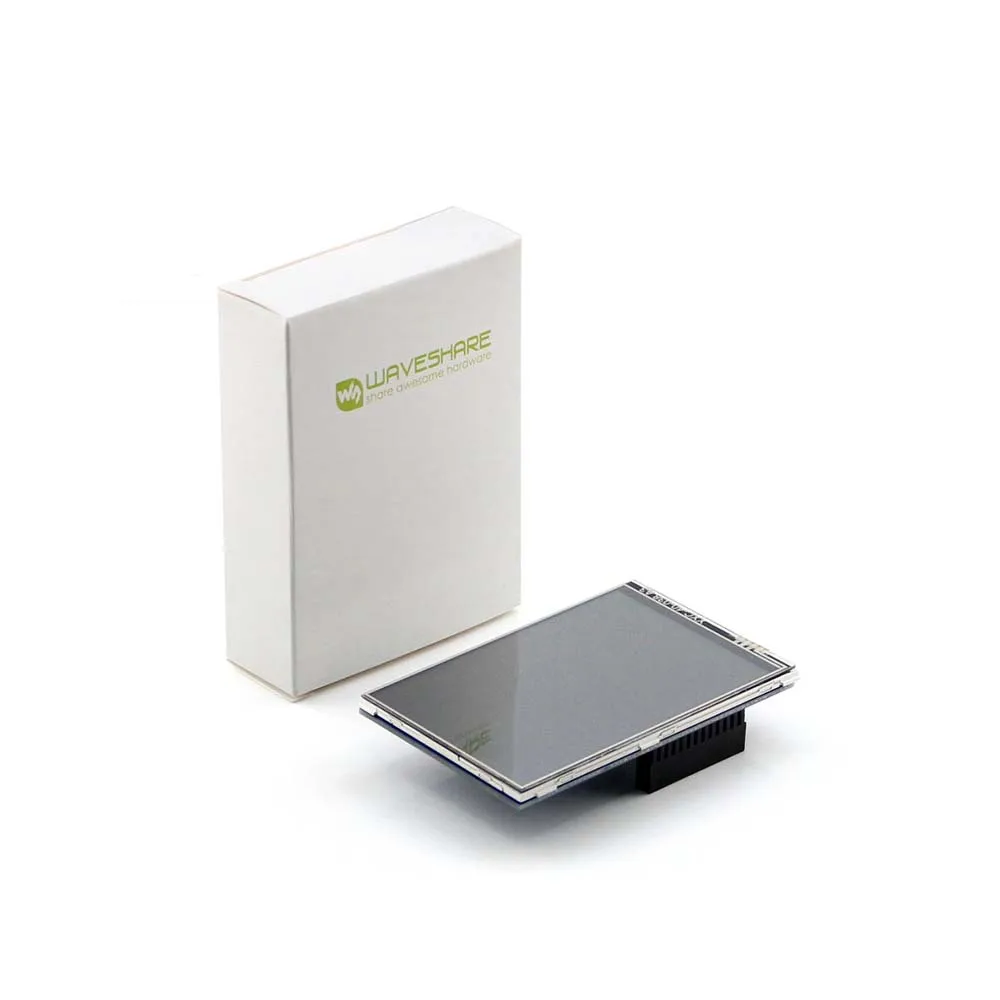

PACKAGE CONTENT

Weight: 0.088 kg

4inch RPi LCD (A) x 1 Touch pen x 1 RPi screws pack (2pcs) x 1
